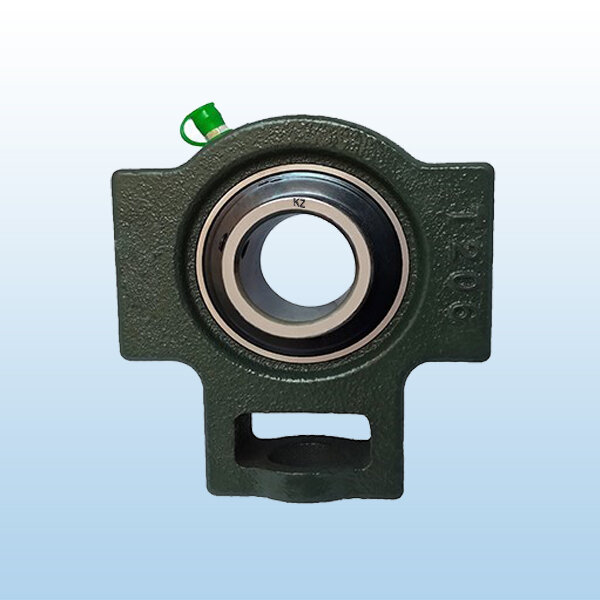

UCT

KZ SERIES : UCT 201, UCT 305

These are Wide Metric Slot Take-up Housing Units with taking up for threaded rod and nut, guided groove on both sides, and are relubricated. We are a widely recognized supplier and trader of a huge gamut of taking Up Unit Bearings (UCT) in India. These are sourced from the house of reliable vendors and manufactured with ultra-modern techniques. Superior performance at a cheaper market price. The UCT Take Up Unit has narrow machined grooves on either side to allow movement on suitably machined rails, and a tapped hole in the base to attach a threaded bar to facilitate the adjustment. They are typically used for conveyor roller tension systems.

Available in metric and inch sizes.

Applications and industry: AGRICULTUREAUTOMOTIVECEMENT INDUSTRYCRUSHER INDUSTRYHEAVY MACHINERY EQUIPMENTSHOME APPLIANCESMINING SECTORMETAL INDUSTRYFLUID MACHINERYTEXTILE INDUSTRY

Send Query WhatsApp Us

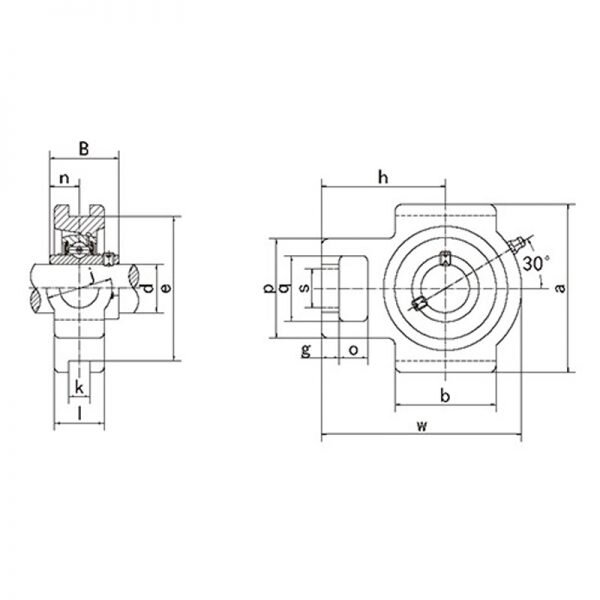

Bearing Number Inner Diameter (d) MM Outer Diameter (D) MM Width (B) MM w B Drawing k a l s g h j e n p Weight (KG) Housing No. Quality
UCT201 12 16 31 94 51 12 89 21 19 10 61 32 76 12.7 51 0.77 T201 32
UCT201-8 1/2 5/8 1.2205 3-11/16 2-1/64 15/32 3-1/2 53/64 3/4 25/64 2-13/32 1-1/4 2-63/64 0.5 2-1/64 0.76 T201 1-1/4
UCT202 15 16 31 94 51 12 89 21 19 10 61 32 76 12.7 51 0.76 T202 32
UCT202-9 9/16 5/8 1.2205 3-11/16 2-1/64 15/32 3-1/2 53/64 3/4 25/64 2-13/32 1-1/4 2-63/64 0.5 2-1/64 0.76 T202 1-1/4
UCT202-10 5/8 5/8 1.2205 3-11/16 2-1/64 15/32 3-1/2 53/64 3/4 25/64 2-13/32 1-1/4 2-63/64 0.5 2-1/64 0.76 T202 1-1/4
UCT203 17 16 31 94 51 12 89 21 19 10 61 32 76 12.7 51 0.75 T203 32
UCT203-11 11/16 5/8 1.2205 3-11/16 2-1/64 15/32 3-1/2 53/64 3/4 25/64 2-13/32 1-1/4 2-63/64 0.5 2-1/64 0.74 T203 1-1/4
UCT204 20 16 31 94 51 12 89 21 19 10 61 32 76 12.7 51 0.73 T204 32
UCT204-12 3/4 5/8 1.2205 3-11/16 2-1/64 15/32 3-1/2 53/64 3/4 25/64 2-13/32 1-1/4 2-63/64 0.5 2-1/64 0.73 T204 1-1/4
UCT205 25 16 34.1 97 51 12 89 24 19 10 62 32 76 14.3 51 0.8 T205 32
UCT205-13 13/16 5/8 1.3425 3-13/16 2-1/64 15/32 3-1/2 15/16 3/4 25/64 2-7/16 1-1/4 2-63/64 0.563 2-1/64 0.84 T205 1-1/4
UCT205-14 7/8 5/8 1.3425 3-13/16 2-1/64 15/32 3-1/2 15/16 3/4 25/64 2-7/16 1-1/4 2-63/64 0.563 2-1/64 0.83 T205 1-1/4
UCT205-15 15/16 5/8 1.3425 3-13/16 2-1/64 15/32 3-1/2 15/16 3/4 25/64 2-7/16 1-1/4 2-63/64 0.563 2-1/64 0.81 T205 1-1/4
UCT205-16 1 5/8 1.3425 3-13/16 2-1/64 15/32 3-1/2 15/16 3/4 25/64 2-7/16 1-1/4 2-63/64 0.563 2-1/64 0.8 T205 1-1/4
UCT206 30 16 38.1 113 57 12 102 28 22 10 70 37 89 15.9 56 1.22 T206 37
UCT206-17 1-1/16 5/8 1.5 4-29/64 2-1/4 15/32 4-1/64 1-3/32 55/64 25/64 2-3/4 1-29/64 3-1/2 0.626 2-7/32 1.23 T206 1-29/64
UCT206-18 1-1/8 5/8 1.5 4-29/64 2-1/4 15/32 4-1/64 1-3/32 55/64 25/64 2-3/4 1-29/64 3-1/2 0.626 2-7/32 1.24 T206 1-29/64
UCT206-19 1-3/16 5/8 1.5 4-29/64 2-1/4 15/32 4-1/64 1-3/32 55/64 25/64 2-3/4 1-29/64 3-1/2 0.626 2-7/32 1.22 T206 1-29/64
UCT206-20 1-1/4 5/8 1.5 4-29/64 2-1/4 15/32 4-1/64 1-3/32 55/64 25/64 2-3/4 1-29/64 3-1/2 0.626 2-7/32 1.21 T206 1-29/64
UCT207 35 16 42.9 129 64 12 102 30 22 13 78 37 89 17.5 64 1.57 T207 37
UCT207-20 1-1/4 5/8 1.689 5-5/64 2-33/64 15/32 4-1/64 1-3/16 55/64 33/64 3-5/64 1-29/64 3-1/2 0.689 2-33/64 1.63 T207 1-29/64
UCT207-21 1-5/16 5/8 1.689 5-5/64 2-33/64 15/32 4-1/64 1-3/16 55/64 33/64 3-5/64 1-29/64 3-1/2 0.689 2-33/64 1.6 T207 1-29/64
UCT207-22 1-3/8 5/8 1.689 5-5/64 2-33/64 15/32 4-1/64 1-3/16 55/64 33/64 3-5/64 1-29/64 3-1/2 0.689 2-33/64 1.57 T207 1-29/64
UCT207-23 1-7/16 5/8 1.689 5-5/64 2-33/64 15/32 4-1/64 1-3/16 55/64 33/64 3-5/64 1-29/64 3-1/2 0.689 2-33/64 1.54 T207 1-29/64
UCT208 40 19 49.2 144 83 16 114 33 29 16 89 49 102 19 83 2.31 T208 49
UCT208-24 1-1/2 3/4 1.937 5-43/64 3-17/64 5/8 4-31/64 1-19/64 1-9/64 5/8 3-1/2 1-15/16 4-1/64 0.748 3-17/64 2.35 T208 1-15/16
UCT208-25 1-9/16 3/4 1.937 5-43/64 3-17/64 5/8 4-31/64 1-19/64 1-9/64 5/8 3-1/2 1-15/16 4-1/64 0.748 3-17/64 2.32 T208 1-15/16
UCT209 45 19 49.2 144 83 16 117 35 29 16 87 49 102 19 83 2.34 T209 49
UCT209-26 1-5/8 3/4 1.937 5-43/64 3-17/64 5/8 4-39/64 1-3/8 1-9/64 5/8 3-27/64 1-15/16 4-1/64 0.748 3-17/64 2.44 T209 1-15/16
UCT209-27 1-11/16 3/4 1.937 5-43/64 3-17/64 5/8 4-39/64 1-3/8 1-9/64 5/8 3-27/64 1-15/16 4-1/64 0.748 3-17/64 2.4 T209 1-15/16
UCT209-28 1-3/4 3/4 1.937 5-43/64 3-17/64 5/8 4-39/64 1-3/8 1-9/64 5/8 3-27/64 1-15/16 4-1/64 0.748 3-17/64 2.36 T209 1-15/16
UCT210 50 19 51.6 149 86 16 117 37 29 16 90 49 102 19 83 2.47 T210 49
UCT210-29 1-13/16 3/4 2.0315 5-55/64 3-17/64 5/8 4-39/64 1-29/64 1-9/64 5/8 3-35/64 1-15/16 4-1/64 0.748 3-17/64 2.59 T210 1-15/16
UCT210-30 1-7/8 3/4 2.0315 5-55/64 3-17/64 5/8 4-39/64 1-29/64 1-9/64 5/8 3-35/64 1-15/16 4-1/64 0.748 3-17/64 2.54 T210 1-15/16
UCT210-31 1-15/16 3/4 2.0315 5-55/64 3-17/64 5/8 4-39/64 1-29/64 1-9/64 5/8 3-35/64 1-15/16 4-1/64 0.748 3-17/64 2.49 T210 1-15/16
UCT210-32 2 3/4 2.0315 5-55/64 3-17/64 5/8 4-39/64 1-29/64 1-9/64 5/8 3-35/64 1-15/16 4-1/64 0.748 3-17/64 2.45 T210 1-15/16
UCT211 55 25 55.6 171 95 22 146 38 35 19 106 64 130 22.2 102 3.74 T211 64
UCT211-32 2 63/64 2.189 6-47/64 3-3/4 55/64 5-3/4 1-1/2 1-3/8 3/4 4-11/64 2-33/64 5-1/8 0.874 4-1/64 3.89 T211 2-1/32
UCT211-33 2-1/16 63/64 2.189 6-47/64 3-3/4 55/64 5-3/4 1-1/2 1-3/8 3/4 4-11/64 2-33/64 5-1/8 0.874 4-1/64 3.83 T211 2-33/64
UCT211-34 2-1/8 63/64 2.189 6-47/64 3-3/4 55/64 5-3/4 1-1/2 1-3/8 3/4 4-11/64 2-33/64 5-1/8 0.874 4-1/64 3.79 T211 2-33/64
UCT211-35 2-3/16 63/64 2.189 6-47/64 3-3/4 55/64 5-3/4 1-1/2 1-3/8 3/4 4-11/64 2-33/64 5-1/8 0.874 4-1/64 3.72 T211 2-33/64
UCT212 60 32 65.1 194 102 22 146 42 35 19 119 64 130 25.4 102 4.58 T212 64
UCT212-36 2-1/4 1-17/64 2.563 7-41/64 4-1/64 55/64 5-3/4 1-21/32 1-3/8 3/4 4-11/16 2-33/64 5-1/8 1 4-1/64 4.71 T212 2-33/64
UCT212-37 2-5/16 1-17/64 2.563 7-41/64 4-1/64 55/64 5-3/4 1-21/32 1-3/8 3/4 4-11/16 2-33/64 5-1/8 1 4-1/64 4.63 T212 2-33/64
UCT212-38 2-3/8 1-17/64 2.563 7-41/64 4-1/64 55/64 5-3/4 1-21/32 1-3/8 3/4 4-11/16 2-33/64 5-1/8 1 4-1/64 4.56 T212 2-33/64
UCT212-39 2-7/16 1-17/64 2.563 7-41/64 4-1/64 55/64 5-3/4 1-21/32 1-3/8 3/4 4-11/16 2-33/64 5-1/8 1 4-1/64 4.49 T212 2-33/64
UCT213 65 32 65.1 224 121 26 167 44 41 21 137 70 151 25.4 111 6.6 T213 70
UCT213-40 2-1/2 1-17/64 2.563 8-13/16 4-49/64 1-1/32 6-37/64 1-23/32 1-39/64 53/64 5-25/64 2-3/4 5-15/16 1 4-3/8 6.69 T213 2-3/4
UCT213-41 2-9/16 1-17/64 2.563 8-13/16 4-49/64 1-1/32 6-37/64 1-23/32 1-39/64 53/64 5-25/64 2-3/4 5-15/16 1 4-3/8 6.6 T213 2-3/4
UCT214 70 32 74.6 224 121 26 167 46 41 21 137 70 151 30.2 111 6.74 T214 70
UCT214-42 2-5/8 1-17/64 2.937 8-13/16 4-49/64 1-1/32 6-37/64 1-13/16 1-39/64 53/64 5-25/64 2-3/4 5-15/16 1.189 4-3/8 6.95 T214 2-3/4
UCT214-43 2-11/16 1-17/64 2.937 8-13/16 4-49/64 1-1/32 6-37/64 1-13/16 1-39/64 53/64 5-25/64 2-3/4 5-15/16 1.189 4-3/8 6.85 T214 2-3/4
UCT214-44 2-3/4 1-17/64 2.937 8-13/16 4-49/64 1-1/32 6-37/64 1-13/16 1-39/64 53/64 5-25/64 2-3/4 5-15/16 1.189 4-3/8 6.75 T214 2-3/4
UCT215 75 32 77.8 232 121 26 167 48 41 21 140 70 151 33.3 111 7.19 T215 70
UCT215-45 2-13/16 1-17/64 3.063 9-9/64 4-49/64 1-1/32 6-37/64 1-57/64 1-39/64 53/64 5-33/64 2-3/4 5-15/16 1.311 4-3/8 7.19 T215 2-3/4
UCT215-46 2-7/8 1-17/64 3.063 9-9/64 4-49/64 1-1/32 6-37/64 1-57/64 1-39/64 53/64 5-33/64 2-3/4 5-15/16 1.311 4-3/8 7.44 T215 2-3/4
UCT215-47 2-15/16 1-17/64 3.063 9-9/64 4-49/64 1-1/32 6-37/64 1-57/64 1-39/64 53/64 5-33/64 2-3/4 5-15/16 1.311 4-3/8 7.33 T215 2-3/4
UCT215-48 3 1-17/64 3.063 9-9/64 4-49/64 1-1/32 6-37/64 1-57/64 1-39/64 53/64 5-33/64 2-3/4 5-15/16 1.311 4-3/8 7.13 T215 2-3/4
UCT216 80 32 82.6 235 121 26 184 51 41 21 140 70 165 33.3 111 8.08 T216 70
UCT216-49 3-1/16 1-17/64 3.252 9-1/4 4-49/64 1-1/32 7-1/4 2 1-39/64 53/64 5-33/64 2-3/4 6-1/2 1.311 4-3/8 8.26 T216 2-3/4
UCT216-50 3-1/8 1-17/64 9-1/4 4-49/64 1-1/32 7-1/4 2 1-39/64 53/64 5-33/64 2-3/4 6-1/2 4-3/8 8.13 T216 2-3/4
UCT216-51 3-3/16 1-17/64 9-1/4 4-49/64 1-1/32 7-1/4 2 1-39/64 53/64 5-33/64 2-3/4 6-1/2 4-3/8 8 T216 2-3/4
UCT217 85 38 260 157 30 198 54 48 29 162 73 173 124 10.66 T217 73
UCT217-52 3-1/4 1-1/2 10-15/64 6-3/16 1-3/16 7-51/64 2-1/8 1-57/64 1-9/64 6-3/8 2-7/8 6-13/16 4-7/8 10.78 T217 2-7/8
UCT217-53 3-5/16 1-1/2 10-15/64 6-3/16 1-3/16 7-51/64 2-1/8 1-57/64 1-9/64 6-3/8 2-7/8 6-13/16 4-7/8 10.74 T217 2-7/8
UCT217-55 3-7/16 1-1/2 10-15/64 6-3/16 1-3/16 7-51/64 2-1/8 1-57/64 1-9/64 6-3/8 2-7/8 6-13/16 4-7/8 10.45 T217 2-7/8
UCT218 90 40 275 140 30 215 55 48 30 170 80 190 130 12.19 T218 80
UCT218-56 3-1/2 1-37/64 3.7795 10-53/64 5-35/64 1-3/16 8-15/32 2-11/64 1-57/64 1-3/16 6-11/16 3-5/32 7-31/64 1.563 5-1/8 12.3 T218 3-5/32
UCT305 25 16 38 122 65 12 89 26 26 14 76 36 80 15 62 1.2 T305 36
UCT305-13 13/16 5/8 1.4961 4-13/16 2-9/16 0.472 3-1/2 1-1/32 1-1/32 9/16 3 1-13/32 3-5/32 0.591 2-7/16 1.2 T305 1-13/32
UCT305-14 7/8 5/8 1.4961 4-13/16 2-9/16 0.472 3-1/2 1-1/32 1-1/32 9/16 3 1-13/32 3-5/32 0.591 2-7/16 1.2 T305 1-13/32
UCT305-15 15/16 5/8 1.4961 4-13/16 2-9/16 0.472 3-1/2 1-1/32 1-1/32 9/16 3 1-13/32 3-5/32 0.591 2-7/16 1.2 T305 1-13/32
UCT305-16 1 5/8 1.4961 4-13/16 2-9/16 0.472 3-1/2 1-1/32 1-1/32 9/16 3 1-13/32 3-5/32 0.591 2-7/16 1.2 T305 1-13/32
UCT306 30 18 43 137 74 16 100 28 28 16 85 41 90 17 70 1.7 T306 41
UCT306-17 1-1/16 23/32 1.6929 5-13/32 2-29/32 0.63 3-15/16 1-3/32 1-3/32 5/8 3-11/32 1-5/8 3-35/64 0.669 2-3/4 1.7 T306 1-5/8
UCT306-18 1-1/8 23/32 1.6929 5-13/32 2-29/32 0.63 3-15/16 1-3/32 1-3/32 5/8 3-11/32 1-5/8 3-35/64 0.669 2-3/4 1.7 T306 1-5/8
UCT306-19 1-3/16 23/32 1.6929 5-13/32 2-29/32 0.63 3-15/16 1-3/32 1-3/32 5/8 3-11/32 1-5/8 3-35/64 0.669 2-3/4 1.7 T306 1-5/8
UCT307 35 20 48 150 80 16 111 32 30 17 94 45 100 19 75 2.3 T307 45
UCT307-20 1-1/4 12/32 1.8898 5-29/32 3-5/32 0.63 4-3/8 1-1/4 1-3/16 43/64 3-11/16 1-25/32 3-15/16 0.748 2-15/16 2.3 T307 1-25/32
UCT307-21 1-5/16 12/32 1.8898 5-29/32 3-5/32 0.63 4-3/8 1-1/4 1-3/16 43/64 3-11/16 1-25/32 3-15/16 0.748 2-15/16 2.3 T307 1-25/32
UCT307-22 1-3/8 12/32 1.8898 5-29/32 3-5/32 0.63 4-3/8 1-1/4 1-3/16 43/64 3-11/16 1-25/32 3-15/16 0.748 2-15/16 2.3 T307 1-25/32
UCT307-23 1-7/16 12/32 1.8898 5-29/32 3-5/32 0.63 4-3/8 1-1/4 1-3/16 43/64 3-11/16 1-25/32 3-15/16 0.748 2-15/16 2.3 T307 1-25/32
UCT308 40 22 52 162 89 18 124 34 32 19 100 50 112 19 83 2.9 T308 50
UCT308-24 1-1/2 7/8 2.0472 6-3/8 3-1/2 0.709 4-7/8 1-11/32 1-1/4 3/4 3-15/16 1-31/32 4-13/32 0.748 3-17/64 2.9 T308 1-31/32
UCT308-25 1-9/16 7/8 2.0472 6-3/8 3-1/2 0.709 4-7/8 1-11/32 1-1/4 3/4 3-15/16 1-31/32 4-13/32 0.748 3-17/64 2.9 T308 1-31/32
UCT309 45 24 57 178 97 18 138 38 34 20 110 55 125 22 90 4 T309 55
UCT309-26 1-5/8 15/16 2.2441 7 3-13/16 0.709 5-7/16 1-1/2 1-11/32 25/32 4-11/32 2-5/32 4-59/64 0.866 3-17/32 4 T309 2-5/32
UCT309-27 1-11/16 15/16 2.2441 7 3-13/16 0.709 5-7/16 1-1/2 1-11/32 25/32 4-11/32 2-5/32 4-59/64 0.866 3-17/32 4 T309 2-5/32
UCT309-28 1-3/4 15/16 2.2441 7 3-13/16 0.709 5-7/16 1-1/2 1-11/32 25/32 4-11/32 2-5/32 4-59/64 0.866 3-17/32 4 T309 2-5/32
UCT310 50 27 61 192 106 20 151 40 37 22 118 61 140 22 98 5 T310 61
UCT310-29 1-13/16 1-1/16 2.4016 7-9/16 4-3/16 0.787 5-15/16 1-9/16 1-15/32 7/8 4-21/32 2-13/32 5-33/64 0.866 3-27/32 5 T310 2-13/32
UCT310-30 1-7/8 1-1/16 2.4016 7-9/16 4-3/16 0.787 5-15/16 1-9/16 1-15/32 7/8 4-21/32 2-13/32 5-33/64 0.866 3-27/32 5 T310 2-13/32
UCT310-31 1-15/16 1-1/16 2.4016 7-9/16 4-3/16 0.787 5-15/16 1-9/16 1-15/32 7/8 4-21/32 2-13/32 5-33/64 0.866 3-27/32 5 T310 2-13/32
UCT311 55 29 66 207 115 22 163 44 39 23 127 66 150 25 105 6.2 T311 66
UCT311-32 2 1-5/32 2.5984 8-5/32 4-17/32 0.866 6-13/32 1-23/32 1-17/32 29/32 5 2-19/32 5-29/32 0.984 4-1/8 6.2 T311 2-19/32
UCT311-33 2-1/16 1-5/32 2.5984 8-5/32 4-17/32 0.866 6-13/32 1-23/32 1-17/32 29/32 5 2-19/32 5-29/32 0.984 4-1/8 6.2 T311 2-19/32
UCT311-34 2-1/8 1-5/32 2.5984 8-5/32 4-17/32 0.866 6-13/32 1-23/32 1-17/32 29/32 5 2-19/32 5-29/32 0.984 4-1/8 6.2 T311 2-19/32
UCT311-35 2-3/16 1-5/32 2.5984 8-5/32 4-17/32 0.866 6-13/32 1-23/32 1-17/32 29/32 5 2-19/32 5-29/32 0.984 4-1/8 6.2 T311 2-19/32
UCT312 60 31 71 220 123 22 178 46 41 25 135 71 160 26 113 7.5 T312 71
UCT312-36 2-1/4 1-7/32 2.7953 8-21/32 4-27/32 0.866 7 1-13/16 1-5/8 31/32 5-5/16 2-25/32 6-19/64 1.024 4-7/16 7.5 T312 2-25/32
UCT312-37 2-5/16 1-7/32 2.7953 8-21/32 4-27/32 0.866 7 1-13/16 1-5/8 31/32 5-5/16 2-25/32 6-19/64 1.024 4-7/16 7.5 T312 2-25/32
UCT312-38 2-3/8 1-7/32 2.7953 8-21/32 4-27/32 0.866 7 1-13/16 1-5/8 31/32 5-5/16 2-25/32 6-19/64 1.024 4-7/16 7.5 T312 2-25/32
UCT312-39 2-7/16 1-7/32 2.7953 8-21/32 4-27/32 0.866 7 1-13/16 1-5/8 31/32 5-5/16 2-25/32 6-19/64 1.024 4-7/16 7.5 T312 2-25/32
UCT313 65 32 75 238 134 26 190 50 43 27 146 80 170 30 116 9.3 T313 70
UCT313-40 2-1/2 1-17/64 2.9528 9-3/8 5-9/32 1.024 7-15/32 1-31/32 1-11/16 1-1/16 5-3/4 3-5/32 6-11/16 1.181 4-9/16 9.3 T313 2-3/4
UCT313-41 2-9/16 1-17/64 2.9528 9-3/8 5-9/32 1.024 7-15/32 1-31/32 1-11/16 1-1/16 5-3/4 3-5/32 6-11/16 1.181 4-9/16 9.3 T313 2-3/4
UCT314 70 36 78 252 140 26 202 52 46 27 155 90 180 33 130 10.9 T314 85
UCT314-42 2-5/8 1-13/32 3.0708 9-29/32 5-1/2 1.024 7-15/16 2-1/16 1-13/16 1-1/16 6-3/32 3-17/32 7-3/32 1.299 5-1/8 10.9 T314 3-11/32
UCT314-43 2-11/16 1-13/32 3.0708 9-29/32 5-1/2 1.024 7-15/16 2-1/16 1-13/16 1-1/16 6-3/32 3-17/32 7-3/32 1.299 5-1/8 10.9 T314 3-11/32
UCT314-44 2-3/4 1-13/32 3.0708 9-29/32 5-1/2 1.024 7-15/16 2-1/16 1-13/16 1-1/16 6-3/32 3-17/32 7-3/32 1.299 5-1/8 10.9 T314 3-11/32
UCT315 75 36 82 262 150 26 216 55 46 27 160 90 192 32 132 12.7 T315 85
UCT315-45 2-13/16 1-13/32 3.2283 10-5/16 5-29/32 1.024 8-1/2 2-5/32 1-13/16 1-1/16 6-5/16 3-17/32 7-9/16 1.26 5-3/16 12.7 T315 3-11/32
UCT315-46 2-7/8 1-13/32 3.2283 10-5/16 5-29/32 1.024 8-1/2 2-5/32 1-13/16 1-1/16 6-5/16 3-17/32 7-9/16 1.26 5-3/16 12.7 T315 3-11/32
UCT315-47 2-15/16 1-13/32 3.2283 10-5/16 5-29/32 1.024 8-1/2 2-5/32 1-13/16 1-1/16 6-5/16 3-17/32 7-9/16 1.26 5-3/16 12.7 T315 3-11/32
UCT315-48 3 1-13/32 3.2283 10-5/16 5-29/32 1.024 8-1/2 2-5/32 1-13/16 1-1/16 6-5/16 3-17/32 7-9/16 1.26 5-3/16 12.7 T315 3-11/32
UCT316 80 42 86 282 160 30 230 60 53 30 174 102 204 34 150 15.8 T316 98
UCT316-49 3-1/16 1-21/32 3.3858 11-3/32 6-5/6 1.181 9-1/16 2-3/8 2-3/32 1-3/16 6-27/32 4-1/32 8-1/32 1.26 5-29/32 15.8 T316 3-27/32
UCT316-50 3-1/8 1-21/32 3.3858 11-3/32 6-5/6 1.181 9-1/16 2-3/8 2-3/32 1-3/16 6-27/32 4-1/32 8-1/32 1.26 5-29/32 15.8 T316 3-27/32
UCT316-51 3-3/16 1-21/32 3.3858 11-3/32 6-5/6 1.181 9-1/16 2-3/8 2-3/32 1-3/16 6-27/32 4-1/32 8-1/32 1.26 5-29/32 15.8 T316 3-27/32
UCT317 85 42 96 298 170 32 240 64 53 32 183 102 214 40 152 18.6 T317 98
UCT317-52 3-1/4 1-21/32 3.7795 11-23/32 6-11/16 1.26 9-7/16 2-33/64 2-3/32 1-1/4 7-7/32 4-1/32 8-27/64 1.575 5-31/32 18.6 T317 3-27/32
UCT317-53 3-5/16 1-21/32 3.7795 11-23/32 6-11/16 1.26 9-7/16 2-17/32 2-3/32 1-1/4 7-7/32 4-1/32 8-27/64 1.575 5-31/32 18.6 T317 3-27/32
UCT317-55 3-7/16 1-21/32 3.7795 11-23/32 6-11/16 1.26 9-7/16 2-33/64 2-3/32 1-1/4 7-7/32 4-1/32 8-27/64 1.575 5-31/32 18.6 T317 3-27/32
UCT317-60 3-3/4 1-13/16 4.0551 12-11/16 7-3/32 1.378 10-5/8 2-27/32 2-1/4 1-5/16 7-3/4 4-11/32 9-29/64 1.614 6-1/2 24.6 T319 4-3/16
UCT318 90 46 96 312 175 32 255 66 57 32 192 110 228 40 160 21 T318 106
UCT318-55 3-7/16 1-13/16 3.7795 12-9/32 6-7/8 1.26 10-1/32 2-19/32 2-1/4 1-1/4 7-9/16 4-11/32 8-31/32 1.575 6-5/16 21 T318 4-3/16
UCT318-56 3-1/2 1-13/16 3.7795 12-9/32 6-7/8 1.26 10-1/32 2-19/32 2-1/4 1-1/4 7-9/16 4-11/32 8-31/32 1.575 6-5/16 21 T318 4-3/16
UCT319 95 46 103 322 180 35 270 72 57 33 197 110 240 41 165 24.6 T319 106
UCT319-58 3-5/8 1-13/16 4.0551 12-11/16 7-3/32 1.378 10-5/8 2-27/32 2-1/4 1-5/16 7-3/4 4-11/32 9-29/64 1.614 6-1/2 24.6 T319 4-3/16
UCT319-59 3-11/16 1-13/16 4.0551 12-11/16 7-3/32 1.378 10-5/8 2-27/32 2-1/4 1-5/16 7-3/4 4-11/32 9-29/64 1.614 6-1/2 24.6 T319
