UCP 200 UCP201

Technical Details

Bore Diameter (mm) d	Outer Diameter (mm) D	Width (mm) B	Weight (Kg)
12			0.65

KZ SERIES : UCP 201

UCP Bearing UCP201 are Pillow Block Housing having reinforced ears with Two Slotted holes for fixing and are re-lubricatable.

Available in Metric and Inch sizes

Send query Buy Now

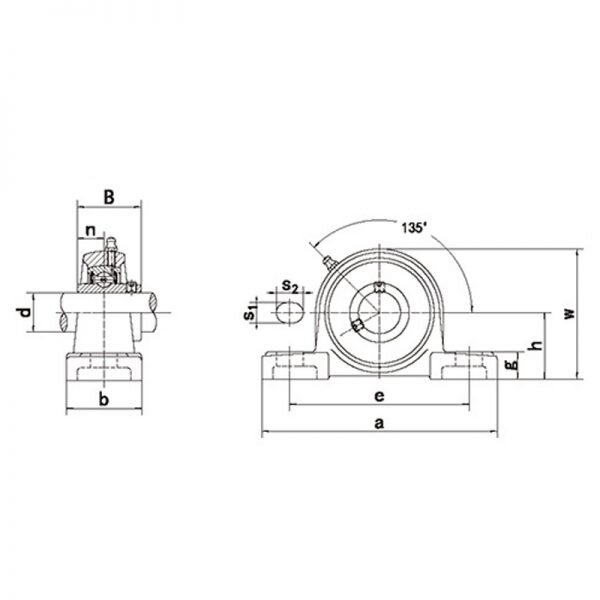

Bearing Number	Inner Diameter (d) MM	Dimension-B1 (MM)	w	B Drawing	a	g	h	e	n	Bolt Size (MM)	t	s1	s2	Weight (KG)	Housing No.
UCP201	12	31	62	38	127	14	30.2	95	12.7	M10	44.5	13	19	0.65	P201
UCP201-8	1/2	1.2205	2-7/16	1-1/2	5	9/16	1-3/16	3-3/4	0.5	3/8	1-3/4	1/2	3/4	0.64	P201
UCP202	15	31	62	38	127	14	30.2	95	12.7	M10	44.5	13	19	0.64	P202
UCP202-9	9/16	1.2205	2-7/16	1-1/2	5	9/16	1-3/16	3-3/4	0.5	3/8	1-3/4	1/2	3/4	0.64	P202
UCP202-10	5/8	1.2205	2-7/16	1-1/2	5	9/16	1-3/16	3-3/4	0.5	3/8	1-3/4	1/2	3/4	0.64	P202
UCP203	17	31	62	38	127	14	30.2	95	12.7	M10	44.5	13	19	0.63	P203
UCP203-11	11/16	1.2205	2-7/16	1-1/2	5	9/16	1-3/16	3-3/4	0.5	3/8	1-3/4	1/2	3/4	0.62	P203
UCP204	20	31	65	38	127	14	33.3	95	12.7	M10	44.5	13	19	0.64	P204
UCP204-12	3/4	1.2205	2-9/16	1-1/2	5	9/16	1-5/16	3-3/4	0.5	3/8	1-3/4	1/2	3/4	0.64	P204
UCP205	25	34.1	71	38	140	15	36.5	105	14.3	M10	48	13	19	0.76	P205
UCP205-13	13/16	1.3425	2-25/32	1-1/2	5-1/2	19/32	1-7/16	4-1/8	0.563	3/8	1-57/64	1/2	3/4	0.8	P205
UCP205-14	7/8	1.3425	2-25/32	1-1/2	5-1/2	19/32	1-7/16	4-1/8	0.563	3/8	1-57/64	1/2	3/4	0.79	P205
UCP205-15	15/16	1.3425	2-25/32	1-1/2	5-1/2	19/32	1-7/16	4-1/8	0.563	3/8	1-57/64	1/2	3/4	0.77	P205
UCP205-16	1	1.3425	2-25/32	1-1/2	5-1/2	19/32	1-7/16	4-1/8	0.563	3/8	1-57/64	1/2	3/4	0.76	P205
UCP206	30	38.1	84	44	160	17	42.9	121	15.9	M14	53	17	20	1.2	P206
UCP206-17	1-1/16	1.5	3-5/16	1-47/64	6-19/64	21/32	1-11/16	4-3/4	0.626	1/2	2-5/64	43/64	25/32	1.21	P206
UCP206-19	1-3/16	1.5	3-5/16	1-47/64	6-19/64	21/32	1-11/16	4-3/4	0.626	1/2	2-5/64	43/64	25/32	1.2	P206
UCP206-18	1-1/8	1.5	3-5/16	1-47/64	6-19/64	21/32	1-11/16	4-3/4	0.626	1/2	2-5/64	43/64	25/32	1.22	P206
UCP206-20	1-1/4	1.5	3-5/16	1-47/64	6-19/64	21/32	1-11/16	4-3/4	0.626	1/2	2-5/64	43/64	25/32	1.19	P206
UCP207	35	42.9	93	48	167	18	47.6	127	17.5	M14	59.5	17	20	1.46	P207
UCP207-20	1-1/4	1.689	3-21/32	1-7/8	6-9/16	45/64	1-7/8	5	0.689	1/2	2-11/32	43/64	25/32	1.53	P207
UCP207-21	1-5/16	1.689	3-21/32	1-7/8	6-9/16	45/64	1-7/8	5	0.689	1/2	2-11/32	43/64	25/32	1.5	P207
UCP207-22	1-3/8	1.689	3-21/32	1-7/8	6-9/16	45/64	1-7/8	5	0.689	1/2	2-11/32	43/64	25/32	1.47	P207
UCP207-23	1-7/16	1.689	3-21/32	1-7/8	6-9/16	45/64	1-7/8	5	0.689	1/2	2-11/32	43/64	25/32	1.44	P207
UCP208	40	49.2	100	54	184	18	49.2	137	19	M14	69	17	20	1.86	P208
UCP208-24	1-1/2	1.937	3-15/16	2-1/8	7-1/4	45/64	1-15/16	5-13/32	0.748	1/2	2-23/32	43/64	25/32	1.9	P208
UCP208-25	1-9/16	1.937	3-15/16	2-1/8	7-1/4	45/64	1-15/16	5-13/32	0.748	1/2	2-23/32	43/64	25/32	1.87	P208
UCP209	45	49.2	106	54	190	20	54	146	19	M14	69	17	20	2.06	P209
UCP209-26	1-5/8	1.937	4-11/64	2-1/8	7-15/32	25/32	2-1/8	5-3/4	0.748	1/2	2-23/32	43/64	25/32	2.16	P209
UCP209-27	1-11/16	1.937	4-11/64	2-1/8	7-15/32	25/32	2-1/8	5-3/4	0.748	1/2	2-23/32	43/64	25/32	2.12	P209
UCP209-28	1-3/4	1.937	4-11/64	2-1/8	7-15/32	25/32	2-1/8	5-3/4	0.748	1/2	2-23/32	43/64	25/32	2.08	P209
UCP210	50	51.6	113	60	206	21	57.2	159	19	M16	74.5	20	23	2.61	P210
UCP210-30	1-7/8	2.0315	4-29/64	2-3/8	8-1/8	53/64	2-1/4	6-1/4	0.748	5/8	2-15/16	25/32	29/32	2.68	P210
UCP210-29	1-13/16	2.0315	4-29/64	2-3/8	8-1/8	53/64	2-1/4	6-1/4	0.748	5/8	2-15/16	25/32	29/32	2.73	P210
UCP210-31	1-15/16	2.0315	4-29/64	2-3/8	8-1/8	53/64	2-1/4	6-1/4	0.748	5/8	2-15/16	25/32	29/32	2.63	P210
UCP210-32	2	2.0315	4-29/64	2-3/8	8-1/8	53/64	2-1/4	6-1/4	0.748	5/8	2-15/16	25/32	29/32	2.59	P210
UCP211	55	55.6	125	60	219	23	63.5	171	22.2	M16	76	20	23	3.23	P211
UCP211-32	2	2.189	4-59/64	2-3/8	8-5/8	29/32	2-1/2	6-47/64	0.874	5/8	3	25/32	29/32	3.38	P211
UCP211-33	2-1/16	2.189	4-59/64	2-3/8	8-5/8	29/32	2-1/2	6-47/64	0.874	5/8	3	25/32	29/32	3.32	P211
UCP211-34	2-1/8	2.189	4-59/64	2-3/8	8-5/8	29/32	2-1/2	6-47/64	0.874	5/8	3	25/32	29/32	3.28	P211
UCP211-35	2-3/16	2.189	4-59/64	2-3/8	8-5/8	29/32	2-1/2	6-47/64	0.874	5/8	3	25/32	29/32	3.21	P211
UCP212	60	65.1	138	70	241	25	69.8	184	25.4	M16	89	20	23	4.4	P212
UCP212-36	2-1/4	2.563	5-7/16	2-3/4	9-1/2	63/64	2-3/4	7-1/4	1	5/8	3-1/2	25/32	29/32	4.57	P212
UCP212-37	2-5/16	2.563	5-7/16	2-3/4	9-1/2	63/64	2-3/4	7-1/4	1	5/8	3-1/2	25/32	29/32	4.49	P212
UCP212-38	2-3/8	2.563	5-7/16	2-3/4	9-1/2	63/64	2-3/4	7-1/4	1	5/8	3-1/2	25/32	29/32	4.42	P212
UCP212-39	2-7/16	2.563	5-7/16	2-3/4	9-1/2	63/64	2-3/4	7-1/4	1	5/8	3-1/2	25/32	29/32	4.35	P212
UCP213	65	65.1	150	70	265	27	76.2	203	25.4	M20	89	25	28	5.35	P213
UCP213-40	2-1/2	2.563	5-29/32	2-3/4	10-7/16	1-1/16	3	8	1	3/4	3-1/2	63/64	1-3/32	5.44	P213
UCP213-41	2-9/16	2.563	5-29/32	2-3/4	10-7/16	1-1/16	3	8	1	3/4	3-1/2	63/64	1-3/32	5.35	P213
UCP214	70	74.6	156	72	266	27	79.4	210	30.2	M20	98	25	28	5.86	P214
UCP214-42	2-5/8	2.937	6-9/64	2-27/32	10-15/32	1-1/16	3-1/8	8-17/64	1.189	3/4	3-55/64	63/64	1-3/32	6.07	P214
UCP214-43	2-11/16	2.937	6-9/64	2-27/32	10-15/32	1-1/16	3-1/8	8-17/64	1.189	3/4	3-55/64	63/64	1-3/32	5.97	P214
UCP214-44	2-3/4	2.937	6-9/64	2-27/32	10-15/32	1-1/16	3-1/8	8-17/64	1.189	3/4	3-55/64	63/64	1-3/32	5.87	P214
UCP215	75	77.8	162	74	275	28	82.6	217	33.3	M20	99	25	28	6.45	P215
UCP215-45	2-13/16	3.063	6-3/8	2-29/32	10-53/64	1-3/32	3-1/4	8-35/64	1.311	3/4	3-57/64	63/64	1-3/32	6.45	P215
UCP215-46	2-7/8	3.063	6-3/8	2-29/32	10-53/64	1-3/32	3-1/4	8-35/64	1.311	3/4	3-57/64	63/64	1-3/32	6.7	P215
UCP215-47	2-15/16	3.063	6-3/8	2-29/32	10-53/64	1-3/32	3-1/4	8-35/64	1.311	3/4	3-57/64	63/64	1-3/32	6.59	P215
UCP215-48	3	3.063	6-3/8	2-29/32	10-53/64	1-3/32	3-1/4	8-35/64	1.311	3/4	3-57/64	63/64	1-3/32	6.39	P215
UCP216	80	82.6	174	78	292	30	88.9	232	33.3	M20	109	25	28	7.86	P216
UCP216-49	3-1/16	3.252	6-27/32	3-1/16	11-1/2	1-3/16	3-1/2	9-1/8	1.311	3/4	4-19/64	63/64	1-3/32	8.04	P216
UCP216-50	3-1/8	3.252	6-27/32	3-1/16	11-1/2	1-3/16	3-1/2	9-1/8	1.311	3/4	4-19/64	63/64	1-3/32	7.91	P216
UCP216-51	3-3/16	3.252	6-27/32	3-1/16	11-1/2	1-3/16	3-1/2	9-1/8	1.311	3/4	4-19/64	63/64	1-3/32	7.78	P216
UCP217	85	85.7	185	83	310	32	95.2	247	34.1	M20	113.2	25	28	9.56	P217
UCP217-52	3-1/4	3.374	7-9/32	3-17/64	12-13/64	1-1/4	3-3/4	9-23/32	1.343	3/4	4-29/64	63/64	1-3/32	9.68	P217
UCP217-53	3-5/16	3.374	7-9/32	3-17/64	12-13/64	1-1/4	3-3/4	9-23/32	1.343	3/4	4-29/64	63/64	1-3/32	9.64	P217
UCP217-55	3-7/16	3.374	7-9/32	3-17/64	12-13/64	1-1/4	3-3/4	9-23/32	1.343	3/4	4-29/64	63/64	1-3/32	9.35	P217
UCP218	90	96	198	88	327	33	101.6	262	39.7	M22	123	27	30	11.59	P218
UCP218-56	3-1/2	3.7795	7-51/64	3-15/32	12-7/8	1-19/64	4	10-5/16	1.563	7/8	4-27/32	1-1/16	1-3/16	11.7	P218
UCP220	100	108	225	95	380	40	115	308	42	M24		30	36	16	P220
UCP220-64	4	4.252	8-55/64	3-47/64	14-61/64	1-37/64	4-17/32	12-1/8	1.6535	15/16		1-3/16	1-27/64	16	P220
