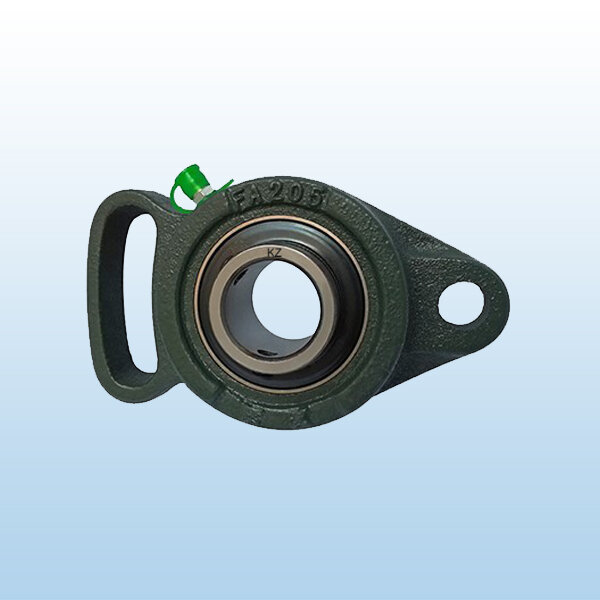

UCFA
KZ SERIES : UCFA 201
We are the trusted manufacturer of high-quality UCFA Type Bearings. These are manufactured with premium-grade raw components under the surveillance of advanced technologies in order to provide flawless functioning. It is highly resistant to corrosion and allows smooth operations. UCFA Type Bearings are easy to install and need no regular maintenance. It is abrasion and waterproof. Offered bearings are devoted to serving a longer service life. Customers can avail of this incredible product from us in various specifications at cost-efficient rates.
Available in metric and inch sizes.
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

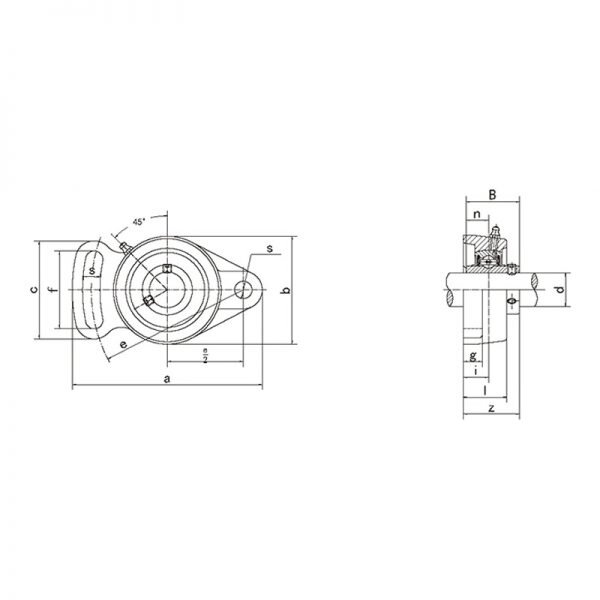

| Bearing Number | Inner Diameter (d) MM | Width (B) MM | B Drawing | a | l | s | g | e | i | z | n | Bolt Size (MM) | f | c | Weight (KG) | Housing No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UCFA201 | 12 | 60 | 31 | 98 | 25.5 | 10 | 12 | 78 | 15 | 33.3 | 12.7 | M8 | 40 | 50 | 0.46 | FA201 |
| UCFA201-8 | 1/2 | 2-3/8 | 1.2205 | 3-55/64 | 1 | 25/64 | 15/32 | 3-5/64 | 19/32 | 1-5/16 | 0.5 | 5/16 | 1-37/64 | 1-31/32 | 0.45 | FA201 |
| UCFA202 | 15 | 2-3/8 | 1.2205 | 3-55/64 | 1 | 25/64 | 15/32 | 3-5/64 | 19/32 | 1-5/16 | 0.5 | 5/16 | 1-37/64 | 1-31/32 | 0.45 | FA202 |
| UCFA202-9 | 9/16 | 2-3/8 | 1.2205 | 3-55/64 | 1 | 25/64 | 15/32 | 3-5/64 | 19/32 | 1-5/16 | 0.5 | 5/16 | 1-37/64 | 1-31/32 | 0.45 | FA202 |
| UCFA202-10 | 5/8 | 2-3/8 | 1.2205 | 3-55/64 | 1 | 25/64 | 15/32 | 3-5/64 | 19/32 | 1-5/16 | 0.5 | 5/16 | 1-37/64 | 1-31/32 | 0.45 | FA202 |
| UCFA203 | 17 | 2-3/8 | 1.2205 | 3-55/64 | 1 | 25/64 | 15/32 | 3-5/64 | 19/32 | 1-5/16 | 0.5 | 5/16 | 1-37/64 | 1-31/32 | 0.44 | FA203 |
| UCFA203-11 | 11/16 | 2-3/8 | 1.2205 | 3-55/64 | 1 | 25/64 | 15/32 | 3-5/64 | 19/32 | 1-5/16 | 0.5 | 5/16 | 1-37/64 | 1-31/32 | 0.43 | FA203 |
| UCFA204 | 20 | 2-3/8 | 1.2205 | 3-55/64 | 1 | 25/64 | 15/32 | 3-5/64 | 19/32 | 1-5/16 | 0.5 | 5/16 | 1-37/64 | 1-31/32 | 0.42 | FA204 |
| UCFA204-12 | 3/4 | 2-3/8 | 1.2205 | 3-55/64 | 1 | 25/64 | 15/32 | 3-5/64 | 19/32 | 1-5/16 | 0.5 | 5/16 | 1-37/64 | 1-31/32 | 0.42 | FA204 |
| UCFA205 | 25 | 70 | 34.1 | 124 | 27 | 13 | 14 | 98 | 16 | 35.8 | 14.3 | M10 | 51 | 65 | 0.65 | FA205 |
| UCFA205-13 | 13/16 | 2-3/4 | 1.3425 | 4-7/8 | 1-1/16 | 33/64 | 35/64 | 3-55/64 | 5/8 | 1-13/32 | 0.563 | 3/8 | 2-1/64 | 2-9/16 | 0.68 | FA205 |
| UCFA205-14 | 7/8 | 2-3/4 | 1.3425 | 4-7/8 | 1-1/16 | 33/64 | 35/64 | 3-55/64 | 5/8 | 1-13/32 | 0.563 | 3/8 | 2-1/64 | 2-9/16 | 0.67 | FA205 |
| UCFA205-15 | 15/16 | 2-3/4 | 1.3425 | 4-7/8 | 1-1/16 | 33/64 | 35/64 | 3-55/64 | 5/8 | 1-13/32 | 0.563 | 3/8 | 2-1/64 | 2-9/16 | 0.65 | FA205 |
| UCFA205-16 | 1 | 2-3/4 | 1.3425 | 4-7/8 | 1-1/16 | 33/64 | 35/64 | 3-55/64 | 5/8 | 1-13/32 | 0.563 | 3/8 | 2-1/64 | 2-9/16 | 0.64 | FA205 |
| UCFA206 | 30 | 83 | 38.1 | 141 | 31 | 13 | 14 | 115 | 18 | 40.2 | 15.9 | M10 | 58 | 72 | 0.95 | FA206 |
| UCFA206-17 | 1-1/16 | 3-17/64 | 1.5 | 5-35/64 | 1-7/32 | 33/64 | 35/64 | 4-17/32 | 45/64 | 1-19/32 | 0.626 | 3/8 | 2-9/32 | 2-27/32 | 0.98 | FA206 |
| UCFA206-18 | 1-1/8 | 3-17/64 | 1.5 | 5-35/64 | 1-7/32 | 33/64 | 35/64 | 4-17/32 | 45/64 | 1-19/32 | 0.626 | 3/8 | 2-9/32 | 2-27/32 | 0.97 | FA206 |
| UCFA206-19 | 1-3/16 | 3-17/64 | 1.5 | 5-35/64 | 1-7/32 | 33/64 | 35/64 | 4-17/32 | 45/64 | 1-19/32 | 0.626 | 3/8 | 2-9/32 | 2-27/32 | 0.95 | FA206 |
| UCFA206-20 | 1-1/4 | 3-17/64 | 1.5 | 5-35/64 | 1-7/32 | 33/64 | 35/64 | 4-17/32 | 45/64 | 1-19/32 | 0.626 | 3/8 | 2-9/32 | 2-27/32 | 0.94 | FA206 |
| UCFA207 | 35 | 96 | 42.9 | 155 | 34 | 15 | 16 | 128 | 19 | 44.4 | 17.5 | M12 | 66 | 82 | 1.33 | FA207 |
| UCFA207-20 | 1-1/4 | 3-25/32 | 1.689 | 6-7/64 | 1-11/32 | 19/32 | 5/8 | 5-3/64 | 3/4 | 1-3/4 | 0.689 | 7/16 | 2-19/32 | 3-15/64 | 1.4 | FA207 |
| UCFA207-21 | 1-5/16 | 3-25/32 | 1.689 | 6-7/64 | 1-11/32 | 19/32 | 5/8 | 5-3/64 | 3/4 | 1-3/4 | 0.689 | 7/16 | 2-19/32 | 3-15/64 | 1.37 | FA207 |
| UCFA207-22 | 1-3/8 | 3-25/32 | 1.689 | 6-7/64 | 1-11/32 | 19/32 | 5/8 | 5-3/64 | 3/4 | 1-3/4 | 0.689 | 7/16 | 2-19/32 | 3-15/64 | 1.34 | FA207 |
| UCFA207-23 | 1-7/16 | 3-25/32 | 1.689 | 6-7/64 | 1-11/32 | 19/32 | 5/8 | 5-3/64 | 3/4 | 1-3/4 | 0.689 | 7/16 | 2-19/32 | 3-15/64 | 1.31 | FA207 |
| UCFA208 | 40 | 105 | 49.2 | 171 | 38 | 15 | 16 | 142 | 21 | 51.2 | 19 | M12 | 71 | 87 | 1.73 | FA208 |
| UCFA208-24 | 1-1/2 | 4-9/64 | 1.937 | 6-53/64 | 1-1/2 | 19/32 | 5/8 | 5-19/32 | 53/64 | 2-1/64 | 0.748 | 7/16 | 2-51/64 | 3-27/64 | 1.77 | FA208 |
| UCFA208-25 | 1-9/16 | 4-9/64 | 1.937 | 6-53/64 | 1-1/2 | 19/32 | 5/8 | 5-19/32 | 53/64 | 2-1/64 | 0.748 | 7/16 | 2-51/64 | 3-27/64 | 1.74 | FA208 |
| UCFA209 | 45 | 111 | 49.2 | 179 | 40 | 17 | 18 | 146 | 22 | 52.2 | 19 | M14 | 72 | 90 | 1.98 | FA209 |
| UCFA209-26 | 1-5/8 | 4-3/8 | 1.937 | 7-3/64 | 1-37/64 | 43/64 | 45/64 | 5-3/4 | 55/64 | 2-1/16 | 0.748 | 1/2 | 2-53/64 | 3-35/64 | 2.08 | FA209 |
| UCFA209-27 | 1-11/16 | 4-3/8 | 1.937 | 7-3/64 | 1-37/64 | 43/64 | 45/64 | 5-3/4 | 55/64 | 2-1/16 | 0.748 | 1/2 | 2-53/64 | 3-35/64 | 2.04 | FA209 |
| UCFA209-28 | 1-3/4 | 4-3/8 | 1.937 | 7-3/64 | 1-37/64 | 43/64 | 45/64 | 5-3/4 | 55/64 | 2-1/16 | 0.748 | 1/2 | 2-53/64 | 3-35/64 | 2 | FA209 |
| UCFA210 | 50 | 116 | 51.6 | 189 | 40 | 17 | 18 | 155 | 22 | 54.6 | 19 | M14 | 76 | 94 | 2.12 | FA210 |
| UCFA210-29 | 1-13/16 | 4-9/16 | 2.0315 | 7-7/16 | 1-37/64 | 43/64 | 45/64 | 6-7/64 | 55/64 | 2-5/32 | 0.748 | 1/2 | 3 | 3-45/64 | 2.24 | FA210 |
| UCFA210-30 | 1-7/8 | 4-9/16 | 2.0315 | 7-7/16 | 1-37/64 | 43/64 | 45/64 | 6-7/64 | 55/64 | 2-5/32 | 0.748 | 1/2 | 3 | 3-45/64 | 2.19 | FA210 |
| UCFA210-31 | 1-15/16 | 4-9/16 | 2.0315 | 7-7/16 | 1-37/64 | 43/64 | 45/64 | 6-7/64 | 55/64 | 2-5/32 | 0.748 | 1/2 | 3 | 3-45/64 | 2.14 | FA210 |
| UCFA210-32 | 2 | 4-9/16 | 2.0315 | 7-7/16 | 1-37/64 | 43/64 | 45/64 | 6-7/64 | 55/64 | 2-5/32 | 0.748 | 1/2 | 3 | 3-45/64 | 2.1 | FA210 |
| UCFA211 | 55 | 133 | 55.6 | 216 | 44 | 17 | 20 | 182 | 25 | 58.4 | 22.2 | M14 | 86 | 104 | 3.11 | FA211 |
| UCFA211-32 | 2 | 5-51/64 | 2.189 | 8-1/2 | 1-47/64 | 43/64 | 25/32 | 7-11/64 | 63/64 | 2-5/16 | 0.874 | 1/2 | 3-25/64 | 4-3/32 | 3.26 | FA211 |
| UCFA211-33 | 2-1/16 | 5-51/64 | 2.189 | 8-1/2 | 1-47/64 | 43/64 | 25/32 | 7-11/64 | 63/64 | 2-5/16 | 0.874 | 1/2 | 3-25/64 | 4-3/32 | 3.2 | FA211 |
| UCFA211-34 | 2-1/8 | 5-51/64 | 2.189 | 8-1/2 | 1-47/64 | 43/64 | 25/32 | 7-11/64 | 63/64 | 2-5/16 | 0.874 | 1/2 | 3-25/64 | 4-3/32 | 3.16 | FA211 |
| UCFA211-35 | 2-3/16 | 5-51/64 | 2.189 | 8-1/2 | 1-47/64 | 43/64 | 25/32 | 7-11/64 | 63/64 | 2-5/16 | 0.874 | 1/2 | 3-25/64 | 4-3/32 | 3.09 | FA211 |
| UCFA212 | 60 | 140 | 65.1 | 240 | 48 | 19 | 20 | 202 | 29 | 68.7 | 25.4 | M16 | 100 | 118 | 3.76 | FA212 |
| UCFA212-36 | 2-1/4 | 5-1/2 | 2.563 | 9-29/64 | 1-7/8 | 3/4 | 25/32 | 7-61/64 | 1-9/64 | 2-23/32 | 1 | 5/8 | 3-15/16 | 4-41/64 | 3.89 | FA212 |
| UCFA212-37 | 2-5/16 | 5-1/2 | 2.563 | 9-29/64 | 1-7/8 | 3/4 | 25/32 | 7-61/64 | 1-9/64 | 2-23/32 | 1 | 5/8 | 3-15/16 | 4-41/64 | 3.81 | FA212 |
| UCFA212-38 | 2-3/8 | 5-1/2 | 2.563 | 9-29/64 | 1-7/8 | 3/4 | 25/32 | 7-61/64 | 1-9/64 | 2-23/32 | 1 | 5/8 | 3-15/16 | 4-41/64 | 3.74 | FA212 |
| UCFA212-39 | 2-7/16 | 5-1/2 | 2.563 | 9-29/64 | 1-7/8 | 3/4 | 25/32 | 7-61/64 | 1-9/64 | 2-23/32 | 1 | 5/8 | 3-15/16 | 4-41/64 | 3.67 | FA212 |
| UCFA213 | 65 | 155 | 65.1 | 250 | 50 | 19 | 20 | 210 | 30 | 69.7 | 25.4 | M16 | 102 | 122 | 4.7 | FA213 |
| UCFA213-40 | 2-1/2 | 6-3/32 | 2.563 | 9-27/32 | 1-31/32 | 3/4 | 25/32 | 8-17/64 | 1-3/16 | 2-3/4 | 1 | 5/8 | 4-1/64 | 4-51/64 | 4.79 | FA213 |
| UCFA213-41 | 2-9/16 | 6-3/32 | 2.563 | 9-27/32 | 1-31/32 | 3/4 | 25/32 | 8-17/64 | 1-3/16 | 2-3/4 | 1 | 5/8 | 4-1/64 | 4-51/64 | 4.7 | FA213 |
