UCP 200
KZ SERIES : UCP 201

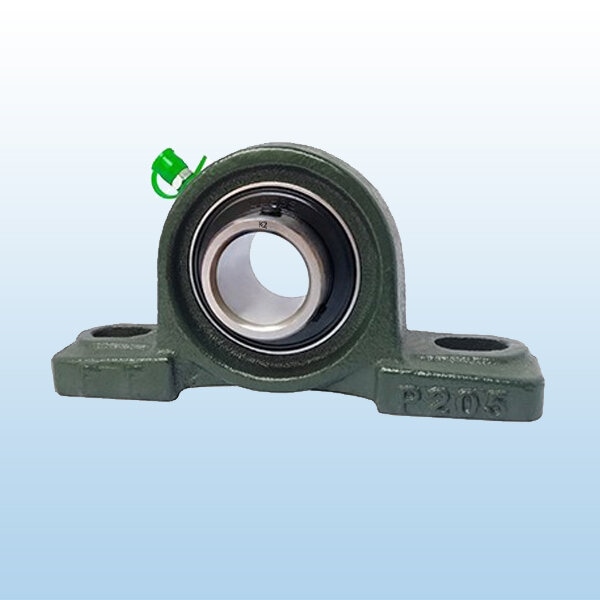

UCP Bearing are Pillow Block Housing having reinforced ears with Two Slotted holes for fixing and are re-lubricatable.
Available in Metric and Inch sizes

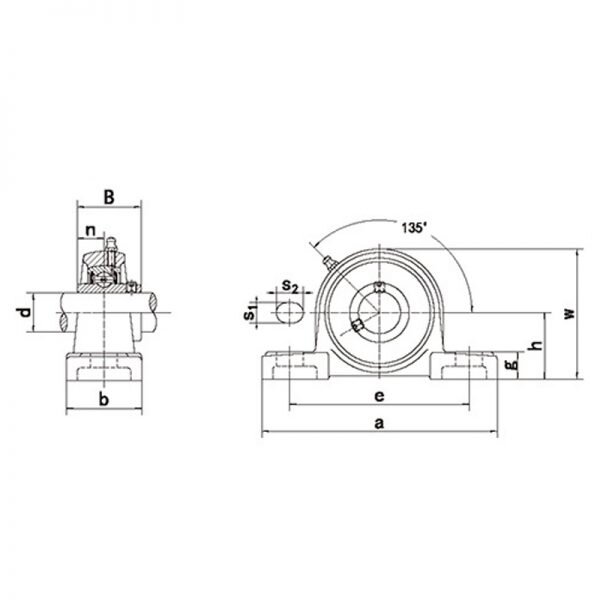

| Bearing Number | Inner Diameter (d) MM | Dimension-B1 (MM) | w | B Drawing | a | g | h | e | n | Bolt Size (MM) | t | s1 | s2 | Weight (KG) | Housing No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UCP201 | 12 | 31 | 62 | 38 | 127 | 14 | 30.2 | 95 | 12.7 | M10 | 44.5 | 13 | 19 | 0.65 | P201 |
| UCP201-8 | 1/2 | 1.2205 | 2-7/16 | 1-1/2 | 5 | 9/16 | 1-3/16 | 3-3/4 | 0.5 | 3/8 | 1-3/4 | 1/2 | 3/4 | 0.64 | P201 |
| UCP202 | 15 | 31 | 62 | 38 | 127 | 14 | 30.2 | 95 | 12.7 | M10 | 44.5 | 13 | 19 | 0.64 | P202 |
| UCP202-9 | 9/16 | 1.2205 | 2-7/16 | 1-1/2 | 5 | 9/16 | 1-3/16 | 3-3/4 | 0.5 | 3/8 | 1-3/4 | 1/2 | 3/4 | 0.64 | P202 |
| UCP202-10 | 5/8 | 1.2205 | 2-7/16 | 1-1/2 | 5 | 9/16 | 1-3/16 | 3-3/4 | 0.5 | 3/8 | 1-3/4 | 1/2 | 3/4 | 0.64 | P202 |
| UCP203 | 17 | 31 | 62 | 38 | 127 | 14 | 30.2 | 95 | 12.7 | M10 | 44.5 | 13 | 19 | 0.63 | P203 |
| UCP203-11 | 11/16 | 1.2205 | 2-7/16 | 1-1/2 | 5 | 9/16 | 1-3/16 | 3-3/4 | 0.5 | 3/8 | 1-3/4 | 1/2 | 3/4 | 0.62 | P203 |
| UCP204 | 20 | 31 | 65 | 38 | 127 | 14 | 33.3 | 95 | 12.7 | M10 | 44.5 | 13 | 19 | 0.64 | P204 |
| UCP204-12 | 3/4 | 1.2205 | 2-9/16 | 1-1/2 | 5 | 9/16 | 1-5/16 | 3-3/4 | 0.5 | 3/8 | 1-3/4 | 1/2 | 3/4 | 0.64 | P204 |
| UCP205 | 25 | 34.1 | 71 | 38 | 140 | 15 | 36.5 | 105 | 14.3 | M10 | 48 | 13 | 19 | 0.76 | P205 |
| UCP205-13 | 13/16 | 1.3425 | 2-25/32 | 1-1/2 | 5-1/2 | 19/32 | 1-7/16 | 4-1/8 | 0.563 | 3/8 | 1-57/64 | 1/2 | 3/4 | 0.8 | P205 |
| UCP205-14 | 7/8 | 1.3425 | 2-25/32 | 1-1/2 | 5-1/2 | 19/32 | 1-7/16 | 4-1/8 | 0.563 | 3/8 | 1-57/64 | 1/2 | 3/4 | 0.79 | P205 |
| UCP205-15 | 15/16 | 1.3425 | 2-25/32 | 1-1/2 | 5-1/2 | 19/32 | 1-7/16 | 4-1/8 | 0.563 | 3/8 | 1-57/64 | 1/2 | 3/4 | 0.77 | P205 |
| UCP205-16 | 1 | 1.3425 | 2-25/32 | 1-1/2 | 5-1/2 | 19/32 | 1-7/16 | 4-1/8 | 0.563 | 3/8 | 1-57/64 | 1/2 | 3/4 | 0.76 | P205 |
| UCP206 | 30 | 38.1 | 84 | 44 | 160 | 17 | 42.9 | 121 | 15.9 | M14 | 53 | 17 | 20 | 1.2 | P206 |
| UCP206-17 | 1-1/16 | 1.5 | 3-5/16 | 1-47/64 | 6-19/64 | 21/32 | 1-11/16 | 4-3/4 | 0.626 | 1/2 | 2-5/64 | 43/64 | 25/32 | 1.21 | P206 |
| UCP206-19 | 1-3/16 | 1.5 | 3-5/16 | 1-47/64 | 6-19/64 | 21/32 | 1-11/16 | 4-3/4 | 0.626 | 1/2 | 2-5/64 | 43/64 | 25/32 | 1.2 | P206 |
| UCP206-18 | 1-1/8 | 1.5 | 3-5/16 | 1-47/64 | 6-19/64 | 21/32 | 1-11/16 | 4-3/4 | 0.626 | 1/2 | 2-5/64 | 43/64 | 25/32 | 1.22 | P206 |
| UCP206-20 | 1-1/4 | 1.5 | 3-5/16 | 1-47/64 | 6-19/64 | 21/32 | 1-11/16 | 4-3/4 | 0.626 | 1/2 | 2-5/64 | 43/64 | 25/32 | 1.19 | P206 |
| UCP207 | 35 | 42.9 | 93 | 48 | 167 | 18 | 47.6 | 127 | 17.5 | M14 | 59.5 | 17 | 20 | 1.46 | P207 |
| UCP207-20 | 1-1/4 | 1.689 | 3-21/32 | 1-7/8 | 6-9/16 | 45/64 | 1-7/8 | 5 | 0.689 | 1/2 | 2-11/32 | 43/64 | 25/32 | 1.53 | P207 |
| UCP207-21 | 1-5/16 | 1.689 | 3-21/32 | 1-7/8 | 6-9/16 | 45/64 | 1-7/8 | 5 | 0.689 | 1/2 | 2-11/32 | 43/64 | 25/32 | 1.5 | P207 |
| UCP207-22 | 1-3/8 | 1.689 | 3-21/32 | 1-7/8 | 6-9/16 | 45/64 | 1-7/8 | 5 | 0.689 | 1/2 | 2-11/32 | 43/64 | 25/32 | 1.47 | P207 |
| UCP207-23 | 1-7/16 | 1.689 | 3-21/32 | 1-7/8 | 6-9/16 | 45/64 | 1-7/8 | 5 | 0.689 | 1/2 | 2-11/32 | 43/64 | 25/32 | 1.44 | P207 |
| UCP208 | 40 | 49.2 | 100 | 54 | 184 | 18 | 49.2 | 137 | 19 | M14 | 69 | 17 | 20 | 1.86 | P208 |
| UCP208-24 | 1-1/2 | 1.937 | 3-15/16 | 2-1/8 | 7-1/4 | 45/64 | 1-15/16 | 5-13/32 | 0.748 | 1/2 | 2-23/32 | 43/64 | 25/32 | 1.9 | P208 |
| UCP208-25 | 1-9/16 | 1.937 | 3-15/16 | 2-1/8 | 7-1/4 | 45/64 | 1-15/16 | 5-13/32 | 0.748 | 1/2 | 2-23/32 | 43/64 | 25/32 | 1.87 | P208 |
| UCP209 | 45 | 49.2 | 106 | 54 | 190 | 20 | 54 | 146 | 19 | M14 | 69 | 17 | 20 | 2.06 | P209 |
| UCP209-26 | 1-5/8 | 1.937 | 4-11/64 | 2-1/8 | 7-15/32 | 25/32 | 2-1/8 | 5-3/4 | 0.748 | 1/2 | 2-23/32 | 43/64 | 25/32 | 2.16 | P209 |
| UCP209-27 | 1-11/16 | 1.937 | 4-11/64 | 2-1/8 | 7-15/32 | 25/32 | 2-1/8 | 5-3/4 | 0.748 | 1/2 | 2-23/32 | 43/64 | 25/32 | 2.12 | P209 |
| UCP209-28 | 1-3/4 | 1.937 | 4-11/64 | 2-1/8 | 7-15/32 | 25/32 | 2-1/8 | 5-3/4 | 0.748 | 1/2 | 2-23/32 | 43/64 | 25/32 | 2.08 | P209 |
| UCP210 | 50 | 51.6 | 113 | 60 | 206 | 21 | 57.2 | 159 | 19 | M16 | 74.5 | 20 | 23 | 2.61 | P210 |
| UCP210-30 | 1-7/8 | 2.0315 | 4-29/64 | 2-3/8 | 8-1/8 | 53/64 | 2-1/4 | 6-1/4 | 0.748 | 5/8 | 2-15/16 | 25/32 | 29/32 | 2.68 | P210 |
| UCP210-29 | 1-13/16 | 2.0315 | 4-29/64 | 2-3/8 | 8-1/8 | 53/64 | 2-1/4 | 6-1/4 | 0.748 | 5/8 | 2-15/16 | 25/32 | 29/32 | 2.73 | P210 |
| UCP210-31 | 1-15/16 | 2.0315 | 4-29/64 | 2-3/8 | 8-1/8 | 53/64 | 2-1/4 | 6-1/4 | 0.748 | 5/8 | 2-15/16 | 25/32 | 29/32 | 2.63 | P210 |
| UCP210-32 | 2 | 2.0315 | 4-29/64 | 2-3/8 | 8-1/8 | 53/64 | 2-1/4 | 6-1/4 | 0.748 | 5/8 | 2-15/16 | 25/32 | 29/32 | 2.59 | P210 |
| UCP211 | 55 | 55.6 | 125 | 60 | 219 | 23 | 63.5 | 171 | 22.2 | M16 | 76 | 20 | 23 | 3.23 | P211 |
| UCP211-32 | 2 | 2.189 | 4-59/64 | 2-3/8 | 8-5/8 | 29/32 | 2-1/2 | 6-47/64 | 0.874 | 5/8 | 3 | 25/32 | 29/32 | 3.38 | P211 |
| UCP211-33 | 2-1/16 | 2.189 | 4-59/64 | 2-3/8 | 8-5/8 | 29/32 | 2-1/2 | 6-47/64 | 0.874 | 5/8 | 3 | 25/32 | 29/32 | 3.32 | P211 |
| UCP211-34 | 2-1/8 | 2.189 | 4-59/64 | 2-3/8 | 8-5/8 | 29/32 | 2-1/2 | 6-47/64 | 0.874 | 5/8 | 3 | 25/32 | 29/32 | 3.28 | P211 |
| UCP211-35 | 2-3/16 | 2.189 | 4-59/64 | 2-3/8 | 8-5/8 | 29/32 | 2-1/2 | 6-47/64 | 0.874 | 5/8 | 3 | 25/32 | 29/32 | 3.21 | P211 |
| UCP212 | 60 | 65.1 | 138 | 70 | 241 | 25 | 69.8 | 184 | 25.4 | M16 | 89 | 20 | 23 | 4.4 | P212 |
| UCP212-36 | 2-1/4 | 2.563 | 5-7/16 | 2-3/4 | 9-1/2 | 63/64 | 2-3/4 | 7-1/4 | 1 | 5/8 | 3-1/2 | 25/32 | 29/32 | 4.57 | P212 |
| UCP212-37 | 2-5/16 | 2.563 | 5-7/16 | 2-3/4 | 9-1/2 | 63/64 | 2-3/4 | 7-1/4 | 1 | 5/8 | 3-1/2 | 25/32 | 29/32 | 4.49 | P212 |
| UCP212-38 | 2-3/8 | 2.563 | 5-7/16 | 2-3/4 | 9-1/2 | 63/64 | 2-3/4 | 7-1/4 | 1 | 5/8 | 3-1/2 | 25/32 | 29/32 | 4.42 | P212 |
| UCP212-39 | 2-7/16 | 2.563 | 5-7/16 | 2-3/4 | 9-1/2 | 63/64 | 2-3/4 | 7-1/4 | 1 | 5/8 | 3-1/2 | 25/32 | 29/32 | 4.35 | P212 |
| UCP213 | 65 | 65.1 | 150 | 70 | 265 | 27 | 76.2 | 203 | 25.4 | M20 | 89 | 25 | 28 | 5.35 | P213 |
| UCP213-40 | 2-1/2 | 2.563 | 5-29/32 | 2-3/4 | 10-7/16 | 1-1/16 | 3 | 8 | 1 | 3/4 | 3-1/2 | 63/64 | 1-3/32 | 5.44 | P213 |
| UCP213-41 | 2-9/16 | 2.563 | 5-29/32 | 2-3/4 | 10-7/16 | 1-1/16 | 3 | 8 | 1 | 3/4 | 3-1/2 | 63/64 | 1-3/32 | 5.35 | P213 |
| UCP214 | 70 | 74.6 | 156 | 72 | 266 | 27 | 79.4 | 210 | 30.2 | M20 | 98 | 25 | 28 | 5.86 | P214 |
| UCP214-42 | 2-5/8 | 2.937 | 6-9/64 | 2-27/32 | 10-15/32 | 1-1/16 | 3-1/8 | 8-17/64 | 1.189 | 3/4 | 3-55/64 | 63/64 | 1-3/32 | 6.07 | P214 |
| UCP214-43 | 2-11/16 | 2.937 | 6-9/64 | 2-27/32 | 10-15/32 | 1-1/16 | 3-1/8 | 8-17/64 | 1.189 | 3/4 | 3-55/64 | 63/64 | 1-3/32 | 5.97 | P214 |
| UCP214-44 | 2-3/4 | 2.937 | 6-9/64 | 2-27/32 | 10-15/32 | 1-1/16 | 3-1/8 | 8-17/64 | 1.189 | 3/4 | 3-55/64 | 63/64 | 1-3/32 | 5.87 | P214 |
| UCP215 | 75 | 77.8 | 162 | 74 | 275 | 28 | 82.6 | 217 | 33.3 | M20 | 99 | 25 | 28 | 6.45 | P215 |
| UCP215-45 | 2-13/16 | 3.063 | 6-3/8 | 2-29/32 | 10-53/64 | 1-3/32 | 3-1/4 | 8-35/64 | 1.311 | 3/4 | 3-57/64 | 63/64 | 1-3/32 | 6.45 | P215 |
| UCP215-46 | 2-7/8 | 3.063 | 6-3/8 | 2-29/32 | 10-53/64 | 1-3/32 | 3-1/4 | 8-35/64 | 1.311 | 3/4 | 3-57/64 | 63/64 | 1-3/32 | 6.7 | P215 |
| UCP215-47 | 2-15/16 | 3.063 | 6-3/8 | 2-29/32 | 10-53/64 | 1-3/32 | 3-1/4 | 8-35/64 | 1.311 | 3/4 | 3-57/64 | 63/64 | 1-3/32 | 6.59 | P215 |
| UCP215-48 | 3 | 3.063 | 6-3/8 | 2-29/32 | 10-53/64 | 1-3/32 | 3-1/4 | 8-35/64 | 1.311 | 3/4 | 3-57/64 | 63/64 | 1-3/32 | 6.39 | P215 |
| UCP216 | 80 | 82.6 | 174 | 78 | 292 | 30 | 88.9 | 232 | 33.3 | M20 | 109 | 25 | 28 | 7.86 | P216 |
| UCP216-49 | 3-1/16 | 3.252 | 6-27/32 | 3-1/16 | 11-1/2 | 1-3/16 | 3-1/2 | 9-1/8 | 1.311 | 3/4 | 4-19/64 | 63/64 | 1-3/32 | 8.04 | P216 |
| UCP216-50 | 3-1/8 | 3.252 | 6-27/32 | 3-1/16 | 11-1/2 | 1-3/16 | 3-1/2 | 9-1/8 | 1.311 | 3/4 | 4-19/64 | 63/64 | 1-3/32 | 7.91 | P216 |
| UCP216-51 | 3-3/16 | 3.252 | 6-27/32 | 3-1/16 | 11-1/2 | 1-3/16 | 3-1/2 | 9-1/8 | 1.311 | 3/4 | 4-19/64 | 63/64 | 1-3/32 | 7.78 | P216 |
| UCP217 | 85 | 85.7 | 185 | 83 | 310 | 32 | 95.2 | 247 | 34.1 | M20 | 113.2 | 25 | 28 | 9.56 | P217 |
| UCP217-52 | 3-1/4 | 3.374 | 7-9/32 | 3-17/64 | 12-13/64 | 1-1/4 | 3-3/4 | 9-23/32 | 1.343 | 3/4 | 4-29/64 | 63/64 | 1-3/32 | 9.68 | P217 |
| UCP217-53 | 3-5/16 | 3.374 | 7-9/32 | 3-17/64 | 12-13/64 | 1-1/4 | 3-3/4 | 9-23/32 | 1.343 | 3/4 | 4-29/64 | 63/64 | 1-3/32 | 9.64 | P217 |
| UCP217-55 | 3-7/16 | 3.374 | 7-9/32 | 3-17/64 | 12-13/64 | 1-1/4 | 3-3/4 | 9-23/32 | 1.343 | 3/4 | 4-29/64 | 63/64 | 1-3/32 | 9.35 | P217 |
| UCP218 | 90 | 96 | 198 | 88 | 327 | 33 | 101.6 | 262 | 39.7 | M22 | 123 | 27 | 30 | 11.59 | P218 |
| UCP218-56 | 3-1/2 | 3.7795 | 7-51/64 | 3-15/32 | 12-7/8 | 1-19/64 | 4 | 10-5/16 | 1.563 | 7/8 | 4-27/32 | 1-1/16 | 1-3/16 | 11.7 | P218 |
| UCP220 | 100 | 108 | 225 | 95 | 380 | 40 | 115 | 308 | 42 | M24 | 30 | 36 | 16 | P220 | |
| UCP220-64 | 4 | 4.252 | 8-55/64 | 3-47/64 | 14-61/64 | 1-37/64 | 4-17/32 | 12-1/8 | 1.6535 | 15/16 | 1-3/16 | 1-27/64 | 16 | P220 |
