UCHA
KZ SERIES : UCHA 201

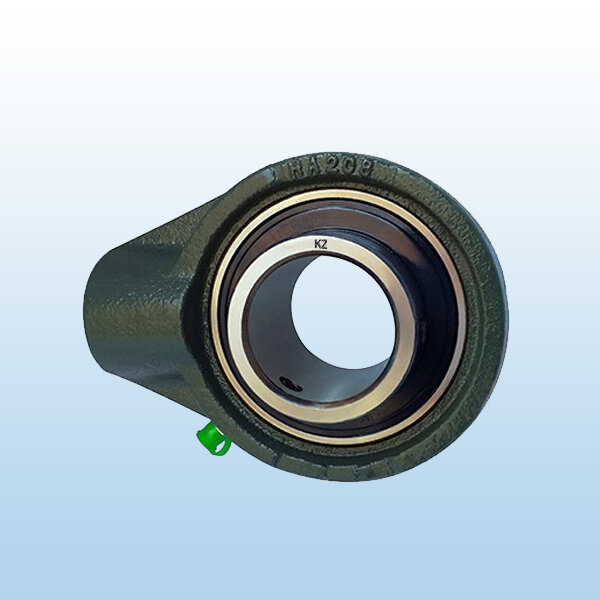

These are Cast Iron Hanger Ball Bearing Units having set screw locking. We are an authentic company engaged as supplier and trader of UCHA Pedestal Hanging Bearing in India. It's one kind of pedestal bearing, which is also called hanger bearing, which is used to hang or support shaft in mid parts. Plummer block bearing also known as Pedestal Bearing or bearing housing, is a pedestal used to provide support for a rotating shaft with the help of compatible bearings & various accessories. Housing material for a pillow block is typically made of cast iron or cast steel.
Available in metric and inch sizes.
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

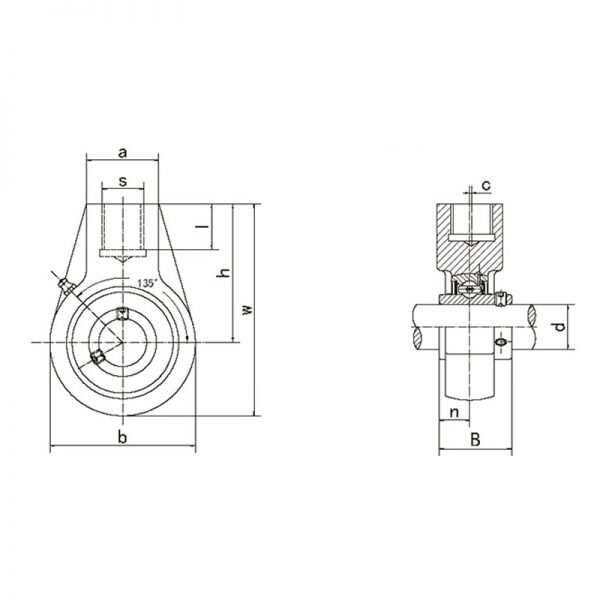

| Bearing Number | Inner Diameter (d) MM | Width (B) MM | L | Width C | w | B Drawing | a | s | H | N | Weight (KG) | Housing No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UCHA 201 | 12 | 31 | 19 | 0 | 96 | 64 | 40 | G-3/4 | 64 | 12.7 | 0.637 | HA201 |
| UCHA 201-8 | 1/2 | 1.2205 | 3/4 | 0 | 3-25/32 | 2-33/64 | 1-37/64 | G-3/4 | 2-33/64 | 0.5 | 0.627 | HA201 |
| UCHA 202 | 15 | 1.2205 | 3/4 | 0 | 3-25/32 | 2-33/64 | 1-37/64 | G-3/4 | 2-33/64 | 0.5 | 0.627 | HA202 |
| UCHA 202-9 | 9/16 | 1.2205 | 3/4 | 0 | 3-25/32 | 2-33/64 | 1-37/64 | G-3/4 | 2-33/64 | 0.5 | 0.627 | HA202 |
| UCHA 202-10 | 5/8 | 1.2205 | 3/4 | 0 | 3-25/32 | 2-33/64 | 1-37/64 | G-3/4 | 2-33/64 | 0.5 | 0.627 | HA202 |
| UCHA 203 | 17 | 1.2205 | 3/4 | 0 | 3-25/32 | 2-33/64 | 1-37/64 | G-3/4 | 2-33/64 | 0.5 | 0.617 | HA203 |
| UCHA 203-11 | 11/16 | 1.2205 | 3/4 | 0 | 3-25/32 | 2-33/64 | 1-37/64 | G-3/4 | 2-33/64 | 0.5 | 0.607 | HA203 |
| UCHA 204 | 20 | 1.2205 | 3/4 | 0 | 3-25/32 | 2-33/64 | 1-37/64 | G-3/4 | 2-33/64 | 0.5 | 0.596 | HA204 |
| UCHA 204-12 | 3/4 | 1.2205 | 3/4 | 0 | 3-25/32 | 2-33/64 | 1-37/64 | G-3/4 | 2-33/64 | 0.5 | 0.596 | HA204 |
| UCHA 205 | 25 | 34.1 | 19 | 0 | 103 | 78 | 40 | G-3/4 | 64 | 14.3 | 0.794 | HA205 |
| UCHA 205-13 | 13/16 | 1.3425 | 3/4 | 0 | 4-1/16 | 3-5/64 | 1-37/64 | G-3/4 | 2-33/64 | 0.563 | 0.831 | HA205 |
| UCHA 205-14 | 7/8 | 1.3425 | 3/4 | 0 | 4-1/16 | 3-5/64 | 1-37/64 | G-3/4 | 2-33/64 | 0.563 | 0.821 | HA205 |
| UCHA 205-15 | 15/16 | 1.3425 | 3/4 | 0 | 4-1/16 | 3-5/64 | 1-37/64 | G-3/4 | 2-33/64 | 0.563 | 0.801 | HA205 |
| UCHA 205-16 | 1 | 1.3425 | 3/4 | 0 | 4-1/16 | 3-5/64 | 1-37/64 | G-3/4 | 2-33/64 | 0.563 | 0.791 | HA205 |
| UCHA 206 | 30 | 38.1 | 19 | 0 | 103 | 78 | 40 | G-3/4 | 64 | 15.9 | 0.778 | HA206 |
| UCHA 206-17 | 1-1/16 | 1.5 | 3/4 | 0 | 4-1/16 | 3-5/64 | 1-37/64 | G-3/4 | 2-33/64 | 0.626 | 0.788 | HA206 |
| UCHA 206-18 | 1-1/8 | 1.5 | 3/4 | 0 | 4-1/16 | 3-5/64 | 1-37/64 | G-3/4 | 2-33/64 | 0.626 | 0.798 | HA206 |
| UCHA 206-19 | 1-3/16 | 1.5 | 3/4 | 0 | 4-1/16 | 3-5/64 | 1-37/64 | G-3/4 | 2-33/64 | 0.626 | 0.778 | HA206 |
| UCHA 206-20 | 1-1/4 | 1.5 | 3/4 | 0 | 4-1/16 | 3-5/64 | 1-37/64 | G-3/4 | 2-33/64 | 0.626 | 0.768 | HA206 |
| UCHA 207 | 35 | 42.9 | 19 | 0 | 116 | 92 | 40 | G-3/4 | 70 | 17.5 | 1.099 | HA207 |
| UCHA 207-20 | 1-1/4 | 1.689 | 3/4 | 4-9/16 | 3-5/8 | 1-37/64 | G-3/4 | 2-3/4 | 0.689 | 1.164 | HA207 | |
| UCHA 207-21 | 1-5/16 | 1.689 | 3/4 | 4-9/16 | 3-5/8 | 1-37/64 | G-3/4 | 2-3/4 | 0.689 | 1.134 | HA207 | |
| UCHA 207-22 | 1-3/8 | 1.689 | 3/4 | 4-9/16 | 3-5/8 | 1-37/64 | G-3/4 | 2-3/4 | 0.689 | 1.104 | HA207 | |
| UCHA 207-23 | 1-7/16 | 1.689 | 3/4 | 4-9/16 | 3-5/8 | 1-37/64 | G-3/4 | 2-3/4 | 0.689 | 1.074 | HA207 | |
| UCHA 208 | 40 | 49.2 | 19 | 121 | 96 | 40 | G-3/4 | 73 | 19 | 1.218 | HA208 | |
| UCHA 208-24 | 1-1/2 | 1.937 | 3/4 | 4-49/64 | 3-25/32 | 1-37/64 | G-3/4 | 2-7/8 | 0.748 | 1.258 | HA208 | |
| UCHA 208-25 | 1-9/16 | 1.937 | 3/4 | 4-49/64 | 3-25/32 | 1-37/64 | G-3/4 | 2-7/8 | 0.748 | 1.228 | HA208 | |
| UCHA 209 | 45 | 49.2 | 21 | 136 | 108 | 48 | G1 | 82 | 19 | 1.714 | HA209 | |
| UCHA 209-26 | 1-5/8 | 1.937 | 53/64 | 5-23/64 | 4-1/4 | 1-57/64 | G1 | 3-15/64 | 0.748 | 1.814 | HA209 | |
| UCHA 209-27 | 1-11/16 | 1.937 | 53/64 | 5-23/64 | 4-1/4 | 1-57/64 | G1 | 3-15/64 | 0.748 | 1.774 | HA209 | |
| UCHA 209-28 | 1-3/4 | 1.937 | 53/64 | 5-23/64 | 4-1/4 | 1-57/64 | G1 | 3-15/64 | 0.748 | 1.734 | HA209 | |
| UCHA 210 | 50 | 51.6 | 21 | 142 | 118 | 48 | G1 | 83 | 19 | 2.04 | HA210 | |
| UCHA 210-29 | 1-13/16 | 2.0315 | 53/64 | 5-19/32 | 4-41/64 | 1-57/64 | G1 | 3-17/64 | 0.748 | 2.16 | HA210 | |
| UCHA 210-30 | 1-7/8 | 2.0315 | 53/64 | 5-19/32 | 4-41/64 | 1-57/64 | G1 | 3-17/64 | 0.748 | 2.11 | HA210 | |
| UCHA 210-31 | 1-15/16 | 2.0315 | 53/64 | 5-19/32 | 4-41/64 | 1-57/64 | G1 | 3-17/64 | 0.748 | 2.06 | HA210 | |
| UCHA 210-32 | 2 | 2.0315 | 53/64 | 5-19/32 | 4-41/64 | 1-57/64 | G1 | 3-17/64 | 0.748 | 2.02 | HA210 | |
| UCHA 211 | 55 | 55.6 | 25 | 150 | 126 | 60 | G1-1/4 | 87 | 22.2 | 2.447 | HA211 | |
| UCHA 211-32 | 2 | 2.189 | 63/64 | 5-29/32 | 4-61/64 | 2-23/64 | G1-1/4 | 3-27/64 | 0.874 | 2.597 | HA211 | |
| UCHA 211-33 | 2-1/16 | 2.189 | 63/64 | 5-29/32 | 4-61/64 | 2-23/64 | G1-1/4 | 3-27/64 | 0.874 | 2.537 | HA211 | |
| UCHA 211-34 | 2-1/8 | 2.189 | 63/64 | 5-29/32 | 4-61/64 | 2-23/64 | G1-1/4 | 3-27/64 | 0.874 | 2.497 | HA211 | |
| UCHA 211-35 | 2-3/16 | 2.189 | 63/64 | 5-29/32 | 4-61/64 | 2-23/64 | G1-1/4 | 3-27/64 | 0.874 | 2.427 | HA211 | |
| UCHA 212 | 60 | 65.1 | 28 | 173 | 142 | 60 | G1-1/4 | 102 | 25.4 | 3.555 | HA212 | |
| UCHA 212-36 | 2-1/4 | 2.563 | 1-7/64 | 6-13/16 | 5-19/32 | 2-23/64 | G1-1/4 | 4-1/64 | 1 | 3.685 | HA212 | |
| UCHA 212-37 | 2-5/16 | 2.563 | 1-7/64 | 6-13/16 | 5-19/32 | 2-23/64 | G1-1/4 | 4-1/64 | 1 | 3.605 | HA212 | |
| UCHA 212-38 | 2-3/8 | 2.563 | 1-7/64 | 6-13/16 | 5-19/32 | 2-23/64 | G1-1/4 | 4-1/64 | 1 | 3.535 | HA212 | |
| UCHA 212-39 | 2-7/16 | 2.563 | 1-7/64 | 6-13/16 | 5-19/32 | 2-23/64 | G1-1/4 | 4-1/64 | 1 | 3.465 | HA212 | |
| UCHA 213 | 65 | 65.1 | 32 | 200 | 166 | 70 | G1-1/2 | 117 | 25.4 | 5.437 | HA213 | |
| UCHA 213-40 | 2-1/2 | 2.563 | 1-17/64 | 7-7/8 | 6-17/32 | 2-3/4 | G1-1/2 | 4-39/64 | 1 | 5.527 | HA213 | |
| UCHA 213-41 | 2-9/16 | 2.563 | 1-17/64 | 7-7/8 | 6-17/32 | 2-3/4 | G1-1/2 | 4-39/64 | 1 | 5.437 | HA213 | |
| UCHA 214 | 70 | 74.6 | 32 | 200 | 166 | 70 | G1-1/2 | 117 | 30.2 | 5.457 | HA214 | |
| UCHA 214-42 | 2-5/8 | 2.937 | 1-17/64 | 7-7/8 | 6-17/32 | 2-3/4 | G1-1/2 | 4-39/64 | 1.189 | 5.667 | HA214 | |
| UCHA 214-43 | 2-11/16 | 2.937 | 1-17/64 | 7-7/8 | 6-17/32 | 2-3/4 | G1-1/2 | 4-39/64 | 1.189 | 5.567 | HA214 | |
| UCHA 214-44 | 2-3/4 | 2.937 | 1-17/64 | 7-7/8 | 6-17/32 | 2-3/4 | G1-1/2 | 4-39/64 | 1.189 | 5.467 | HA214 | |
| UCHA 215 | 75 | 77.8 | 32 | 200 | 166 | 70 | G1-1/2 | 117 | 33.3 | 5.414 | HA215 | |
| UCHA 215-45 | 2-13/16 | 3.063 | 1-17/64 | 7-7/8 | 6-17/32 | 2-3/4 | G1-1/2 | 4-39/64 | 1.311 | 5.414 | HA215 | |
| UCHA 215-46 | 2-7/8 | 3.063 | 1-17/64 | 7-7/8 | 6-17/32 | 2-3/4 | G1-1/2 | 4-39/64 | 1.311 | 5.664 | HA215 | |
| UCHA 215-47 | 2-15/16 | 3.063 | 1-17/64 | 7-7/8 | 6-17/32 | 2-3/4 | G1-1/2 | 4-39/64 | 1.311 | 5.554 | HA215 | |
| UCHA 215-48 | 3 | 3.063 | 1-17/64 | 7-7/8 | 6-17/32 | 2-3/4 | G1-1/2 | 4-39/64 | 1.311 | 5.354 | HA215 |
