UCFL 200
KZ SERIES :UCFL201, UCFL205-16, UCFL207, UCFL217, UCFL218

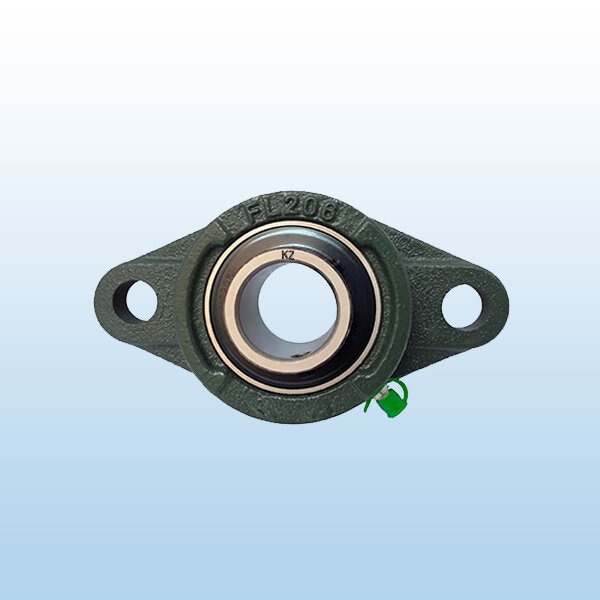

The UCFL bearings are a two-bolt style that has a self-aligning bearing. UCFL mounted bearings are made from a single-piece cast iron housing and a high-quality sealed bearing. UCFL Bearing is a type of flange mount bearing that supports heavy loads. When the shaft axis is at a right angle to the mounting surface, it flexes the shaft and creates harmful vibration. To stabilize and support the shaft, this mount bearing is used. It is designed to adjust for initial shaft misalignment, which further helps in reducing excess bearing load. Clients can avail of this mounting bearing from us in varied specifications.
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

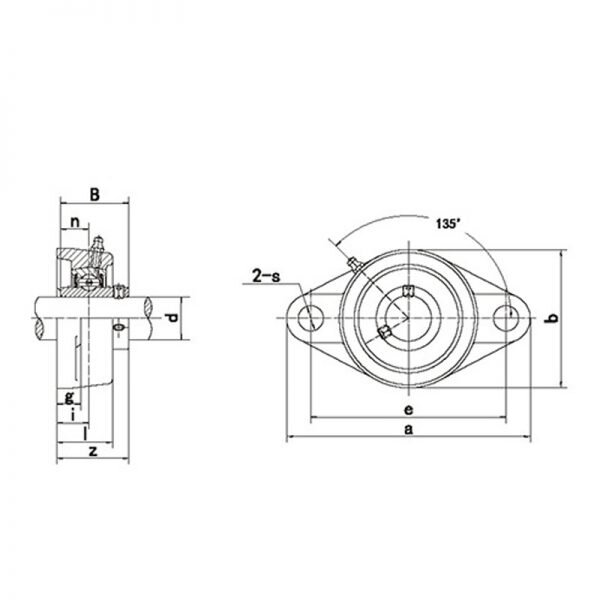

| Bearing Number | Inner Diameter (d) MM | Width (B) MM | B Drawing | a | l | s | g | e | i | z | n | Bolt Size (MM) | Weight (KG) | Housing No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UCFL201 | 12 | 31 | 60 | 113 | 25.5 | 12 | 11 | 90 | 15 | 33.3 | 12.7 | M10 | 0.45 | FL201 |
| UCFL201-8 | 1/2 | 1.2205 | 2-3/8 | 4-7/16 | 1 | 15/32 | 7/16 | 3-35/64 | 19/32 | 1-5/16 | 0.5 | 3/8 | 0.44 | FL201 |
| UCFL202 | 15 | 31 | 60 | 113 | 25.5 | 12 | 11 | 90 | 15 | 33.3 | 12.7 | M10 | 0.44 | FL202 |
| UCFL202-9 | 9/16 | 1.2205 | 2-3/8 | 4-7/16 | 1 | 15/32 | 7/16 | 3-35/64 | 19/32 | 1-5/16 | 0.5 | 3/8 | 0.44 | FL202 |
| UCFL202-10 | 5/8 | 1.2205 | 2-3/8 | 4-7/16 | 1 | 15/32 | 7/16 | 3-35/64 | 19/32 | 1-5/16 | 0.5 | 3/8 | 0.44 | FL202 |
| UCFL203 | 17 | 31 | 60 | 113 | 25.5 | 12 | 11 | 90 | 15 | 33.3 | 12.7 | M10 | 0.43 | FL203 |
| UCFL203-11 | 11/16 | 1.2205 | 2-3/8 | 4-7/16 | 1 | 15/32 | 7/16 | 3-35/64 | 19/32 | 1-5/16 | 0.5 | 3/8 | 0.42 | FL203 |
| UCFL204 | 20 | 31 | 60 | 113 | 25.5 | 12 | 11 | 90 | 15 | 33.3 | 12.7 | M10 | 0.4 | FL204 |
| UCFL204-12 | 3/4 | 1.2205 | 2-3/8 | 4-7/16 | 1 | 15/32 | 7/16 | 3-35/64 | 19/32 | 1-5/16 | 0.5 | 3/8 | 0.4 | FL204 |
| UCFL205 | 25 | 34.1 | 68 | 130 | 27 | 16 | 13 | 99 | 16 | 35.8 | 14.3 | M14 | 0.58 | FL205 |
| UCFL205-13 | 13/16 | 1.3425 | 2-11/16 | 5-1/8 | 1-1/16 | 5/8 | 1/2 | 3-57/64 | 5/8 | 1-13/32 | 0.563 | 1/2 | 0.62 | FL205 |
| UCFL205-14 | 7/8 | 1.3425 | 2-11/16 | 5-1/8 | 1-1/16 | 5/8 | 1/2 | 3-57/64 | 5/8 | 1-13/32 | 0.563 | 1/2 | 0.61 | FL205 |
| UCFL205-15 | 15/16 | 1.3425 | 2-11/16 | 5-1/8 | 1-1/16 | 5/8 | 1/2 | 3-57/64 | 5/8 | 1-13/32 | 0.563 | 1/2 | 0.59 | FL205 |
| UCFL205-16 | 1 | 1.3425 | 2-11/16 | 5-1/8 | 1-1/16 | 5/8 | 1/2 | 3-57/64 | 5/8 | 1-13/32 | 0.563 | 1/2 | 0.58 | FL205 |
| UCFL206 | 30 | 38.1 | 80 | 148 | 31 | 16 | 13 | 117 | 18 | 40.2 | 15.9 | M14 | 0.83 | FL206 |
| UCFL206-17 | 1-1/16 | 1.5 | 3-5/32 | 5-13/16 | 1-7/32 | 5/8 | 1/2 | 4-39/64 | 45/64 | 1-19/32 | 0.626 | 1/2 | 0.84 | FL206 |
| UCFL206-18 | 1-1/8 | 1.5 | 3-5/32 | 5-13/16 | 1-7/32 | 5/8 | 1/2 | 4-39/64 | 45/64 | 1-19/32 | 0.626 | 1/2 | 0.85 | FL206 |
| UCFL206-19 | 1-3/16 | 1.5 | 3-5/32 | 5-13/16 | 1-7/32 | 5/8 | 1/2 | 4-39/64 | 45/64 | 1-19/32 | 0.626 | 1/2 | 0.83 | FL206 |
| UCFL206-20 | 1-1/4 | 1.5 | 3-5/32 | 5-13/16 | 1-7/32 | 5/8 | 1/2 | 4-39/64 | 45/64 | 1-19/32 | 0.626 | 1/2 | 0.82 | FL206 |
| UCFL207 | 35 | 42.9 | 90 | 161 | 34 | 16 | 14 | 130 | 19 | 44.4 | 17.5 | M14 | 1.1 | FL207 |
| UCFL207-20 | 1-1/4 | 1.689 | 3-35/64 | 6-11/32 | 1-11/32 | 5/8 | 35/64 | 5-1/8 | 3/4 | 1-3/4 | 0.689 | 1/2 | 1.16 | FL207 |
| UCFL207-21 | 1-5/16 | 1.689 | 3-35/64 | 6-11/32 | 1-11/32 | 5/8 | 35/64 | 5-1/8 | 3/4 | 1-3/4 | 0.689 | 1/2 | 1.13 | FL207 |
| UCFL207-22 | 1-3/8 | 1.689 | 3-35/64 | 6-11/32 | 1-11/32 | 5/8 | 35/64 | 5-1/8 | 3/4 | 1-3/4 | 0.689 | 1/2 | 1.1 | FL207 |
| UCFL207-23 | 1-7/16 | 1.689 | 3-35/64 | 6-11/32 | 1-11/32 | 5/8 | 35/64 | 5-1/8 | 3/4 | 1-3/4 | 0.689 | 1/2 | 1.07 | FL207 |
| UCFL208 | 40 | 49.2 | 100 | 175 | 36 | 16 | 14 | 144 | 21 | 51.2 | 19 | M14 | 1.42 | FL208 |
| UCFL208-24 | 1-1/2 | 1.937 | 3-15/16 | 6-7/8 | 1-13/32 | 5/8 | 35/64 | 5-43/64 | 53/64 | 2-1/64 | 0.748 | 1/2 | 1.46 | FL208 |
| UCFL208-25 | 1-9/16 | 1.937 | 3-15/16 | 6-7/8 | 1-13/32 | 5/8 | 35/64 | 5-43/64 | 53/64 | 2-1/64 | 0.748 | 1/2 | 1.43 | FL208 |
| UCFL209 | 45 | 49.2 | 108 | 188 | 38 | 19 | 15 | 148 | 22 | 52.2 | 19 | M16 | 1.75 | FL209 |
| UCFL209-26 | 1-5/8 | 1.937 | 4-1/4 | 7-13/32 | 1-1/2 | 3/4 | 19/32 | 5-53/64 | 55/64 | 2-1/16 | 0.748 | 5/8 | 1.85 | FL209 |
| UCFL209-27 | 1-11/16 | 1.937 | 4-1/4 | 7-13/32 | 1-1/2 | 3/4 | 19/32 | 5-53/64 | 55/64 | 2-1/16 | 0.748 | 5/8 | 1.81 | FL209 |
| UCFL209-28 | 1-3/4 | 1.937 | 4-1/4 | 7-13/32 | 1-1/2 | 3/4 | 19/32 | 5-53/64 | 55/64 | 2-1/16 | 0.748 | 5/8 | 1.77 | FL209 |
| UCFL210 | 50 | 51.6 | 115 | 197 | 40 | 19 | 15 | 157 | 22 | 54.6 | 19 | M16 | 2.02 | FL210 |
| UCFL210-29 | 1-13/16 | 2.0315 | 4-17/32 | 7-3/4 | 1-37/64 | 3/4 | 19/32 | 6-3/16 | 55/64 | 2-5/32 | 0.748 | 5/8 | 2.14 | FL210 |
| UCFL210-30 | 1-7/8 | 2.0315 | 4-17/32 | 7-3/4 | 1-37/64 | 3/4 | 19/32 | 6-3/16 | 55/64 | 2-5/32 | 0.748 | 5/8 | 2.09 | FL210 |
| UCFL210-31 | 1-15/16 | 2.0315 | 4-17/32 | 7-3/4 | 1-37/64 | 3/4 | 19/32 | 6-3/16 | 55/64 | 2-5/32 | 0.748 | 5/8 | 2.04 | FL210 |
| UCFL210-32 | 2 | 2.0315 | 4-17/32 | 7-3/4 | 1-37/64 | 3/4 | 19/32 | 6-3/16 | 55/64 | 2-5/32 | 0.748 | 5/8 | 2 | FL210 |
| UCFL211 | 55 | 55.6 | 130 | 224 | 43 | 19 | 18 | 184 | 25 | 58.4 | 22.2 | M16 | 2.79 | FL211 |
| UCFL211-32 | 2 | 2.189 | 5-1/8 | 8-13/16 | 1-11/16 | 3/4 | 23/32 | 7-1/4 | 63/64 | 2-5/16 | 0.874 | 5/8 | 2.94 | FL211 |
| UCFL211-33 | 2-1/16 | 2.189 | 5-1/8 | 8-13/16 | 1-11/16 | 3/4 | 23/32 | 7-1/4 | 63/64 | 2-5/16 | 0.874 | 5/8 | 2.88 | FL211 |
| UCFL211-34 | 2-1/8 | 2.189 | 5-1/8 | 8-13/16 | 1-11/16 | 3/4 | 23/32 | 7-1/4 | 63/64 | 2-5/16 | 0.874 | 5/8 | 2.84 | FL211 |
| UCFL211-35 | 2-3/16 | 2.189 | 5-1/8 | 8-13/16 | 1-11/16 | 3/4 | 23/32 | 7-1/4 | 63/64 | 2-5/16 | 0.874 | 5/8 | 2.77 | FL211 |
| UCFL212 | 60 | 65.1 | 140 | 250 | 48 | 23 | 18 | 202 | 29 | 68.7 | 25.4 | M20 | 3.65 | FL212 |
| UCFL212-36 | 2-1/4 | 2.563 | 5-1/2 | 9-27/32 | 1-7/8 | 29/32 | 23/32 | 7-61/64 | 1-9/64 | 2-23/32 | 1 | 3/4 | 3.78 | FL212 |
| UCFL212-37 | 2-5/16 | 2.563 | 5-1/2 | 9-27/32 | 1-7/8 | 29/32 | 23/32 | 7-61/64 | 1-9/64 | 2-23/32 | 1 | 3/4 | 3.7 | FL212 |
| UCFL212-38 | 2-3/8 | 2.563 | 5-1/2 | 9-27/32 | 1-7/8 | 29/32 | 23/32 | 7-61/64 | 1-9/64 | 2-23/32 | 1 | 3/4 | 3.63 | FL212 |
| UCFL212-39 | 2-7/16 | 2.563 | 5-1/2 | 9-27/32 | 1-7/8 | 29/32 | 23/32 | 7-61/64 | 1-9/64 | 2-23/32 | 1 | 3/4 | 3.56 | FL212 |
| UCFL213 | 65 | 65.1 | 155 | 258 | 50 | 23 | 22 | 210 | 30 | 69.7 | 25.4 | M20 | 4.56 | FL213 |
| UCFL213-40 | 2-1/2 | 2.563 | 6-3/32 | 10-5/32 | 1-31/32 | 29/32 | 7/8 | 8-17/64 | 1-3/16 | 2-3/4 | 1 | 3/4 | 4.65 | FL213 |
| UCFL213-41 | 2-9/16 | 2.563 | 6-3/32 | 10-5/32 | 1-31/32 | 29/32 | 7/8 | 8-17/64 | 1-3/16 | 2-3/4 | 1 | 3/4 | 4.56 | FL213 |
| UCFL214 | 70 | 74.6 | 160 | 265 | 54 | 23 | 22 | 216 | 31 | 75.4 | 30.2 | M20 | 5.12 | FL214 |
| UCFL214-42 | 2-5/8 | 2.937 | 6-5/16 | 10-7/16 | 2-1/8 | 29/32 | 7/8 | 8-1/2 | 1-7/32 | 2-31/32 | 1.189 | 3/4 | 5.33 | FL214 |
| UCFL214-43 | 2-11/16 | 2.937 | 6-5/16 | 10-7/16 | 2-1/8 | 29/32 | 7/8 | 8-1/2 | 1-7/32 | 2-31/32 | 1.189 | 3/4 | 5.23 | FL214 |
| UCFL214-44 | 2-3/4 | 2.937 | 6-5/16 | 10-7/16 | 2-1/8 | 29/32 | 7/8 | 8-1/2 | 1-7/32 | 2-31/32 | 1.189 | 3/4 | 5.13 | FL214 |
| UCFL215 | 75 | 77.8 | 165 | 275 | 56 | 23 | 22 | 225 | 34 | 78.5 | 33.3 | M20 | 5.64 | FL215 |
| UCFL215-45 | 2-13/16 | 3.063 | 6-1/2 | 10-13/16 | 2-7/32 | 29/32 | 7/8 | 8-55/64 | 1-11/32 | 3-3/32 | 1.311 | 3/4 | 5.61 | FL215 |
| UCFL215-46 | 2-7/8 | 3.063 | 6-1/2 | 10-13/16 | 2-7/32 | 29/32 | 7/8 | 8-55/64 | 1-11/32 | 3-3/32 | 1.311 | 3/4 | 5.86 | FL215 |
| UCFL215-47 | 2-15/16 | 3.063 | 6-1/2 | 10-13/16 | 2-7/32 | 29/32 | 7/8 | 8-55/64 | 1-11/32 | 3-3/32 | 1.311 | 3/4 | 5.75 | FL215 |
| UCFL215-48 | 3 | 3.063 | 6-1/2 | 10-13/16 | 2-7/32 | 29/32 | 7/8 | 8-55/64 | 1-11/32 | 3-3/32 | 1.311 | 3/4 | 5.55 | FL215 |
| UCFL216 | 80 | 82.6 | 180 | 290 | 58 | 25 | 22 | 233 | 34 | 83.3 | 33.3 | M22 | 6.91 | FL216 |
| UCFL216-49 | 3-1/16 | 3.252 | 7-3/32 | 11-13/32 | 2-9/32 | 63/64 | 7/8 | 9-11/64 | 1-11/32 | 3-9/32 | 1.311 | 7/8 | 7.09 | FL216 |
| UCFL216-50 | 3-1/8 | 3.252 | 7-3/32 | 11-13/32 | 2-9/32 | 63/64 | 7/8 | 9-11/64 | 1-11/32 | 3-9/32 | 1.311 | 7/8 | 6.96 | FL216 |
| UCFL216-51 | 3-3/16 | 3.252 | 7-3/32 | 11-13/32 | 2-9/32 | 63/64 | 7/8 | 9-11/64 | 1-11/32 | 3-9/32 | 1.311 | 7/8 | 6.83 | FL216 |
| UCFL217 | 85 | 85.7 | 190 | 305 | 63 | 25 | 24 | 248 | 36 | 87.5 | 34.1 | M22 | 8.27 | FL217 |
| UCFL217-52 | 3-1/4 | 3.374 | 7-15/32 | 12 | 2-15/32 | 63/64 | 15/16 | 9-49/64 | 1-27/64 | 3-7/16 | 1.343 | 7/8 | 8.39 | FL217 |
| UCFL217-53 | 3-5/16 | 3.374 | 7-15/32 | 12 | 2-15/32 | 63/64 | 15/16 | 9-49/64 | 1-27/64 | 3-7/16 | 1.343 | 7/8 | 8.35 | FL217 |
| UCFL217-55 | 3-7/16 | 3.374 | 7-15/32 | 12 | 2-15/32 | 63/64 | 15/16 | 9-49/64 | 1-27/64 | 3-7/16 | 1.343 | 7/8 | 8.06 | FL217 |
| UCFL218 | 90 | 96 | 205 | 320 | 68 | 25 | 24 | 265 | 40 | 96.3 | 39.7 | M22 | 10.13 | FL218 |
| UCFL218-56 | 3-1/2 | 3.7795 | 8-1/16 | 12-19/32 | 2-11/16 | 63/64 | 15/16 | 10-7/16 | 1-37/64 | 3-25/32 | 1.563 | 7/8 | 10.24 | FL218 |
| UCFL305 | 25 | 38 | 80 | 150 | 29 | 19 | 13 | 113 | 16 | 39 | 15 | M16 | 0.891 | FL305 |
| UCFL305-13 | 13/16 | 1.4961 | 3-5/32 | 5-29/32 | 1-5/32 | 3/4 | 1/2 | 4-7/16 | 5/8 | 1-17/32 | 0.591 | 5/8 | 0.941 | FL305 |
| UCFL305-14 | 7/8 | 1.4961 | 3-5/32 | 5-29/32 | 1-5/32 | 3/4 | 1/2 | 4-7/16 | 5/8 | 1-17/32 | 0.591 | 5/8 | 0.921 | FL305 |
| UCFL305-15 | 15/16 | 1.4961 | 3-5/32 | 5-29/32 | 1-5/32 | 3/4 | 1/2 | 4-7/16 | 5/8 | 1-17/32 | 0.591 | 5/8 | 0.901 | FL305 |
| UCFL305-16 | 1 | 1.4961 | 3-5/32 | 5-29/32 | 1-5/32 | 3/4 | 1/2 | 4-7/16 | 5/8 | 1-17/32 | 0.591 | 5/8 | 0.891 | FL305 |
| UCFL306 | 30 | 43 | 90 | 180 | 32 | 23 | 15 | 134 | 18 | 44 | 17 | M20 | 1.365 | FL306 |
| UCFL306-17 | 1-1/16 | 1.6929 | 3-17/32 | 7-3/32 | 1-1/4 | 29/32 | 19/32 | 5-9/32 | 45/64 | 1-47/64 | 0.669 | 3/4 | 1.419 | FL306 |
| UCFL306-18 | 1-1/8 | 1.6929 | 3-17/32 | 7-3/32 | 1-1/4 | 29/32 | 19/32 | 5-9/32 | 45/64 | 1-47/64 | 0.669 | 3/4 | 1.389 | FL306 |
| UCFL306-19 | 1-3/16 | 1.6929 | 3-17/32 | 7-3/32 | 1-1/4 | 29/32 | 19/32 | 5-9/32 | 45/64 | 1-47/64 | 0.669 | 3/4 | 1.369 | FL306 |
| UCFL307 | 35 | 48 | 100 | 185 | 36 | 23 | 16 | 141 | 20 | 49 | 19 | M20 | 1.674 | FL307 |
| UCFL307-20 | 1-1/4 | 1.8898 | 3-15/16 | 7-9/32 | 1-13/32 | 29/32 | 5/8 | 5-35/64 | 25/32 | 1-59/64 | 0.748 | 3/4 | 1.73 | FL307 |
| UCFL307-21 | 1-5/16 | 1.8898 | 3-15/16 | 7-9/32 | 1-13/32 | 29/32 | 5/8 | 5-35/64 | 25/32 | 1-59/64 | 0.748 | 3/4 | 1.7 | FL307 |
| UCFL307-22 | 1-3/8 | 1.8898 | 3-15/16 | 7-9/32 | 1-13/32 | 29/32 | 5/8 | 5-35/64 | 25/32 | 1-59/64 | 0.748 | 3/4 | 1.67 | FL307 |
| UCFL307-23 | 1-7/16 | 1.8898 | 3-15/16 | 7-9/32 | 1-13/32 | 29/32 | 5/8 | 5-35/64 | 25/32 | 1-59/64 | 0.748 | 3/4 | 1.64 | FL307 |
| UCFL308 | 40 | 52 | 112 | 200 | 40 | 23 | 17 | 158 | 23 | 56 | 19 | M20 | 2.199 | FL308 |
| UCFL308-24 | 1-1/2 | 2.0472 | 4-13/32 | 7-7/8 | 1-9/16 | 29/32 | 21/32 | 6-7/32 | 29/32 | 1-13/64 | 0.748 | 3/4 | 2.245 | FL308 |
| UCFL308-25 | 1-9/16 | 2.0472 | 4-13/32 | 7-7/8 | 1-9/16 | 29/32 | 21/32 | 6-7/32 | 29/32 | 1-13/64 | 0.748 | 3/4 | 2.205 | FL308 |
| UCFL309 | 45 | 57 | 125 | 230 | 44 | 25 | 18 | 177 | 25 | 60 | 22 | M22 | 3.117 | FL309 |
| UCFL309-26 | 1-5/8 | 2.2441 | 4-29/32 | 9-1/16 | 1-23/32 | 63/64 | 23/32 | 6-31/32 | 63/64 | 2-23/64 | 0.866 | 7/8 | 3.212 | FL309 |
| UCFL309-27 | 1-11/16 | 2.2441 | 4-29/32 | 9-1/16 | 1-23/32 | 63/64 | 23/32 | 6-31/32 | 63/64 | 2-23/64 | 0.866 | 7/8 | 3.172 | FL309 |
| UCFL309-28 | 1-3/4 | 2.2441 | 4-29/32 | 9-1/16 | 1-23/32 | 63/64 | 23/32 | 6-31/32 | 63/64 | 2-23/64 | 0.866 | 7/8 | 3.122 | FL309 |
| UCFL310 | 50 | 61 | 140 | 240 | 48 | 25 | 19 | 187 | 28 | 67 | 22 | M22 | 3.993 | FL310 |
| UCFL310-29 | 1-13/16 | 2.4016 | 5-1/2 | 9-7/16 | 1-7/8 | 63/64 | 3/4 | 7-23/64 | 1-7/64 | 2-41/64 | 0.866 | 7/8 | 4.336 | FL310 |
| UCFL310-30 | 1-7/8 | 2.4016 | 5-1/2 | 9-7/16 | 1-7/8 | 63/64 | 3/4 | 7-23/64 | 1-7/64 | 2-41/64 | 0.866 | 7/8 | 4.086 | FL310 |
| UCFL310-31 | 1-15/16 | 2.4016 | 5-1/2 | 9-7/16 | 1-7/8 | 63/64 | 3/4 | 7-23/64 | 1-7/64 | 2-41/64 | 0.866 | 7/8 | 4.026 | FL310 |
| UCFL311 | 55 | 66 | 150 | 250 | 52 | 25 | 20 | 198 | 30 | 71 | 25 | M22 | 4.79 | FL311 |
| UCFL311-32 | 2 | 2.5984 | 5-29/32 | 9-27/32 | 2-1/16 | 63/64 | 25/32 | 7-51/64 | 1-3/16 | 2-51/64 | 0.984 | 7/8 | 4.97 | FL311 |
| UCFL311-33 | 2-1/16 | 2.5984 | 5-29/32 | 9-27/32 | 2-1/16 | 63/64 | 25/32 | 7-51/64 | 1-3/16 | 2-51/64 | 0.984 | 7/8 | 4.9 | FL311 |
| UCFL311-34 | 2-1/8 | 2.5984 | 5-29/32 | 9-27/32 | 2-1/16 | 63/64 | 25/32 | 7-51/64 | 1-3/16 | 2-51/64 | 0.984 | 7/8 | 4.84 | FL311 |
| UCFL311-35 | 2-3/16 | 2.5984 | 5-29/32 | 9-27/32 | 2-1/16 | 63/64 | 25/32 | 7-51/64 | 1-3/16 | 2-51/64 | 0.984 | 7/8 | 4.76 | FL311 |
| UCFL312 | 60 | 71 | 160 | 270 | 56 | 31 | 22 | 212 | 33 | 78 | 26 | M27 | 5.771 | FL312 |
| UCFL312-36 | 2-1/4 | 2.7953 | 6-5/64 | 10-5/8 | 2-7/32 | 1-7/32 | 7/8 | 8-11/32 | 1-19/64 | 3-5/64 | 1.024 | 1 | 5.921 | FL312 |
| UCFL312-37 | 2-5/16 | 2.7953 | 6-5/64 | 10-5/8 | 2-7/32 | 1-7/32 | 7/8 | 8-11/32 | 1-19/64 | 3-5/64 | 1.024 | 1 | 5.841 | FL312 |
| UCFL312-38 | 2-3/8 | 2.7953 | 6-5/64 | 10-5/8 | 2-7/32 | 1-7/32 | 7/8 | 8-11/32 | 1-19/64 | 3-5/64 | 1.024 | 1 | 5.751 | FL312 |
| UCFL312-39 | 2-7/16 | 2.7953 | 6-5/64 | 10-5/8 | 2-7/32 | 1-7/32 | 7/8 | 8-11/32 | 1-19/64 | 3-5/64 | 1.024 | 1 | 5.671 | FL312 |
| UCFL313 | 65 | 75 | 175 | 295 | 58 | 31 | 25 | 240 | 33 | 78 | 30 | M27 | 7.377 | FL313 |
| UCFL313-40 | 2-1/2 | 2.9528 | 6-7/8 | 11-5/8 | 2-9/32 | 1-7/32 | 31/32 | 9-29/64 | 1-19/64 | 3-5/64 | 1.181 | 1 | 7.463 | FL313 |
| UCFL313-41 | 2-9/16 | 2.9528 | 6-7/8 | 11-5/8 | 2-9/32 | 1-7/32 | 31/32 | 9-29/64 | 1-19/64 | 3-5/64 | 1.181 | 1 | 7.363 | FL313 |
| UCFL314 | 70 | 78 | 185 | 315 | 61 | 35 | 28 | 250 | 36 | 81 | 33 | M30 | 8.716 | FL314 |
| UCFL314-42 | 2-5/8 | 3.0708 | 7-9/32 | 12-13/32 | 2-13/32 | 1-3/8 | 1-3/32 | 9-27/32 | 1-27/64 | 3-3/16 | 1.299 | 1-1/8 | 8.936 | FL314 |
| UCFL314-43 | 2-11/16 | 3.0708 | 7-9/32 | 12-13/32 | 2-13/32 | 1-3/8 | 1-3/32 | 9-27/32 | 1-27/64 | 3-3/16 | 1.299 | 1-1/8 | 8.826 | FL314 |
| UCFL314-44 | 2-3/4 | 3.0708 | 7-9/32 | 12-13/32 | 2-13/32 | 1-3/8 | 1-3/32 | 9-27/32 | 1-27/64 | 3-3/16 | 1.299 | 1-1/8 | 8.726 | FL314 |
| UCFL315 | 75 | 82 | 195 | 320 | 66 | 35 | 30 | 260 | 39 | 89 | 32 | M30 | 10.02 | FL315 |
| UCFL315-45 | 2-13/16 | 3.2283 | 7-11/16 | 12-19/32 | 2-19/32 | 1-3/8 | 1-3/16 | 10-15/64 | 1-17/32 | 3-1/2 | 1.26 | 1-1/8 | 10.29 | FL315 |
| UCFL315-46 | 2-7/8 | 3.2283 | 7-11/16 | 12-19/32 | 2-19/32 | 1-3/8 | 1-3/16 | 10-15/64 | 1-17/32 | 3-1/2 | 1.26 | 1-1/8 | 10.15 | FL315 |
| UCFL315-47 | 2-15/16 | 3.2283 | 7-11/16 | 12-19/32 | 2-19/32 | 1-3/8 | 1-3/16 | 10-15/64 | 1-17/32 | 3-1/2 | 1.26 | 1-1/8 | 10.06 | FL315 |
| UCFL315-48 | 3 | 3.2283 | 7-11/16 | 12-19/32 | 2-19/32 | 1-3/8 | 1-3/16 | 10-15/64 | 1-17/32 | 3-1/2 | 1.26 | 1-1/8 | 9.93 | FL315 |
| UCFL316 | 80 | 86 | 210 | 355 | 68 | 38 | 32 | 285 | 38 | 90 | 34 | M33 | 12.419 | FL316 |
| UCFL316-49 | 3-1/16 | 3.3858 | 8-9/32 | 13-31/32 | 2-11/16 | 1-1/2 | 1-1/4 | 11-7/32 | 1-1/2 | 3-35/64 | 1.339 | 1-1/4 | 12.589 | FL316 |
| UCFL316-50 | 3-1/8 | 3.3858 | 8-9/32 | 13-31/32 | 2-11/16 | 1-1/2 | 1-1/4 | 11-7/32 | 1-1/2 | 3-35/64 | 1.339 | 1-1/4 | 12.449 | FL316 |
| UCFL316-51 | 3-3/16 | 3.3858 | 8-9/32 | 13-31/32 | 2-11/16 | 1-1/2 | 1-1/4 | 11-7/32 | 1-1/2 | 3-35/64 | 1.339 | 1-1/4 | 12.359 | FL316 |
| UCFL317 | 85 | 96 | 220 | 370 | 74 | 38 | 32 | 300 | 44 | 100 | 40 | M33 | 14.338 | FL317 |
| UCFL317-52 | 3-1/4 | 3.7795 | 8-21/32 | 14-9/16 | 2-29/32 | 1-1/2 | 1-1/4 | 11-13/16 | 1-47/64 | 3-15/16 | 1.575 | 1-1/4 | 14.558 | FL317 |
| UCFL317-53 | 3-5/16 | 3.7795 | 8-21/32 | 14-9/16 | 2-29/32 | 1-1/2 | 1-1/4 | 11-13/16 | 1-47/64 | 3-15/16 | 1.575 | 1-1/4 | 14.528 | FL317 |
| UCFL317-55 | 3-7/16 | 3.7795 | 8-21/32 | 14-9/16 | 2-29/32 | 1-1/2 | 1-1/4 | 11-13/16 | 1-47/64 | 3-15/16 | 1.575 | 1-1/4 | 14.308 | FL317 |
| UCFL318 | 90 | 96 | 235 | 385 | 76 | 38 | 36 | 315 | 44 | 100 | 40 | M33 | 16.869 | FL318 |
| UCFL318-55 | 3-7/16 | 3.7795 | 9-1/4 | 15-5/32 | 3 | 1-1/2 | 1-13/32 | 12-13/32 | 1-47/64 | 3-15/16 | 1.575 | 1-1/4 | 17.159 | FL318 |
| UCFL318-56 | 3-1/2 | 3.7795 | 9-1/4 | 15-5/32 | 3 | 1-1/2 | 1-13/32 | 12-13/32 | 1-47/64 | 3-15/16 | 1.575 | 1-1/4 | 16.979 | FL318 |
| UCFL319 | 95 | 103 | 250 | 405 | 94 | 41 | 40 | 330 | 59 | 121 | 41 | M36 | 21.712 | FL319 |
| UCFL319-58 | 3-5/8 | 4.0551 | 9-27/32 | 15-15/16 | 3-11/16 | 1-39/64 | 1-9/16 | 12-63/64 | 2-21/64 | 4-49/64 | 1.614 | 1-3/8 | 22.042 | FL319 |
| UCFL319-59 | 3-11/16 | 4.0551 | 9-27/32 | 15-15/16 | 3-11/16 | 1-39/64 | 1-9/16 | 12-63/64 | 2-21/64 | 4-49/64 | 1.614 | 1-3/8 | 21.862 | FL319 |
| UCFL319-60 | 3-3/4 | 4.0551 | 9-27/32 | 15-15/16 | 3-11/16 | 1-39/64 | 1-9/16 | 12-63/64 | 2-21/64 | 4-49/64 | 1.614 | 1-3/8 | 21.672 | FL319 |
| UCFL320 | 100 | 108 | 270 | 440 | 94 | 44 | 40 | 360 | 59 | 125 | 42 | M39 | 25.95 | FL320 |
| UCFL320-64 | 4 | 4.2519 | 10-5/8 | 17-5/16 | 3-11/16 | 1-47/64 | 1-9/16 | 14-11/64 | 2-21/64 | 4-29/32 | 1.6535 | 1-1/2 | 25.75 | FL320 |
| UCFL322 | 110 | 117 | 300 | 470 | 96 | 44 | 42 | 390 | 60 | 131 | 46 | M39 | 33.05 | FL322 |
| UCFL324 | 120 | 126 | 330 | 520 | 110 | 47 | 48 | 430 | 65 | 140 | 51 | M42 | 46.47 | FL324 |
| UCFL326 | 130 | 135 | 360 | 550 | 115 | 47 | 50 | 460 | 65 | 146 | 54 | M42 | 57.38 | FL326 |
| UCFL328 | 140 | 145 | 400 | 600 | 125 | 51 | 60 | 500 | 75 | 161 | 59 | M45 | 79.08 | FL328 |
