UCPA
KZ SERIES : UCPA 201, UCPA 202, UCPA 202-10, UCPA 205, UCPA 210

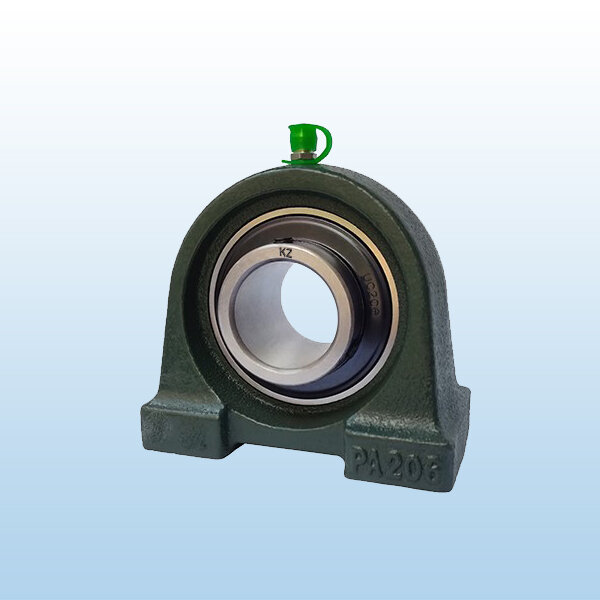

UCPA is Metric Tap Base Pillow Block housing having Two Tapped Bores for fixing them from below and are Relubricatable. The UCPA pillow block consists of a bearing insert with a spherical outer diameter in a cast iron housing which features a shortened base with metric size tapped holes for mounting in confined spaces. A pillow unit designed to reduce space requirements for mounting.
Available in metric and inch sizes.
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

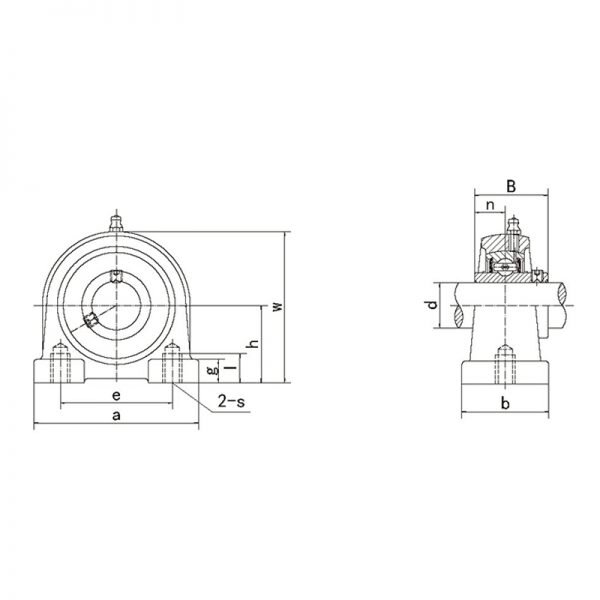

| Bearing Number | Inner Diameter (d) MM | Width (B) MM | L | w | B Drawing | a | s | e | Bolt Size (MM) | G | H | N | Weight (KG) | Housing No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UCPA 201 | 12 | 31 | 15 | 62 | 40 | 76 | M10 | 52 | M10 | 11 | 30.2 | 12.7 | 0.63 | PA201 |
| UCPA 201-8 | 1/2 | 1.2205 | 19/32 | 2-7/16 | 1-9/16 | 3 | M10 | 2-3/64 | M10 | 7/16 | 1-3/16 | 0.5 | 0.62 | PA201 |
| UCPA 202 | 15 | 1.2205 | 19/32 | 2-7/16 | 1-9/16 | 3 | M10 | 2-3/64 | M10 | 7/16 | 1-3/16 | 0.5 | 0.62 | PA202 |
| UCPA 202-9 | 9/16 | 1.2205 | 19/32 | 2-7/16 | 1-9/16 | 3 | M10 | 2-3/64 | M10 | 7/16 | 1-3/16 | 0.5 | 0.62 | PA202 |
| UCPA 202-10 | 5/8 | 1.2205 | 19/32 | 2-7/16 | 1-9/16 | 3 | M10 | 2-3/64 | M10 | 7/16 | 1-3/16 | 0.5 | 0.62 | PA202 |
| UCPA 203 | 17 | 1.2205 | 19/32 | 2-7/16 | 1-9/16 | 3 | M10 | 2-3/64 | M10 | 7/16 | 1-3/16 | 0.5 | 0.61 | PA203 |
| UCPA 203-11 | 11/16 | 1.2205 | 19/32 | 2-7/16 | 1-9/16 | 3 | M10 | 2-3/64 | M10 | 7/16 | 1-3/16 | 0.5 | 0.6 | PA203 |
| UCPA 204 | 20 | 1.2205 | 15 | 2-7/16 | 40 | 76 | M10 | 32 | M10 | 11 | 30.2 | 0.5 | 0.589 | PA204 |
| UCPA 204-12 | 3/4 | 1.2205 | 19/32 | 2-7/16 | 1-9/16 | 3 | M10 | 2-3/64 | M10 | 7/16 | 1-3/16 | 0.5 | 0.589 | PA204 |
| UCPA 205 | 25 | 34.1 | 15 | 72 | 38 | 84 | M10 | 56 | M10 | 12 | 36.5 | 14.3 | 0.756 | PA205 |
| UCPA 205-13 | 13/16 | 1.3425 | 19/32 | 2-53/64 | 1-1/2 | 3-5/16 | M10 | 2-13/64 | M10 | 15/32 | 1-7/16 | 0.563 | 0.793 | PA205 |
| UCPA 205-14 | 7/8 | 1.3425 | 19/32 | 2-53/64 | 1-1/2 | 3-5/16 | M10 | 2-13/64 | M10 | 15/32 | 1-7/16 | 0.563 | 0.783 | PA205 |
| UCPA 205-15 | 15/16 | 1.3425 | 19/32 | 2-53/64 | 1-1/2 | 3-5/16 | M10 | 2-13/64 | M10 | 15/32 | 1-7/16 | 0.563 | 0.763 | PA205 |
| UCPA 205-16 | 1 | 1.3425 | 19/32 | 2-53/64 | 1-1/2 | 3-5/16 | M10 | 2-13/64 | M10 | 15/32 | 1-7/16 | 0.563 | 0.753 | PA205 |
| UCPA 206 | 30 | 38.1 | 18 | 84 | 50 | 94 | M14 | 66 | M14 | 12 | 42.9 | 15.9 | 1.116 | PA206 |
| UCPA 206-17 | 1-1/16 | 1.5 | 45/64 | 3-5/16 | 1-31/32 | 3-45/64 | M14 | 2-19/32 | M14 | 15/32 | 1-11/16 | 0.626 | 1.126 | PA206 |
| UCPA 206-18 | 1-1/8 | 1.5 | 45/64 | 3-5/16 | 1-31/32 | 3-45/64 | M14 | 2-19/32 | M14 | 15/32 | 1-11/16 | 0.626 | 1.136 | PA206 |
| UCPA 206-19 | 1-3/16 | 1.5 | 45/64 | 3-5/16 | 1-31/32 | 3-45/64 | M14 | 2-19/32 | M14 | 15/32 | 1-11/16 | 0.626 | 1.116 | PA206 |
| UCPA 206-20 | 1-1/4 | 1.5 | 45/64 | 3-5/16 | 1-31/32 | 3-45/64 | M14 | 2-19/32 | M14 | 15/32 | 1-11/16 | 0.626 | 1.106 | PA206 |
| UCPA 207 | 35 | 42.9 | 20 | 95 | 55 | 110 | M14 | 80 | M14 | 13 | 47.6 | 17.5 | 1.546 | PA207 |
| UCPA 207-20 | 1-1/4 | 1.689 | 25/32 | 3-47/64 | 2-11/64 | 4-21/64 | M14 | 3-5/32 | M14 | 33/64 | 1-7/8 | 0.689 | 1.611 | PA207 |
| UCPA 207-21 | 1-5/16 | 1.689 | 25/32 | 3-47/64 | 2-11/64 | 4-21/64 | M14 | 3-5/32 | M14 | 33/64 | 1-7/8 | 0.689 | 1.581 | PA207 |
| UCPA 207-22 | 1-3/8 | 1.689 | 25/32 | 3-47/64 | 2-11/64 | 4-21/64 | M14 | 3-5/32 | M14 | 33/64 | 1-7/8 | 0.689 | 1.551 | PA207 |
| UCPA 207-23 | 1-7/16 | 1.689 | 25/32 | 3-47/64 | 2-11/64 | 4-21/64 | M14 | 3-5/32 | M14 | 33/64 | 1-7/8 | 0.689 | 1.521 | PA207 |
| UCPA 208 | 40 | 49.2 | 20 | 100 | 58 | 116 | M14 | 84 | M14 | 13 | 49.2 | 19 | 1.798 | PA208 |
| UCPA 208-24 | 1-1/2 | 1.937 | 25/32 | 3-15/16 | 2-9/32 | 4-9/16 | M14 | 3-5/16 | M14 | 33/64 | 1-15/16 | 0.748 | 1.838 | PA208 |
| UCPA 208-25 | 1-9/16 | 1.937 | 25/32 | 3-15/16 | 2-9/32 | 4-9/16 | M14 | 3-5/16 | M14 | 33/64 | 1-15/16 | 0.748 | 1.808 | PA208 |
| UCPA 209 | 45 | 49.2 | 25 | 108 | 60 | 120 | M14 | 90 | M14 | 13 | 54.2 | 19 | 2.053 | PA209 |
| UCPA 209-26 | 1-5/8 | 1.937 | 63/64 | 4-1/4 | 2-23/64 | 4-23/32 | M14 | 3-35/64 | M14 | 33/64 | 2-9/64 | 0.748 | 2.153 | PA209 |
| UCPA 209-27 | 1-11/16 | 1.937 | 63/64 | 4-1/4 | 2-23/64 | 4-23/32 | M14 | 3-35/64 | M14 | 33/64 | 2-9/64 | 0.748 | 2.113 | PA209 |
| UCPA 209-28 | 1-3/4 | 1.937 | 63/64 | 4-1/4 | 2-23/64 | 4-23/32 | M14 | 3-35/64 | M14 | 33/64 | 2-9/64 | 0.748 | 2.073 | PA209 |
| UCPA 210 | 50 | 51.6 | 25 | 116 | 64 | 130 | M16 | 94 | M16 | 14 | 57.2 | 19 | 2.556 | PA210 |
| UCPA 210-29 | 1-13/16 | 2.0315 | 63/64 | 4-9/16 | 2-33/64 | 5-1/8 | M16 | 3-45/64 | M16 | 35/64 | 2-1/4 | 0.748 | 2.676 | PA210 |
| UCPA 210-30 | 1-7/8 | 2.0315 | 63/64 | 4-9/16 | 2-33/64 | 5-1/8 | M16 | 3-45/64 | M16 | 35/64 | 2-1/4 | 0.748 | 2.626 | PA210 |
| UCPA 210-31 | 1-15/16 | 2.0315 | 63/64 | 4-9/16 | 2-33/64 | 5-1/8 | M16 | 3-45/64 | M16 | 35/64 | 2-1/4 | 0.748 | 2.576 | PA210 |
| UCPA 210-32 | 2 | 2.0315 | 63/64 | 4-9/16 | 2-33/64 | 5-1/8 | M16 | 3-45/64 | M16 | 35/64 | 2-1/4 | 0.748 | 2.536 | PA210 |
| UCPA 211 | 55 | 55.6 | 25 | 125 | 66 | 140 | M16 | 104 | M16 | 14 | 63.5 | 22.2 | 3.138 | PA211 |
| UCPA 211-32 | 2 | 2.189 | 63/64 | 4-59/64 | 2-19/32 | 5-33/64 | M16 | 4-3/32 | M16 | 35/64 | 2-1/2 | 0.874 | 3.288 | PA211 |
| UCPA 211-33 | 2-1/16 | 2.189 | 63/64 | 4-59/64 | 2-19/32 | 5-33/64 | M16 | 4-3/32 | M16 | 35/64 | 2-1/2 | 0.874 | 3.228 | PA211 |
| UCPA 211-34 | 2-1/8 | 2.189 | 63/64 | 4-59/64 | 2-19/32 | 5-33/64 | M16 | 4-3/32 | M16 | 35/64 | 2-1/2 | 0.874 | 3.188 | PA211 |
| UCPA 211-35 | 2-3/16 | 2.189 | 63/64 | 4-59/64 | 2-19/32 | 5-33/64 | M16 | 4-3/32 | M16 | 35/64 | 2-1/2 | 0.874 | 3.118 | PA211 |
| UCPA 212 | 60 | 65.1 | 25 | 138 | 68 | 150 | M16 | 114 | M16 | 15 | 69.9 | 25.4 | 4.12 | PA212 |
| UCPA 212-36 | 2-1/4 | 2.563 | 63/64 | 5-7/16 | 2-43/64 | 5-29/32 | M16 | 4-31/64 | M16 | 19/32 | 2-3/4 | 1 | 4.25 | PA212 |
| UCPA 212-37 | 2-5/16 | 2.563 | 63/64 | 5-7/16 | 2-43/64 | 5-29/32 | M16 | 4-31/64 | M16 | 19/32 | 2-3/4 | 1 | 4.17 | PA212 |
| UCPA 212-38 | 2-3/8 | 2.563 | 63/64 | 5-7/16 | 2-43/64 | 5-29/32 | M16 | 4-31/64 | M16 | 19/32 | 2-3/4 | 1 | 4.1 | PA212 |
| UCPA 212-39 | 2-7/16 | 2.563 | 63/64 | 5-7/16 | 2-43/64 | 5-29/32 | M16 | 4-31/64 | M16 | 19/32 | 2-3/4 | 1 | 4.03 | PA212 |
| UCPA 213 | 65 | 65.1 | 25 | 150 | 70 | 160 | M16 | 124 | M16 | 15 | 76.2 | 25.4 | 4.915 | PA213 |
| UCPA 213-40 | 2-1/2 | 2.563 | 63/64 | 5-29/32 | 2-3/4 | 6-19/64 | M16 | 4-7/8 | M16 | 19/32 | 3 | 1 | 5.005 | PA213 |
| UCPA 213-41 | 2-9/16 | 2.563 | 63/64 | 5-29/32 | 2-3/4 | 6-19/64 | M16 | 4-7/8 | M16 | 19/32 | 3 | 1 | 4.915 | PA213 |
