KZ SERIES : UCPA 201, UCPA 202, UCPA 202-10, UCPA 205, UCPA 210
UCPA UCPA 202 is Metric Tap Base Pillow Block housing having Two Tapped Bores for fixing them from below and are Relubricatable. The UCPA pillow block consists of a bearing insert with a spherical outer diameter in a cast iron housing which features a shortened base with metric size tapped holes for mounting in confined spaces. A pillow unit designed to reduce space requirements for mounting.
Available in metric and inch sizes.
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

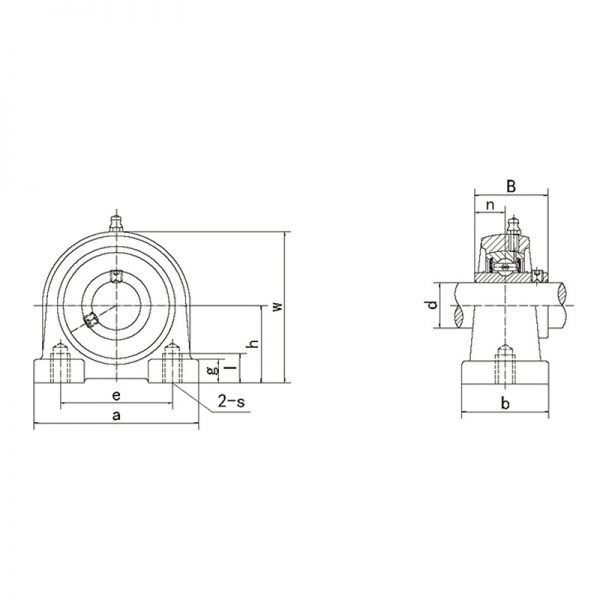

Bearing Number | Inner Diameter (d) MM | Width (B) MM | L | w | B Drawing | a | s | e | Bolt Size (MM) | G | H | N | Weight (KG) | Housing No. |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
UCPA 202 | 15 | 1.2205 | 19/32 | 2-7/16 | 1-9/16 | 3 | M10 | 2-3/64 | M10 | 7/16 | 1-3/16 | 0.5 | 0.62 | PA202 |
UCPA 202-9 | 9/16 | 1.2205 | 19/32 | 2-7/16 | 1-9/16 | 3 | M10 | 2-3/64 | M10 | 7/16 | 1-3/16 | 0.5 | 0.62 | PA202 |
UCPA 202-10 | 5/8 | 1.2205 | 19/32 | 2-7/16 | 1-9/16 | 3 | M10 | 2-3/64 | M10 | 7/16 | 1-3/16 | 0.5 | 0.62 | PA202 |
UCPA 203 | 17 | 1.2205 | 19/32 | 2-7/16 | 1-9/16 | 3 | M10 | 2-3/64 | M10 | 7/16 | 1-3/16 | 0.5 | 0.61 | PA203 |
UCPA 203-11 | 11/16 | 1.2205 | 19/32 | 2-7/16 | 1-9/16 | 3 | M10 | 2-3/64 | M10 | 7/16 | 1-3/16 | 0.5 | 0.6 | PA203 |
UCPA 204 | 20 | 1.2205 | 15 | 2-7/16 | 40 | 76 | M10 | 32 | M10 | 11 | 30.2 | 0.5 | 0.589 | PA204 |
UCPA 204-12 | 3/4 | 1.2205 | 19/32 | 2-7/16 | 1-9/16 | 3 | M10 | 2-3/64 | M10 | 7/16 | 1-3/16 | 0.5 | 0.589 | PA204 |
UCPA 205 | 25 | 34.1 | 15 | 72 | 38 | 84 | M10 | 56 | M10 | 12 | 36.5 | 14.3 | 0.756 | PA205 |
UCPA 205-13 | 13/16 | 1.3425 | 19/32 | 2-53/64 | 1-1/2 | 3-5/16 | M10 | 2-13/64 | M10 | 15/32 | 1-7/16 | 0.563 | 0.793 | PA205 |
UCPA 205-14 | 7/8 | 1.3425 | 19/32 | 2-53/64 | 1-1/2 | 3-5/16 | M10 | 2-13/64 | M10 | 15/32 | 1-7/16 | 0.563 | 0.783 | PA205 |
UCPA 205-15 | 15/16 | 1.3425 | 19/32 | 2-53/64 | 1-1/2 | 3-5/16 | M10 | 2-13/64 | M10 | 15/32 | 1-7/16 | 0.563 | 0.763 | PA205 |
UCPA 205-16 | 1 | 1.3425 | 19/32 | 2-53/64 | 1-1/2 | 3-5/16 | M10 | 2-13/64 | M10 | 15/32 | 1-7/16 | 0.563 | 0.753 | PA205 |
UCPA 206 | 30 | 38.1 | 18 | 84 | 50 | 94 | M14 | 66 | M14 | 12 | 42.9 | 15.9 | 1.116 | PA206 |
UCPA 206-17 | 1-1/16 | 1.5 | 45/64 | 3-5/16 | 1-31/32 | 3-45/64 | M14 | 2-19/32 | M14 | 15/32 | 1-11/16 | 0.626 | 1.126 | PA206 |
UCPA 206-18 | 1-1/8 | 1.5 | 45/64 | 3-5/16 | 1-31/32 | 3-45/64 | M14 | 2-19/32 | M14 | 15/32 | 1-11/16 | 0.626 | 1.136 | PA206 |
UCPA 206-19 | 1-3/16 | 1.5 | 45/64 | 3-5/16 | 1-31/32 | 3-45/64 | M14 | 2-19/32 | M14 | 15/32 | 1-11/16 | 0.626 | 1.116 | PA206 |
UCPA 206-20 | 1-1/4 | 1.5 | 45/64 | 3-5/16 | 1-31/32 | 3-45/64 | M14 | 2-19/32 | M14 | 15/32 | 1-11/16 | 0.626 | 1.106 | PA206 |
UCPA 207 | 35 | 42.9 | 20 | 95 | 55 | 110 | M14 | 80 | M14 | 13 | 47.6 | 17.5 | 1.546 | PA207 |
UCPA 207-20 | 1-1/4 | 1.689 | 25/32 | 3-47/64 | 2-11/64 | 4-21/64 | M14 | 3-5/32 | M14 | 33/64 | 1-7/8 | 0.689 | 1.611 | PA207 |
UCPA 207-21 | 1-5/16 | 1.689 | 25/32 | 3-47/64 | 2-11/64 | 4-21/64 | M14 | 3-5/32 | M14 | 33/64 | 1-7/8 | 0.689 | 1.581 | PA207 |
UCPA 207-22 | 1-3/8 | 1.689 | 25/32 | 3-47/64 | 2-11/64 | 4-21/64 | M14 | 3-5/32 | M14 | 33/64 | 1-7/8 | 0.689 | 1.551 | PA207 |
UCPA 207-23 | 1-7/16 | 1.689 | 25/32 | 3-47/64 | 2-11/64 | 4-21/64 | M14 | 3-5/32 | M14 | 33/64 | 1-7/8 | 0.689 | 1.521 | PA207 |
UCPA 208 | 40 | 49.2 | 20 | 100 | 58 | 116 | M14 | 84 | M14 | 13 | 49.2 | 19 | 1.798 | PA208 |
UCPA 208-24 | 1-1/2 | 1.937 | 25/32 | 3-15/16 | 2-9/32 | 4-9/16 | M14 | 3-5/16 | M14 | 33/64 | 1-15/16 | 0.748 | 1.838 | PA208 |
UCPA 208-25 | 1-9/16 | 1.937 | 25/32 | 3-15/16 | 2-9/32 | 4-9/16 | M14 | 3-5/16 | M14 | 33/64 | 1-15/16 | 0.748 | 1.808 | PA208 |
UCPA 209 | 45 | 49.2 | 25 | 108 | 60 | 120 | M14 | 90 | M14 | 13 | 54.2 | 19 | 2.053 | PA209 |
UCPA 209-26 | 1-5/8 | 1.937 | 63/64 | 4-1/4 | 2-23/64 | 4-23/32 | M14 | 3-35/64 | M14 | 33/64 | 2-9/64 | 0.748 | 2.153 | PA209 |
UCPA 209-27 | 1-11/16 | 1.937 | 63/64 | 4-1/4 | 2-23/64 | 4-23/32 | M14 | 3-35/64 | M14 | 33/64 | 2-9/64 | 0.748 | 2.113 | PA209 |
UCPA 209-28 | 1-3/4 | 1.937 | 63/64 | 4-1/4 | 2-23/64 | 4-23/32 | M14 | 3-35/64 | M14 | 33/64 | 2-9/64 | 0.748 | 2.073 | PA209 |
UCPA 210 | 50 | 51.6 | 25 | 116 | 64 | 130 | M16 | 94 | M16 | 14 | 57.2 | 19 | 2.556 | PA210 |
UCPA 210-29 | 1-13/16 | 2.0315 | 63/64 | 4-9/16 | 2-33/64 | 5-1/8 | M16 | 3-45/64 | M16 | 35/64 | 2-1/4 | 0.748 | 2.676 | PA210 |
UCPA 210-30 | 1-7/8 | 2.0315 | 63/64 | 4-9/16 | 2-33/64 | 5-1/8 | M16 | 3-45/64 | M16 | 35/64 | 2-1/4 | 0.748 | 2.626 | PA210 |
UCPA 210-31 | 1-15/16 | 2.0315 | 63/64 | 4-9/16 | 2-33/64 | 5-1/8 | M16 | 3-45/64 | M16 | 35/64 | 2-1/4 | 0.748 | 2.576 | PA210 |
UCPA 210-32 | 2 | 2.0315 | 63/64 | 4-9/16 | 2-33/64 | 5-1/8 | M16 | 3-45/64 | M16 | 35/64 | 2-1/4 | 0.748 | 2.536 | PA210 |
UCPA 211 | 55 | 55.6 | 25 | 125 | 66 | 140 | M16 | 104 | M16 | 14 | 63.5 | 22.2 | 3.138 | PA211 |
UCPA 211-32 | 2 | 2.189 | 63/64 | 4-59/64 | 2-19/32 | 5-33/64 | M16 | 4-3/32 | M16 | 35/64 | 2-1/2 | 0.874 | 3.288 | PA211 |
UCPA 211-33 | 2-1/16 | 2.189 | 63/64 | 4-59/64 | 2-19/32 | 5-33/64 | M16 | 4-3/32 | M16 | 35/64 | 2-1/2 | 0.874 | 3.228 | PA211 |
UCPA 211-34 | 2-1/8 | 2.189 | 63/64 | 4-59/64 | 2-19/32 | 5-33/64 | M16 | 4-3/32 | M16 | 35/64 | 2-1/2 | 0.874 | 3.188 | PA211 |
UCPA 211-35 | 2-3/16 | 2.189 | 63/64 | 4-59/64 | 2-19/32 | 5-33/64 | M16 | 4-3/32 | M16 | 35/64 | 2-1/2 | 0.874 | 3.118 | PA211 |
UCPA 212 | 60 | 65.1 | 25 | 138 | 68 | 150 | M16 | 114 | M16 | 15 | 69.9 | 25.4 | 4.12 | PA212 |
UCPA 212-36 | 2-1/4 | 2.563 | 63/64 | 5-7/16 | 2-43/64 | 5-29/32 | M16 | 4-31/64 | M16 | 19/32 | 2-3/4 | 1 | 4.25 | PA212 |
UCPA 212-37 | 2-5/16 | 2.563 | 63/64 | 5-7/16 | 2-43/64 | 5-29/32 | M16 | 4-31/64 | M16 | 19/32 | 2-3/4 | 1 | 4.17 | PA212 |
UCPA 212-38 | 2-3/8 | 2.563 | 63/64 | 5-7/16 | 2-43/64 | 5-29/32 | M16 | 4-31/64 | M16 | 19/32 | 2-3/4 | 1 | 4.1 | PA212 |
UCPA 212-39 | 2-7/16 | 2.563 | 63/64 | 5-7/16 | 2-43/64 | 5-29/32 | M16 | 4-31/64 | M16 | 19/32 | 2-3/4 | 1 | 4.03 | PA212 |
UCPA 213 | 65 | 65.1 | 25 | 150 | 70 | 160 | M16 | 124 | M16 | 15 | 76.2 | 25.4 | 4.915 | PA213 |
UCPA 213-40 | 2-1/2 | 2.563 | 63/64 | 5-29/32 | 2-3/4 | 6-19/64 | M16 | 4-7/8 | M16 | 19/32 | 3 | 1 | 5.005 | PA213 |
UCPA 213-41 | 2-9/16 | 2.563 | 63/64 | 5-29/32 | 2-3/4 | 6-19/64 | M16 | 4-7/8 | M16 | 19/32 | 3 | 1 | 4.915 | PA213 |
