UCFC
FUR-006AB890
100 In stock
Dincidunteros

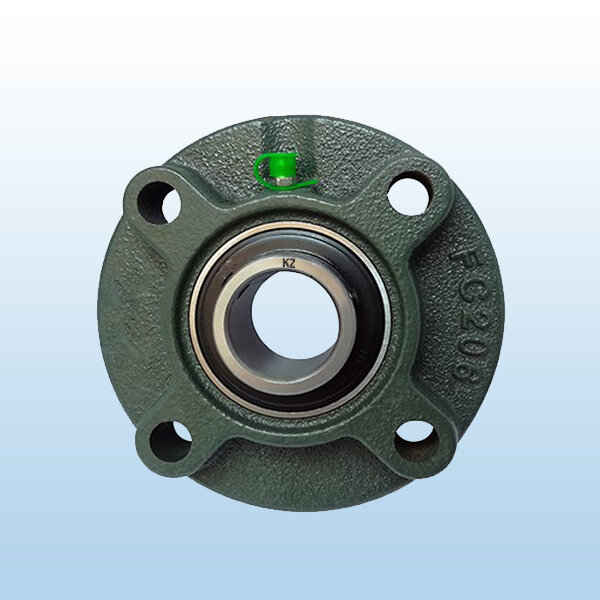

They are Four Bolt Round Flanged housing units with a centering rim having a wide inner ring insert Bearings set screw locking and are also Relubricatable
UCFC Bearing is dedicated to heavy-duty machines and to reduce friction, support high load, shock, severe misalignment, and vibration. Sourced from our best vendors, it can accommodate heavy axial loads. Suitable for oscillating, rotating, and linear movements, it finds application in aerospace, defense, construction, mining, food & beverage, gas, hand tool, robotic, security, and transportation industry. Furthermore, it is widely acclaimed in the market for its rust resistance, high performance, excellent movement support, and low maintenance.
KZ BEARING SERIES : UCFC 200
Available in metric and inch sizes.
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

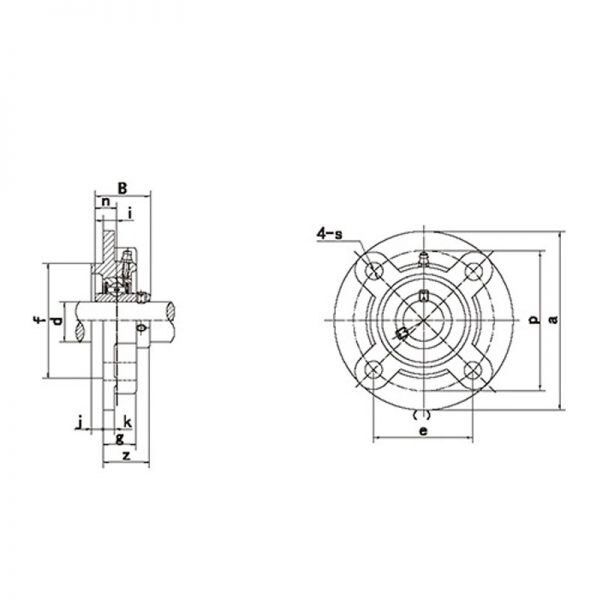

| Bearing Number | Inner Diameter (d) MM | B Drawing | k | a | s | g | j | e | i | z | n | Bolt Size (MM) | f | p | t | Weight (KG) | Housing No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UCFC 201 | 12 | 31 | 7 | 100 | 12 | 20.5 | 5 | 55.1 | 10 | 28.3 | 12.7 | M10 | 62 | 78 | 32.5 | 0.7 | FC201 |
| UCFC 201-8 | 1/2 | 1.2205 | 9/32 | 3-15/16 | 15/32 | 13/16 | 13/64 | 2-11/64 | 25/64 | 1-1/8 | 0.5 | 3/8 | 2.4409 | 3-5/64 | 1-9/32 | 0.69 | FC201 |
| UCFC 202 | 15 | 31 | 7 | 100 | 12 | 20.5 | 5 | 55.1 | 10 | 28.3 | 12.7 | M10 | 62 | 78 | 32.5 | 0.69 | FC202 |
| UCFC 202-9 | 9/16 | 1.2205 | 9/32 | 3-15/16 | 15/32 | 13/16 | 13/64 | 2-11/64 | 25/64 | 1-1/8 | 0.5 | 3/8 | 2.4409 | 3-5/64 | 1-9/32 | 0.69 | FC202 |
| UCFC 202-10 | 5/8 | 1.2205 | 9/32 | 3-15/16 | 15/32 | 13/16 | 13/64 | 2-11/64 | 25/64 | 1-1/8 | 0.5 | 3/8 | 2.4409 | 3-5/64 | 1-9/32 | 0.69 | FC202 |
| UCFC 203 | 17 | 31 | 7 | 100 | 12 | 20.5 | 5 | 55.1 | 10 | 28.3 | 12.7 | M10 | 62 | 78 | 32.5 | 0.68 | FC203 |
| UCFC 203-11 | 11/16 | 1.2205 | 9/32 | 3-15/16 | 15/32 | 13/16 | 13/64 | 2-11/64 | 25/64 | 1-1/8 | 0.5 | 3/8 | 2.4409 | 3-5/64 | 1-9/32 | 0.67 | FC203 |
| UCFC 204 | 20 | 31 | 7 | 100 | 12 | 20.5 | 5 | 55.1 | 10 | 28.3 | 12.7 | M10 | 62 | 78 | 32.5 | 0.66 | FC204 |
| UCFC 204-12 | 3/4 | 1.2205 | 9/32 | 3-15/16 | 15/32 | 13/16 | 13/64 | 2-11/64 | 25/64 | 1-1/8 | 0.5 | 3/8 | 2.4409 | 3-5/64 | 1-9/32 | 0.66 | FC204 |
| UCFC 205 | 25 | 34.1 | 7 | 115 | 12 | 21 | 6 | 63.6 | 10 | 29.8 | 14.3 | M10 | 70 | 90 | 34 | 0.89 | FC205 |
| UCFC 205-13 | 13/16 | 1.3425 | 9/32 | 4-17/32 | 15/32 | 53/64 | 15/64 | 2-1/2 | 25/64 | 1-11/64 | 0.563 | 3/8 | 2.7559 | 3-35/64 | 1-11/32 | 0.92 | FC205 |
| UCFC 205-14 | 7/8 | 1.3425 | 9/32 | 4-17/32 | 15/32 | 53/64 | 15/64 | 2-1/2 | 25/64 | 1-11/64 | 0.563 | 3/8 | 2.7559 | 3-35/64 | 1-11/32 | 0.91 | FC205 |
| UCFC 205-15 | 15/16 | 1.3425 | 9/32 | 4-17/32 | 15/32 | 53/64 | 15/64 | 2-1/2 | 25/64 | 1-11/64 | 0.563 | 3/8 | 2.7559 | 3-35/64 | 1-11/32 | 0.89 | FC205 |
| UCFC 205-16 | 1 | 1.3425 | 9/32 | 4-17/32 | 15/32 | 53/64 | 15/64 | 2-1/2 | 25/64 | 1-11/64 | 0.563 | 3/8 | 2.7559 | 3-35/64 | 1-11/32 | 0.88 | FC205 |
| UCFC 206-17 | 1-1/16 | 1.5 | 5/16 | 4-59/64 | 15/32 | 29/32 | 5/16 | 2-25/32 | 25/64 | 1-17/64 | 0.626 | 3/8 | 3.1496 | 3-15/16 | 1-7/16 | 1.19 | FC206 |
| UCFC 206 | 30 | 38.1 | 8 | 125 | 12 | 23 | 8 | 70.7 | 10 | 32.2 | 15.9 | M10 | 80 | 100 | 36.5 | 1.18 | FC206 |
| UCFC 206-18 | 1-1/8 | 1.5 | 5/16 | 4-59/64 | 15/32 | 29/32 | 5/16 | 2-25/32 | 25/64 | 1-17/64 | 0.626 | 3/8 | 3.1496 | 3-15/16 | 1-7/16 | 1.2 | FC206 |
| UCFC 206-19 | 1-3/16 | 1.5 | 5/16 | 4-59/64 | 15/32 | 29/32 | 5/16 | 2-25/32 | 25/64 | 1-17/64 | 0.626 | 3/8 | 3.1496 | 3-15/16 | 1-7/16 | 1.18 | FC206 |
| UCFC 206-20 | 1-1/4 | 1.5 | 5/16 | 4-59/64 | 15/32 | 29/32 | 5/16 | 2-25/32 | 25/64 | 1-17/64 | 0.626 | 3/8 | 3.1496 | 3-15/16 | 1-7/16 | 1.17 | FC206 |
| UCFC 207 | 35 | 42.9 | 9 | 135 | 14 | 26 | 8 | 77.8 | 11 | 36.4 | 17.5 | M12 | 90 | 110 | 41 | 1.53 | FC207 |
| UCFC 207-20 | 1-1/4 | 1.689 | 23/64 | 5-5/16 | 35/64 | 1-1/32 | 5/16 | 3-1/16 | 7/16 | 1-7/16 | 0.689 | 7/16 | 3.5433 | 4-21/64 | 1-5/8 | 1.59 | FC207 |
| UCFC 207-21 | 1-5/16 | 1.689 | 23/64 | 5-5/16 | 35/64 | 1-1/32 | 5/16 | 3-1/16 | 7/16 | 1-7/16 | 0.689 | 7/16 | 3.5433 | 4-21/64 | 1-5/8 | 1.56 | FC207 |
| UCFC 207-22 | 1-3/8 | 1.689 | 23/64 | 5-5/16 | 35/64 | 1-1/32 | 5/16 | 3-1/16 | 7/16 | 1-7/16 | 0.689 | 7/16 | 3.5433 | 4-21/64 | 1-5/8 | 1.53 | FC207 |
| UCFC 207-23 | 1-7/16 | 1.689 | 23/64 | 5-5/16 | 35/64 | 1-1/32 | 5/16 | 3-1/16 | 7/16 | 1-7/16 | 0.689 | 7/16 | 3.5433 | 4-21/64 | 1-5/8 | 1.5 | FC207 |
| UCFC 208 | 40 | 49.2 | 9 | 145 | 14 | 26 | 10 | 84.8 | 11 | 41.2 | 19 | M12 | 100 | 120 | 45.5 | 1.85 | FC208 |
| UCFC 208-24 | 1-1/2 | 1.937 | 23/64 | 5-45/64 | 35/64 | 1-1/32 | 25/64 | 3-11/32 | 7/16 | 1-5/8 | 0.748 | 7/16 | 3.937 | 4-23/32 | 1-51/64 | 1.89 | FC208 |
| UCFC 208-25 | 1-9/16 | 1.937 | 23/64 | 5-45/64 | 35/64 | 1-1/32 | 25/64 | 3-11/32 | 7/16 | 1-5/8 | 0.748 | 7/16 | 3.937 | 4-23/32 | 1-51/64 | 1.86 | FC208 |
| UCFC 209 | 45 | 49.2 | 14 | 160 | 16 | 26 | 12 | 93.3 | 10 | 40.2 | 19 | M14 | 105 | 132 | 44.5 | 2.53 | FC209 |
| UCFC 209-26 | 1-5/8 | 1.937 | 35/64 | 6-19/64 | 5/8 | 1-1/32 | 15/32 | 3-43/64 | 25/64 | 1-37/64 | 0.748 | 1/2 | 4.1339 | 5-13/64 | 1-3/4 | 2.63 | FC209 |
| UCFC 209-27 | 1-11/16 | 1.937 | 35/64 | 6-19/64 | 5/8 | 1-1/32 | 15/32 | 3-43/64 | 25/64 | 1-37/64 | 0.748 | 1/2 | 4.1339 | 5-13/64 | 1-3/4 | 2.59 | FC209 |
| UCFC 209-28 | 1-3/4 | 1.937 | 35/64 | 6-19/64 | 5/8 | 1-1/32 | 15/32 | 3-43/64 | 25/64 | 1-37/64 | 0.748 | 1/2 | 4.1339 | 5-13/64 | 1-3/4 | 2.55 | FC209 |
| UCFC 210 | 50 | 51.6 | 14 | 165 | 16 | 28 | 12 | 97.6 | 10 | 42.6 | 19 | M14 | 110 | 138 | 47.5 | 2.78 | FC210 |
| UCFC 210-29 | 1-13/16 | 2.0315 | 35/64 | 6-1/2 | 5/8 | 1-7/64 | 15/32 | 3-27/32 | 25/64 | 1-11/16 | 0.748 | 1/2 | 4.3307 | 5-7/16 | 1-7/8 | 2.9 | FC210 |
| UCFC 210-30 | 1-7/8 | 2.0315 | 35/64 | 6-1/2 | 5/8 | 1-7/64 | 15/32 | 3-27/32 | 25/64 | 1-11/16 | 0.748 | 1/2 | 4.3307 | 5-7/16 | 1-7/8 | 2.85 | FC210 |
| UCFC 210-31 | 1-15/16 | 2.0315 | 35/64 | 6-1/2 | 5/8 | 1-7/64 | 15/32 | 3-27/32 | 25/64 | 1-11/16 | 0.748 | 1/2 | 4.3307 | 5-7/16 | 1-7/8 | 2.8 | FC210 |
| UCFC 210-32 | 2 | 2.0315 | 35/64 | 6-1/2 | 5/8 | 1-7/64 | 15/32 | 3-27/32 | 25/64 | 1-11/16 | 0.748 | 1/2 | 4.3307 | 5-7/16 | 1-7/8 | 2.76 | FC210 |
| UCFC 211 | 55 | 55.6 | 15 | 185 | 19 | 31 | 12 | 106.1 | 13 | 46.4 | 22.2 | M16 | 125 | 150 | 51 | 3.86 | FC211 |
| UCFC 211-32 | 2 | 2.189 | 19/32 | 7-9/32 | 3/4 | 1-7/32 | 15/32 | 4-3/16 | 33/64 | 1-53/64 | 0.874 | 5/8 | 4.9213 | 5-29/32 | 2-1/64 | 4.01 | FC211 |
| UCFC 211-33 | 2-1/16 | 2.189 | 19/32 | 7-9/32 | 3/4 | 1-7/32 | 15/32 | 4-3/16 | 33/64 | 1-53/64 | 0.874 | 5/8 | 4.9213 | 5-29/32 | 2-1/64 | 3.95 | FC211 |
| UCFC 211-34 | 2-1/8 | 2.189 | 19/32 | 7-9/32 | 3/4 | 1-7/32 | 15/32 | 4-3/16 | 33/64 | 1-53/64 | 0.874 | 5/8 | 4.9213 | 5-29/32 | 2-1/64 | 3.91 | FC211 |
| UCFC 211-35 | 2-3/16 | 2.189 | 19/32 | 7-9/32 | 3/4 | 1-7/32 | 15/32 | 4-3/16 | 33/64 | 1-53/64 | 0.874 | 5/8 | 4.9213 | 5-29/32 | 2-1/64 | 3.84 | FC211 |
| UCFC 212 | 60 | 65.1 | 15 | 195 | 19 | 36 | 12 | 113.1 | 17 | 56.7 | 25.4 | M16 | 135 | 160 | 61.5 | 4.69 | FC212 |
| UCFC 212-36 | 2-1/4 | 2.563 | 19/32 | 7-11/16 | 3/4 | 1-27/64 | 15/32 | 4-29/64 | 43/64 | 2-15/64 | 1 | 5/8 | 5.315 | 6-19/64 | 2-27/64 | 4.82 | FC212 |
| UCFC 212-37 | 2-5/16 | 2.563 | 19/32 | 7-11/16 | 3/4 | 1-27/64 | 15/32 | 4-29/64 | 43/64 | 2-15/64 | 1 | 5/8 | 5.315 | 6-19/64 | 2-27/64 | 4.74 | FC212 |
| UCFC 212-38 | 2-3/8 | 2.563 | 19/32 | 7-11/16 | 3/4 | 1-27/64 | 15/32 | 4-29/64 | 43/64 | 2-15/64 | 1 | 5/8 | 5.315 | 6-19/64 | 2-27/64 | 4.67 | FC212 |
| UCFC 212-39 | 2-7/16 | 2.563 | 19/32 | 7-11/16 | 3/4 | 1-27/64 | 15/32 | 4-29/64 | 43/64 | 2-15/64 | 1 | 5/8 | 5.315 | 6-19/64 | 2-27/64 | 4.6 | FC212 |
| UCFC 213-40 | 2-1/2 | 2.563 | 19/32 | 8-5/64 | 3/4 | 1-27/64 | 35/64 | 4-47/64 | 5/8 | 2-3/16 | 1 | 5/8 | 5.5118 | 6-11/16 | 2-25/64 | 5.39 | FC213 |
| UCFC 213 | 65 | 65.1 | 15 | 205 | 19 | 36 | 14 | 120.2 | 16 | 55.7 | 25.4 | M16 | 145 | 170 | 60.5 | 5.3 | FC213 |
| UCFC 213-41 | 2-9/16 | 2.563 | 19/32 | 8-5/64 | 3/4 | 1-27/64 | 35/64 | 4-47/64 | 5/8 | 2-3/16 | 1 | 5/8 | 5.5118 | 6-11/16 | 2-25/64 | 5.3 | FC213 |
| UCFC 214 | 70 | 74.6 | 18 | 215 | 19 | 40 | 14 | 125.1 | 17 | 61.4 | 30.2 | M16 | 150 | 177 | 67.5 | 6.46 | FC214 |
| UCFC 214-42 | 2-5/8 | 2.937 | 23/32 | 8-15/32 | 3/4 | 1-37/64 | 35/64 | 4-59/64 | 43/64 | 2-13/32 | 1.189 | 5/8 | 5.9055 | 6-31/32 | 2-21/32 | 6.67 | FC214 |
| UCFC 214-43 | 2-11/16 | 2.937 | 23/32 | 8-15/32 | 3/4 | 1-37/64 | 35/64 | 4-59/64 | 43/64 | 2-13/32 | 1.189 | 5/8 | 5.9055 | 6-31/32 | 2-21/32 | 6.57 | FC214 |
| UCFC 214-44 | 2-3/4 | 2.937 | 23/32 | 8-15/32 | 3/4 | 1-37/64 | 35/64 | 4-59/64 | 43/64 | 2-13/32 | 1.189 | 5/8 | 5.9055 | 6-31/32 | 2-21/32 | 6.47 | FC214 |
| UCFC 215 | 75 | 77.8 | 18 | 220 | 19 | 40 | 16 | 130.1 | 18 | 62.5 | 33.3 | M16 | 160 | 184 | 67.5 | 6.86 | FC215 |
| UCFC 215-45 | 2-13/16 | 3.063 | 23/32 | 8-21/32 | 3/4 | 1-37/64 | 5/8 | 5-1/8 | 23/32 | 2-15/32 | 1.311 | 5/8 | 6.2992 | 7-1/4 | 2-21/32 | 6.86 | FC215 |
| UCFC 215-46 | 2-7/8 | 3.063 | 23/32 | 8-21/32 | 3/4 | 1-37/64 | 5/8 | 5-1/8 | 23/32 | 2-15/32 | 1.311 | 5/8 | 6.2992 | 7-1/4 | 2-21/32 | 7.11 | FC215 |
| UCFC 215-47 | 2-15/16 | 3.063 | 23/32 | 8-21/32 | 3/4 | 1-37/64 | 5/8 | 5-1/8 | 23/32 | 2-15/32 | 1.311 | 5/8 | 6.2992 | 7-1/4 | 2-21/32 | 7 | FC215 |
| UCFC 215-48 | 3 | 3.063 | 23/32 | 8-21/32 | 3/4 | 1-37/64 | 5/8 | 5-1/8 | 23/32 | 2-15/32 | 1.311 | 5/8 | 6.2992 | 7-1/4 | 2-21/32 | 6.8 | FC215 |
| UCFC 216 | 80 | 82.6 | 18 | 240 | 23 | 42 | 16 | 141.4 | 18 | 67.3 | 33.3 | M20 | 170 | 200 | 72.5 | 8.47 | FC216 |
| UCFC 216-49 | 3-1/16 | 3.252 | 23/32 | 9-29/64 | 29/32 | 1-21/32 | 5/8 | 5-9/16 | 23/32 | 2-21/32 | 1.311 | 3/4 | 6.6929 | 7-7/8 | 2-55/64 | 8.65 | FC216 |
| UCFC 216-50 | 3-1/8 | 3.252 | 23/32 | 9-29/64 | 29/32 | 1-21/32 | 5/8 | 5-9/16 | 23/32 | 2-21/32 | 1.311 | 3/4 | 6.6929 | 7-7/8 | 2-55/64 | 8.52 | FC216 |
| UCFC 216-51 | 3-3/16 | 3.252 | 23/32 | 9-29/64 | 29/32 | 1-21/32 | 5/8 | 5-9/16 | 23/32 | 2-21/32 | 1.311 | 3/4 | 6.6929 | 7-7/8 | 2-55/64 | 8.39 | FC216 |
| UCFC 217 | 85 | 85.7 | 20 | 250 | 23 | 45 | 18 | 147.1 | 18 | 69.6 | 34.1 | M20 | 180 | 208 | 74.6 | 10.18 | FC217 |
| UCFC 217-52 | 3-1/4 | 3.374 | 25/32 | 9-27/32 | 29/32 | 1-25/32 | 23/32 | 5-51/64 | 23/32 | 2-3/4 | 1.343 | 3/4 | 7.0866 | 8-3/16 | 2-15/16 | 10.3 | FC217 |
| UCFC 217-53 | 3-5/16 | 3.374 | 25/32 | 9-27/32 | 29/32 | 1-25/32 | 23/32 | 5-51/64 | 23/32 | 2-3/4 | 1.343 | 3/4 | 7.0866 | 8-3/16 | 2-15/16 | 10.26 | FC217 |
| UCFC 217-55 | 3-7/16 | 3.374 | 25/32 | 9-27/32 | 29/32 | 1-25/32 | 23/32 | 5-51/64 | 23/32 | 2-3/4 | 1.343 | 3/4 | 7.0866 | 8-3/16 | 2-15/16 | 9.97 | FC217 |
| UCFC 218 | 90 | 96 | 20 | 265 | 23 | 50 | 18 | 155.5 | 22 | 78.3 | 39.7 | M20 | 190 | 220 | 83.5 | 12.24 | FC218 |
| UCFC 218-56 | 3-1/2 | 3.7795 | 25/32 | 10-7/16 | 29/32 | 1-31/32 | 23/32 | 6-1/8 | 55/64 | 3-3/32 | 1.563 | 3/4 | 7.4803 | 8-21/32 | 3-9/32 | 12.35 | FC218 |
