KZ SERIES : UCPH 201

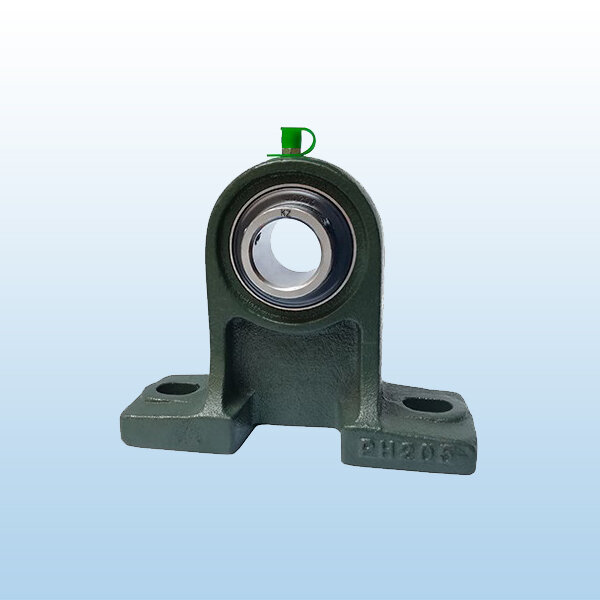

UCPH are Pillow Block Housings made of cast iron for Raise Shaft center with two slotted holes for fixing and are Relubricatable. UCPH is a pedestal pillow block unit with an exceptionally high mounting base. It is ideal for applications where a shouldered shaft could create interference with the mounting surface when using a standard pillow block unit. Bearing unit UCPH type (Pillow block bearing units) provides stability and self-alignment for many different applications. Adjustment of a misaligned shaft can occur in any direction and allows centering and alignment without distorting seals.
Available in metric and inch sizes.
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY
KZ BEARING SERIES : UCPH 200

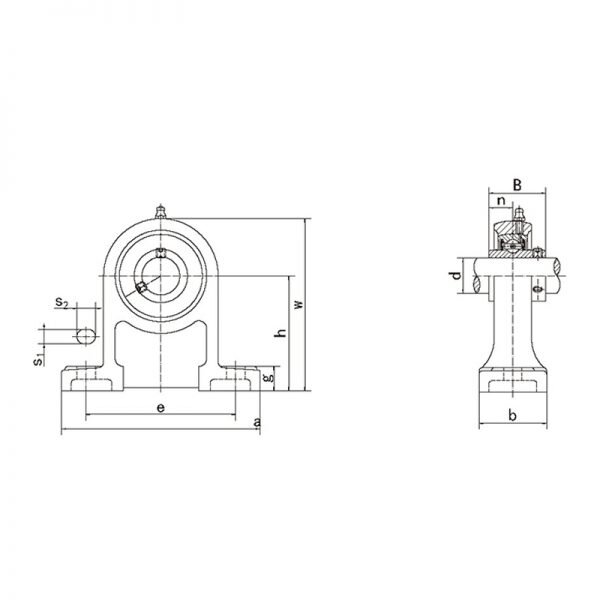

Bearing Number | Inner Diameter (d) MM | Width (B) MM | w | B Drawing | a | g | h | e | n | Bolt Size (MM) | s1 | s2 | Weight (KG) | Housing No. |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
UCPH201 | 12 | 40 | 101 | 31 | 127 | 15 | 70 | 95 | 12.7 | M10 | 13 | 19 | 0.84 | PH201 |
UCPH201-8 | 1/2 | 1-9/16 | 3-63/64 | 1.2205 | 5 | 19/32 | 2-3/4 | 3-3/4 | 0.5 | 3/8 | 1/2 | 3/4 | 0.83 | PH201 |
UCPH202 | 15 | 40 | 101 | 31 | 127 | 15 | 70 | 95 | 12.7 | M10 | 13 | 19 | 0.83 | PH202 |
UCPH202-9 | 9/16 | 1-9/16 | 3-63/64 | 1.2205 | 5 | 19/32 | 2-3/4 | 3-3/4 | 0.5 | 3/8 | 1/2 | 3/4 | 0.83 | PH202 |
UCPH202-10 | 5/8 | 1-9/16 | 3-63/64 | 1.2205 | 5 | 19/32 | 2-3/4 | 3-3/4 | 0.5 | 3/8 | 1/2 | 3/4 | 0.83 | PH202 |
UCPH203 | 17 | 40 | 101 | 31 | 127 | 15 | 70 | 95 | 12.7 | M10 | 13 | 19 | 0.82 | PH203 |
UCPH203-11 | 11/16 | 1-9/16 | 3-63/64 | 1.2205 | 5 | 19/32 | 2-3/4 | 3-3/4 | 0.5 | 3/8 | 1/2 | 3/4 | 0.81 | PH203 |
UCPH204 | 20 | 40 | 101 | 31 | 127 | 15 | 70 | 95 | 12.7 | M10 | 13 | 19 | 0.8 | PH204 |
UCPH204-12 | 3/4 | 1-9/16 | 3-63/64 | 1.2205 | 5 | 19/32 | 2-3/4 | 3-3/4 | 0.5 | 3/8 | 1/2 | 3/4 | 0.8 | PH204 |
UCPH205 | 25 | 50 | 114 | 34.1 | 140 | 16 | 80 | 105 | 14.3 | M10 | 13 | 19 | 1.04 | PH205 |
UCPH205-13 | 13/16 | 1-31/32 | 4-31/64 | 1.3425 | 5-1/2 | 5/8 | 3-5/32 | 4-1/8 | 0.563 | 3/8 | 1/2 | 3/4 | 1.08 | PH205 |
UCPH205-14 | 7/8 | 1-31/32 | 4-31/64 | 1.3425 | 5-1/2 | 5/8 | 3-5/32 | 4-1/8 | 0.563 | 3/8 | 1/2 | 3/4 | 1.07 | PH205 |
UCPH205-15 | 15/16 | 1-31/32 | 4-31/64 | 1.3425 | 5-1/2 | 5/8 | 3-5/32 | 4-1/8 | 0.563 | 3/8 | 1/2 | 3/4 | 1.05 | PH205 |
UCPH205-16 | 1 | 1-31/32 | 4-31/64 | 1.3425 | 5-1/2 | 5/8 | 3-5/32 | 4-1/8 | 0.563 | 3/8 | 1/2 | 3/4 | 1.04 | PH205 |
UCPH206 | 30 | 50 | 130 | 38.1 | 161 | 17 | 90 | 121 | 15.9 | M14 | 17 | 21 | 1.45 | PH206 |
UCPH206-17 | 1-1/16 | 1-31/32 | 5-1/8 | 1.5 | 6-11/32 | 43/64 | 3-35/64 | 4-3/4 | 0.626 | 1/2 | 43/64 | 53/64 | 1.46 | PH206 |
UCPH206-18 | 1-1/8 | 1-31/32 | 5-1/8 | 1.5 | 6-11/32 | 43/64 | 3-35/64 | 4-3/4 | 0.626 | 1/2 | 43/64 | 53/64 | 1.47 | PH206 |
UCPH206-19 | 1-3/16 | 1-31/32 | 5-1/8 | 1.5 | 6-11/32 | 43/64 | 3-35/64 | 4-3/4 | 0.626 | 1/2 | 43/64 | 53/64 | 1.45 | PH206 |
UCPH206-20 | 1-1/4 | 1-31/32 | 5-1/8 | 1.5 | 6-11/32 | 43/64 | 3-35/64 | 4-3/4 | 0.626 | 1/2 | 43/64 | 53/64 | 1.44 | PH206 |
UCPH207 | 35 | 60 | 140 | 42.9 | 166 | 18 | 95 | 127 | 17.5 | M14 | 17 | 21 | 1.83 | PH207 |
UCPH207-20 | 1-1/4 | 2-23/64 | 5-33/54 | 1.689 | 6-17/32 | 45/64 | 3-47/64 | 5 | 0.689 | 1/2 | 43/64 | 53/64 | 1.89 | PH207 |
UCPH207-21 | 1-5/16 | 2-23/64 | 5-33/54 | 1.689 | 6-17/32 | 45/64 | 3-47/64 | 5 | 0.689 | 1/2 | 43/64 | 53/64 | 1.86 | PH207 |
UCPH207-22 | 1/3/8 | 2-23/64 | 5-33/54 | 1.689 | 6-17/32 | 45/64 | 3-47/64 | 5 | 0.689 | 1/2 | 43/64 | 53/64 | 1.83 | PH207 |
UCPH207-23 | 1-7/16 | 2-23/64 | 5-33/54 | 1.689 | 6-17/32 | 45/64 | 3-47/64 | 5 | 0.689 | 1/2 | 43/64 | 53/64 | 1.8 | PH207 |
UCPH208 | 40 | 70 | 150 | 49.2 | 178 | 19 | 100 | 137 | 19 | M14 | 17 | 21 | 2.4 | PH208 |
UCPH208-24 | 1-1/2 | 2-3/4 | 5-29/32 | 1.937 | 7-1/64 | 3/4 | 3-15/16 | 5-13/32 | 0.748 | 1/2 | 43/64 | 53/64 | 2.44 | PH208 |
UCPH208-25 | 1-9/16 | 2-3/4 | 5-29/32 | 1.937 | 7-1/64 | 3/4 | 3-15/16 | 5-13/32 | 0.748 | 1/2 | 43/64 | 53/64 | 2.41 | PH208 |
UCPH209 | 45 | 70 | 158 | 49.2 | 189 | 20 | 105 | 146 | 19 | M14 | 17 | 21 | 2.67 | PH209 |
UCPH209-26 | 1-5/8 | 2-3/4 | 6-7/32 | 1.937 | 7-7/16 | 25/32 | 4-9/64 | 5-3/4 | 0.748 | 1/2 | 43/64 | 53/64 | 2.77 | PH209 |
UCPH209-27 | 1-11/16 | 2-3/4 | 6-7/32 | 1.937 | 7-7/16 | 25/32 | 4-9/64 | 5-3/4 | 0.748 | 1/2 | 43/64 | 53/64 | 2.37 | PH209 |
UCPH209-28 | 1-3/4 | 2-3/4 | 6-7/32 | 1.937 | 7-7/16 | 25/32 | 4-9/64 | 5-3/4 | 0.748 | 1/2 | 43/64 | 53/64 | 2.69 | PH209 |
UCPH210 | 50 | 70 | 165 | 51.6 | 205 | 21 | 110 | 159 | 19 | M16 | 20 | 23 | 2.97 | PH210 |
UCPH210-29 | 1-13/16 | 2-3/4 | 6-1/2 | 2.0315 | 8-5/64 | 53/64 | 4-21/64 | 6-1/4 | 0.748 | 5/8 | 25/32 | 29/32 | 3.09 | PH210 |
UCPH210-30 | 1-7/8 | 2-3/4 | 6-1/2 | 2.0315 | 8-5/64 | 53/64 | 4-21/64 | 6-1/4 | 0.748 | 5/8 | 25/32 | 29/32 | 3.04 | PH210 |
UCPH210-31 | 1-15/16 | 2-3/4 | 6-1/2 | 2.0315 | 8-5/64 | 53/64 | 4-21/64 | 6-1/4 | 0.748 | 5/8 | 25/32 | 29/32 | 2.99 | PH210 |
UCPH210-32 | 2 | 2-3/4 | 6-1/2 | 2.0315 | 8-5/64 | 53/64 | 4-21/64 | 6-1/4 | 0.748 | 5/8 | 25/32 | 29/32 | 2.95 | PH210 |
UCPH211 | 55 | 75 | 181 | 55.6 | 219 | 22 | 120 | 171 | 22.2 | M16 | 20 | 23 | 3.82 | PH211 |
UCPH211-32 | 2 | 2-61/64 | 7-1/8 | 2.189 | 8-5/8 | 55/64 | 4-23/32 | 6-47/64 | 0.874 | 5/8 | 25/32 | 29/32 | 3.97 | PH211 |
UCPH211-33 | 2-1/16 | 2-61/64 | 7-1/8 | 2.189 | 8-5/8 | 55/64 | 4-23/32 | 6-47/64 | 0.874 | 5/8 | 25/32 | 29/32 | 3.87 | PH211 |
UCPH211-34 | 2-1/8 | 2-61/64 | 7-1/8 | 2.189 | 8-5/8 | 55/64 | 4-23/32 | 6-47/64 | 0.874 | 5/8 | 25/32 | 29/32 | 3.91 | PH211 |
UCPH211-35 | 2-3/16 | 2-61/64 | 7-1/8 | 2.189 | 8-5/8 | 55/64 | 4-23/32 | 6-47/64 | 0.874 | 5/8 | 25/32 | 29/32 | 3.8 | PH211 |
UCPH212 | 60 | 85 | 197 | 65.1 | 241 | 25 | 130 | 184 | 25.4 | M16 | 20 | 23 | 5.01 | PH212 |
UCPH212-36 | 2-1/4 | 3-11/32 | 7-3/4 | 2.563 | 9-1/2 | 63/64 | 5-1/8 | 7-1/4 | 1 | 5/8 | 25/32 | 29/32 | 5.14 | PH212 |
UCPH212-37 | 2-5/16 | 3-11/32 | 7-3/4 | 2.563 | 9-1/2 | 63/64 | 5-1/8 | 7-1/4 | 1 | 5/8 | 25/32 | 29/32 | 5.06 | PH212 |
UCPH212-38 | 2-3/8 | 3-11/32 | 7-3/4 | 2.563 | 9-1/2 | 63/64 | 5-1/8 | 7-1/4 | 1 | 5/8 | 25/32 | 29/32 | 4.99 | PH212 |
UCPH212-39 | 2-7/16 | 3-11/32 | 7-3/4 | 2.563 | 9-1/2 | 63/64 | 5-1/8 | 7-1/4 | 1 | 5/8 | 25/32 | 29/32 | 4.92 | PH212 |
UCPH213 | 65 | 95 | 212 | 65.1 | 265 | 27 | 140 | 203 | 25.4 | M20 | 25 | 28 | 6.11 | PH213 |
UCPH213-40 | 2-1/2 | 3-3/4 | 8-11/32 | 2.563 | 10-7/16 | 1-1/16 | 5-33/64 | 8 | 1 | 3/4 | 63/64 | 1-3/32 | 6.2 | PH213 |
UCPH213-41 | 2-9/16 | 3-3/4 | 8-11/32 | 2.563 | 10-7/16 | 1-1/16 | 5-33/64 | 8 | 1 | 3/4 | 63/64 | 1-3/32 | 6.11 | PH213 |
UCPH214 | 70 | 105 | 225 | 74.6 | 266 | 28 | 150 | 210 | 30.2 | M20 | 25 | 28 | 7.06 | PH214 |
UCPH214-42 | 2-5/8 | 4-9/64 | 8-55/64 | 2.937 | 10-15/32 | 1-7/64 | 5-29/32 | 8-17/64 | 1.189 | 3/4 | 63/64 | 1-3/32 | 7.27 | PH214 |
UCPH214-43 | 2-11/16 | 4-9/64 | 8-55/64 | 2.937 | 10-15/32 | 1-7/64 | 5-29/32 | 8-17/64 | 1.189 | 3/4 | 63/64 | 1-3/32 | 7.17 | PH214 |
UCPH214-44 | 2-3/4 | 4-9/64 | 8-55/64 | 2.937 | 10-15/32 | 1-7/64 | 5-29/32 | 8-17/64 | 1.189 | 3/4 | 63/64 | 1-3/32 | 7.07 | PH214 |
UCPH215 | 75 | 115 | 238 | 77.8 | 275 | 29 | 160 | 217 | 33.3 | M20 | 25 | 28 | 7.98 | PH215 |
UCPH215-45 | 2-13/16 | 4-17/32 | 9-3/8 | 3.063 | 10-53/64 | 1-9/64 | 6-19/64 | 8-35/64 | 1.311 | 3/4 | 63/64 | 1-3/32 | 7.98 | PH215 |
UCPH215-46 | 2-7/8 | 4-17/32 | 9-3/8 | 3.063 | 10-53/64 | 1-9/64 | 6-19/64 | 8-35/64 | 1.311 | 3/4 | 63/64 | 1-3/32 | 8.23 | PH215 |
UCPH215-47 | 2-15/16 | 4-17/32 | 9-3/8 | 3.063 | 10-53/64 | 1-9/64 | 6-19/64 | 8-35/64 | 1.311 | 3/4 | 63/64 | 1-3/32 | 8.12 | PH215 |
UCPH215-48 | 3 | 4-17/32 | 9-3/8 | 3.063 | 10-53/64 | 1-9/64 | 6-19/64 | 8-35/64 | 1.311 | 3/4 | 63/64 | 1-3/32 | 7.92 | PH215 |
UCPH216 | 80 | 125 | 253 | 82.6 | 292 | 30 | 170 | 232 | 33.3 | M20 | 25 | 28 | 9.3 | PH216 |
UCPH216-49 | 3-1/16 | 4-59/64 | 9-61/64 | 3.252 | 11-1/2 | 1-3/16 | 6-11/16 | 9-1/8 | 1.311 | 3/4 | 63/64 | 1-3/32 | 9.48 | PH216 |
UCPH216-50 | 3-1/8 | 4-59/64 | 9-61/64 | 3.252 | 11-1/2 | 1-3/16 | 6-11/16 | 9-1/8 | 1.311 | 0.75 | 63/64 | 1-3/32 | 9.35 | PH216 |
UCPH216-51 | 3-3/16 | 4-59/64 | 9-61/64 | 3.252 | 11-1/2 | 1-3/16 | 6-11/16 | 9-1/8 | 1.311 | 0.75 | 63/64 | 1-3/32 | 9.22 | PH216 |
