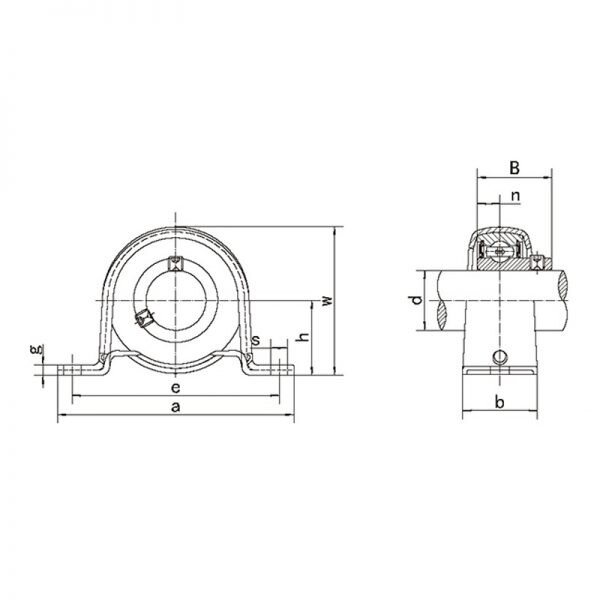

  • SBPP Line Drawing | KG Bearing

SBPP

KZ SERIES :SBPP 201, SBPP 201-8, SBPP 206, SBPP 206-17, SBPP 209, SBPP 209-26

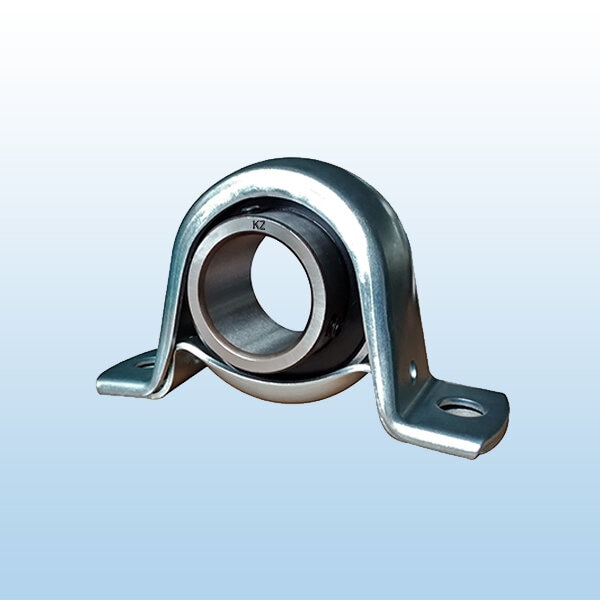

Pressed Steel Bearing Unit

Ideal for use as simple bearings in agricultural machinery, conveyor systems, construction machines, etc, these SBPP bearings from UBC consist of a sealed bearing and a steel Plummer. Because of the spherical outer surface of the bearing, misalignment can be compensated at the shaft.

  • Lightweight unit for applications with low rotating speed or light load
  • Set screw locking
  • Zinc-plated housing
  • Narrow inner ring bearing
  • Full cover metal-shroud seals

Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

Send Query WhatsApp Us
Bearing Number Inner Diameter (d) MM Dimension-B1 (MM) w B Drawing a s g h e n Bolt Size (MM) Height r2 min Weight (KG) Housing No. GOST
SBPP201 12 22 43.8 25 86 9.5 3.2 22.2 68 6 M8 0.14 PP204
SBPP201-8 1/2 0.8661 1-23/32 63/64 3-3/8 3/8 0.126 7/8 2-43/64 0.2362 15/16 0.14 PP204
SBPP202 15 0.8661 1-23/32 63/64 3-3/8 3/8 0.126 7/8 2-43/64 0.2362 15/16 0.14 PP204
SBPP202-9 9/16 0.8661 1-23/32 63/64 3-3/8 3/8 0.126 7/8 2-43/64 0.2362 15/16 0.14 PP204
SBPP202-10 5/8 0.8661 1-23/32 63/64 3-3/8 3/8 0.126 7/8 2-43/64 0.2362 15/16 0.14 PP204
SBPP203 17 0.8661 1-23/32 63/64 3-3/8 3/8 0.126 7/8 2-43/64 0.2362 15/16 0.14 PP204
SBPP203-11 11/16 0.8661 1-23/32 63/64 3-3/8 3/8 0.126 7/8 2-43/64 0.2362 15/16 0.14 PP204
SBPP204 20 25 50.5 32 98 9.5 3.2 25.4 76 7 M8 0.22 PP204
SBPP204-12 3/4 0.9843 1-63/64 1-1/4 3-27/32 3/8 0.126 1 2-63/64 0.2756 5/16 0.22 PP204
SBPP205 25 27 56.6 32 108 11.5 4 28.6 86 7.5 M10 0.28 PP205
SBPP205-13 13/16 1.063 2-15/64 1-1/4 4-1/4 29/64 0.157 1-1/8 3-25/64 0.2953 3/8 0.28 PP205
SBPP205-14 7/8 1.063 2-15/64 1-1/4 4-1/4 29/64 0.157 1-1/8 3-25/64 0.2953 3/8 0.28 PP205
SBPP205-15 15/16 1.063 2-15/64 1-1/4 4-1/4 29/64 0.157 1-1/8 3-25/64 0.2953 3/8 0.28 PP205
SBPP205-16 1 1.063 2-15/64 1-1/4 4-1/4 29/64 0.157 1-1/8 3-25/64 0.2953 3/8 0.28 PP205
SBPP206 30 30 66.3 38 117 11.5 4 33.3 95 8 M10 0.42 PP206
SBPP206-17 1-1/16 1.1811 2-39/64 1-1/2 4-39/64 29/64 0.157 1-5/16 3-47/64 0.315 3/8 0.42 PP206
SBPP206-18 1-1/8 1.1811 2-39/64 1-1/2 4-39/64 29/64 0.157 1-5/16 3-47/64 0.315 3/8 0.42 PP206
SBPP206-19 1-3/16 1.1811 2-39/64 1-1/2 4-39/64 29/64 0.157 1-5/16 3-47/64 0.315 3/8 0.42 PP206
SBPP206-20 1-1/4 1.1811 2-39/64 1-1/2 4-39/64 29/64 0.157 1-5/16 3-47/64 0.315 3/8 0.42 PP206
SBPP207 35 32 78 42 129 11.5 4.6 39.7 106 8.5 M10 0.63 PP207
SBPP207-20 1-1/4 1.2598 3-1/8 1-21/32 5-5/64 29/64 0.181 1-9/16 4-5/32 0.3346 3/8 0.63 PP207
SBPP207-21 1-5/16 1.2598 3-1/8 1-21/32 5-5/64 29/64 0.181 1-9/16 4-5/32 0.3346 3/8 0.63 PP207
SBPP207-22 1-3/8 1.2598 3-1/8 1-21/32 5-5/64 29/64 0.181 1-9/16 4-5/32 0.3346 3/8 0.63 PP207
SBPP207-23 1-7/16 1.2598 3-1/8 1-21/32 5-5/64 29/64 0.181 1-9/16 4-5/32 0.3346 3/8 0.63 PP207
SBPP208 40 34 86.2 43 148 13 5 43.7 120 9 M12 0.76 PP208
SBPP208-24 1-1/2 1.3386 3-25/64 1-11/16 5-53/64 33/64 0.197 1-23/32 4-47/64 0.354 7/16 0.76 PP208
SBPP208-25 1-9/16 1.3386 3-25/64 1-11/16 5-53/64 33/64 0.197 1-23/32 4-47/64 0.354 7/16 0.76 PP208
SBPP209 45 41.2 92.3 45 156 13 6 46.8 128 10.2 M12 1.02 PP209
SBPP209-26 1-5/8 1.622 3-41/64 1-25/32 6-9/64 33/64 0.236 1-27/32 5-3/64 0.402 7/16 1.02 PP209
SBPP209-27 1-11/16 1.622 3-41/64 1-25/32 6-9/64 33/64 0.236 1-27/32 5-3/64 0.402 7/16 1.02 PP209
SBPP209-28 1-3/4 1.622 3-41/64 1-25/32 6-9/64 33/64 0.236 1-27/32 5-3/64 0.402 7/16 1.02 PP209
