SAPF
FUR-006AB890
100 In stock
Dincidunteros

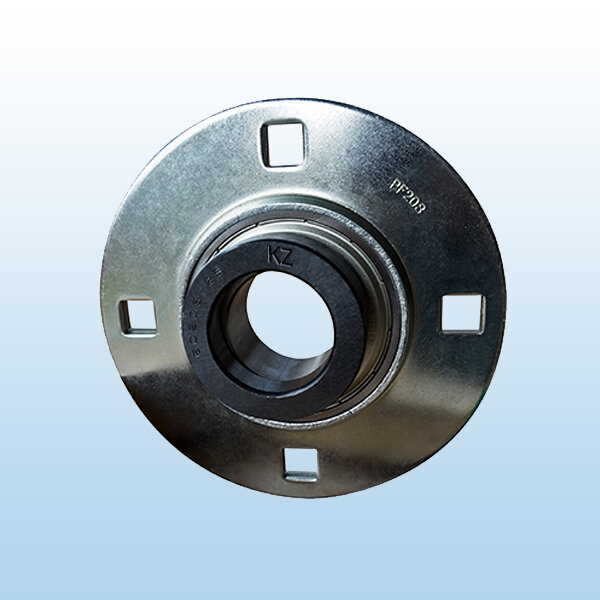

Pressed steel round flange bearing units are lightweight and made of pressed steel and zinc-coated for corrosion protection. They are designed for simple applications with limited loads and speeds and do not have any relubrication feature. The unit has 4 bolts holes for mounting. The eccentric locking collar type provides locking for one-directional applications. On one side of the bearing inner ring is an eccentric extension that fits the locking collar. On one side of the bearing inner ring is an eccentric extension that fits the locking collar. Dual heavy-duty contact-type seals, steel plate slingers on sides for dust exclusion.
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

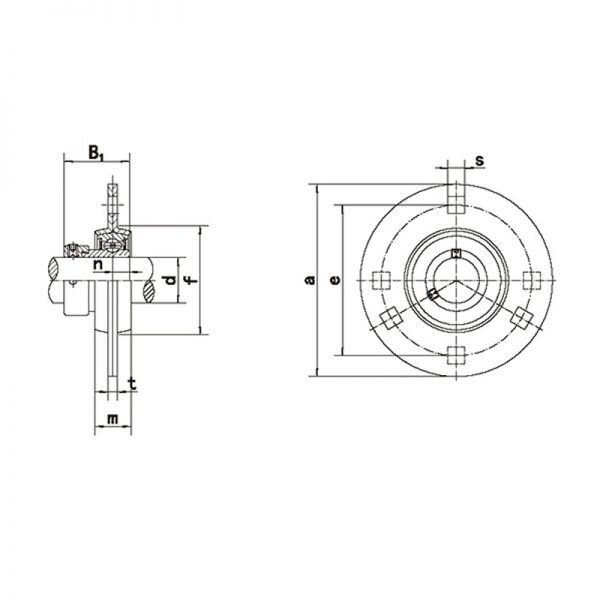

| Bearing Number | Inner Diameter (d) MM | Dimension-B1 (MM) | a | e | n | Bolt Size (MM) | f | t | s1 | Height | r2 min | Moment (MM) | Weight (KG) | Housing No. | LINK BELT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 80 | NISSAN VOLVO | 44 | FW181,RW406 | ||||||||||||
| SAPF201 | 12 | 28.6 | 81 | 63.5 | 6.5 | M6 | 49 | 4 | 7.1 | 14 | 0.3 | PF204 | |||
| SAPF201-8 | 1/2 | 1.126 | 3-3/16 | 2-1/2 | 0.2559 | 1/4 | 1-59/64 | 0.157 | 9/32 | 9/16 | 0.3 | PF204 | |||
| SAPF202 | 15 | 1.126 | 3-3/16 | 2-1/2 | 0.2559 | 1/4 | 1-59/64 | 0.157 | 9/32 | 9/16 | 0.3 | PF204 | |||
| SAPF202-9 | 9/16 | 1.126 | 3-3/16 | 2-1/2 | 0.2559 | 1/4 | 1-59/64 | 0.157 | 9/32 | 9/16 | 0.3 | PF204 | |||
| SAPF202-10 | 5/8 | 1.126 | 3-3/16 | 2-1/2 | 0.2559 | 1/4 | 1-59/64 | 0.157 | 9/32 | 9/16 | 0.3 | PF204 | |||
| SAPF203 | 17 | 1.126 | 3-3/16 | 2-1/2 | 0.2559 | 1/4 | 1-59/64 | 0.157 | 9/32 | 9/16 | 0.3 | PF204 | |||
| SAPF203-11 | 11/16 | 1.126 | 3-3/16 | 2-1/2 | 0.2559 | 1/4 | 1-59/64 | 0.157 | 9/32 | 9/16 | 0.3 | PF204 | |||
| SAPF204 | 20 | 31 | 90 | 71.5 | 7.5 | M8 | 56 | 4 | 9 | 16 | 0.33 | PF204 | |||
| SAPF204-12 | 3/4 | 1.2204 | 3-35/64 | 2-13/16 | 0.2953 | 5/16 | 2-13/64 | 0.157 | 23/64 | 5/8 | 0.33 | PF204 | |||
| SAPF205 | 25 | 31 | 95 | 76 | 7.5 | M8 | 60 | 4 | 9 | 18 | 0.37 | PF205 | |||
| SAPF205-13 | 13/16 | 1.2204 | 3-3/4 | 2-63/64 | 0.2953 | 5/16 | 2-23/64 | 0.157 | 23/64 | 23/32 | 0.37 | PF205 | |||
| SAPF205-14 | 7/8 | 1.2204 | 3-3/4 | 2-63/64 | 0.2953 | 5/16 | 2-23/64 | 0.157 | 23/64 | 23/32 | 0.37 | PF205 | |||
| SAPF205-15 | 15/16 | 1.2204 | 3-3/4 | 2-63/64 | 0.2953 | 5/16 | 2-23/64 | 0.157 | 23/64 | 23/32 | 0.37 | PF205 | |||
| SAPF205-16 | 1 | 1.2204 | 3-3/4 | 2-63/64 | 0.2953 | 5/16 | 2-23/64 | 0.157 | 23/64 | 23/32 | 0.37 | PF205 | |||
| SAPF206 | 30 | 35.7 | 113 | 90.5 | 9 | M10 | 71 | 5.2 | 11 | 18 | 0.6 | PF206 | |||
| SAPF206-17 | 1-1/16 | 1.4055 | 4-7/16 | 3-9/16 | 0.3543 | 3/8 | 2-51/64 | 0.205 | 7/16 | 23/32 | 0.6 | PF206 | |||
| SAPF206-18 | 1-1/8 | 1.4055 | 4-7/16 | 3-9/16 | 0.3543 | 3/8 | 2-51/64 | 0.205 | 7/16 | 23/32 | 0.6 | PF206 | |||
| SAPF206-19 | 1-3/16 | 1.4055 | 4-7/16 | 3-9/16 | 0.3543 | 3/8 | 2-51/64 | 0.205 | 7/16 | 23/32 | 0.6 | PF206 | |||
| SAPF206-20 | 1-1/4 | 1.4055 | 4-7/16 | 3-9/16 | 0.3543 | 3/8 | 2-51/64 | 0.205 | 7/16 | 23/32 | 0.6 | PF206 | |||
| SAPF207 | 35 | 38.9 | 122 | 100 | 9.5 | M10 | 81 | 5.2 | 11 | 20 | 0.8 | PF207 | |||
| SAPF207-20 | 1-1/4 | 1.5315 | 4-13/16 | 3-15/16 | 0.374 | 3/8 | 3-3/16 | 0.205 | 7/16 | 25/32 | 0.8 | PF207 | |||
| SAPF207-21 | 1-5/16 | 1.5315 | 4-13/16 | 3-15/16 | 0.374 | 3/8 | 3-3/16 | 0.205 | 7/16 | 25/32 | 0.8 | PF207 | |||
| SAPF207-22 | 1-3/8 | 1.5315 | 4-13/16 | 3-15/16 | 0.374 | 3/8 | 3-3/16 | 0.205 | 7/16 | 25/32 | 0.8 | PF207 | |||
| SAPF207-23 | 1-7/16 | 1.5315 | 4-13/16 | 3-15/16 | 0.374 | 3/8 | 3-3/16 | 0.205 | 7/16 | 25/32 | 0.8 | PF207 | |||
| SAPF208 | 40 | 43.7 | 148 | 119 | 11 | M12 | 91 | 6.8 | 13.5 | 21 | 1.3 | PF208 | |||
| SAPF208-24 | 1-1/2 | 1.7205 | 5-13/16 | 4-11/16 | 0.433 | 1/2 | 3-37/64 | 0.268 | 17/32 | 13/16 | 1.3 | PF208 | |||
| SAPF208-25 | 1-9/16 | 1.7205 | 5-13/16 | 4-11/16 | 0.433 | 1/2 | 3-37/64 | 0.268 | 17/32 | 13/16 | 1.3 | PF208 | |||
| SAPF209 | 45 | 43.7 | 150 | 120.5 | 11 | M12 | 98 | 6.8 | 13.5 | 23 | 1.31 | PF209 | |||
| SAPF209-26 | 1-5/8 | 1.7205 | 5-29/32 | 4-3/4 | 0.433 | 1/2 | 3-55/64 | 0.268 | 17/32 | 29/32 | 1.31 | PF209 | |||
| SAPF209-27 | 1-11/16 | 1.7205 | 5-29/32 | 4-3/4 | 0.433 | 1/2 | 3-55/64 | 0.268 | 17/32 | 29/32 | 1.31 | PF209 | |||
| SAPF209-28 | 1-3/4 | 1.7205 | 5-29/32 | 4-3/4 | 0.433 | 1/2 | 3-55/64 | 0.268 | 17/32 | 29/32 | 1.31 | PF209 | |||
| SAPF210 | 50 | 43.7 | 157 | 127 | 11 | M12 | 102 | 8 | 13.5 | 25 | 1.59 | PF210 | |||
| SAPF210-29 | 1-13/16 | 1.7205 | 6-3/16 | 5 | 0.433 | 1/2 | 4-1/64 | 0.315 | 17/32 | 63/64 | 1.59 | PF210 | |||
| SAPF210-30 | 1-7/8 | 1.7205 | 6-3/16 | 5 | 0.433 | 1/2 | 4-1/64 | 0.315 | 17/32 | 63/64 | 1.59 | PF210 | |||
| SAPF210-31 | 1-15/16 | 1.7205 | 6-3/16 | 5 | 0.433 | 1/2 | 4-1/64 | 0.315 | 17/32 | 63/64 | 1.59 | PF210 | |||
| SAPF210-32 | 2 | 1.7205 | 6-3/16 | 5 | 0.433 | 1/2 | 4-1/64 | 0.315 | 17/32 | 63/64 | 1.59 | PF210 | |||
| SAPF211 | 55 | 48.4 | 168 | 138 | 12 | M12 | 113 | 8 | 13.5 | 26 | 1.95 | PF211 | |||
| SAPF211-32 | 2 | 1.9055 | 6-5/8 | 5-7/16 | 0.472 | 1/2 | 4-29/64 | 0.315 | 17/32 | 1-1/64 | 1.95 | PF211 | |||
| SAPF211-33 | 2-1/16 | 1.9055 | 6-5/8 | 5-7/16 | 0.472 | 1/2 | 4-29/64 | 0.315 | 17/32 | 1-1/64 | 1.95 | PF211 | |||
| SAPF211-34 | 2-1/8 | 1.9055 | 6-5/8 | 5-7/16 | 0.472 | 1/2 | 4-29/64 | 0.315 | 17/32 | 1-1/64 | 1.95 | PF211 | |||
| SAPF211-35 | 2-3/16 | 1.9055 | 6-5/8 | 5-7/16 | 0.472 | 1/2 | 4-29/64 | 0.315 | 17/32 | 1-1/64 | 1.95 | PF211 | |||
| SAPF212 | 60 | 53.1 | 177 | 148 | 13.5 | M12 | 122 | 8 | 13.5 | 28 | 2.41 | PF212 | |||
| SAPF212-36 | 2-1/4 | 2.0906 | 6-31/32 | 5-53/64 | 0.531 | 1/2 | 4-13/16 | 0.315 | 17/32 | 1-7/64 | 2.41 | PF212 | |||
| SAPF212-37 | 2-5/16 | 2.0906 | 6-31/32 | 5-53/64 | 0.531 | 1/2 | 4-13/16 | 0.315 | 17/32 | 1-7/64 | 2.41 | PF212 | |||
| SAPF212-38 | 2-3/8 | 2.0906 | 6-31/32 | 5-53/64 | 0.531 | 1/2 | 4-13/16 | 0.315 | 17/32 | 1-7/64 | 2.41 | PF212 | |||
| SAPF212-39 | 2-7/16 | 2.0906 | 6-31/32 | 5-53/64 | 0.531 | 1/2 | 4-13/16 | 0.315 | 17/32 | 1-7/64 | 2.41 | PF212 |
