SAPFT
KZ SERIES :SAPFT 201, SAPFT 201-8, SAPFT 203, SAPFT 205-15, SAPFT 207, SAPFT 207-23

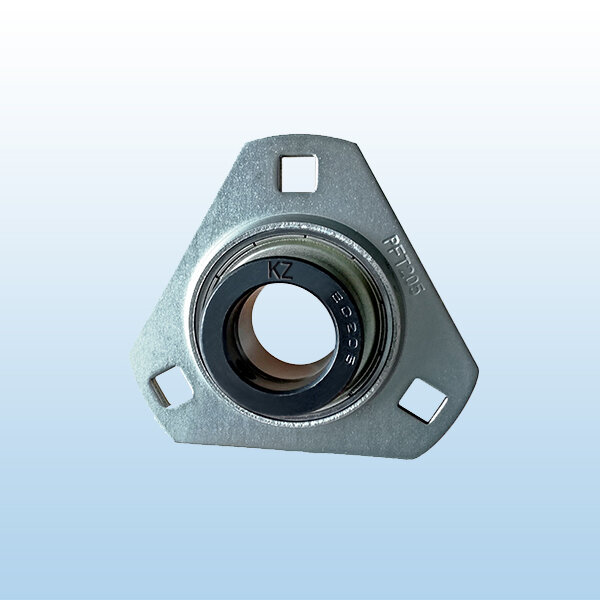

Pressed steel bearing units have a high rotation speed and high elasticity. These bearing units have a lower mass than those in cast iron, successfully combining their lightweight properties with excellent mechanical resistance. Lightweight, pressed steel unit used in machinery applications with low rotating speed or light load. Features zinc-plated housing, narrow inner ring bearing, and full cover metal-shroud seals.
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

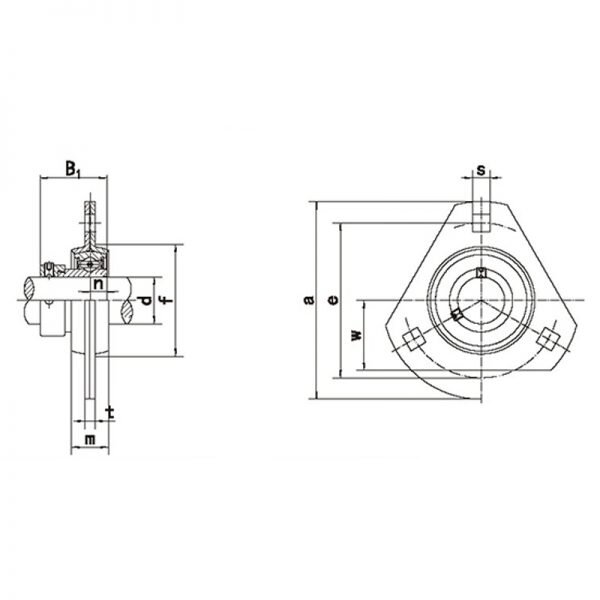

| Bearing Number | Inner Diameter (d) MM | Dimension-B1 (MM) | B Drawing | a | e | n | Bolt Size (MM) | t | F Min | S | Moment (MM) | Weight (KG) | Housing No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SAPFT201 | 12 | 28.6 | 28.5 | 81 | 63.5 | 6.5 | M6 | 4 | 49 | 7.1 | 14 | 0.26 | PFT204 |
| SAPFT201-8 | 1/2 | 1.126 | 1-1/8 | 3-3/16 | 2-1/2 | 0.2559 | 1/4 | 0.157 | 1-59/64 | 9/32 | 9/16 | 0.26 | PFT204 |
| SAPFT202 | 15 | 1.126 | 1-1/8 | 3-3/16 | 2-1/2 | 0.2559 | 1/4 | 0.157 | 1-59/64 | 9/32 | 9/16 | 0.26 | PFT204 |
| SAPFT202-9 | 9/16 | 1.126 | 1-1/8 | 3-3/16 | 2-1/2 | 0.2559 | 1/4 | 0.157 | 1-59/64 | 9/32 | 9/16 | 0.26 | PFT204 |
| SAPFT202-10 | 5/8 | 1.126 | 1-1/8 | 3-3/16 | 2-1/2 | 0.2559 | 1/4 | 0.157 | 1-59/64 | 9/32 | 9/16 | 0.26 | PFT204 |
| SAPFT203 | 17 | 1.126 | 1-1/8 | 3-3/16 | 2-1/2 | 0.2559 | 1/4 | 0.157 | 1-59/64 | 9/32 | 9/16 | 0.26 | PFT204 |
| SAPFT203-11 | 11/16 | 1.126 | 1-1/8 | 3-3/16 | 2-1/2 | 0.2559 | 1/4 | 0.157 | 1-59/64 | 9/32 | 9/16 | 0.26 | PFT204 |
| SAPFT204 | 20 | 31 | 33 | 90 | 71.5 | 7.5 | M8 | 4 | 56 | 9 | 16 | 0.28 | PFT204 |
| SAPFT204-12 | 3/4 | 1.2204 | 1-19/64 | 3-35/64 | 2-13/16 | 0.2953 | 5/16 | 0.157 | 2-13/64 | 23/64 | 5/8 | 0.28 | PFT204 |
| SAPFT205 | 25 | 31 | 35 | 95 | 76 | 7.5 | M8 | 4 | 60 | 9 | 18 | 0.32 | PFT205 |
| SAPFT205-13 | 13/16 | 1.2204 | 1-3/8 | 3-3/4 | 2-63/64 | 0.2953 | 5/16 | 0.157 | 2-23/64 | 23/64 | 23/32 | 0.32 | PFT205 |
| SAPFT205-14 | 7/8 | 1.2204 | 1-3/8 | 3-3/4 | 2-63/64 | 0.2953 | 5/16 | 0.157 | 2-23/64 | 23/64 | 23/32 | 0.32 | PFT205 |
| SAPFT205-15 | 15/16 | 1.2204 | 1-3/8 | 3-3/4 | 2-63/64 | 0.2953 | 5/16 | 0.157 | 2-23/64 | 23/64 | 23/32 | 0.32 | PFT205 |
| SAPFT205-16 | 1 | 1.2204 | 1-3/8 | 3-3/4 | 2-63/64 | 0.2953 | 5/16 | 0.157 | 2-23/64 | 23/64 | 23/32 | 0.32 | PFT205 |
| SAPFT206 | 30 | 35.7 | 40 | 113 | 90.5 | 9 | M10 | 5.2 | 71 | 11 | 18 | 0.5 | PFT206 |
| SAPFT206-17 | 1-1/16 | 1.4055 | 1-37/64 | 4-7/16 | 3-9/16 | 0.3543 | 3/8 | 0.205 | 2-51/64 | 7/16 | 23/32 | 0.5 | PFT206 |
| SAPFT206-18 | 1-1/8 | 1.4055 | 1-37/64 | 4-7/16 | 3-9/16 | 0.3543 | 3/8 | 0.205 | 2-51/64 | 7/16 | 23/32 | 0.5 | PFT206 |
| SAPFT206-19 | 1-3/16 | 1.4055 | 1-37/64 | 4-7/16 | 3-9/16 | 0.3543 | 3/8 | 0.205 | 2-51/64 | 7/16 | 23/32 | 0.5 | PFT206 |
| SAPFT206-20 | 1-1/4 | 1.4055 | 1-37/64 | 4-7/16 | 3-9/16 | 0.3543 | 3/8 | 0.205 | 2-51/64 | 7/16 | 23/32 | 0.5 | PFT206 |
| SAPFT207 | 35 | 38.9 | 44.5 | 122 | 100 | 9.5 | M10 | 5.2 | 81 | 11 | 20 | 1.07 | PFT207 |
| SAPFT207-20 | 1-1/4 | 1.5315 | 1-3/4 | 4-13/16 | 3-15/16 | 0.374 | 3/8 | 0.205 | 3-3/16 | 7/16 | 25/32 | 1.07 | PFT207 |
| SAPFT207-21 | 1-5/16 | 1.5315 | 1-3/4 | 4-13/16 | 3-15/16 | 0.374 | 3/8 | 0.205 | 3-3/16 | 7/16 | 25/32 | 1.07 | PFT207 |
| SAPFT207-22 | 1-3/8 | 1.5315 | 1-3/4 | 4-13/16 | 3-15/16 | 0.374 | 3/8 | 0.205 | 3-3/16 | 7/16 | 25/32 | 1.07 | PFT207 |
| SAPFT207-23 | 1-7/16 | 1.5315 | 1-3/4 | 4-13/16 | 3-15/16 | 0.374 | 3/8 | 0.205 | 3-3/16 | 7/16 | 25/32 | 1.07 | PFT207 |
SBPF
KZ SERIES :SBPF 201, SBPF 201-8, SBPF 203-11, SBPF 203-11, SBPF 210, SBPF 210-30, SBPF 212, SBPF 212-39
SBPFT
KZ SERIES : SBPFT 201, SBPFT 201-8, SBPFT 204, SBPFT 204-12, SBPFT 206, SBPFT 206-19
