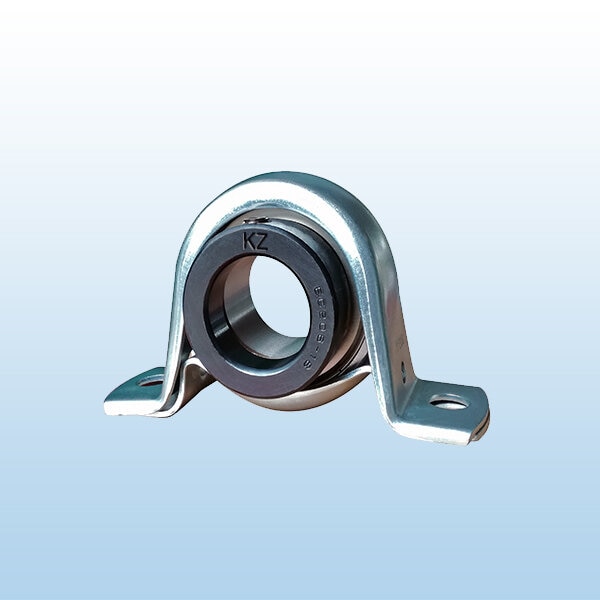

• SAPP | KG Bearing

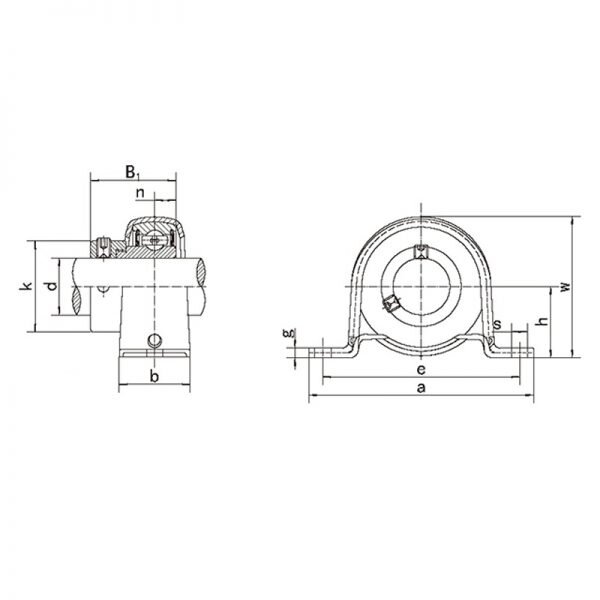

  • SAPP line drawing | KG Bearing

SAPP

The pressed steel stand-up housing of SAPP is lighter in weight and smaller in size than the cast iron one. It is the smallest type among the stand-up type housing, however, it can only be applied in applications with low load. Designed for simple applications with limited loads and speeds, the SAPP unit provides a simple and effective bearing arrangement that accommodates moderate misalignment of mounting tolerances and is easy to mount on the associated equipment. we are able to design and manufacture more mounted bearing units with special sizes for different customers.

Applications and industry: AGRICULTUREAUTOMOTIVECEMENT INDUSTRYCRUSHER INDUSTRYHEAVY MACHINERY EQUIPMENTSHOME APPLIANCESMINING SECTORMETAL INDUSTRYFLUID MACHINERYTEXTILE INDUSTRY

Send Query WhatsApp Us
Bearing Number Inner Diameter (d) MM Dimension-B1 (MM) w B Drawing a s g h e n Bolt Size (MM) Weight (KG) Housing No.
SAPP201 12 28.6 43.8 25 86 9.5 3.2 22.2 68 6.5 M8 0.17 PP204
SAPP201-8 1/2 1.126 1-23/32 63/64 3-3/8 3/8 0.126 7/8 2-43/64 0.2559 15/16 0.17 PP204
SAPP202 15 1.126 1-23/32 63/64 3-3/8 3/8 0.126 7/8 2-43/64 0.2559 15/16 0.17 PP204
SAPP202-9 9/16 1.126 1-23/32 63/64 3-3/8 3/8 0.126 7/8 2-43/64 0.2559 15/16 0.17 PP204
SAPP202-10 5/8 1.126 1-23/32 63/64 3-3/8 3/8 0.126 7/8 2-43/64 0.2559 15/16 0.17 PP204
SAPP203 17 1.126 1-23/32 63/64 3-3/8 3/8 0.126 7/8 2-43/64 0.2559 15/16 0.17 PP204
SAPP203-11 11/16 1.126 1-23/32 63/64 3-3/8 3/8 0.126 7/8 2-43/64 0.2559 15/16 0.17 PP204
SAPP204 20 31 50.5 32 98 9.5 3.2 25.4 76 7.5 M8 0.25 PP204
SAPP204-12 3/4 1.2204 1-63/64 1-1/4 3-27/32 3/8 0.126 1 2-63/64 0.2953 5/16 0.25 PP204
SAPP205 25 31 56.6 32 108 11.5 4 28.6 86 7.5 M10 0.32 PP205
SAPP205-13 13/16 1.2204 2-15/64 1-1/4 4-1/4 29/64 0.157 1-1/8 3-25/64 0.2953 3/8 0.32 PP205
SAPP205-14 7/8 1.2204 2-15/64 1-1/4 4-1/4 29/64 0.157 1-1/8 3-25/64 0.2953 3/8 0.32 PP205
SAPP205-15 15/16 1.2204 2-15/64 1-1/4 4-1/4 29/64 0.157 1-1/8 3-25/64 0.2953 3/8 0.32 PP205
SAPP205-16 1 1.2204 2-15/64 1-1/4 4-1/4 29/64 0.157 1-1/8 3-25/64 0.2953 3/8 0.32 PP205
SAPP206 30 35.7 66.3 38 117 11.5 4 33.3 95 9 M10 0.47 PP206
SAPP206-17 1-1/16 1.4055 2-39/64 1-1/2 4-39/64 29/64 0.157 1-5/16 3-47/64 0.3543 3/8 0.47 PP206
SAPP206-18 1-1/8 1.4055 2-39/64 1-1/2 4-39/64 29/64 0.157 1-5/16 3-47/64 0.3543 3/8 0.47 PP206
SAPP206-19 1-3/16 1.4055 2-39/64 1-1/2 4-39/64 29/64 0.157 1-5/16 3-47/64 0.3543 3/8 0.47 PP206
SAPP206-20 1-1/4 1.4055 2-39/64 1-1/2 4-39/64 29/64 0.157 1-5/16 3-47/64 0.3543 3/8 0.47 PP206
SAPP207 35 38.9 78 42 129 11.5 4.6 39.7 106 9.5 M10 0.76 PP207
SAPP207-20 1-1/4 1.5315 3-1/8 1-21/32 5-5/64 29/64 0.181 1-9/16 4-5/32 0.374 3/8 0.76 PP207
SAPP207-21 1-5/16 1.5315 3-1/8 1-21/32 5-5/64 29/64 0.181 1-9/16 4-5/32 0.374 3/8 0.76 PP207
SAPP207-22 1-3/8 1.5315 3-1/8 1-21/32 5-5/64 29/64 0.181 1-9/16 4-5/32 0.374 3/8 0.76 PP207
SAPP207-23 1-7/16 1.5315 3-1/8 1-21/32 5-5/64 29/64 0.181 1-9/16 4-5/32 0.374 3/8 0.76 PP207
SAPP208 40 43.7 86.2 43 148 13 5 43.7 120 11 M12 0.92 PP208
SAPP208-24 1-1/2 1.7205 3-25/64 1-11/16 5-53/64 33/64 0.197 1-23/32 4-47/64 0.433 7/16 0.92 PP208
SAPP208-25 1-9/16 1.7205 3-25/64 1-11/16 5-53/64 33/64 0.197 1-23/32 4-47/64 0.433 7/16 0.92 PP208
SAPP209 45 43.7 92.3 45 156 13 6 46.8 128 11 M12 1.09 PP209
SAPP209-26 1-5/8 1.7205 3-41/64 1-25/32 6-9/64 33/64 0.236 1-27/32 5-3/64 0.433 7/16 1.09 PP209
SAPP209-27 1-11/16 1.7205 3-41/64 1-25/32 6-9/64 33/64 0.236 1-27/32 5-3/64 0.433 7/16 1.09 PP209
SAPP209-28 1-3/4 1.7205 3-41/64 1-25/32 6-9/64 33/64 0.236 1-27/32 5-3/64 0.433 7/16 1.09 PP209
