SBPFT
FUR-006AB890
100 In stock
Dincidunteros

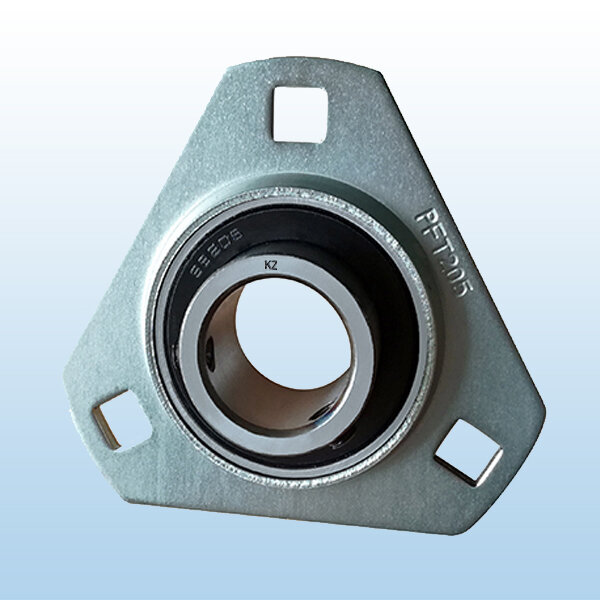

Pressed steel bearing units have a high rotation speed and high elasticity. These bearing units have a lower mass than those in cast iron, successfully combining their lightweight properties with excellent mechanical resistance. Lightweight, pressed steel unit used in machinery applications with low rotating speed or light load. Features zinc-plated housing, narrow inner ring bearing, and full cover metal-shroud seals.
- Recommended for light applications
- Triangular 3- Bolt
- Set Screw Type
- Pressed Steel
- Pre-mounted Insert Bearing
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

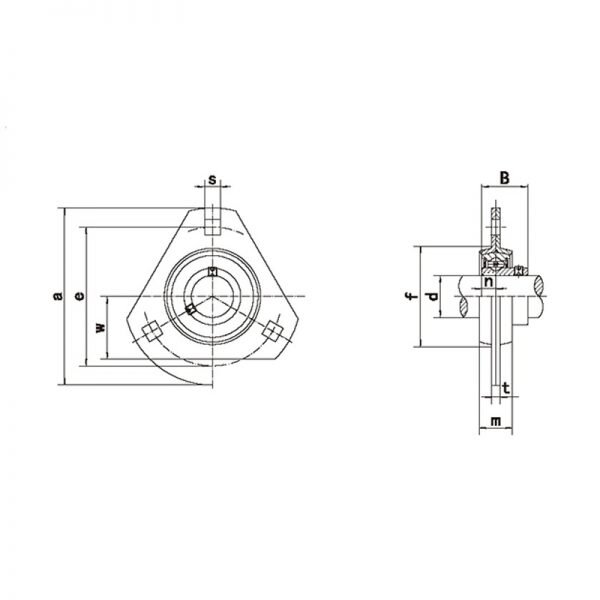

| Bearing Number | Inner Diameter (d) MM | Width (B) MM | B Drawing | a | s | e | n | Bolt Size (MM) | t | F Min | Moment (MM) | Weight (KG) | Housing No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SBPFT 201 | 12 | 22 | 28.5 | 81 | 7.1 | 63.5 | 6 | M6 | 4 | 49 | 14 | 0.23 | PFT204 |
| SBPFT 201-8 | 1/2 | 0.8661 | 1-1/8 | 3-3/16 | 9/32 | 2-1/2 | 0.2362 | 1/4 | 0.157 | 1-59/64 | 9/16 | 0.23 | PFT204 |
| SBPFT 202 | 15 | 0.8661 | 1-1/8 | 3-3/16 | 9/32 | 2-1/2 | 0.2362 | 1/4 | 0.157 | 1-59/64 | 9/16 | 0.23 | PFT204 |
| SBPFT 202-9 | 9/16 | 0.8661 | 1-1/8 | 3-3/16 | 9/32 | 2-1/2 | 0.2362 | 1/4 | 0.157 | 1-59/64 | 9/16 | 0.23 | PFT204 |
| SBPFT 202-10 | 5/8 | 0.8661 | 1-1/8 | 3-3/16 | 9/32 | 2-1/2 | 0.2362 | 1/4 | 0.157 | 1-59/64 | 9/16 | 0.23 | PFT204 |
| SBPFT 203 | 17 | 0.8661 | 1-1/8 | 3-3/16 | 9/32 | 2-1/2 | 0.2362 | 1/4 | 0.157 | 1-59/64 | 9/16 | 0.23 | PFT204 |
| SBPFT 203-11 | 11/16 | 0.8661 | 1-1/8 | 3-3/16 | 9/32 | 2-1/2 | 0.2362 | 1/4 | 0.157 | 1-59/64 | 9/16 | 0.23 | PFT204 |
| SBPFT 204 | 20 | 25 | 33 | 90 | 9 | 71.5 | 7 | M8 | 4 | 56 | 16 | 0.24 | PFT204 |
| SBPFT 204-12 | 3/4 | 0.9843 | 1-19/64 | 3-35/64 | 23/64 | 2-13/16 | 0.2756 | 5/16 | 0.157 | 2-13/64 | 5/8 | 0.24 | PFT204 |
| SBPFT 205 | 25 | 27 | 35 | 95 | 9 | 76 | 7.5 | M8 | 4 | 60 | 18 | 0.28 | PFT205 |
| SBPFT 205-13 | 13/16 | 1.063 | 1-3/8 | 3-3/4 | 23/64 | 2-63/64 | 0.2953 | 5/16 | 0.157 | 2-23/64 | 23/32 | 0.28 | PFT205 |
| SBPFT 205-14 | 7/8 | 1.063 | 1-3/8 | 3-3/4 | 23/64 | 2-63/64 | 0.2953 | 5/16 | 0.157 | 2-23/64 | 23/32 | 0.28 | PFT205 |
| SBPFT 205-15 | 15/16 | 1.063 | 1-3/8 | 3-3/4 | 23/64 | 2-63/64 | 0.2953 | 5/16 | 0.157 | 2-23/64 | 23/32 | 0.28 | PFT205 |
| SBPFT 205-16 | 1 | 1.063 | 1-3/8 | 3-3/4 | 23/64 | 2-63/64 | 0.2953 | 5/16 | 0.157 | 2-23/64 | 23/32 | 0.28 | PFT205 |
| SBPFT 206 | 30 | 30 | 40 | 113 | 11 | 90.5 | 8 | M10 | 5.2 | 71 | 18 | 0.44 | PFT206 |
| SBPFT 206-17 | 1-1/16 | 1.1811 | 1-37/64 | 4-7/16 | 7/16 | 3-9/16 | 0.315 | 3/8 | 0.205 | 2-51/64 | 23/32 | 0.44 | PFT206 |
| SBPFT 206-18 | 1-1/8 | 1.1811 | 1-37/64 | 4-7/16 | 7/16 | 3-9/16 | 0.315 | 3/8 | 0.205 | 2-51/64 | 23/32 | 0.44 | PFT206 |
| SBPFT 206-19 | 1-3/16 | 1.1811 | 1-37/64 | 4-7/16 | 7/16 | 3-9/16 | 0.315 | 3/8 | 0.205 | 2-51/64 | 23/32 | 0.44 | PFT206 |
| SBPFT 206-20 | 1-1/4 | 1.1811 | 1-37/64 | 4-7/16 | 7/16 | 3-9/16 | 0.315 | 3/8 | 0.205 | 2-51/64 | 23/32 | 0.44 | PFT206 |
| SBPFT 207 | 35 | 32 | 44.5 | 122 | 11 | 100 | 8.5 | M10 | 5.2 | 81 | 20 | 0.58 | PFT207 |
| SBPFT 207-20 | 1-1/4 | 1.2598 | 1-3/4 | 4-13/16 | 7/16 | 3-15/16 | 0.3346 | 3/8 | 0.205 | 3-3/16 | 25/32 | 0.58 | PFT207 |
| SBPFT 207-21 | 1-5/16 | 1.2598 | 1-3/4 | 4-13/16 | 7/16 | 3-15/16 | 0.3346 | 3/8 | 0.205 | 3-3/16 | 25/32 | 0.58 | PFT207 |
| SBPFT 207-22 | 1-3/8 | 1.2598 | 1-3/4 | 4-13/16 | 7/16 | 3-15/16 | 0.3346 | 3/8 | 0.205 | 3-3/16 | 25/32 | 0.58 | PFT207 |
| SBPFT 207-23 | 1-7/16 | 1.2598 | 1-3/4 | 4-13/16 | 7/16 | 3-15/16 | 0.3346 | 3/8 | 0.205 | 3-3/16 | 25/32 | 0.58 | PFT207 |
