SBPFL

FUR-006AB890

100 In stock

Dincidunteros

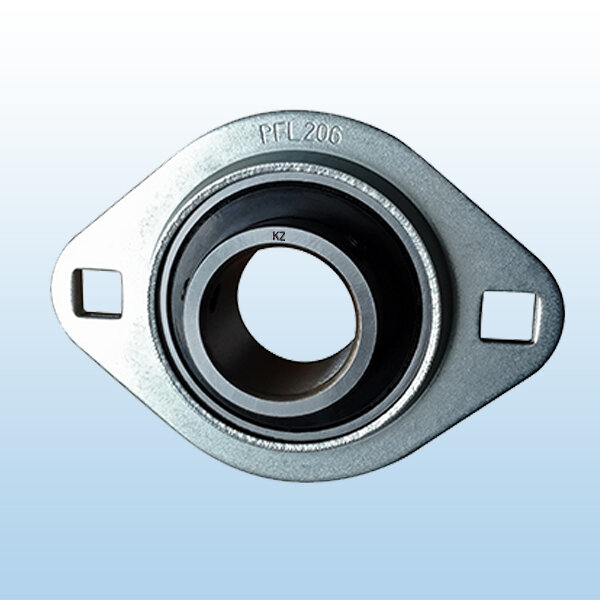

Lightweight diamond flanged unit for light loads made from the combination of a lightweight bearing and a press machined steel plate bearing box.

  • Recommended for light applications
  • 2- Bolt
  • Set Screw Type
  • Pressed Steel
  • Comes with a pre-mounted Insert Bearing

Applications and industry: AGRICULTUREAUTOMOTIVECEMENT INDUSTRYCRUSHER INDUSTRYHEAVY MACHINERY EQUIPMENTSHOME APPLIANCESMINING SECTORMETAL INDUSTRYFLUID MACHINERYTEXTILE INDUSTRY



Send query Buy Now

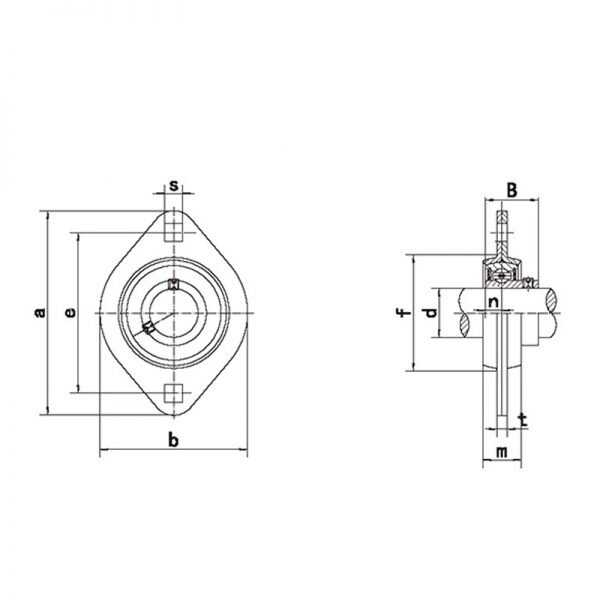

Bearing Number Inner Diameter (d) MM Width (B) MM B Drawing a e n Bolt Size (MM) t F Min S Moment (MM) Weight (KG) Housing No.
SBPFL 201 12 22 59 81 63.5 6 M6 4 49 7.1 14 0.18 PFL204
SBPFL 201-8 1/2 0.8661 2-21/64 3-3/16 2-1/2 0.2362 1/4 0.157 1-59/64 9/32 9/16 0.18 PFL204
SBPFL 202 15 0.8661 2-21/64 3-3/16 2-1/2 0.2362 1/4 0.157 1-59/64 9/32 9/16 0.18 PFL204
SBPFL 202-9 9/16 0.8661 2-21/64 3-3/16 2-1/2 0.2362 1/4 0.157 1-59/64 9/32 9/16 0.18 PFL204
SBPFL 202-10 5/8 0.8661 2-21/64 3-3/16 2-1/2 0.2362 1/4 0.157 1-59/64 9/32 9/16 0.18 PFL204
SBPFL 203 17 0.8661 2-21/64 3-3/16 2-1/2 0.2362 1/4 0.157 1-59/64 9/32 9/16 0.18 PFL204
SBPFL 203-11 11/16 0.8661 2-21/64 3-3/16 2-1/2 0.2362 1/4 0.157 1-59/64 9/32 9/16 0.18 PFL204
SBPFL 204 20 25 67 90 71.5 7 M8 4 56 9 16 0.22 PFL204
SBPFL 204-12 3/4 0.9843 2-41/64 3-35/64 2-13/16 0.2756 5/16 0.157 2-13/64 23/64 5/8 0.22 PFL204
SBPFL 205 25 27 71 95 76 7.5 M8 4 60 9 18 0.25 PFL205
SBPFL 205-13 13/16 1.063 2-51/64 3-3/4 2-63/64 0.2953 5/16 0.157 2-23/64 23/64 23/32 0.25 PFL205
SBPFL 205-14 7/8 1.063 2-51/64 3-3/4 2-63/64 0.2953 5/16 0.157 2-23/64 23/64 23/32 0.25 PFL205
SBPFL 205-15 15/16 1.063 2-51/64 3-3/4 2-63/64 0.2953 5/16 0.157 2-23/64 23/64 23/32 0.25 PFL205
SBPFL 205-16 1 1.063 2-51/64 3-3/4 2-63/64 0.2953 5/16 0.157 2-23/64 23/64 23/32 0.25 PFL205
SBPFL 206 30 30 84 113 90.5 8 M10 5.2 71 11 18 0.4 PFL206
SBPFL 206-17 1-1/16 1.1811 3-5/16 4-7/16 3-9/16 0.315 3/8 0.205 2-51/64 7/16 23/32 0.4 PFL206
SBPFL 206-18 1-1/8 1.1811 3-5/16 4-7/16 3-9/16 0.315 3/8 0.205 2-51/64 7/16 23/32 0.4 PFL206
SBPFL 206-19 1-3/16 1.1811 3-5/16 4-7/16 3-9/16 0.315 3/8 0.205 2-51/64 7/16 23/32 0.4 PFL206
SBPFL 206-20 1-1/4 1.1811 3-5/16 4-7/16 3-9/16 0.315 3/8 0.205 2-51/64 7/16 23/32 0.4 PFL206
SBPFL 207 35 32 94 122 100 8.5 M10 5.2 81 11 20 0.53 PFL207
SBPFL 207-20 1-1/4 1.2598 3-45/64 4-13/16 3-15/16 0.3346 3/8 0.205 3-3/16 7/16 25/32 0.53 PFL207
SBPFL 207-21 1-5/16 1.2598 3-45/64 4-13/16 3-15/16 0.3346 3/8 0.205 3-3/16 7/16 25/32 0.53 PFL207
SBPFL 207-22 1-3/8 1.2598 3-45/64 4-13/16 3-15/16 0.3346 3/8 0.205 3-3/16 7/16 25/32 0.53 PFL207
SBPFL 207-23 1-7/16 1.2598 3-45/64 4-13/16 3-15/16 0.3346 3/8 0.205 3-3/16 7/16 25/32 0.53 PFL207
SBPFL 208 40 34 100 148 119 9 M12 6.8 91 13.5 21 0.75 PFL208
SBPFL 208-24 1-1/2 1.3386 3-15/16 5-13/16 4-11/16 0.3543 1/2 0.268 3-37/64 17/32 13/16 0.75 PFL208
SBPFL 208-25 1-9/16 1.3386 3-15/16 5-13/16 4-11/16 0.3543 1/2 0.268 3-37/64 17/32 13/16 0.75 PFL208
