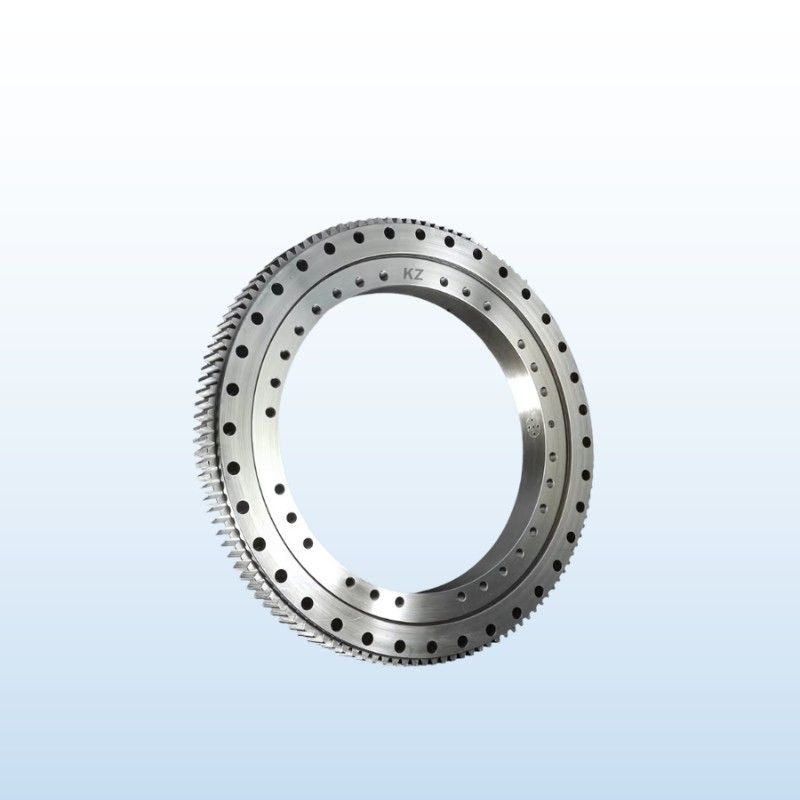

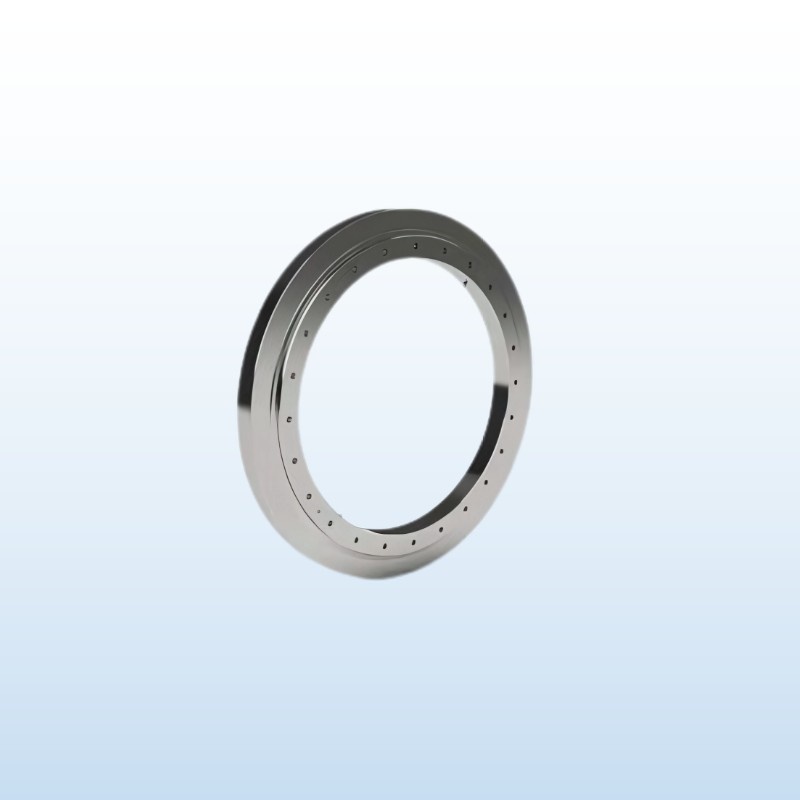

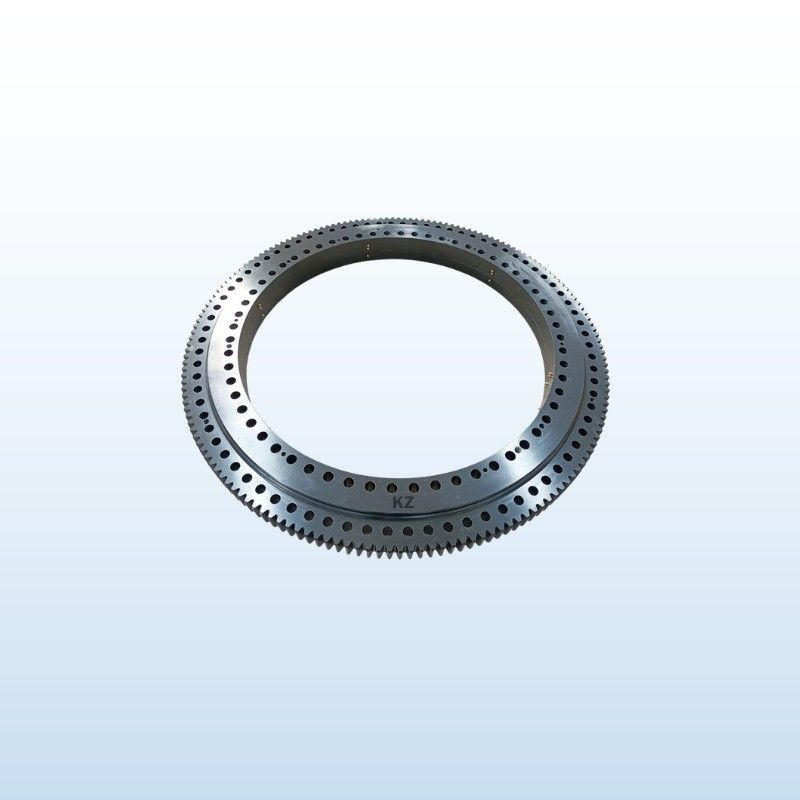

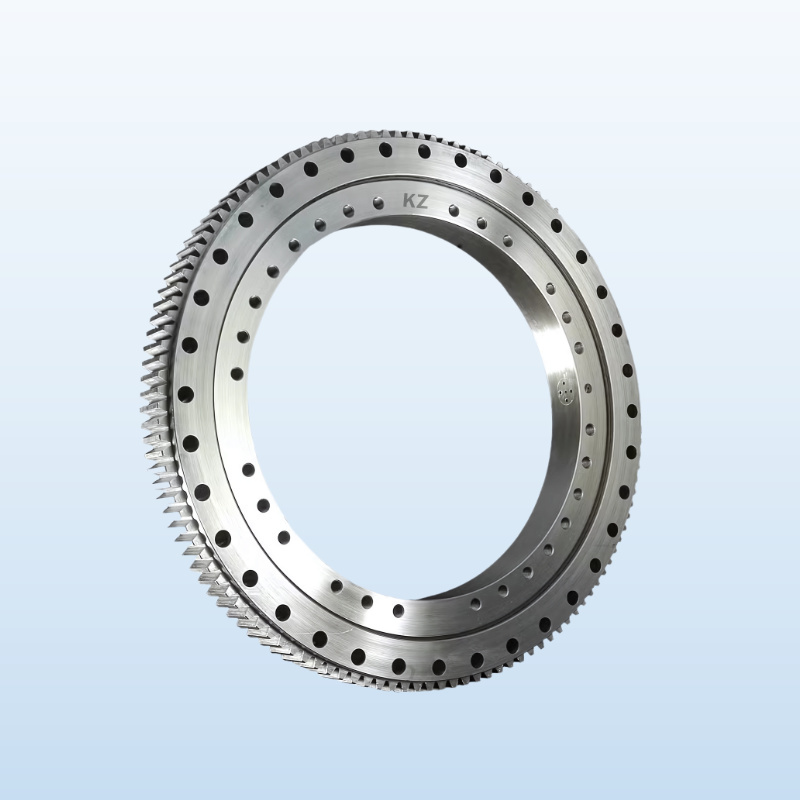

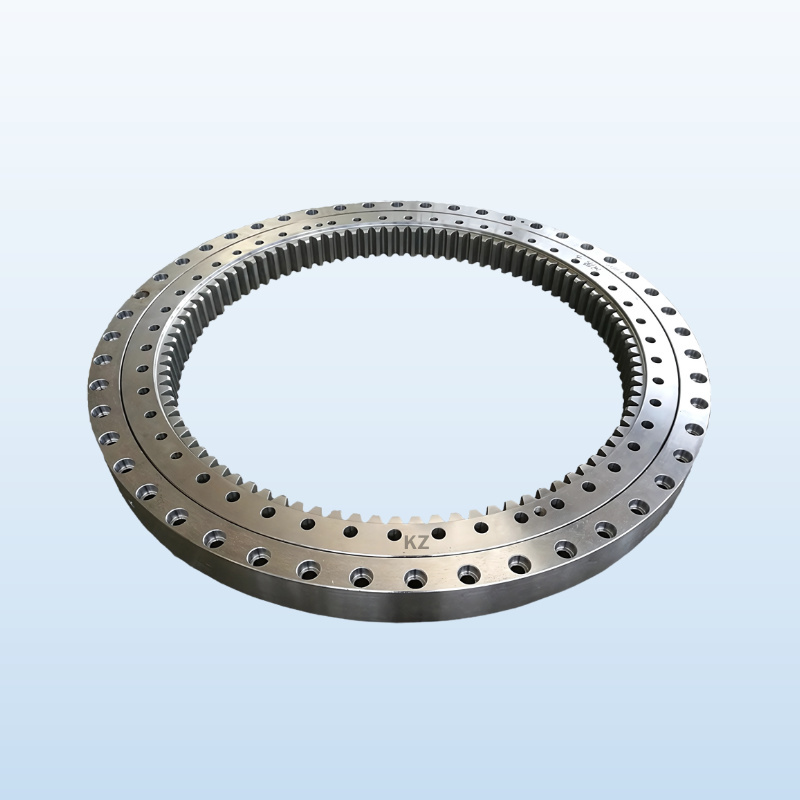

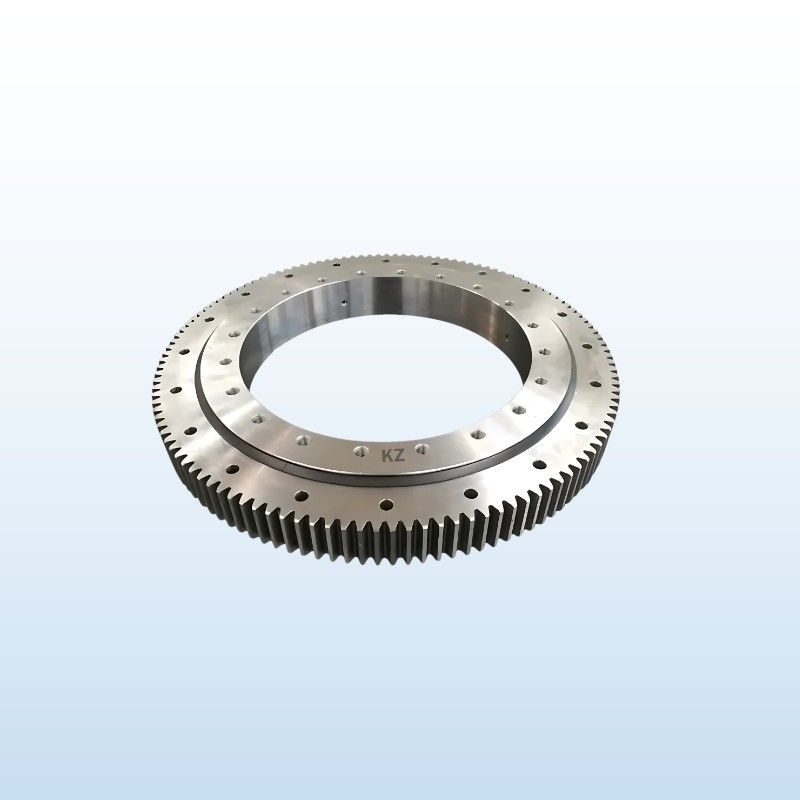

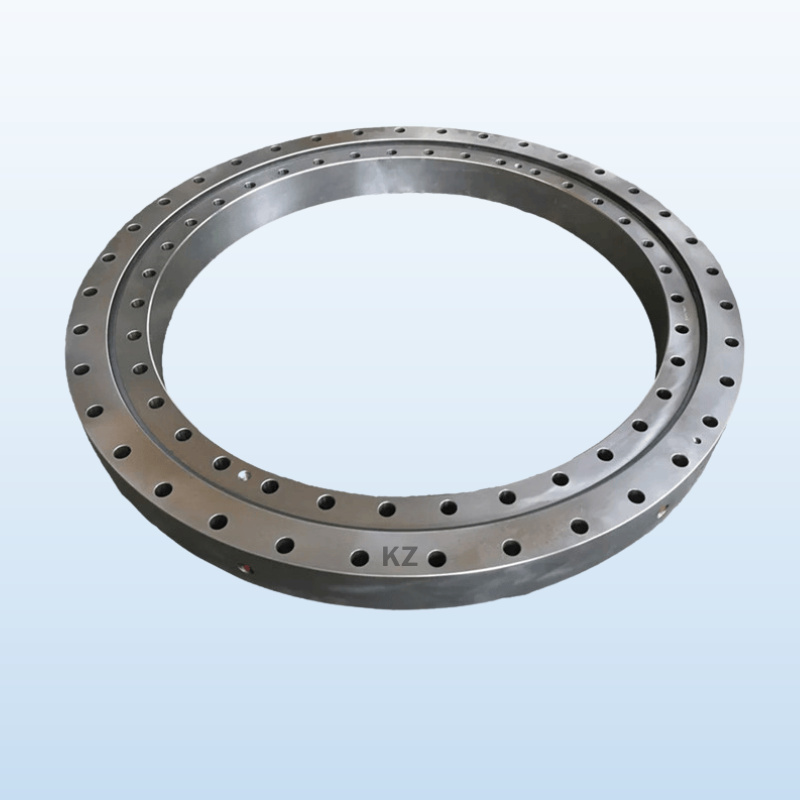

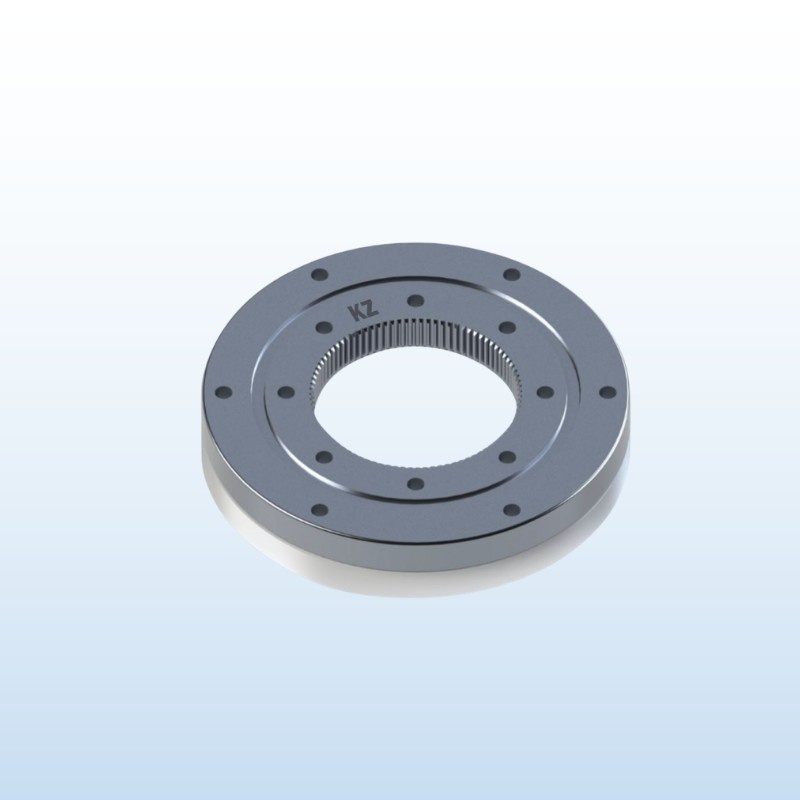

Three-Row Cross Roller Slewing Ring Bearing with without gear
KZ Bearings - 16349001 3R10-125P1B 3R6-55P9

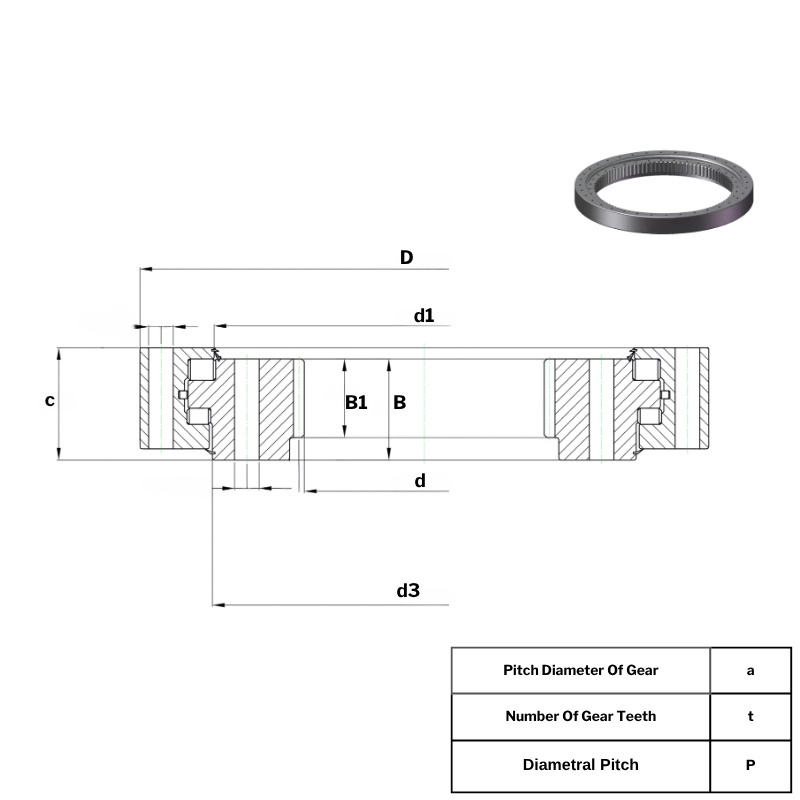

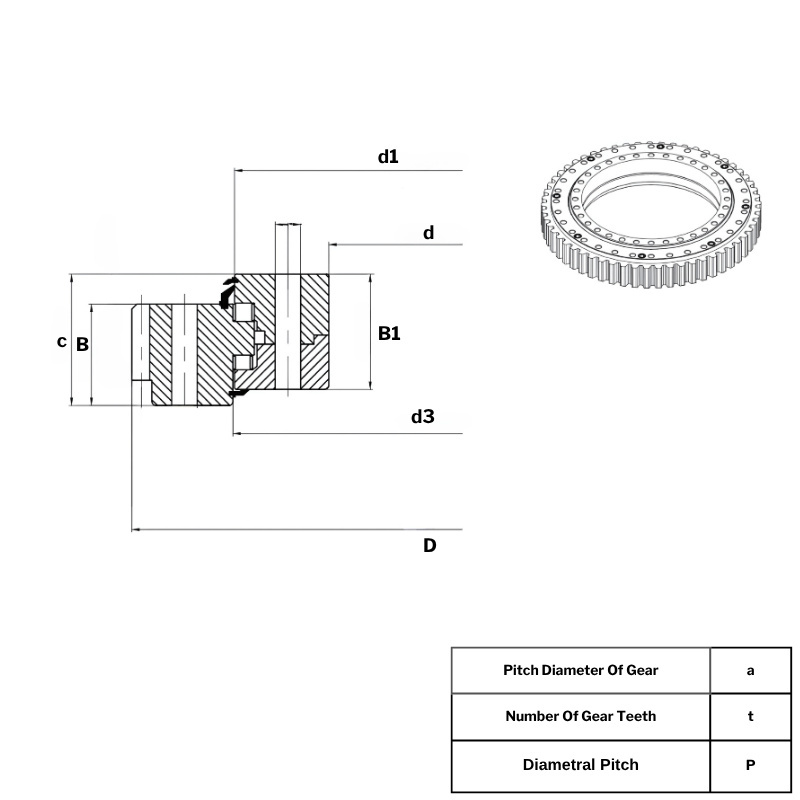

| Bearing Number | Inner Diameter (d) MM | Outer Diameter (D) MM | Width (B) MM | Width C | a | Height | dk | r1 Min | r2 min | Basic Load Rating (N) Dyn. C | Basic Load Rating (N) Stat. C0 | Weight (KG) | GOST | BCA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16349001 | 838.2 | 1233.424 | 162.052 | 185.42 | 771.1 | |||||||||
| 3R5-44P2A | 965.2 | 1257.3 | 82.55 | 101.6 | 352 | |||||||||
| 3R6-49P9 | 1054.989 | 1445.006 | 172.0088 | 219.9894 | 365.1 | |||||||||
| 16350001 | 1104.9 | 1385.062 | 112.014 | 119.888 | 1111.3 | |||||||||
| 3R6-55P9 | 1255.014 | 1534.922 | 112.014 | 119.888 | 411.9 | |||||||||
| 3R6-63P9 | 1454.912 | 1735.074 | 112.014 | 119.888 | 469.9 | |||||||||
| 16351001 | 1520.952 | 1962.15 | 180.848 | 191.77 | 1542.2 | |||||||||
| 3R6-71P9 | 1655.064 | 1985.772 | 112.014 | 119.888 | 469.9 | |||||||||
| 3R6-79P9 | 1819.91 | 2169.922 | 137.922 | 147.066 | 585.1 | |||||||||
| 3R8-79P9 | 1841.5 | 2362.2 | 218.948 | 229.87 | 909.9 | |||||||||
| 16352001 | 1854.962 | 2134.87 | 112.014 | 119.888 | 2553.7 | |||||||||
| 3R8-88P9 | 2059.94 | 2409.952 | 137.922 | 147.066 | 1020.1 | |||||||||
| 3R8-98P9 | 2270.252 | 2965.45 | 298.45 | 358.648 | 1138.1 | |||||||||
| 3R10-98P9 | 2284.984 | 2690.114 | 171.958 | 181.102 | 1646.1 | |||||||||
| 3R16-102P5 | 2320.036 | 2670.048 | 137.922 | 147.066 | 6123.5 | |||||||||
| 16353001 | 2480.0052 | 3012.0082 | 154.9908 | 194.9958 | 6280 | |||||||||
| 16354001 | 2734.0052 | 3110.992 | 118.0084 | 151.003 | 1587.6 | |||||||||
| 3R10-125P1B | 2960.116 | 3402.076 | 141.986 | 183.896 | 2485.7 | |||||||||
| 16356001 | 3467.1 | 4013.2 | 184.15 | 228.6 | 4581.3 | |||||||||
| 16387001 | 4769.993 | 5269.992 | 213.995 | 224.0026 | 5987.4 | |||||||||
| 16366001 | 5339.9944 | 5999.988 | 299.9994 | 310.007 | 11702.7 |
