Realislim TT Turntable without gear
KZ Bearings - T01-00225PAA T01-00475PAA T01-00675PAA
MATERIAL : Ring Material 42CRO or 50MN, Ball Material Chrome Steel
RealiSlim TT Turntable Bearings without gears are a flexible solution for systems with custom drive setups. They don’t have gear teeth, so you can pair them with your own motor or drive system. These bearings are great for robotics, lightweight machinery, and precision equipment. Their compact size and large inner diameter save space while handling heavy loads in all directions. Simple, smooth, and easy to integrate—perfect for clean, low-maintenance designs

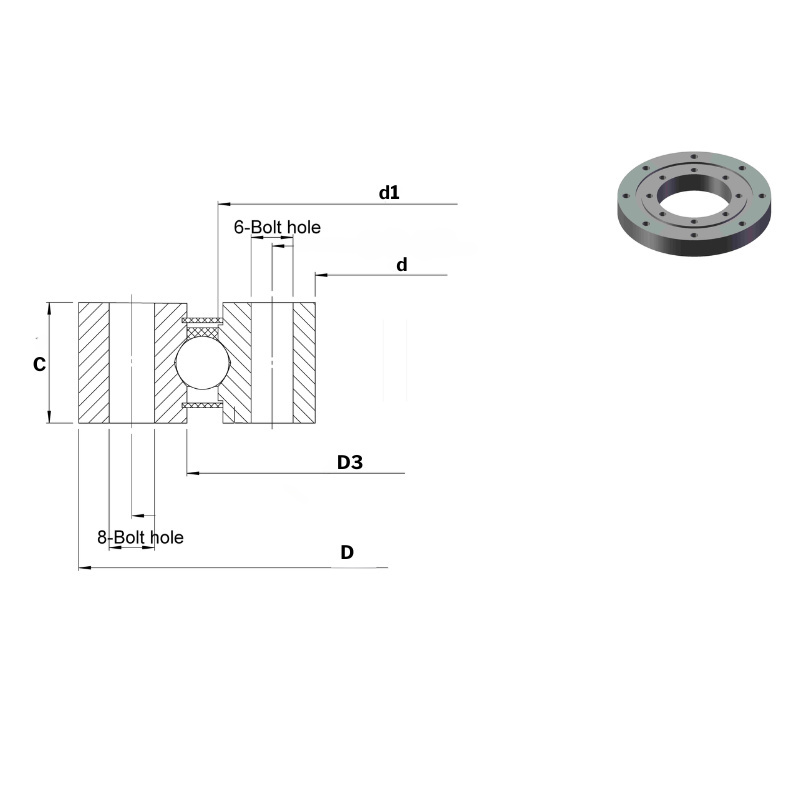

| Bearing Number | Inner Diameter (d) MM | Outer Diameter (D) MM | Width (B) MM | Dimension-B1 (MM) | d1 | Width C | a | s | D3 | p | t | G | Weight (KG) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T01-00225PAA | 38.1 | 76.2 | 54.56 | 6.35 | 59.84 | 0.16 | |||||||
| T01-00275PAA | 50.8 | 88.9 | 67.26 | 6.35 | 72.54 | 0.2 | |||||||
| T01-00325PAA | 63.5 | 101.6 | 79.96 | 6.35 | 85.24 | 0.23 | |||||||
| T01-00375PAA | 76.2 | 114.3 | 92.66 | 6.35 | 97.94 | 0.27 | |||||||
| T01-00425PAA | 88.9 | 127 | 105.36 | 6.35 | 110.64 | 0.3 | |||||||
| T01-00450PAA | 95.25 | 133.35 | 111.71 | 6.35 | 116.99 | 0.32 | |||||||
| T01-00475PAA | 101.6 | 139.7 | 118.06 | 6.35 | 123.34 | 0.34 | |||||||
| T01-00500PAA | 107.95 | 146.05 | 124.41 | 6.35 | 129.69 | 0.35 | |||||||
| T01-00525PAA | 114.3 | 152.4 | 130.76 | 6.35 | 136.04 | 0.37 | |||||||
| T01-00575PAA | 127 | 165.1 | 143.46 | 6.35 | 148.74 | 0.4 | |||||||
| T01-00625PAA | 139.7 | 177.8 | 156.16 | 6.35 | 161.44 | 0.44 | |||||||
| T01-00675PAA | 152.4 | 190.5 | 168.86 | 6.35 | 174.14 | 0.48 |
