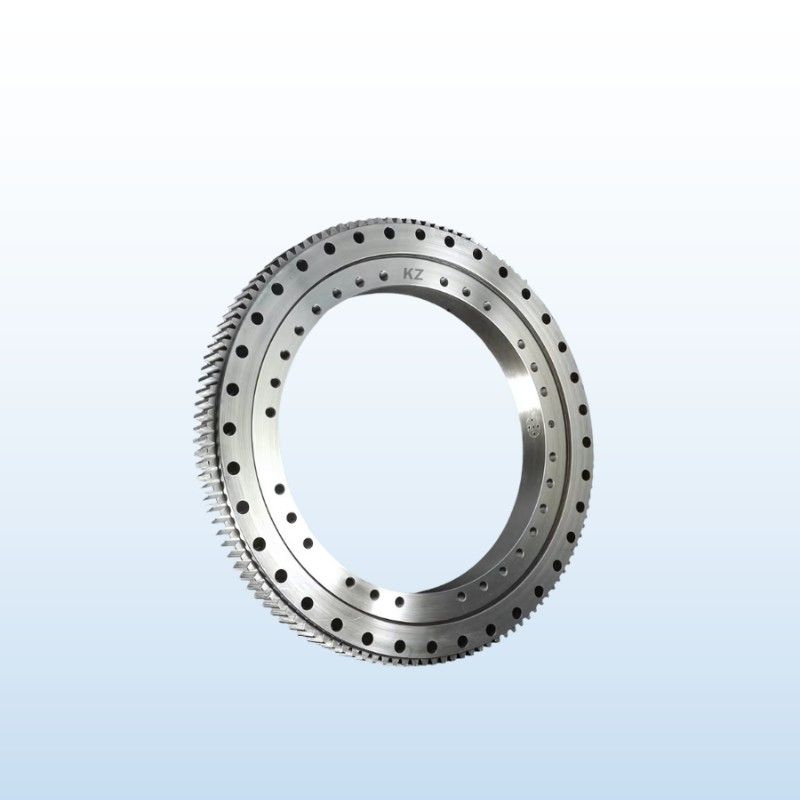

Realislim TT Turntable with external gear T01-00225EAA
Technical Details
| Bore Diameter (mm) d | Outer Diameter (mm) D | Width (mm) B | Weight (Kg) |
|---|---|---|---|
| 38.1 | 78.18 | 0.16 |
KZ Bearings - T01-00225EAA T01-00450EAA T01-00675EAA
MATERIAL : Ring Material 42CRO or 50MN, Ball Material Chrome Steel
RealiSlim TT Turntable Bearings with external gear are designed for easy connection to other mechanical parts. The gear teeth on the outside allow for simple power transfer and alignment. These bearings support multiple load directions and are used in automation, aerospace, and camera systems. Their slim profile helps reduce weight and space, while still offering strong performance, easy access for maintenance, and smooth, accurate motion.
| Bearing Number | Inner Diameter (d) MM | Width (B) MM | d1 | w | k | a | s | h | e | n | C (MM) | t | Weight (KG) | Housing No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T01-00225EAA | 38.1 | 54.56 | 77.39 | 195 | 0.16 | |||||||||
| T01-00275EAA | 50.8 | 67.26 | 90.09 | 227 | 0.2 | |||||||||
| T01-00325EAA | 63.5 | 79.96 | 102.79 | 259 | 0.23 | |||||||||
| T01-00375EAA | 76.2 | 92.66 | 115.49 | 291 | 0.27 | |||||||||
| T01-00425EAA | 88.9 | 105.36 | 128.19 | 323 | 0.3 | |||||||||
| T01-00450EAA | 95.25 | 111.71 | 134.54 | 339 | 0.32 | |||||||||
| T01-00475EAA | 101.6 | 118.06 | 140.89 | 355 | 0.34 | |||||||||
| T01-00500EAA | 107.95 | 124.41 | 147.24 | 371 | 0.35 | |||||||||
| T01-00525EAA | 114.3 | 130.76 | 153.59 | 387 | 0.37 | |||||||||
| T01-00575EAA | 127 | 143.46 | 166.29 | 419 | 0.4 | |||||||||
| T01-00625EAA | 139.7 | 156.16 | 178.99 | 451 | 0.44 | |||||||||
| T01-00675EAA | 152.4 | 168.86 | 191.69 | 483 | 0.48 |
