Realislim TT Turntable with internal gear
KZ Bearings - T01-00225NAA T01-00450NAA T01-00575NAA
MATERIAL : Ring Material 42CRO or 50MN, Ball Material Chrome Steel
RealiSlim TT Turntable Bearings with internal gear are ideal for compact systems where space is limited. The gear teeth are located inside the bearing, protecting them from dust and damage. This makes them reliable and long-lasting. They handle radial, axial, and moment loads all at once, making them perfect for robotics, radar systems, and medical devices. Their thin design saves space while providing smooth, precise rotation in clean or enclosed environments.

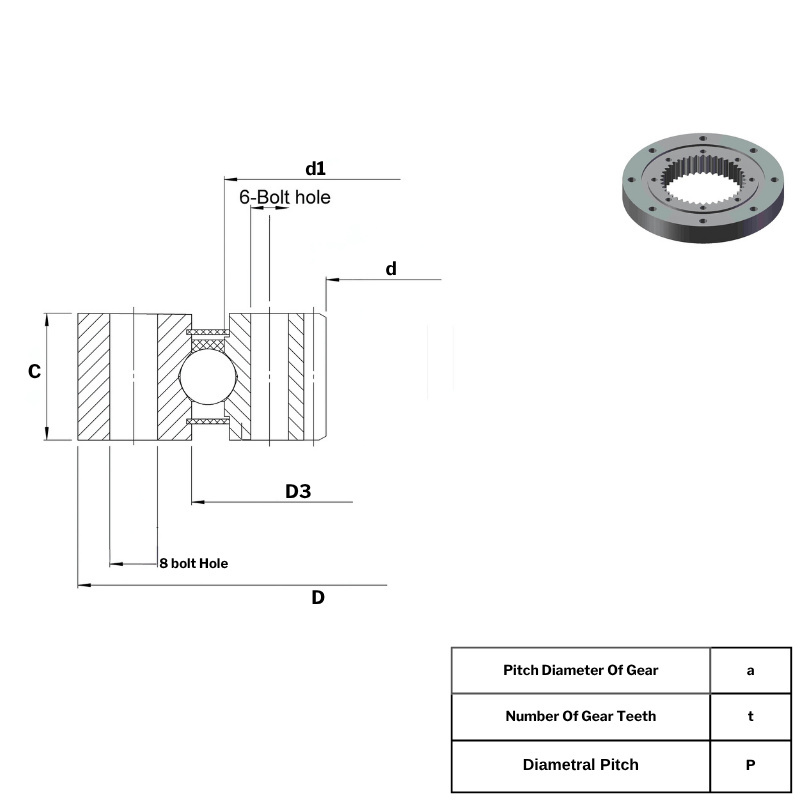

| Bearing Number | Inner Diameter (d) MM | Outer Diameter (D) MM | d1 | Width C | a | D3 | t | Basic Load Rating (N) Dyn. C | Basic Load Rating (N) Stat. C0 | Weight (KG) |
|---|---|---|---|---|---|---|---|---|---|---|
| T01-00225NAA | 36.12 | 76.2 | 54.56 | 6.35 | 36.91 | 59.84 | 93 | 1.96 | 3.43 | 0.16 |
| T01-00275NAA | 48.82 | 88.9 | 67.26 | 6.35 | 49.61 | 72.54 | 125 | 8.67 | 22.33 | 0.4 |
| T01-00325NAA | 61.52 | 101.6 | 79.96 | 6.35 | 62.31 | 85.24 | 157 | 3.47 | 7.12 | 0.23 |
| T01-00375NAA | 74.22 | 114.3 | 92.66 | 6.35 | 75.01 | 97.94 | 189 | 4.36 | 9.47 | 0.27 |
| T01-00425NAA | 86.92 | 127 | 105.36 | 6.35 | 87.71 | 110.64 | 221 | 5.34 | 12.19 | 0.3 |
| T01-00450NAA | 93.27 | 133.35 | 111.71 | 6.35 | 94.06 | 116.99 | 237 | 5.87 | 13.66 | 0.32 |
| T01-00475NAA | 99.62 | 139.7 | 118.06 | 6.35 | 100.41 | 123.34 | 253 | 6.41 | 15.21 | 0.34 |
| T01-00500NAA | 105.97 | 146.05 | 124.41 | 6.35 | 106.76 | 129.69 | 269 | 6.94 | 16.86 | 0.35 |
| T01-00525NAA | 112.32 | 152.4 | 130.76 | 6.35 | 113.11 | 136.04 | 285 | 7.52 | 18.59 | 0.37 |
| T01-00575NAA | 125.02 | 165.1 | 143.46 | 6.35 | 125.81 | 148.74 | 317 | 8.67 | 22.33 | 0.4 |
| T01-00625NAA | 137.72 | 177.8 | 156.16 | 6.35 | 138.51 | 161.44 | 349 | 9.92 | 26.38 | 0.44 |
| T01-00675NAA | 150.42 | 190.5 | 168.86 | 6.35 | 151.21 | 174.14 | 381 | 11.25 | 30.74 | 0.48 |
