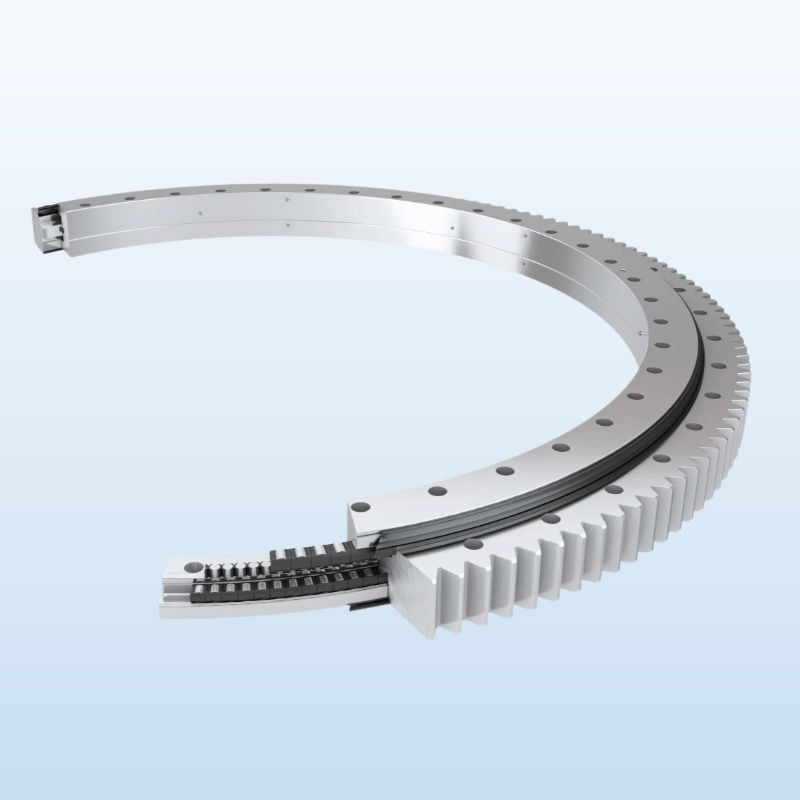

Thrust Ball Slewing Bearing S10-63E1

Technical Details

Bore Diameter (mm) d	Outer Diameter (mm) D	Width (mm) B	Weight (Kg)
1482.85	1723.82	81.03	285.3

KZ Series - S10-63E1 S16-100E1 S24-178E1 S8-56E1

MATERIAL : Ring Material 42CRO or 50MN, Ball Material Chrome Steel,

Cage Material Nylon or 300 Series Stainless Steel

Thrust ball slewing bearings are designed to support high axial loads while allowing smooth rotational movement. Featuring a series of precision steel balls arranged between two raceways, they provide excellent load distribution and low friction. These bearings are ideal for slow-turning, heavy-load applications such as turntables, cranes, wind turbines, and rotating machinery. Their compact design, high load-carrying capacity, and ease of installation make them a reliable solution for axial-load-dominant rotating systems.

Send query Buy Now

Bearing Number	Inner Diameter (d) MM	Outer Diameter (D) MM	Width (B) MM	Dimension-B1 (MM)	d1	Width C	a	D3	p	t	G	Weight (KG)
S10-63E1	1482.85	1723.82	81.03	65.02	1601.47	73.15	1710	1573.53	3	202	External Gear	285.3
S12-70E1	1660.65	1936.5	87.38	71.37	1794.76	79.25	1920	1761.24	2.5	189	External Gear	411
S14-80E1	1895.35	2200.66	111.25	85.85	2048.26	101.6	2184	2009.39	2.5	215	External Gear	653.2
S14-90E1	2149.35	2454.66	111.25	85.85	2302.26	101.6	2438	2263.39	2.5	240	External Gear	736.6
S16-100E1	2387.6	2738.12	117.35	91.95	2562.35	107.95	2718	2517.65	2	214	External Gear	994.7
S16-112E1	2692.4	3042.92	117.35	91.95	2867.15	107.95	3023	2822.45	2	238	External Gear	1108.6
S20-125E1	2994.15	3405.05	138.18	112.78	3202.94	127	3023	3147.06	2	238	External Gear	1108.6
S22-140E1	3371.85	3803.22	146.05	120.65	3586.73	133.35	3776	3525.27	1.5	223	External Gear	2163.2
S24-158E1	3797.3	4279.39	152.4	127	4034.03	139.7	4247	3974.59	1.25	209	External Gear	2810
S24-178E1	4267.2	4807.71	152.4	127	4542.03	139.7	4775	4474.97	1.25	235	External Gear	3580.7
