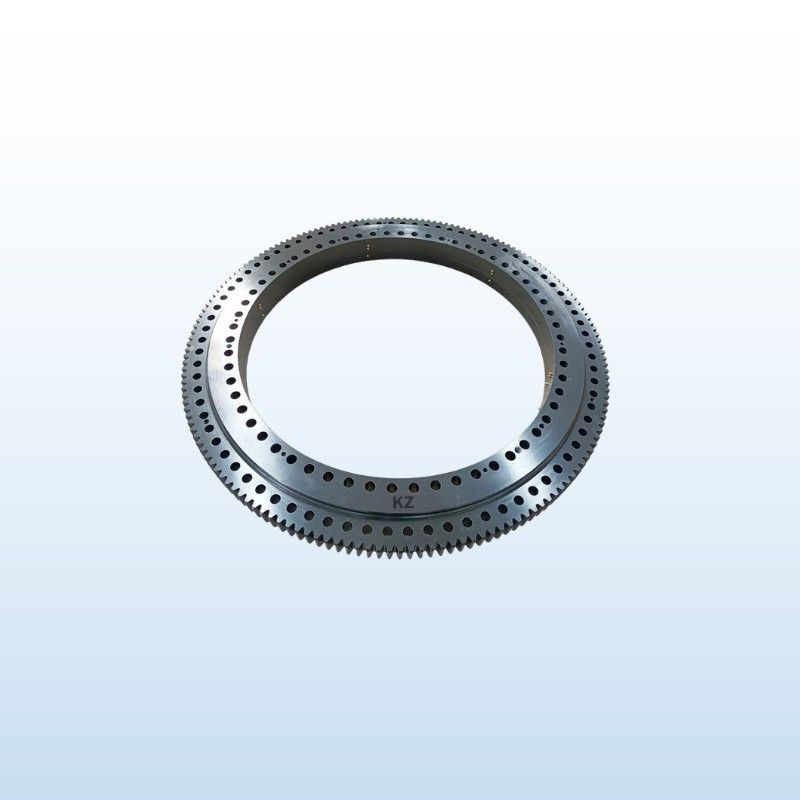

Cross Roller With External Gear 16337001
Technical Details
| Bore Diameter (mm) d | Outer Diameter (mm) D | Width (mm) B | Weight (Kg) |
|---|---|---|---|
| 233.43 | 406.4 | 46.99 | 24.9 |
| Bearing Number | Inner Diameter (d) MM | Dimension-B1 (MM) | w | B Drawing | a | s | g | h | e | n | Bolt Size (MM) | Height | r2 min | Weight (KG) | Housing No. | GOST |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16337001 | 233.43 | 46.99 | 396.24 | Standard | 24.9 | |||||||||||
| 16338001 | 349.25 | 63.5 | 584.2 | Standard | 79.4 | |||||||||||
| 16339001 | 477.01 | 56.9 | 685.0126 | Standard | 81.6 | |||||||||||
| 16340001 | 673.99 | 44.5 | 840.0034 | Standard | 63.5 | |||||||||||
| 16341001 | 622.3 | 98.55 | 914.4 | Standard | 263.1 | |||||||||||
| 16342001 | 868.17 | 88.14 | 1110.0054 | Standard | 213.2 | |||||||||||
| 16343001 | 1016 | 88.9 | 1280.16 | Standard | 308.4 | |||||||||||
| 16344001 | 1205.99 | 111.99 | 1569.9994 | Standard | 644.1 | |||||||||||
| 16345001 | 1359.92 | 109.98 | 1735.9884 | Standard | 662.2 | |||||||||||
| 16346001 | 1911.35 | 71.12 | 2167.4582 | Standard | 417.3 | |||||||||||
| 16347001 | 2133.6 | 101.6 | 2540 | Standard | 1469.6 | |||||||||||
| 16348001 | 3599.99 | 146 | 4015.994 | Standard | 2485.7 | |||||||||||
| 16393001 | 4790.01 | 153.01 | 5255.9966 | Standard | 4422.5 |
