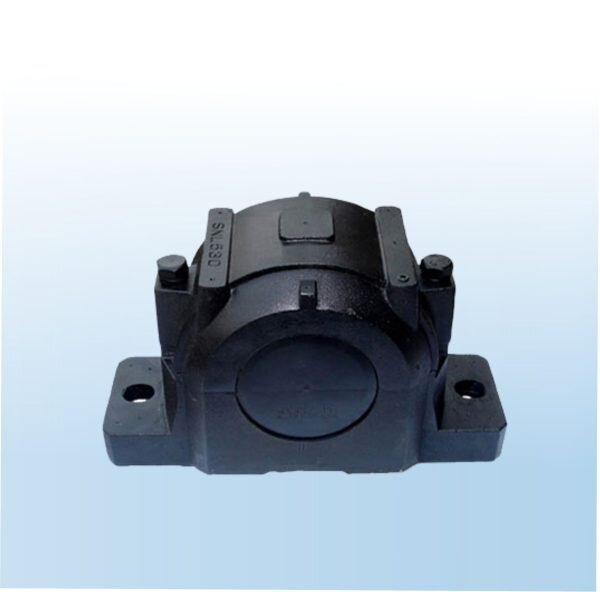

• SNL 500 | KG Bearing

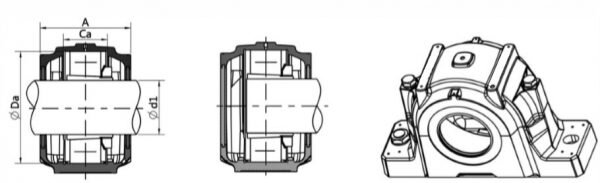

  • SNL 500 Line Drawing | KG Bearing

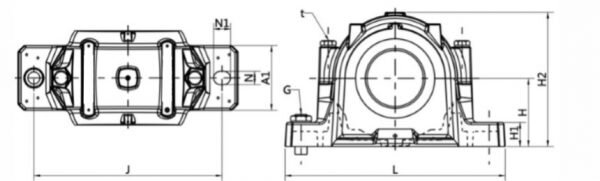

  • SNL 500 Line Drawing | KG Bearing

SNL 500

KZ SERIES :SNL 505, SNL 506-605, SNL 509, SNL 526

Plummer Blocks

For bearing housings where the strength of grey cast iron material is still inadequate, these housings can also be supplied in cast steel or spheroidal graphite iron (ductile).

  • Such bearing housings can support approximately twice the load permitted for grey cast iron housings
  • These bearing housings are dimensional interchangeable and suitable for bearings of international companies.
  • All housings are supplied as non located types. For locating type, suitable locating ring - bearing to be ordered separately

Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

Send Query WhatsApp Us
Bearing Number d1 L a t G H J A1 H1 H2 N N1 ca da Weight (KG)
SNL505 20 165 67 M10 M12 40 130 46 19 74 15 20 25 52 1.5
SNL506-605 25 185 77 M10 M12 50 150 52 22 89 15 20 32 62 2
SNL507-606 30 182 82 M10 M12 50 150 52 22 93 15 20 34 72 2.2
SNL508-607 35 205 85 M10 M12 60 170 60 65 108 15 20 39 80 2.8
SNL509 40 205 85 M10 M12 60 170 60 25 109 15 20 39 85 3
SNL510-608 45 205 90 M10 M12 60 170 60 25 113 15 20 41 90 3.1
SNL511-609 50 255 95 M12 M16 70 210 70 28 128 18 23 44 100 4.5
SNL512-610 55 255 105 M12 M16 70 210 70 30 134 18 23 48 110 5
SNL513-611 60 275 110 M12 M16 80 230 80 30 149 18 23 51 120 6.1
SNL515-612 65 280 115 M12 M16 80 230 80 30 155 18 23 56 130 6.5
SNL516-613 70 315 120 M12 M20 95 260 90 32 177 22 27 58 140 9
SNL517 75 320 125 M12 M20 95 260 90 32 183 22 27 61 150 10.2
SNL518-615 80 345 145 M16 M20 100 290 100 35 194 22 27 65 160 12.4
SNL519-616 85 345 140 M16 M20 112 290 100 35 212 22 27 68 170 13.5
SNL520-617 90 380 160 M20 M24 112 320 110 40 218 26 32 70 180 17.5
SNL522-619 100 410 175 M20 M24 125 350 120 45 242 26 32 80 200 20.5
SNL524-520 110 410 185 M20 M24 140 350 120 45 271 26 32 86 215 25.5
SNL526 115 445 190 M24 M24 150 380 130 50 290 28 36 90 230 33
SNL528 125 500 205 M24 M24 150 420 150 50 302 28 36 98 250 42
SNL530 135 530 220 M24 M30 160 450 160 60 323 33 42 106 270 53
SNL532 140 550 235 M24 M30 170 470 160 60 344 33 42 114 290 55
