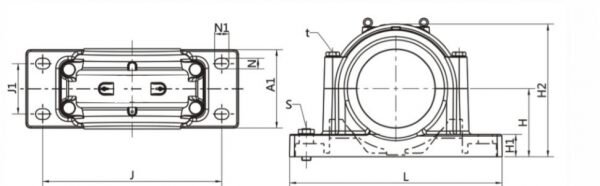

  • SD 200 300 Line Drawing | KG Bearing

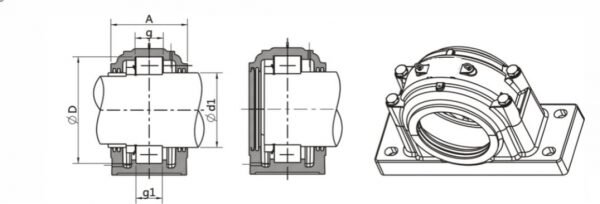

  • SD 200 300 Line Drawing | KG Bearing

SD 200 300 SD338

Technical Details

Bore Diameter (mm) d Outer Diameter (mm) D Width (mm) B Weight (Kg)
190 400 200

KZ SERIES : SD234, SD236, SD264, SD338, SD352

For SD338 bearing housings where the strength of grey cast iron material is still inadequate, these housings can also be supplied in cast steel or spheroidal graphite Iron (ductile)

  • Such bearing housings can support approximately twice the load permitted for grey cast iron housings
  • These bearing housings are dimensionally interchangeable and suitable for bearings of an international company.
  • For SDJ type it is necessary to specify a requirement for the located bearing type or non located bearing type because loose locating rings are not used.
  • Instead, the bearing width inside the housing is machined to suit located or non-located type.

Applications and industry: AGRICULTUREAUTOMOTIVECEMENT INDUSTRYCRUSHER INDUSTRYHEAVY MACHINERY EQUIPMENTSHOME APPLIANCESMINING SECTORMETAL INDUSTRYFLUID MACHINERYTEXTILE INDUSTRY

Send query Buy Now
Bearing Number Inner Diameter (d) MM Outer Diameter (D) MM L a s t G H J A1 H1 H2 g1 N N1 J1 Weight (KG)
SD338 190 400 820 330 M36 M30 132 240 680 300 70 475 142 M30 60 190 200
SD340 200 420 860 350 M36 M36 138 250 710 320 85 500 148 M36 62 200 230
SD344 220 460 920 360 M36 M36 145 280 770 330 85 550 155 M36 62 210 290
SD348 240 500 990 390 M42 M36 155 300 830 370 100 590 165 M36 70 230 350
SD352 260 540 1060 410 M42 M36 165 325 890 390 100 640 175 M36 70 250 450
SD356 280 580 1110 440 M48 M42 175 355 930 420 110 690 185 M42 77 270 550
