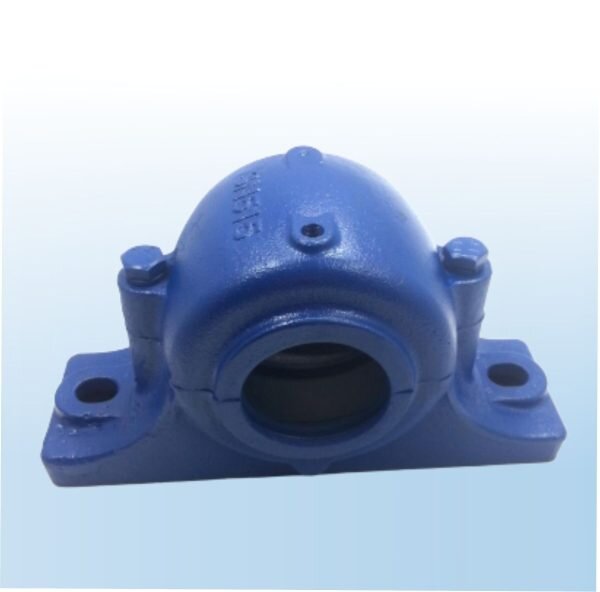

• SN 200 300 | KG Bearing

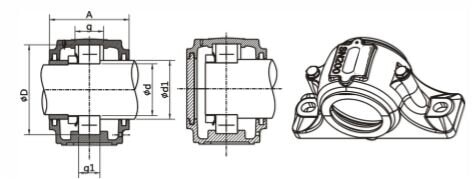

  • SN 200 300 Line drawing | KG Bearing

SN 200 300

KZ SERIES : SN205, SN220, SN232, SN305, SN320, SN330, SN332

Plummer Blocks

For bearing housings where the strength of grey cast iron material is still inadequate, these housings can also be supplied in cast steel or spheroidal graphite iron (ductile).

  • Such bearing housings can support approximately twice the load permitted for grey cast iron housings.
  • These bearing housings are dimensional interchangeable and suitable for bearings of international companies.
  • All housings are supplied as non located types. For locating type, suitable locating ring-bearing to be ordered separately.

Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

Send Query WhatsApp Us
Bearing Number Inner Diameter (d) MM Outer Diameter (D) MM d1 L g t H J A1 H1 H2 g1 N N1 S Weight (KG)
SN205 25 52 30 165 25 M8 40 130 46 22 75 18 15 20 M12 1.1
SN206 30 62 35 185 30 M8 50 150 52 22 90 20 15 20 M12 1.7
SN207 35 72 45 185 33 M10 50 150 52 22 95 23 15 20 M12 1.9
SN208 40 80 50 205 33 M10 60 170 60 25 110 23 15 20 M12 2.6
SN209 45 85 55 205 31 M10 60 170 60 25 112 23 15 20 M12 2.8
SN210 50 90 60 205 33 M10 60 170 60 25 115 23 15 20 M12 3
SN211 55 100 65 255 33 M12 70 210 70 28 130 25 18 23 M16 4.5
SN212 60 110 70 255 38 M12 70 210 70 30 135 28 18 23 M16 5
SN213 65 120 75 275 43 M12 80 230 80 30 150 31 18 23 M16 5.6
SN214 70 125 80 275 44 M12 80 230 80 30 155 34 18 23 M16 6.1
SN215 75 130 85 280 41 M12 80 230 80 30 155 31 18 23 M16 7
SN216 80 140 90 315 43 M16 95 260 90 32 175 33 22 27 M20 9
SN217 85 150 95 320 46 M16 95 260 90 32 185 36 22 27 M20 10
SN218 90 160 100 345 62.4 M16 100 290 100 35 195 40 22 27 M20 13
SN219 95 170 110 345 53 M16 112 290 100 35 210 43 22 27 M20 15
SN220 100 180 115 380 70.3 M20 112 320 110 40 218 46 26 32 M24 18.5
SN222 110 200 125 410 80 M20 125 350 120 45 240 53 26 32 M24 20
SN224 120 215 135 410 86 M20 140 350 120 45 270 58 26 32 M24 24.5
SN226 130 230 145 445 90 M24 150 380 130 50 290 64 28 36 M24 30
SN228 140 250 155 500 98 M24 150 420 150 50 305 68 33 42 M30 38
SN230 150 270 165 530 106 M24 160 450 160 60 325 73 33 42 M30 46
SN232 160 290 175 550 114 M24 170 470 160 60 345 80 33 42 M30 50
SN305 25 62 30 185 34 M8 50 150 52 22 90 24 15 20 M12 1.6
SN306 30 72 35 185 37 M10 50 150 52 22 95 27 15 20 M12 1.8
SN307 35 80 45 205 41 M10 60 170 60 25 110 31 15 20 M12 2.6
SN308 40 90 50 205 43 M10 60 170 60 25 115 33 15 20 M12 2.9
SN309 45 100 55 255 46 M12 70 210 70 28 130 36 18 23 M16 4.1
SN310 50 110 60 255 50 M12 70 210 70 30 135 40 18 23 M16 4.7
SN311 55 120 65 275 53 M12 80 230 80 30 150 43 18 23 M16 5.8
SN312 60 130 70 280 56 M12 80 230 80 30 155 46 18 23 M16 6.5
SN313 65 140 75 315 58 M16 95 260 90 32 175 48 22 27 M20 8.7
SN314 70 150 80 320 61 M16 95 260 90 32 185 51 22 27 M20 10
SN315 75 160 85 345 65 M16 100 290 100 35 195 55 22 27 M20 11.3
SN316 80 170 90 345 68 M16 112 290 100 35 212 58 22 27 M20 12.6
SN317 85 180 95 380 70 M20 112 320 110 40 223 60 26 32 M24 15
SN318 90 190 100 380 74 M20 112 320 110 40 230 64 26 32 M24 19
SN319 95 200 110 410 77 M20 125 350 120 45 250 67 26 32 M24 22
SN320 100 215 115 410 83 M20 140 350 120 45 270 73 26 32 M24 25
SN322 110 240 125 450 90 M24 150 390 130 50 300 80 28 36 M24 32
SN323 120 260 135 530 96 M24 160 450 160 60 320 86 33 42 M30 48
SN324 130 280 145 550 103 M24 170 470 160 60 340 93 33 42 M30 56
SN328 140 300 155 610 112 M30 180 520 170 65 365 102 35 45 M30 72
SN330 150 320 165 650 118 M30 190 560 180 65 385 108 35 42 M36 98
SN332 160 340 175 680 124 M30 200 580 190 70 405 114 42 50 M36 115
