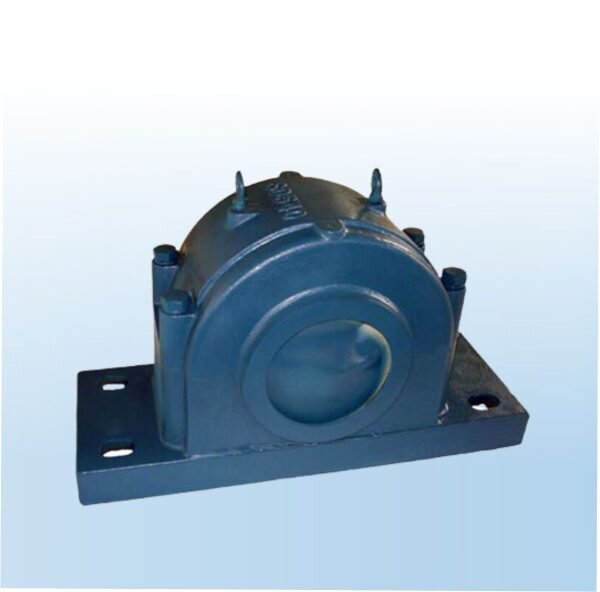

SD 200 300

FUR-006AB890

100 In stock

Dincidunteros

For bearing housings where the strength of grey cast iron material is still inadequate, these housings can also be supplied in cast steel or spheroidal graphite Iron (ductile)

  • Such bearing housings can support approximately twice the load permitted for grey cast iron housings
  • These bearing housings are dimensionally interchangeable and suitable for bearings of an international company.
  • For SDJ type it is necessary to specify a requirement for the located bearing type or non located bearing type because loose locating rings are not used.
  • Instead, the bearing width inside the housing is machined to suit located or non-located type.

Applications and industry: AGRICULTUREAUTOMOTIVECEMENT INDUSTRYCRUSHER INDUSTRYHEAVY MACHINERY EQUIPMENTSHOME APPLIANCESMINING SECTORMETAL INDUSTRYFLUID MACHINERYTEXTILE INDUSTRY

  •
Send query Buy Now

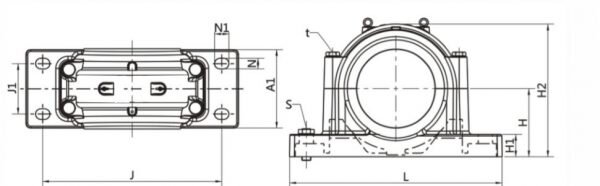

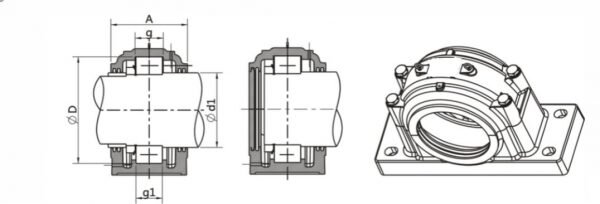

Bearing Number Inner Diameter (d) MM Outer Diameter (D) MM L a s t G H J A1 H1 H2 g1 N N1 J1 Weight (KG)
SD234 170 310 620 270 M30 M24 86 180 510 230 60 360 96 M24 52 140 92
SD236 180 320 650 280 M30 M24 86 190 540 240 60 380 96 M24 52 150 105
SD238 190 340 700 290 M30 M30 92 200 570 260 65 400 102 M30 55 160 125
SD240 200 360 740 300 M30 M30 98 210 610 270 65 420 108 M30 55 170 140
SD244 220 400 820 330 M36 M30 108 240 680 300 70 475 118 M30 60 190 200
SD248 240 440 880 340 M36 M36 120 260 740 310 85 515 130 M36 62 200 230
SD252 260 480 940 370 M36 M36 130 280 790 340 85 560 140 M36 62 210 300
SD256 280 500 990 390 M42 M36 130 300 830 370 100 590 140 M36 70 230 350
SD260 300 540 1060 410 M42 M36 140 325 890 390 100 640 150 M36 70 250 450
SD264 320 580 1110 440 M48 M42 150 355 930 420 110 690 160 M42 77 270 550
SD334 170 360 740 300 M30 M30 120 210 610 270 65 420 130 M30 55 170 140
SD336 180 380 780 320 M36 M30 126 225 640 290 70 450 136 M30 60 180 170
SD338 190 400 820 330 M36 M30 132 240 680 300 70 475 142 M30 60 190 200
SD340 200 420 860 350 M36 M36 138 250 710 320 85 500 148 M36 62 200 230
SD344 220 460 920 360 M36 M36 145 280 770 330 85 550 155 M36 62 210 290
SD348 240 500 990 390 M42 M36 155 300 830 370 100 590 165 M36 70 230 350
SD352 260 540 1060 410 M42 M36 165 325 890 390 100 640 175 M36 70 250 450
SD356 280 580 1110 440 M48 M42 175 355 930 420 110 690 185 M42 77 270 550
