LR 600
KZ SERIES: LR 6001 NPP LR 606 NPPU LR 6000 KDDU
Category Track Roller Bearing
MATERIAL : Chrome Steel SAE52100/100Cr6/GCr15, Stainless Steel 420 and 440
QUALITY : ABEC 1, ABEC3, ABEC5, ABEC7
LR 600 series track rollers bearing are heavy-duty bearings designed for linear motion applications on round shafts or guideways. They feature a thick-walled, crowned outer ring and deep groove ball bearing construction, allowing high radial and axial load capacity. Available with contact seals (2RS) or metal shields (ZZ), LR 600 bearings ensure smooth operation and long service life. Commonly used in automation, conveyor systems, and material handling, they provide reliable performance in demanding industrial environments.
Applications and industry: Automotive, Food and beverage processing, Packaging, Textile and printing

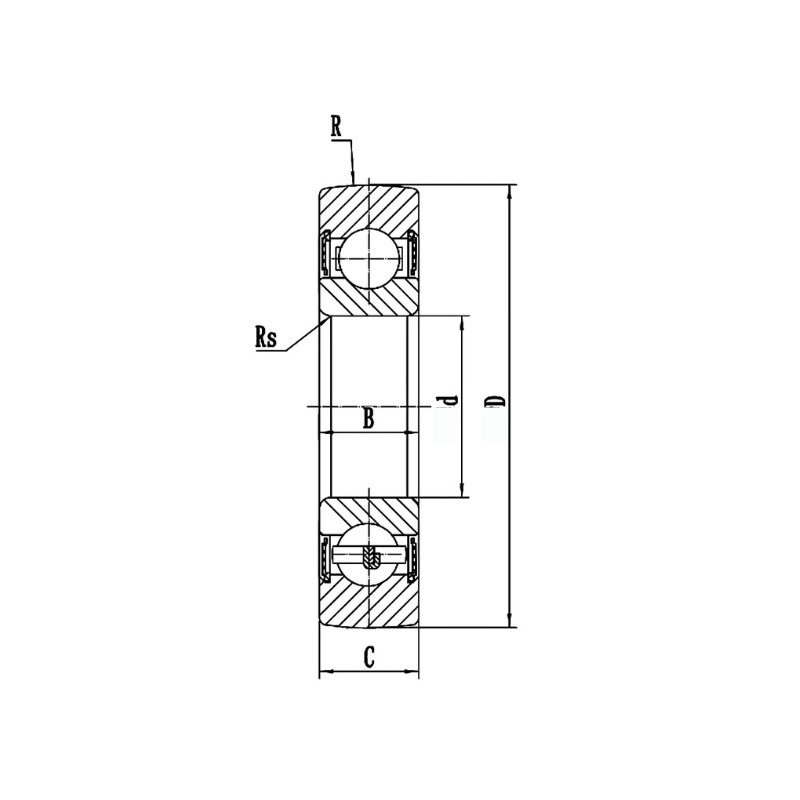

| Bearing Number | Inner Diameter (d) MM | Outer Diameter (D) MM | Width (B) MM | d1 | Width C | Dynamic Load Capacity | Static Load Capacity | Weight (KG) | |
|---|---|---|---|---|---|---|---|---|---|
| LR 604 NPP | 4 | 13 | 4 | 0.2 | 4 | 860 | 350 | 0.01 | |
| LR 604 NPPU | 4 | 13 | 4 | 500 | 0.2 | 4 | 860 | 350 | 0.01 |
| LR 604 KDD | 4 | 13 | 4 | 0.2 | 4 | 860 | 350 | 0.01 | |
| LR 604 KDDU | 4 | 13 | 4 | 500 | 0.2 | 4 | 860 | 350 | 0.01 |
| LR 605 NPP | 5 | 16 | 5 | 0.2 | 5 | 1190 | 490 | 0.01 | |
| LR 605 NPPU | 5 | 16 | 5 | 500 | 0.2 | 5 | 1190 | 490 | 0.01 |
| LR 605 KDD | 5 | 16 | 5 | 0.2 | 5 | 1190 | 490 | 0.01 | |
| LR 605 KDDU | 5 | 16 | 5 | 500 | 0.2 | 5 | 1190 | 490 | 0.01 |
| LR 606 NPP | 6 | 19 | 6 | 0.3 | 6 | 1740 | 700 | 0.01 | |
| LR 606 NPPU | 6 | 19 | 6 | 500 | 0.3 | 6 | 1740 | 700 | 0.01 |
| LR 606 KDD | 6 | 19 | 6 | 0.3 | 6 | 1740 | 700 | 0.01 | |
| LR 606 KDDU | 6 | 19 | 6 | 500 | 0.3 | 6 | 1740 | 700 | 0.01 |
| LR 607 NPP | 7 | 22 | 6 | 0.3 | 6 | 2130 | 870 | 0.01 | |
| LR 607 NPPU | 7 | 22 | 6 | 500 | 0.3 | 6 | 2130 | 870 | 0.01 |
| LR 607 KDD | 7 | 22 | 6 | 0.3 | 6 | 2130 | 870 | 0.01 | |
| LR 607 KDDU | 7 | 22 | 6 | 500 | 0.3 | 6 | 2130 | 870 | 0.01 |
| LR 608 NPP | 8 | 24 | 7 | 0.3 | 7 | 2750 | 1250 | 0.02 | |
| LR 608 NPPU | 8 | 24 | 7 | 500 | 0.3 | 7 | 2750 | 1250 | 0.02 |
| LR 608 KDD | 8 | 24 | 7 | 0.3 | 7 | 2750 | 1250 | 0.02 | |
| LR 608 KDDU | 8 | 24 | 7 | 500 | 0.3 | 7 | 2750 | 1250 | 0.02 |
| LR 6000 NPP | 10 | 28 | 8 | 0.3 | 8 | 3650 | 1700 | 0.02 | |
| LR 6000 NPPU | 10 | 28 | 8 | 500 | 0.3 | 8 | 3650 | 1700 | 0.02 |
| LR 6000 KDD | 10 | 28 | 8 | 0.3 | 8 | 3650 | 1700 | 0.02 | |
| LR 6000 KDDU | 10 | 28 | 8 | 500 | 0.3 | 8 | 3650 | 1700 | 0.02 |
| LR 6001 NPP | 12 | 30 | 8 | 0.3 | 8 | 4300 | 2100 | 0.03 | |
| LR 6001 NPPU | 12 | 30 | 8 | 500 | 0.3 | 8 | 4300 | 2100 | 0.03 |
| LR 6001 KDD | 12 | 30 | 8 | 0.3 | 8 | 4300 | 2100 | 0.03 | |
| LR 6001 KDDU | 12 | 30 | 8 | 500 | 0.3 | 8 | 4300 | 2100 | 0.03 |
