NUTR NUTR 4090
Technical Details

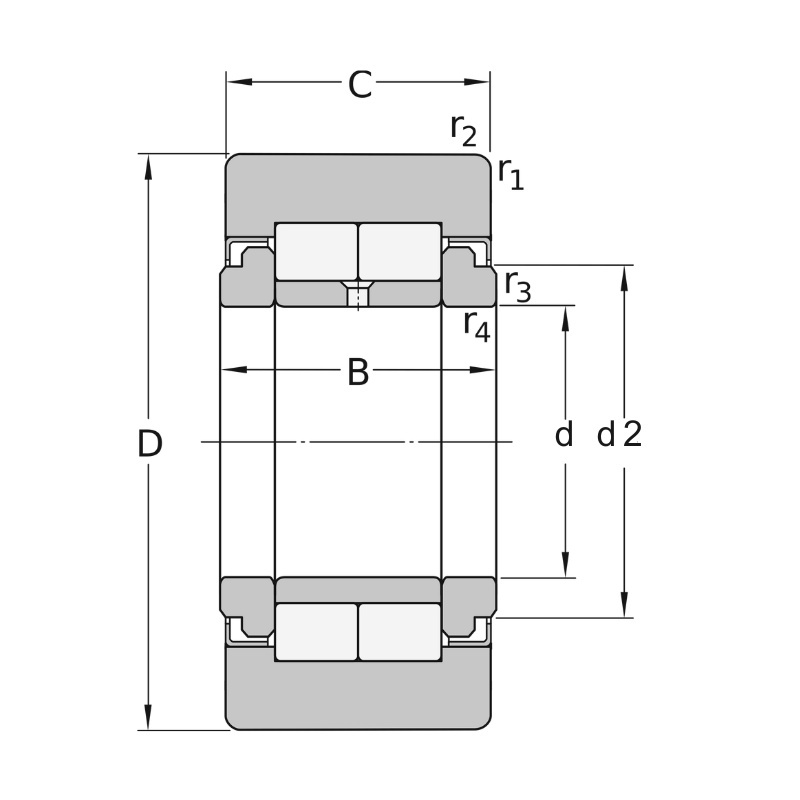

| Bore Diameter (mm) d | Outer Diameter (mm) D | Width (mm) B | Weight (Kg) |
|---|---|---|---|
| 40 | 90 | 30 | 1.129 |
KZ SERIES : NUTR 15 NUTR 2052 NUTR 4090 NUTR 50110
Category Track Roller Bearing
MATERIAL : Chrome Steel SAE52100/100Cr6/GCr15, Stainless Steel 420 and 440
QUALITY : ABEC 1, ABEC3, ABEC5, ABEC7
NUTR Track Bearings: NUTR track rollers are double-row, full complement cylindrical roller bearings designed for heavy-duty cam and track-guided applications. With a thick-walled outer ring and internal axial guidance, they can support high radial and axial loads. The rollers are equipped with contact seals on both sides for protection against dirt and moisture, ensuring long service life. NUTR bearings are ideal for demanding environments, including material handling, cam followers, and guideway systems in various industrial applications.
Applications and industry: Automotive, Food and beverage processing, Packaging, Textile and printing.
| Bearing Number | Inner Diameter (d) MM | Outer Diameter (D) MM | Width (B) MM | Width C | Dynamic Load Capacity | Static Load Capacity | Weight (KG) |
|---|---|---|---|---|---|---|---|
| NUTR 4090 | 40 | 90 | 30 | 32 | 90.000 | 134.000 | 1.129 |
| NUTR 45 | 45 | 85 | 30 | 32 | 95.000 | 147.000 | 0.883 |
| NUTR 45100 | 45 | 100 | 30 | 32 | 95.000 | 147.000 | 1.396 |
| NUTR 50 | 50 | 90 | 30 | 32 | 100.000 | 161.000 | 0.95 |
| NUTR 50110 | 50 | 110 | 30 | 32 | 100.000 | 161.000 | 1.69 |
| NUTR 50110-A | 50 | 110 | 40 | 32 | 100.000 | 161.000 | 2.089 |
