LR 500 LR 5001 NPPU

Technical Details

Bore Diameter (mm) d	Outer Diameter (mm) D	Width (mm) B	Weight (Kg)
12	30	12	0.03

LR 50/5 NPP LR 5000 NPP LR 5001 NPPU LR 5005KDD

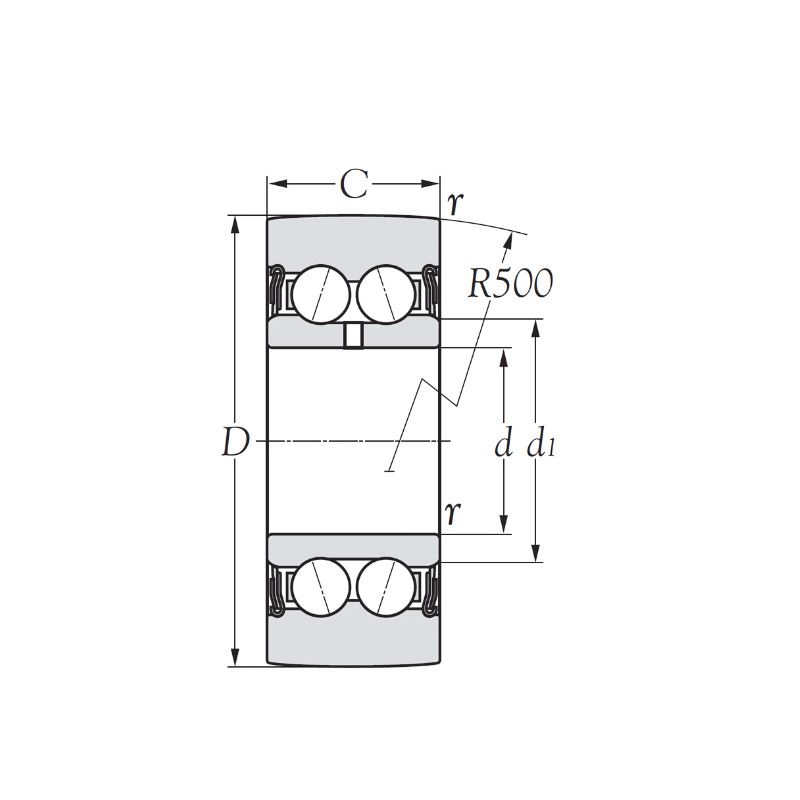

The LR 500 bearing is a track roller bearing with a deep groove ball bearing structure and a thicker outer ring, capable of carrying high radial loads and moderate axial loads. It is commonly used in cam followers and linear guide systems where the bearing runs along a track or rail.

Send query Buy Now

Bearing Number	Inner Diameter (d) MM	Outer Diameter (D) MM	Width (B) MM	d1		Width C	Dynamic Load Capacity	Static Load Capacity	Weight (KG)
LR 5001 NPPU	12	30	12	500	0.3	12	3100	128	0.03
LR 5001 KDD	12	30	12		0.3	12	3100	128	0.03
LR 5001 KDDU	12	30	12	500	0.3	12	3100	128	0.03
LR 5002 NPP	15	35	13		0.3	12	4100	170	0.05
LR 5002 NPPU	15	35	13	500	0.3	13	4100	170	0.05
LR 5002KDD	15	35	13		0.3	13	4100	170	0.05
LR 5002 KDDU	15	35	13	500	0.3	13	4100	170	0.05
LR 5003 NPP	17	40	14		0.3	13	5200	214	0.07
LR 5003 NPPU	17	40	14	500	0.3	14	5200	214	0.07
LR 5003KDD	17	40	14		0.3	14	5200	214	0.07
LR 5003 KDDU	17	40	14	500	0.3	14	5200	214	0.07
LR 5004 NPP	20	47	16		0.6	14	7700	317	0.12
LR 5004 NPPU	20	47	16	500	0.6	16	7700	317	0.12
LR 5004 KDD	20	47	16		0.6	16	7700	317	0.12
LR 5004 KDDU	20	47	16	500	0.6	16	7700	317	0.12
LR 5005 NPP	25	52	16		0.6	16	8100	332	0.15
LR 5005 NPPU	25	52	16	500	0.6	16	8100	332	0.15
LR 5005KDD	25	52	16		0.6	16	8100	332	0.15
LR 5005 KDDU	25	52	16	500	0.6	16	8100	332	0.15
LR 5006 NPP	30	62	19		1	16	11100	462	0.25
LR 5006 NPPU	30	62	19	500	1	19	11100	462	0.25
LR 5006KDD	30	62	19		1	19	11100	462	0.25
LR 5006 KDDU	30	62	19	500	1	19	11100	462	0.25
LR 5007 NPP	35	68	20		1	19	13100	490	0.3
LR 5007 NPPU	35	68	20	500	1	20	13100	490	0.3
LR 5007 KDD	35	68	20		1	20	13100	490	0.3
LR 5007 KDDU	35	68	20	500	1	20	13100	490	0.3
LR 5200 NPP	10	32	14		0.6	20	4050	168	0.07
LR 5200 NPPU	10	32	14	500	0.6	14	4050	168	0.07
LR 5200KDD	10	32	14		0.6	14	4050	168	0.07
LR 5200 KDDU	10	32	14	500	0.6	14	4050	168	0.07
LR 5201 NPP	12	35	15.9		0.6	14	5100	211	0.08
LR 5201 NPPU	12	35	15.9	500	0.6	15.9	5100	211	0.08
LR 5201KDD	12	35	15.9		0.6	15.9	5100	211	0.08
LR 5201 KDDU	12	35	15.9	500	0.6	15.9	5100	211	0.08
LR 5202 NPP	15	40	15.9		0.6	15.9	6200	258	0.11
LR 5202 NPPU	15	40	15.9	500	0.6	15.9	6200	258	0.11
LR 5202 KDD	15	40	15.9		0.6	15.9	6200	258	0.11
LR 5202 KDDU	15	40	15.9	500	0.6	15.9	6200	258	0.11
LR 5203 NPP	17	47	17.5		0.6	15.9	8200	342	0.17
LR 5203 NPPU	17	47	17.5	500	0.6	17.5	8200	342	0.17
LR 5203KDD	17	47	17.5		0.6	17.5	8200	342	0.17
LR 5203 KDDU	17	47	17.5	500	0.6	17.5	8200	342	0.17
LR 5204 NPP	20	52	20.6		1	17.5	10500	433	0.23
LR 5204 NPPU	20	52	20.6	500	1	20.6	10500	433	0.23
LR 5204 KDD	20	52	20.6		1	20.6	10500	433	0.23
LR 5204 KDDU	20	52	20.6	500	1	20.6	10500	433	0.23
LR 5205 NPP	25	62	20.6		1	20.6	13000	532	0.34
LR 5205 NPPU	25	62	20.6	500	1	20.6	13000	532	0.34
LR 5205KDD	25	62	20.6		1	20.6	13000	532	0.34
LR 5205 KDDU	25	62	20.6	500	1	20.6	13000	532	0.34
LR 5206 NPP	30	72	23.8		1	20.6	21400	880	0.51
LR 5206 NPPU	30	72	23.8	500	1	23.8	21400	880	0.51
LR 5206 KDD	30	72	23.8		1	23.8	21400	880	0.51
LR 5206 KDDU	30	72	23.8	500	1	23.8	21400	880	0.51
LR 5207 NPP	35	80	27		1.1	23.8	22400	927	0.66
LR 5207 NPPU	35	80	27	500	1.1	27	22400	927	0.66
LR 5207 KDD	35	80	27		1.1	27	22400	927	0.66
LR 5207 KDDU	35	80	27	500	1.1	27	22400	927	0.66
LR 5208 NPP	40	85	30.2		1.1	27	25500	1060	0.75
LR 5208 NPPU	40	85	30.2	500	1.1	30.2	25500	1060	0.75
LR 5208 KDD	40	85	30.2		1.1	30.2	25500	1060	0.75
LR 5208 KDDU	40	85	30.2	500	1.1	30.2	25500	1060	0.75
LR 5302 NPP	15	47	19		1	30.2	9200	380	0.15
LR 5302 NPPU	15	47	19	500	1	19	9200	380	0.15
LR 5302 KDD	15	47	19		1	19	9200	380	0.15
LR 5302 KDDU	15	47	19	500	1	19	9200	380	0.15
LR 5303 NPP	17	52	22.2		1	19	11100	462	0.21
LR 5303 NPPU	17	52	22.2	500	1	22.2	11100	462	0.21
LR 5303 KDD	17	52	22.2		1	22.2	11100	462	0.21
LR 5303 KDDU	17	52	22.2	500	1	22.2	11100	462	0.21
LR 5304 NPP	20	62	22.2		1.1	22.2	14500	606	0.34
LR 5304 NPPU	20	62	22.2	500	1.1	22.2	14500	606	0.34
LR 5304 KDD	20	62	22.2		1.1	22.2	14500	606	0.34
LR 5304 KDDU	20	62	22.2	500	1.1	22.2	14500	606	0.34
LR 5305 NPP	25	72	25.4		1.1	22.2	19500	813	0.5
LR 5305 NPPU	25	72	25.4	500	1.1	25.4	19500	813	0.5
LR 5305KDD	25	72	25.4		1.1	25.4	19500	813	0.5
LR 5305 KDDU	25	72	25.4	500	1.1	25.4	19500	813	0.5
LR 5306 NPP	30	80	30.2		1.1	25.4	26500	1100	0.67
LR 5306 NPPU	30	80	30.2	500	1.1	30.2	26500	1100	0.67
LR 5306 KDD	30	80	30.2		1.1	30.2	26500	1100	0.67
LR 5306 KDDU	30	80	30.2	500	1.1	30.2	26500	1100	0.67
LR 5307 NPP	35	90	34.9		1.5	30.2	33000	1370	0.97
LR 5307 NPPU	35	90	34.9	500	1.5	34.9	33000	1370	0.97
LR 5307 KDD	35	90	34.9		1.5	34.9	33000	1370	0.97
LR 5307 KDDU	35	90	34.9	500	1.5	34.9	33000	1370	0.97
LR 5308 NPP	40	100	36.5		1.5	34.9	42000	1750	1.2
LR 5308 NPPU	40	100	36.5	500	1.5	36.5	42000	1750	1.2
LR 5308KDD	40	100	36.5		1.5	36.5	42000	1750	1.2
LR 5308 KDDU	40	100	36.5	500	1.5	36.5	42000	1750	1.2
