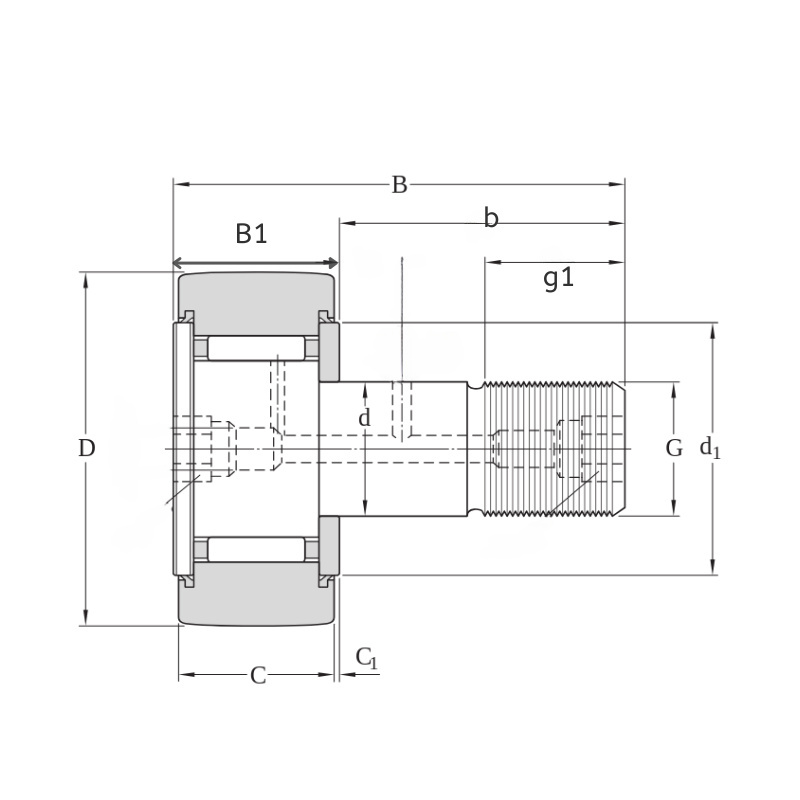

| Bearing Number | Inner Diameter (d) MM | Outer Diameter (D) MM | Width (B) MM | Dimension-B1 (MM) | d1 | Width C | w | B Drawing | C1 (MM) | G | BS | g1 | Weight (KG) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KR62-PPX | 24 | 62 | 80 | 30.6 | 44 | 1 | 29 | 14 | 49.5 | 0.8 | M24X1.5 | 11 | 25 | 0.77 |
| KR72-PP | 24 | 72 | 80 | 30.6 | 44 | 1.1 | 29 | 14 | 49.5 | 0.8 | M24X1.5 | 11 | 25 | 1.01 |
| KR80-PP | 30 | 80 | 100 | 37 | 53 | 1.1 | 35 | 14 | 63 | 1 | M30X1.5 | 15 | 32 | 1.608 |
| KR80-PPX | 30 | 80 | 100 | 37 | 53 | 1.1 | 35 | 14 | 63 | 1 | M30X1.5 | 15 | 32 | 1.608 |
| KR90-PP | 30 | 90 | 100 | 37 | 53 | 1.1 | 35 | 14 | 63 | 1 | M30X1.5 | 15 | 32 | 1.975 |
