LV
KZ SERIES : LV 20/7 ZZ LV 203 ZZ LV 204-58 ZZ
Category Track Roller Bearing
MATERIAL : Chrome Steel SAE52100/100Cr6/GCr15, Stainless Steel 420 and 440
QUALITY : ABEC 1, ABEC3, ABEC5, ABEC7
LV Track Bearings: LV track bearings are specially designed to run on inverted "V" shape tracks or guide rails. They feature a double-row angular contact ball bearing structure and a thick outer ring, providing high load capacity and smooth motion. The 90° V-groove profile allows stable two-point contact with the rail, supporting both radial and axial loads. LV bearings are widely used in linear motion systems, conveyors, and automated machinery across various industrial applications.
Applications and industry: Automotive, Food and beverage processing, Packaging, Textile and printing.

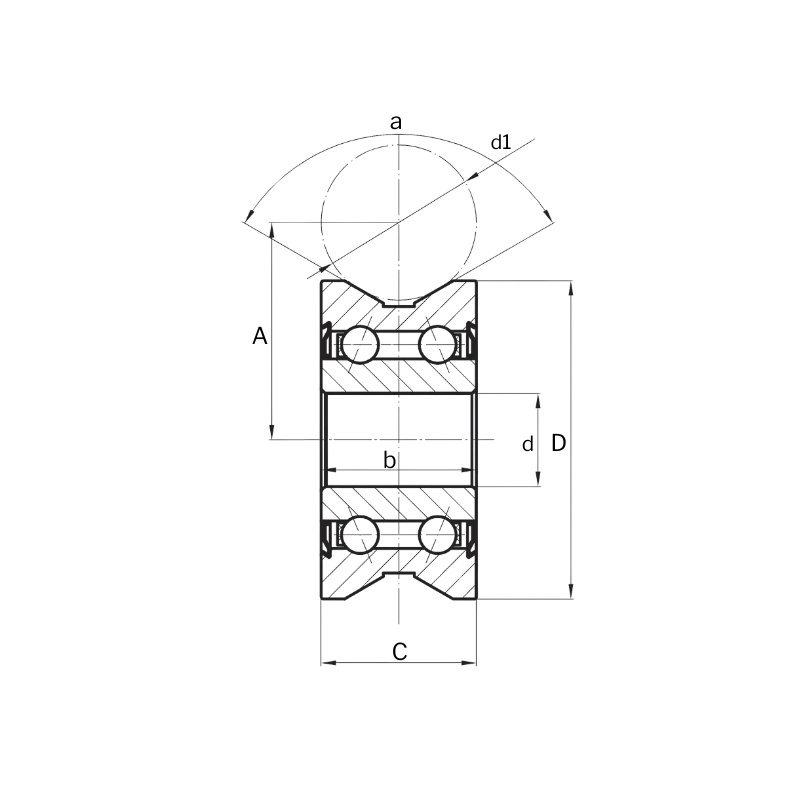

| Bearing Number | Inner Diameter (d) MM | Outer Diameter (D) MM | Width (B) MM | d1 | Width C | a | A Draw | Basic Load Rating (N) Stat. C0 | Dynamic | Weight (KG) |
|---|---|---|---|---|---|---|---|---|---|---|
| LV 20/7 ZZ | 7 | 22 | 11 | 10 | 11 | 120 | 14.5 | 3.78 | 2.05 | 0.017 |
| LV 20/8 ZZ | 8 | 30 | 14 | 10 | 14 | 120 | 18.1 | 5.13 | 2.67 | 0.049 |
| LV 201 ZZ | 12 | 41 | 20 | 20 | 20 | 120 | 28 | 8.47 | 5.37 | 0.13 |
| LV 201-14 2RS | 12 | 39.9 | 20.1 | 14 | 18 | 100 | 24 | 8.9 | 5 | 0.107 |
| LV 202-38 ZZ | 15 | 38 | 17 | 10 | 17 | 120 | 22.25 | 8.47 | 5.37 | 0.087 |
| LV 202-40 ZZ | 15 | 40 | 18 | 10 | 18 | 120 | 22 | 8.47 | 5.37 | 0.11 |
| LV 202-41 ZZ | 15 | 41 | 20 | 20 | 20 | 120 | 28 | 8.47 | 5.37 | 0.116 |
| LV 203 ZZ | 17 | 58 | 25 | 20 | 25 | 120 | 35 | 14.66 | 9.1 | 0.325 |
| LV 204-57 ZZ | 20 | 57 | 22 | 30 | 22 | 120 | 41 | 14.66 | 9.1 | 0.29 |
| LV 204-58 ZZ | 20 | 58 | 25 | 30 | 25 | 120 | 41 | 14.66 | 9.1 | 0.31 |
