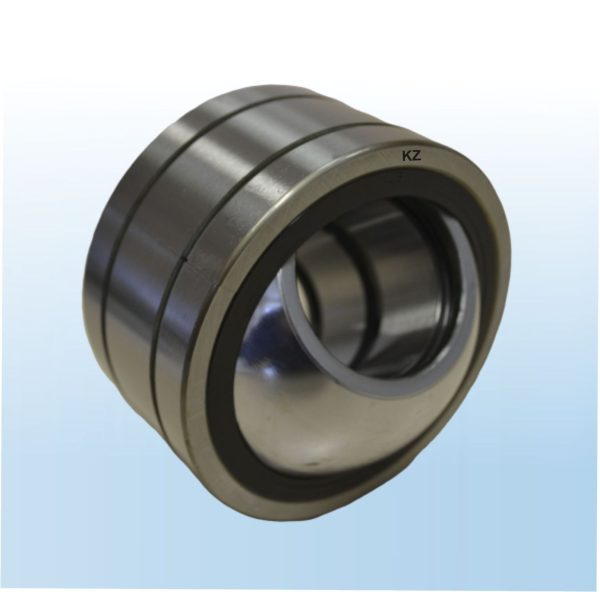

• GEK XS 2RS | KG Bearing

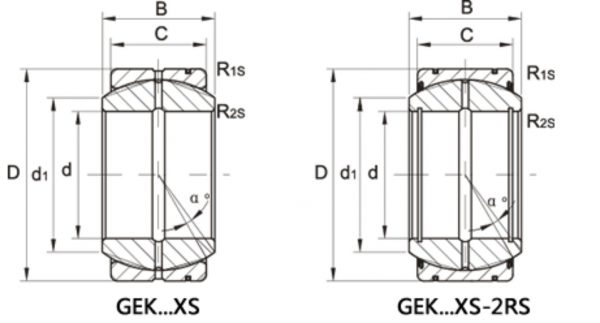

  • GEK XS 2RS Line Drawing | KG Bearing

GEK XS 2RS

We are the best exporter of GEK XS 2RS Spherical Plain Bearings or Radial Spherical Plain Bearing which are known in the market for their superior quality and performance. These are widely used in various devices and are long-sustainable. Our quality-tested products are procured from reliable sources and are high in demand. We supply them all across the nation at the most economical market price range.

Applications and industry: AGRICULTUREAUTOMOTIVECEMENT INDUSTRYCRUSHER INDUSTRYHEAVY MACHINERY EQUIPMENTSHOME APPLIANCESMINING SECTORMETAL INDUSTRYFLUID MACHINERYTEXTILE INDUSTRY

Send Query WhatsApp Us
Bearing Number Inner Diameter (d) MM Outer Diameter (D) MM Width (B) MM Width C dk r1 Min r2 min a Dynamic Static Weight (KG)
GEK25XS-2RS 25 68 40 28 50 0.6 1 19 117 590 0.707
GEK30XS-2RS 30 70 47 32 60 0.6 1 19 163 813 0.814
GEK35XS-2RS 35 80 54 38 70 0.6 1 17 226 1130 1.23
GEK40XS-2RS 40 90 64 44 80 0.6 1 19 298 1490 2
GEK45XS-2RS 45 100 72 52 90 0.6 1 17 398 1990 2.84
GEK50XS-2RS 50 110 80 58 100 1 1 17 493 2450 3.81
GEK55XS-2RS 55 125 90 64 110 1 1 19 598 2990 5.49
GEK60XS-2RS 60 135 98 72 120 1 1 17 732 3660 6.93
