GE FW 2RS

FUR-006AB890

100 In stock

Dincidunteros

  • Maintenance-free spherical plain bearing.
  • Wider inner ring and larger outside diameter.
  • The sliding layer of the inner ring is chromium plated.

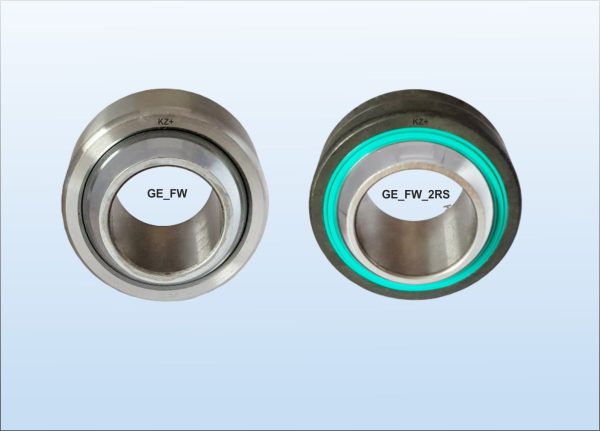

Maintenance-free Spherical Plain Bearing with an outer ring of steel. The inner ring of hard chromed plated steel. Wider inner ring and larger outer diameter. With integrated seals.

Applications and industry: AGRICULTUREAUTOMOTIVECEMENT INDUSTRYCRUSHER INDUSTRYHEAVY MACHINERY EQUIPMENTSHOME APPLIANCESMINING SECTORMETAL INDUSTRYFLUID MACHINERYTEXTILE INDUSTRY

  •
Send query Buy Now

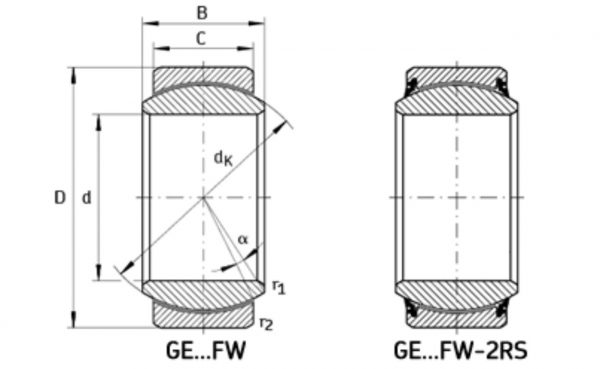

Bearing Number Inner Diameter (d) MM Outer Diameter (D) MM Width (B) MM Width C dk r1 Min r2 min a Dynamic Static Weight (KG)
GE6FW 6 16 9 5 13 0.3 0.3 21 5.85 146 0.009
GE8FW 8 19 11 6 16 0.3 0.3 21 8.65 21.6 0.014
GE10FW 10 22 12 7 18 0.3 0.3 18 11.4 28.5 0.02
GE12FW 12 26 15 9 22 0.3 0.3 18 17.6 44 0.036
GE15FW 15 30 16 10 25 0.3 0.3 16 56 0.049
GE17FW 17 35 20 12 29 0.3 0.3 19 31.5 78 0.082
GE20FW 20 42 25 16 35.5 0.6 0.6 17 51 127 0.16
GE25FW 25 47 28 18 40.7 0.6 0.6 17 65.5 166 0.2
GE30FW-2RS 30 55 32 20 47 0.6 1 17 210 350 0.28
GE35FW-2RS 35 62 35 22 53 0.6 1 16 277 462 0.38
GE40FW-2RS 40 68 40 25 60 0.6 1 17 360 600 0.53
GE45FW-2RS 45 75 43 28 66 0.6 1 15 442 737 0.67
GE50FW-2RS 50 90 56 36 80 0.6 1 17 690 1150 1.4
GE60FW-2RS 60 105 63 40 92 1 1 17 885 1475 2.1
GE70FW-2RS 70 120 70 45 105 1 1 16 1125 1875 3
GE80FW-2RS 80 130 75 50 115 1 1 14 1380 2300 3.6
GE90FW-2RS 90 150 85 55 130 1 1 15 1717 2862 5.3
GE100FW-2RS 100 160 85 55 140 1 1 14 1845 3075 6
GE110FW-2RS 110 180 100 70 160 1 1 12 2685 4475 9.8
GE120FW-2RS 120 210 115 70 180 1 1 16 3015 5025 14.6
GE140FW-2RS 140 230 130 80 200 1 1 16 3840 6400 18.6
GE160FW-2RS 160 260 135 80 225 1 1.1 16 4320 7200 24.9
GE180FW-2RS 180 290 155 100 250 1.1 1.1 14 6000 10000 33.6
GE200FW-2RS 200 320 165 100 275 1.1 1.1 15 6600 11000 44.7
GE220FW-2RS 220 340 175 100 300 1.1 1.1 16 7200 12000 50.8
GE240FW-2RS 240 370 190 110 325 1.1 1.1 15 8550 14250 64
GE260FW-2RS 260 400 205 120 350 1.1 1.1 15 10050 16750 81.8
GE280FW-2RS 280 430 210 120 375 1.1 1.1 15 10800 18000 96.5
