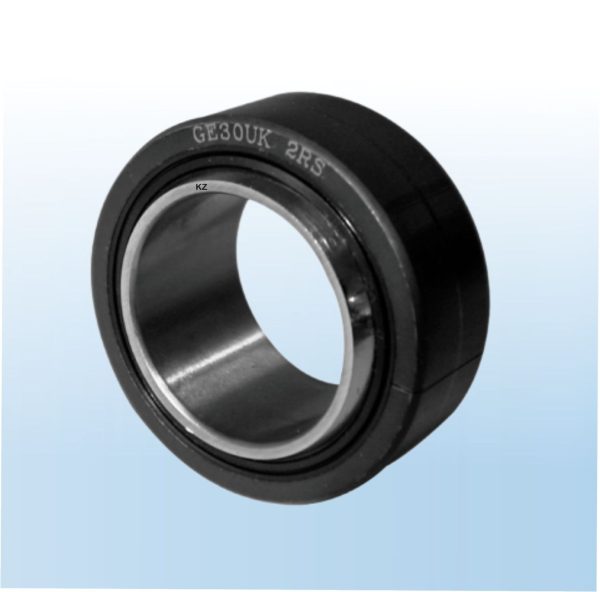

GE UK 2RS
KZ SERIES :GE6UK, GE15UK, GE30UK, GE35UK-2RS, GE180UK-2RS
Radial spherical plain bearings comprise inner and outer rings with maintenance-free sliding layers. GE UK 2RS are thus suitable for alternating dynamic loads. Single-slit outer ring self-lubricating centripetal joint bearing with sealing ring on both sides, an outer ring with one slit, the outer ring made of bearing steel; the inner ring is made of bearing steel, quenched and hard chrome plated on the spherical surface. It has the characteristics of self-lubrication, anti-damage, self-centering, and low friction, and is suitable for mechanical mechanisms with a multi-dust environment, bearing radial heavy load and axial load in any direction.
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

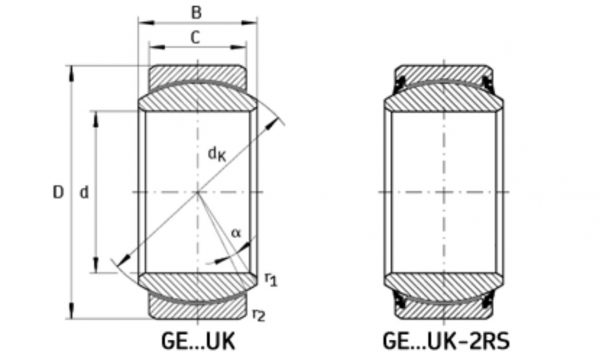

| Bearing Number | Inner Diameter (d) MM | Outer Diameter (D) MM | Width (B) MM | Width C | dk | r1 Min | r2 min | a | Dynamic | Static | Weight (KG) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GE6UK | 6 | 14 | 6 | 4 | 10 | 0.3 | 0.3 | 13 | 3.6 | 9 | 0.004 |
| GE8UK | 8 | 16 | 8 | 5 | 13 | 0.3 | 0.3 | 15 | 5.85 | 14.6 | 0.007 |
| GE10UK | 10 | 19 | 9 | 6 | 16 | 0.3 | 0.3 | 12 | 8.65 | 21.6 | 0.011 |
| GE12UK | 12 | 22 | 10 | 7 | 18 | 0.3 | 0.3 | 11 | 11.4 | 28.5 | 0.016 |
| GE15UK | 15 | 26 | 12 | 9 | 22 | 0.3 | 0.3 | 8 | 17.6 | 44 | 0.027 |
| GE17UK | 17 | 30 | 14 | 10 | 25 | 0.3 | 0.3 | 10 | 56 | 0.037 | |
| GE17UK-2RS | 17 | 30 | 14 | 10 | 25 | 0.3 | 0.3 | 10 | 48.7 | 81.2 | 0.037 |
| GE20UK | 20 | 35 | 16 | 12 | 29 | 0.3 | 0.3 | 9 | 31.5 | 78 | 0.06 |
| GE20UK-2RS | 20 | 35 | 16 | 12 | 29 | 0.3 | 0.3 | 9 | 67.5 | 112 | 0.06 |
| GE25UK | 25 | 42 | 20 | 16 | 35.5 | 0.6 | 0.6 | 7 | 51 | 127 | 0.11 |
| GE25UK-2RS | 25 | 42 | 20 | 16 | 35.5 | 0.6 | 0.6 | 7 | 127 | 212 | 0.11 |
| GE30UK | 30 | 47 | 22 | 18 | 40.7 | 0.6 | 0.6 | 6 | 65.5 | 166 | 0.14 |
| GE30UK-2RS | 30 | 47 | 22 | 18 | 40.7 | 0.6 | 0.6 | 6 | 165 | 275 | 0.14 |
| GE35UK-2RS | 35 | 55 | 25 | 20 | 47 | 0.6 | 1 | 6 | 210 | 350 | 0.22 |
| GE40UK-2RS | 40 | 62 | 28 | 22 | 53 | 0.6 | 1 | 7 | 277 | 462 | 0.3 |
| GE45UK-2RS | 45 | 68 | 32 | 25 | 60 | 0.6 | 1 | 7 | 360 | 600 | 0.39 |
| GE50UK-2RS | 50 | 75 | 35 | 28 | 66 | 0.6 | 1 | 6 | 442 | 737 | 0.53 |
| GE60UK-2RS | 60 | 90 | 44 | 36 | 80 | 1 | 1 | 6 | 690 | 1150 | 0.98 |
| GE70UK-2RS | 70 | 105 | 49 | 40 | 92 | 1 | 1 | 6 | 885 | 1475 | 1.5 |
| GE80UK-2RS | 80 | 120 | 55 | 45 | 105 | 1 | 1 | 6 | 1125 | 1875 | 2.2 |
| GE90UK-2RS | 90 | 130 | 60 | 50 | 115 | 1 | 1 | 5 | 1380 | 2300 | 2.7 |
| GE100UK-2RS | 100 | 150 | 70 | 55 | 130 | 1 | 1 | 7 | 1717 | 2862 | 4.2 |
| GE110UK-2RS | 110 | 160 | 70 | 55 | 140 | 1 | 1 | 6 | 1845 | 3075 | 4.7 |
| GE120UK-2RS | 120 | 180 | 85 | 70 | 160 | 1 | 1 | 6 | 2685 | 4475 | 8.1 |
| GE140UK-2RS | 140 | 210 | 90 | 70 | 180 | 1 | 1 | 7 | 3015 | 5025 | 10.6 |
| GE160UK-2RS | 160 | 230 | 105 | 80 | 200 | 1 | 1 | 8 | 3840 | 6400 | 13.8 |
| GE180UK-2RS | 180 | 260 | 105 | 80 | 225 | 1.1 | 1.1 | 6 | 4320 | 7200 | 17.4 |
| GE200UK-2RS | 200 | 290 | 130 | 100 | 250 | 1.1 | 1.1 | 7 | 6000 | 10000 | 26 |
| GE220UK-2RS | 220 | 320 | 135 | 100 | 275 | 1.1 | 1.1 | 8 | 6600 | 11000 | 35.5 |
| GE240UK-2RS | 240 | 340 | 140 | 100 | 300 | 1.1 | 1.1 | 8 | 7200 | 12000 | 39 |
| GE260UK-2RS | 260 | 370 | 150 | 110 | 325 | 1.1 | 1.1 | 7 | 8550 | 14250 | 50.8 |
| GE280UK-2RS | 280 | 400 | 155 | 120 | 350 | 1.1 | 1.1 | 6 | 10050 | 16750 | 64.7 |
| GE300UK-2RS | 300 | 430 | 165 | 120 | 375 | 1.1 | 1.1 | 7 | 10800 | 18000 | 76.7 |
