POSB

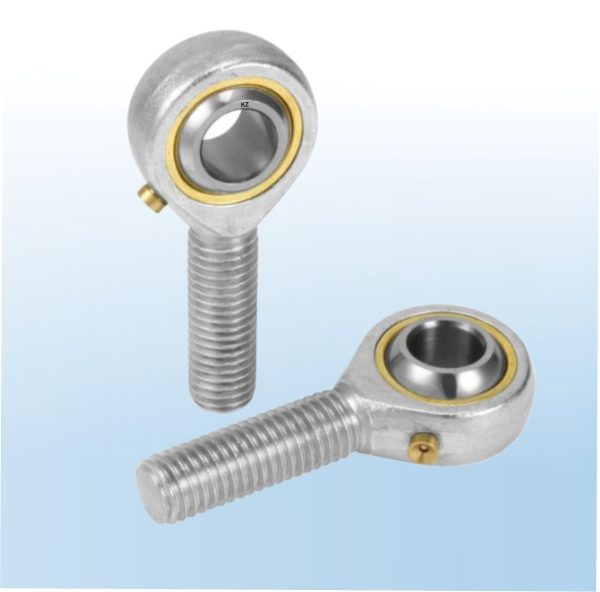

POSB rod ends are compact self-aligning spherical bushings that can support a large radial load and a bi-directional axial load at the same time. This type has superior anti-wear and anti-corrosion properties as well as high rigidity.
It consists of a spherical inner ring of which the spherical surface is chromium-plated after heat treatment and grinding, a body with zinc chromate treated outer surface, and an inserted bushing of a special copper alloy having superior run-in properties.
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

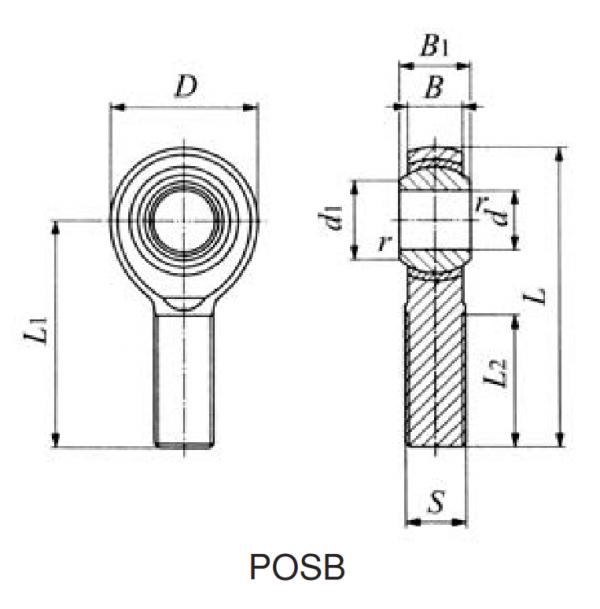

| Bearing Number | Inner Diameter (d) MM | Outer Diameter (D) MM | Width (B) MM | Thread S Class 3A | Dimension-B1 (MM) | d1 | L | L1 | L2 | Inch | Ball Diameter (MM) | d MM Inch | D MM Inch | be MM Inch | Dynamic Load Capacity | Static Load Capacity | Weight (KG) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| POSB 2 | 3.175 | 11.91 | 4.75 | 32UNC 0.138 | 6.35 0.25 | 4.75 0.187 | 29.77 1.172 | 23.8 0.937 | 12.7 0.5 | 0.3 0.012 | 5/16 | 7.938 | 0.125 | 0.469 | 0.187 | 1 850 | 2 160 | 0.0054 |
| POSB 2.5 | 3.967 | 14.27 | 5.56 | 32UNC 0.164 | 7.14 0.281 | 6.32 0.249 | 35.71 1.406 | 28.58 1.125 | 15.88 0.625 | 0.3 0.012 | 3/8 | 9.525 | 0.1562 | 0.562 | 0.219 | 2 600 | 3 370 | 0.0091 |
| POSB 3 | 4.826 | 15.88 | 6.35 | 32UNF 0.19 | 7.92 0.312 | 7.77 0.306 | 39.7 1.563 | 31.75 1.25 | 19.05 0.75 | 0.3 0.012 | 7/16 | 11.112 | 0.19 | 0.625 | 0.25 | 3 460 | 4 850 | 0.014 |
| POSB 4 | 6.35 | 19.05 | 7.14 | 28UNF 0.25 | 9.53 0.375 | 9.02 0.355 | 49.2 1.937 | 39.67 1.562 | 25.4 1 | 0.5 0.02 | 33/64 | 13.097 | 0.25 | 0.75 | 0.281 | 4 590 | 8 870 | 0.023 |
| POSB 5 | 7.938 | 22.23 | 8.74 | 24UNF 0.3125 | 11.1 0.437 | 11.35 0.447 | 58.72 2.312 | 47.63 1.875 | 31.75 1.25 | 0.5 0.02 | 5/8 | 15.875 | 0.3125 | 0.875 | 0.344 | 6 800 | 14 200 | 0.036 |
| POSB 6 | 9.525 | 25.4 | 10.31 | 24UNF 0.375 | 12.7 0.5 | 13.13 0.517 | 61.93 2.438 | 49.23 1.938 | 31.75 1.25 | 0.5 0.02 | 23/32 | 18.256 | 0.375 | 1 | 0.406 | 9 230 | 21 600 | 0.054 |
| POSB 7 | 11.112 | 28.58 | 11.1 | 20UNF 0.4375 | 14.27 0.562 | 14.88 0.586 | 68.28 2.688 | 53.98 2.125 | 34.93 1.375 | 0.5 0.02 | 13/16 | 20.638 | 0.4375 | 1.125 | 0.437 | 11 200 | 26 100 | 0.077 |
| POSB 8 | 12.7 | 33.32 | 12.7 | 20UNF 0.5 | 15.88 0.625 | 17.73 0.698 | 78.59 3.094 | 61.93 2.438 | 38.1 1.5 | 0.5 0.02 | 15/16 | 23.812 | 0.5 | 1.3122 | 0.5 | 14 800 | 36 200 | 0.122 |
| POSB 10 | 15.875 | 38.1 | 14.27 | 18UNF 0.625 | 19.05 0.75 | 21.31 0.839 | 85.73 3.375 | 66.68 2.625 | 41.28 1.625 | 0.5 0.02 | 1 1/8 | 28.575 | 0.625 | 1.5 | 0.562 | 20 000 | 39 300 | 0.186 |
| POSB 12 | 19.05 | 44.45 | 17.45 | 16UNF 0.75 | 22.23 0.875 | 24.84 0.978 | 95.25 3.75 | 73.03 2.875 | 44.45 1.75 | 0.5 0.02 | 1 5/16 | 33.338 | 0.75 | 1.75 | 0.687 | 28 500 | 55 000 | 0.295 |
| POSB 16 | 25.4 | 69.85 | 25.4 | 12UNF 1.25 | 34.93 1.375 | 32.23 1.269 | 139.7 5.5 | 104.78 4.125 | 53.98 2.125 | 0.5 0.02 | 1 7/8 | 47.625 | 1 | 2.75 | 1 | 59 300 | 112 000 | 1.129 |
