PHS EC PHS8EC
Technical Details
| Bore Diameter (mm) d | Outer Diameter (mm) D | Width (mm) B | Weight (Kg) |
|---|---|---|---|
| 8 | 12 | 0.043 |
PHS EC PHS8EC is compact self-aligning spherical plain bushings that can support a large radial load and a bi-directional axial load at the same time. PHS EC ROD ENDS have either a female thread in the body or a male thread on the body, so they can be easily assembled onto the machine. Pilloballs are used in control and link mechanisms in machine tools, textile machines, packaging machines, etc.
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

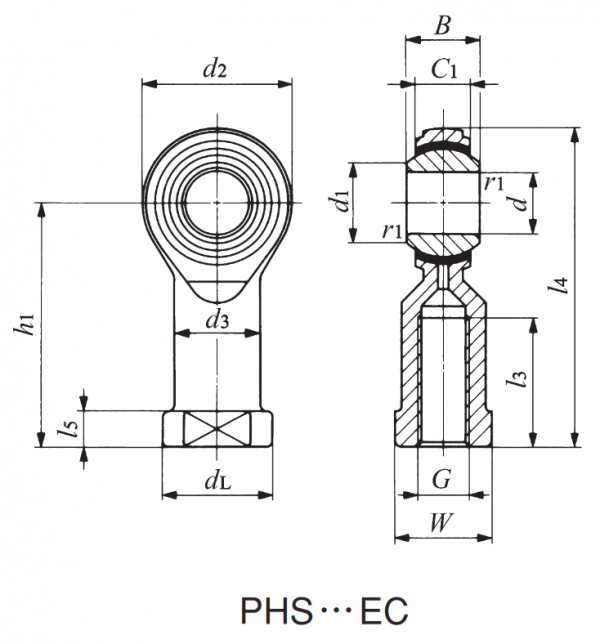

| Bearing Number | Inner Diameter (d) MM | Outer Diameter (D) MM | Width (B) MM | Dimension-B1 (MM) | d1 | d2 | Width C | s | Dynamic Load Capacity | Static Load Capacity | Weight (KG) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PHS8EC | 8 | 12 | 10.4 | 14 000 | 7 760 | 0.043 | |||||
| PHS10EC | 10 | 14 | 12.9 | 19 600 | 10 500 | 0.072 | |||||
| PHS12EC | 12 | 16 | 15.4 | 26 200 | 13 700 | 0.107 | |||||
| PHS14EC | 14 | 19 | 16.9 | 33 600 | 17 200 | 0.16 | |||||
| PHS16EC | 16 | 21 | 19.4 | 42 000 | 21 100 | 0.21 | |||||
| PHS18EC | 18 | 23 | 21.9 | 51 400 | 25 100 | 0.295 | |||||
| PHS20EC | 20 | 25 | 24.4 | 61 600 | 30 000 | 0.38 | |||||
| PHS22EC | 22 | 28 | 25.8 | 74 700 | 36 400 | 0.49 |
