POS EC POS6EC
Technical Details
| Bore Diameter (mm) d | Outer Diameter (mm) D | Width (mm) B | Weight (Kg) |
|---|---|---|---|
| 6 | 9 | 0.019 |
POS EC POS6EC is compact self-aligning spherical bushings that can support a large radial load and a bi-directional axial load at the same time. The male thread on the body can be easily assembled onto machines. In the maintenance-free type, a spherical inner ring makes contact with the special PTFE liner of the maintenance-free type. Thus, a smooth rotational and oscillatory motion can be achieved with superior anti-wear and loading properties in each type.
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

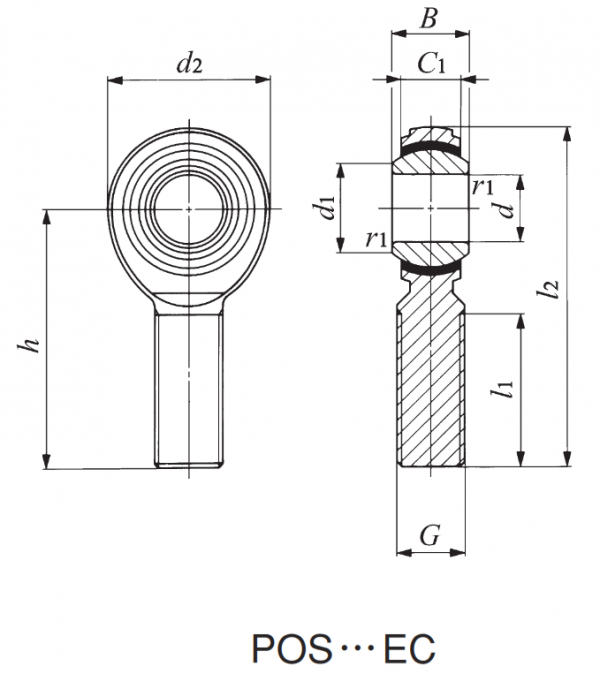

| Bearing Number | Inner Diameter (d) MM | Outer Diameter (D) MM | Width (B) MM | d1 | Width C | r1 Min | Dynamic | Static | Weight (KG) |
|---|---|---|---|---|---|---|---|---|---|
| POS6EC | 6 | 9 | 9 | 0.2 | 0.019 | ||||
| POS8EC | 8 | 12 | 10.4 | 0.2 | 0.032 | ||||
| POS10EC | 10 | 14 | 12.9 | 0.2 | 0.054 | ||||
| POS12EC | 12 | 16 | 15.4 | 0.2 | 0.085 | ||||
| POS14EC | 14 | 19 | 16.9 | 0.2 | 0.126 | ||||
| POS16EC | 16 | 21 | 19.4 | 0.2 | 0.185 | ||||
| POS18EC | 18 | 23 | 21.9 | 0.2 | 0.26 | ||||
| POS20EC | 20 | 25 | 24.4 | 0.2 | 0.34 | ||||
| POS22EC | 22 | 28 | 25.8 | 0.2 | 0.435 |
