PHSB
FUR-006AB890
100 In stock
Dincidunteros

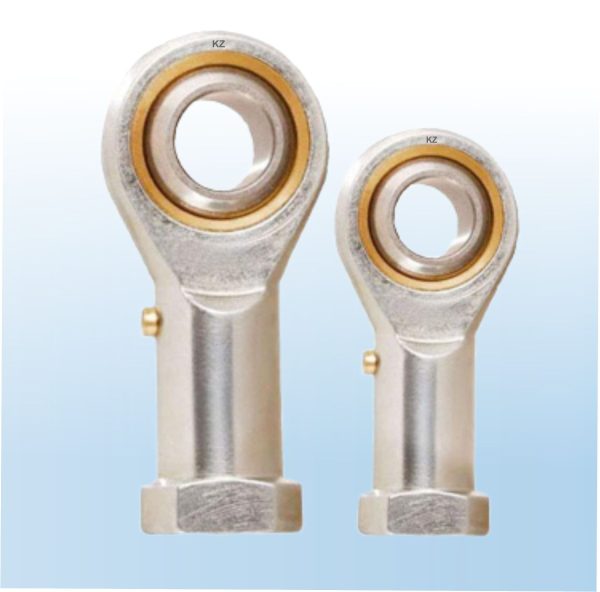

PHSB are compact self-aligning spherical bushings that can support a large radial load and a bi-directional axial load at the same time. The female thread in the body can be easily assembled onto machines. In the insert type, a spherical inner ring makes contact with the special copper alloy bushing with superior run-in properties.
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

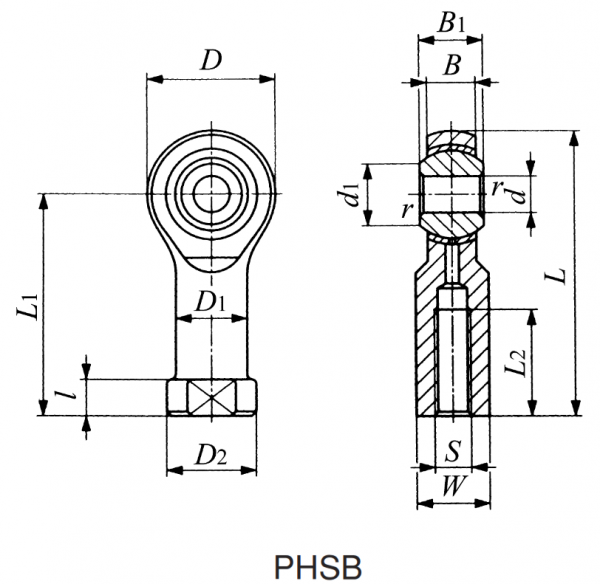

| Bearing Number | Inner Diameter (d) MM | Outer Diameter (D) MM | Width (B) MM | Thread S Class 3A | Dimension-B1 (MM) | d1 | L | L1 | L2 | Inch | Ball Diameter (MM) | w | l | d2 | r1 Min | Basic Load Rating (N) Dyn. C | Basic Load Rating (N) Stat. C0 | Weight (KG) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PHSB 2 | 3.175 (0.125) | 11.91 (0.469) | 4.75 (0.187) | -32UNC (0.138) | 6.35 (0.25) | 4.75 (0.187) | 26.57 (1.046) | 20.62 (0.812) | 9.53 (0.375) | 5/16 | 7.938 | 6.35 (0.25) | 4.75 (0.187) | 7.92 (0.312) | 0.3 (0.012) | 1 850 | 5 840 | 0.0068 |
| PHSB 2.5 | 3.967 (0.1562) | 14.27 (0.562) | 5.56 (0.219) | -32UNC (0.164) | 7.14 (0.281) | 6.32 (0.249) | 29.36 (1.156) | 22.23 (0.875) | 9.53 (0.375) | 3/8 | 9.525 | 7.14 (0.281) | 4.75 (0.187) | 8.74 (0.344) | 0.3 (0.012) | 2 600 | 8 210 | 0.0011 |
| PHSB 3 | 4.826 (0.19) | 15.88 (0.625) | 6.35 (0.25) | -32UNF (0.19) | 7.92 (0.312) | 7.77 (0.306) | 34.93 (1.375) | 26.97 (1.062) | 14.27 (0.562) | 7/16 | 11.112 | 7.92 (0.312) | 4.75 (0.187) | 10.31 (0.406) | 0.3 (0.012) | 3 460 | 9 090 | 0.014 |
| PHSB 4 | 6.35 (0.25) | 19.05 (0.75) | 7.14 (0.281) | -28UNF (0.25) | 9.53 (0.375) | 9.02 (0.355) | 42.85 (1.687) | 33.32 (1.312) | 19.05 (0.75) | 33/64 | 13.097 | 9.53 (0.375) | 4.75 (0.187) | 11.89 (0.468) | 0.5 (0.02) | 4 590 | 13 200 | 0.023 |
| PHSB 5 | 7.938 (0.3125) | 22.23 (0.875) | 8.74 (0.344) | -24UNF (0.3125) | 11.1 (0.437) | 11.35 (0.447) | 46.02 (1.812) | 34.93 (1.375) | 19.05 (0.75) | 5/8 | 15.875 | 11.1 (0.437) | 4.75 (0.187) | 12.7 (0.5) | 0.5 (0.02) | 6 800 | 16 500 | 0.036 |
| PHSB 6 | 9.525 (0.375) | 25.4 (1) | 10.31 (0.406) | -24UNF (0.375) | 12.7 (0.5) | 13.13 (0.517) | 53.98 (2.125) | 41.28 (1.625) | 23.8 (0.937) | 23/32 | 18.256 | 14.27 (0.562) | 6.35 (0.25) | 17.45 (0.687) | 0.5 (0.02) | 9 230 | 21 600 | 0.059 |
| PHSB 7 | 11.112 (0.4375) | 28.58 (1.125) | 11.1 (0.437) | -20UNF (0.4375) | 14.27 (0.562) | 14.88 (0.586) | 60.33 (2.375) | 46.02 (1.812) | 26.97 (1.062) | 13/16 | 20.638 | 15.88 (0.625) | 6.35 (0.25) | 19.05 (0.75) | 0.5 (0.02) | 11 200 | 26 100 | 0.082 |
| PHSB 8 | 12.7 (0.5) | 33.32 (1.312) | 12.7 (0.5) | -20UNF (0.5) | 15.88 (0.625) | 17.73 (0.698) | 70.64 (2.781) | 53.98 (2.125) | 30.15 (1.187) | 15/16 | 23.812 | 19.05 (0.75) | 6.35 (0.25) | 22.23 (0.875) | 0.5 (0.02) | 14 800 | 36 200 | 0.132 |
| PHSB 10 | 15.875 (0.625) | 38.1 (1.5) | 14.27 (0.562) | -18UNF (0.625) | 19.05 (0.75) | 21.31 (0.839) | 82.55 (3.25) | 63.5 (2.5) | 38.1 (1.5) | 1 1/8 | 28.575 | 22.23 (0.875) | 7.92 (0.312) | 25.4 (1) | 0.5 (0.02) | 20 000 | 39 300 | 0.191 |
| PHSB 12 | 19.05 (0.75) | 44.45 (1.75) | 17.45 (0.687) | -16UNF (0.75) | 22.23 (0.875) | 24.84 (0.978) | 95.25 (3.75) | 73.03 (2.875) | 44.45 (1.75) | 1 5/16 | 33.338 | 25.4 (1) | 7.92 (0.312) | 28.58 (1.125) | 0.5 (0.02) | 28 500 | 55 000 | 0.286 |
| PHSB 16 | 25.4 (1) | 69.85 (2.75) | 25.4 (1) | -12UNF (1.25) | 34.93 (1.375) | 32.23 (1.269) | 139.7 (5.5) | 104.78 (4.125) | 53.98 (2.125) | 1 7/8 | 47.625 | 38.1 (1.5) | 11.07 (0.436) | 44.45 (1.75) | 0.5 (0.02) | 59 300 | 86 800 | 0.998 |
