POS EC

KZ SERIES : POS 3EC, POS 6EC, POS 14EC, POS 18EC, POS 22EC

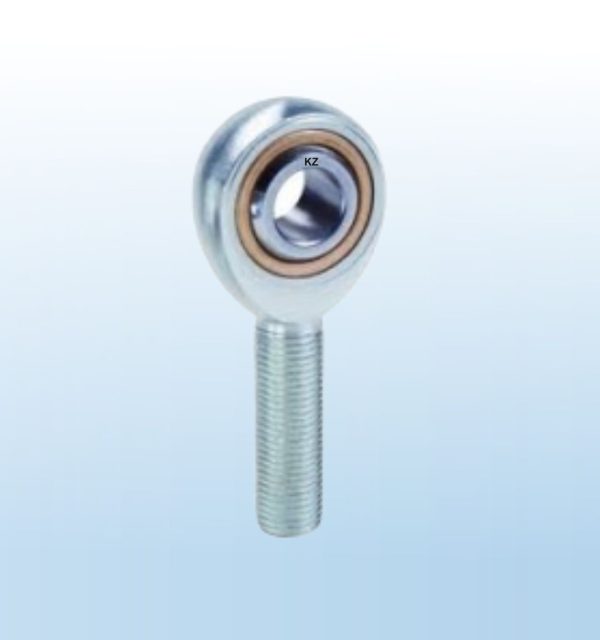

POS EC is compact self-aligning spherical bushings that can support a large radial load and a bi-directional axial load at the same time. The male thread on the body can be easily assembled onto machines. In the maintenance-free type, a spherical inner ring makes contact with the special PTFE liner of the maintenance-free type. Thus, a smooth rotational and oscillatory motion can be achieved with superior anti-wear and loading properties in each type.

Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

Send Query WhatsApp Us

Description

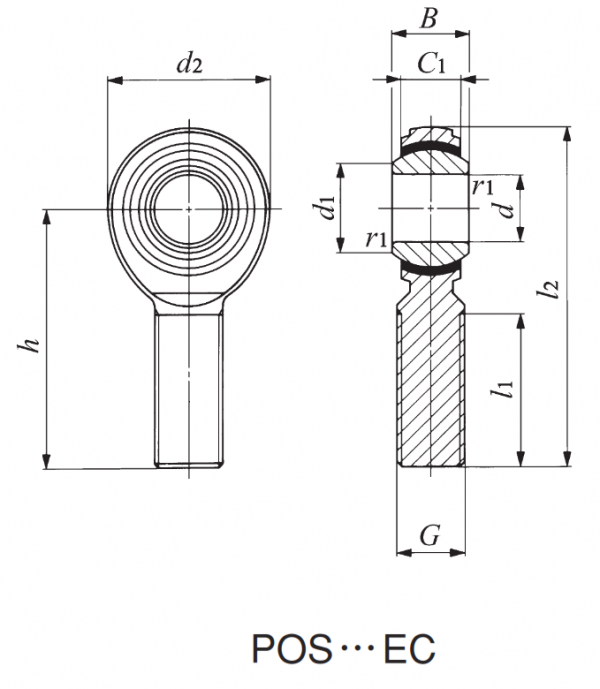

Bearing Number	Inner Diameter (d) MM	Width (B) MM	d1	L1	Inch	Ball Diameter (MM)	Thread G	h	i	C1 (MM)	d2	r1 Min	Dynamic Load Capacity	Static Load Capacity	Weight (KG)
POS3EC	3	6	5.2	15	5/16	7.938	M 3×0.5	27	33	4.5	12	0.2	3 500	1 220	0.005
POS4EC	4	7	6.5	17	3/8	9.525	M 4×0.7	30	37	5.3	14	0.2	4 950	2 060	0.0081
POS5EC	5	8	7.7	20	7/16	11.112	M 5×0.8	33	41	6	16	0.2	6 540	3 340	0.0125
POS6EC	6	9	9	22	1/2	12.7	M 6×1	36	45	6.75	18	0.2	8 410	4 730	0.019
POS8EC	8	12	10.4	25	5/8	15.875	M 8×1.25	42	53	9	22	0.2	14 000	7 760	0.032
POS10EC	10	14	12.9	29	3/4	19.05	M10×1.5	48	61	10.5	26	0.2	19 600	10 500	0.054
POS12EC	12	16	15.4	33	7/8	22.225	M12×1.75	54	69	12	30	0.2	26 200	13 700	0.085
POS14EC	14	19	16.9	36	1	25.4	M14×2	60	77	13.5	34	0.2	33 600	17 200	0.126
POS16EC	16	21	19.4	40	1 1/8	28.575	M16×2	66	85	15	38	0.2	42 000	21 100	0.185
POS18EC	18	23	21.9	44	1 1/4	31.75	M18×1.5	72	93	16.5	42	0.2	51 400	25 100	0.26
POS20EC	20	25	24.4	47	1 3/8	34.925	M20×1.5	78	101	18	46	0.2	61 600	30 000	0.34
POS22EC	22	28	25.8	51	1 1/2	38.1	M22×1.5	84	109	20	50	0.2	74 700	36 400	0.435
