NKS

FUR-006AB890

100 In stock

Dincidunteros

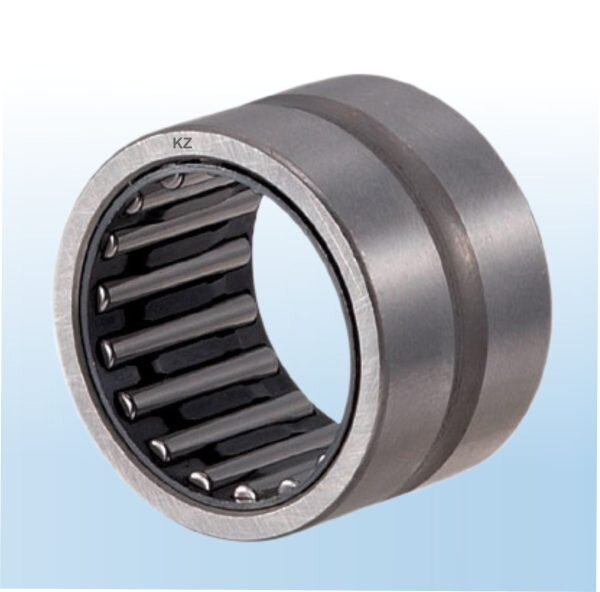

Needle roller bearings are rolling bearings with a low radial section height and high load carrying capacity, which are used as non-locating bearings and are part of the group of radial needle roller bearings. These bearings comprise machined outer rings, needle roller and cage assemblies, and removable inner rings, i.e. they can be supplied with or without an inner ring in accordance with the application. In contrast to the outer cups of drawn cup needle roller bearings, which are produced by forming methods, the bearing rings are machined. Due to their non-locating bearing function, the bearings cannot guide the shaft axially in any direction.

Applications and industry: AGRICULTUREAUTOMOTIVECEMENT INDUSTRYCRUSHER INDUSTRYHEAVY MACHINERY EQUIPMENTSHOME APPLIANCESMINING SECTORMETAL INDUSTRYFLUID MACHINERYTEXTILE INDUSTRY



Send query Buy Now

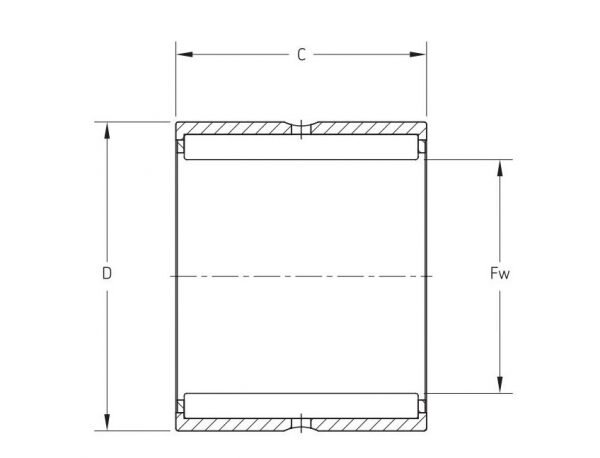

Bearing Number Outer Diameter (D) MM C fw Basic Load Rating (N) Dyn. C Basic Load Rating (N) Stat. C0 Limiting Speed Weight (KG)
NKS 20 32 20 20 23300 27000 20000 0.05
NKS 24 37 20 24 26000 33500 17000 0.07
NKS 25 38 20 25 27500 36000 17000 0.07
NKS 28 42 20 28 28600 39000 15000 0.08
NKS 30 45 22 30 31900 43000 14000 0.1
NKS 32 47 22 32 34100 46500 14000 0.11
NKS 35 50 22 35 35200 50000 12000 0.12
NKS 37 52 22 37 36900 54000 12000 0.12
NKS 40 55 22 40 38000 57000 11000 0.13
NKS 43 58 22 43 39100 61000 10000 0.14
NKS 45 60 22 43 40200 64000 10000 0.15
NKS 50 65 22 50 42900 72000 9000 0.16
NKS 55 72 22 55 44600 78000 8000 0.22
NKS 60 80 28 60 62700 104000 7500 0.34
NKS 65 85 28 65 66000 114000 6700 0.36
NKS 70 90 28 70 68200 120000 6300 0.38
NKS 75 95 28 75 70400 132000 6000 0.4
NKS 80 100 28 80 74800 140000 5600 0.4
