NKIS Series

KZ SERIES : NKIS 17, NKIS 25, NKIS 35, NKIS 50, NKIS 60, NKIS 70, NKIS 100

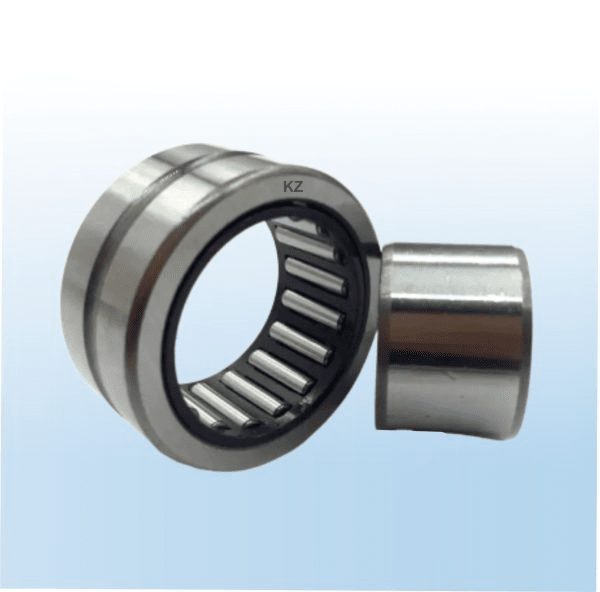

The NKIS is a Heavy duty X-Life series of needle roller bearing with an inner ring have optimized raceways to give a longer life rating to support higher load carrying capacities. Needle roller bearings with machined rings are made of carbon chromium-bearing steel. KG Bearing supplies these bearings with or without flanges on the outer ring, in a wide range of series and sizes. We also supply them with or without an inner ring.

Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

Send Query WhatsApp Us

Description

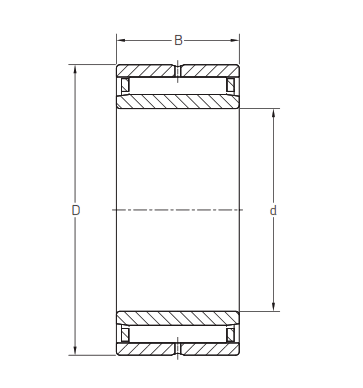

Bearing Number	Inner Diameter (d) MM	Outer Diameter (D) MM	Width (B) MM	Dynamic Load Capacity	Static Load Capacity	LIMITTING SPEED ( R/MIN ) LUBRICATION Grease	LIMITTING SPEED ( R/MIN ) LUBRICATION Oil	Weight (KG)
NKIS17	17	37	20	26000	33500	15000	17000	0.1
NKIS20	20	42	20	28600	39000	13000	15000	0.13
NKIS25	25	47	22	34100	46500	12000	13000	0.16
NKIS30	30	52	22	36000	54000	10000	12000	0.18
NKIS35	35	58	22	39100	61000	9000	10000	0.22
NKIS40	40	65	22	42900	72000	8000	9000	0.28
NKIS45	45	72	22	44600	78000	7000	8000	0.34
NKIS50	50	80	28	62700	104000	6300	7500	0.52
NKIS55	55	85	28	66000	114000	6000	6700	0.56
NKIS60	60	90	28	68200	120000	5600	6300	0.56
NKIS65	65	95	28	70400	132000	5300	6000	0.64
NKIS70	70	100	28	74800	140000	5000	5600	0.68
NKIS100	100	135	32	91300	220000	3600	4000	1.34
