AXK Series

FUR-006AB890

100 In stock

Dincidunteros

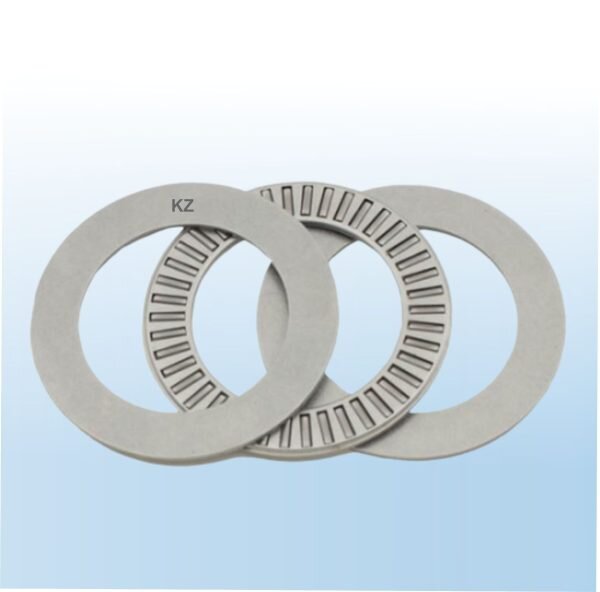

Needle roller thrust AXK Series bearings are fitted with a form-stable cage to reliably guide and retain a large number of needle rollers. The diameter deviations of the rollers within one assembly are within 2 µm, enabling these bearings to accommodate heavy axial loads and shock loads. These bearings provide a high degree of stiffness within a minimum axial space. In applications where the faces of adjacent machine components can serve as raceways, needle roller thrust bearings will take up no more space than a conventional thrust washer.

Applications and industry: AGRICULTUREAUTOMOTIVECEMENT INDUSTRYCRUSHER INDUSTRYHEAVY MACHINERY EQUIPMENTSHOME APPLIANCESMINING SECTORMETAL INDUSTRYFLUID MACHINERYTEXTILE INDUSTRY



Send query Buy Now

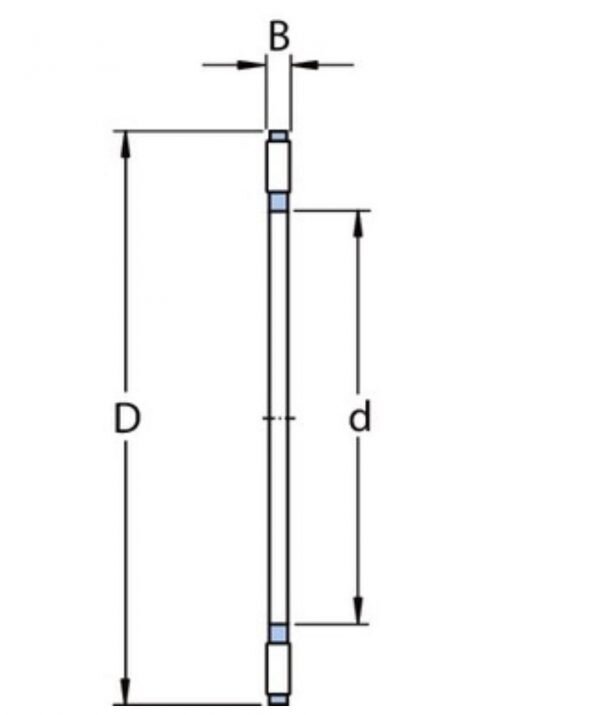

Bearing Number Inner Diameter (d) MM Outer Diameter (D) MM Width (B) MM Basic Load Rating (N) Dyn. C Basic Load Rating (N) Stat. C0 LIMITTING SPEED ( R/MIN ) LUBRICATION Grease LIMITTING SPEED ( R/MIN ) LUBRICATION Oil Weight (KG)
AXK 1100 10 24 2 9150 25300 3500 14000 0.0028
AXK 1101 12 26 2 9850 28900 3300 13000 0.0030
AXK 1102 15 28 2 11300 36000 2800 11000 0.0035
AXK 1103 17 30 2 11900 39500 2500 10000 0.0040
AXK 1104 20 35 2 13200 46500 2100 8500 0.0050
AXK 1105 25 42 2 14600 58000 1800 7000 0.0070
AXK 1106 30 47 2 16300 69500 1500 6000 0.0080
AXK 1107 35 52 2 17800 81500 1400 5500 0.0010
AXK 1108 40 60 3 27400 110000 1200 4700 0.0185
AXK 1109 45 65 3 29800 128000 1100 4300 0.0205
AXK 1110 50 70 3 31500 143000 1000 3900 0.0235
AXK 1111 55 78 3 38000 186000 900 3500 0.0308
AXK 1112 60 85 3 44500 234000 800 3200 0.0390
AXK 1113 65 90 3 46500 254000 750 3000 0.0400
AXK 1114 70 95 4 53500 253000 750 2900 0.0600
AXK 1115 75 100 4 55000 266000 700 2700 0.0610
AXK 1116 80 105 4 56500 279000 650 2600 0.0630
AXK 1117 85 110 4 57500 291000 600 2400 0.0668
AXK 1118 90 120 4 71000 390000 600 2300 0.0860
AXK 1120 100 135 4 90500 550000 500 2000 0.1120
AXK 1122 110 145 4 93500 590000 480 1900 0.1220
AXK 1124 120 155 4 99000 650000 430 1700 0.1310
AXK 1126 130 170 5 140000 900000 400 1600 0.2050
AXK 1128 140 180 5 145000 960000 380 1500 0.2190
AXK 1130 150 190 5 149000 1020000 350 1400 0.2320
AXK 1132 160 200 5 154000 1070000 330 1300 0.2460
