Universal Joint Type 2
KZ SERIES: 5 1510X 5-1206X 5-1508X
Category Universal Joint
MATERIAL : Chrome Steel SAE52100/100Cr6/GCr15, Stainless Steel 420 and 440
QUALITY : ABEC 1, ABEC3, ABEC5, ABEC7.
Type 2: 4-groove round bearings are specialized components designed with four precision-machined grooves on the outer surface, enhancing grip and alignment within housings or mounting blocks. These bearings support both radial and axial loads, offering smooth, low-friction rotation. Commonly used in agricultural machinery, automotive drivetrains, and industrial equipment, the grooves aid in secure positioning and improved load distribution. Their robust design ensures reliable performance in harsh operating environments, with minimal maintenance and extended service life.
Applications and industry: Automotive, Agricultural Machinery, Heavy Machinery

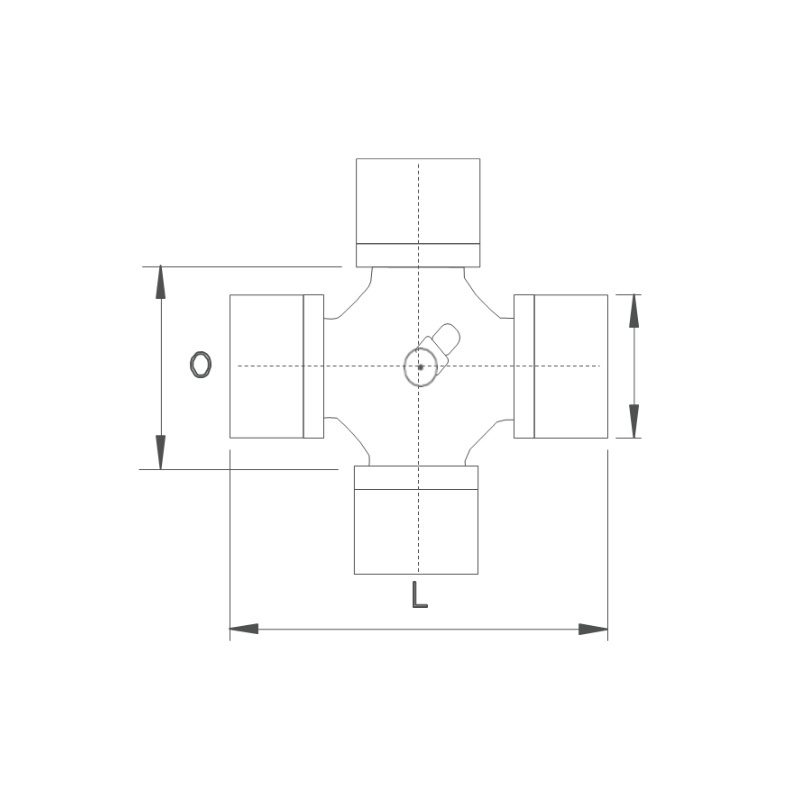

| Bearing Number | Inner Diameter (d) MM | Outer Diameter (D) MM | L |
|---|---|---|---|
| 5-1500X | 20 | 34.7 | 56.6 |
| U181 | 20 | 35 | - |
| GUN28 | 20.01 | 34.7 | - |
| RUJ1780 | 20.02 | 34.7 | - |
| GUM95 | 22 | 37.3 | - |
| 5-1514X | 22.5 | 34 | - |
| GUD88 | 22.5 | 34.9 | - |
| GUMZ-10 | 22.5 | 35 | - |
| GUSR-2 | 23 | 44.6 | - |
| 5-170X | 23.8 | 34.8 | 59.4 |
| 5-103X | 23.8 | 35 | - |
| U153 | 23.8 | 35 | - |
| 5-92X | 24.6 | 34.36 | - |
| U156 | 24.64 | 33.7 | - |
| 5-1503X | 25 | 39.8 | - |
| 5-1501X | 25 | 40 | - |
| GUN27 | 25 | 40 | - |
| U182 | 25 | 40 | - |
| GUS1 | 25 | 40.2 | - |
| 5-1504X | 25 | 41.2 | - |
| GUMZ-7 | 25 | 41.2 | - |
| GUN34 | 25 | 52 | - |
| RUJ1781SL | 25.02 | 40 | - |
| GUSR-4 | 25.1 | 40 | - |
| RUJ1786 | 25.4 | 38.5 | - |
| 5-105X | 25.4 | 39.5 | 65.4 |
| 5-100X | 25.4 | 39.5 | - |
| 5-2011X | 25.4 | 55 | - |
| Gu6200 | 25.4 | 55 | - |
| RUJ2030 | 25.4 | 55 | - |
| 5-1502X | 26 | 41.7 | 66.8 |
| RUJ1776SL | 26 | 41.76 | - |
| GUT13 | 26 | 42 | - |
| GUT-13 | 26 | 42 | - |
| GUN38 | 26 | 45.6 | - |
| 5-1508X | 26 | 53.6 | 79.4 |
| GUT-12 | 26 | 53.6 | - |
| U193 | 26 | 53.6 | - |
| RUJ2016 | 26.03 | 53.64 | - |
| GUMZ-9 | 26.5 | 48 | - |
| K1513 | 26.52 | 48 | - |
| Gu1020 | 26.97 | 52.45 | - |
| 5-456X | 27 | 38.3 | 62.38 |
| 5-242X | 27 | 41.8 | - |
| GUN46 | 27 | 45.9 | - |
| U102 | 27 | 52.44 | - |
| 5-260X | 27 | 52.5 | 81.76 |
| 5-74X | 27 | 52.5 | - |
| 5-1201X | 27 | 55.5 | 81.6 |
| 5-350X | 27 | 56.8 | - |
| U233 | 27 | 57.3 | - |
| 5-1200X | 27 | 57.4 | 81.7 |
| 5-1203X | 27 | 67.6 | - |
| 5-273X | 27 | 67.6 | - |
| U226 | 27 | 67.6 | - |
| U258 | 27.38 | 50.77 | - |
| 5-1307X | 27.4 | 49.4 | - |
| 5-1306X | 27.4 | 50.8 | 79 |
| RUJ2038 | 27.4 | 50.92 | - |
| Gu1720 | 28 | 44 | - |
| 5-1505X | 28 | 52.9 | - |
| GUN29 | 28 | 53 | - |
| K1507 | 28 | 55.6 | - |
| GUMZ-6 | 28 | 56 | - |
| RUJ2028 | 28.02 | 52.9 | - |
| GUD85 | 28.5 | 60.1 | - |
| U961 | 28.57 | 65.1 | - |
| U961 | 28.57 | 65.1 | - |
| 5-2532X | 28.6 | 49 | - |
| 5-3011X | 28.6 | 59.5 | - |
| U247 | 28.6 | 61.66 | - |
| 5-1309X | 28.6 | 63.9 | - |
| U245 | 28.6 | 65.1 | - |
| 5 1510X | 29 | 49 | - |
| GUT-17 | 29 | 49 | - |
| GUT-21 | 29 | 49 | - |
| GUT-23 | 29 | 49 | - |
| RUJ2100 | 29 | 49 | - |
| U925 | 29 | 49 | - |
| GUIS52 | 29 | 50 | - |
| U927 | 29 | 50 | - |
| GU7290 | 29.52 | 51.6 | - |
| GUD89 | 30 | 55.1 | - |
| GUM93 | 30 | 55.1 | - |
| GU2560 | 30 | 57 | - |
| U319 | 30.17 | 52.4 | - |
| U317 | 30.17 | 75.23 | - |
| 5-1206X | 30.18 | 76.2 | - |
| 5-297X | 30.2 | 52.5 | - |
| GU1740 | 31 | 45.1 | - |
| 5-1300X | 31.2 | 46 | - |
| GU2500 | 31.25 | 46 | - |
| U256 | 31.27 | 76.2 | 106.6 |
| 5-1301X | 31.3 | 71.5 | 82 |
| GUMZ-3/4 | 32 | 57 | - |
| U962 | 32 | 60.85 | 78 |
| 5-1511X | 32 | 61 | 78 |
| GUT-20 | 32 | 61 | - |
| GUN25 | 32 | 64 | 103.5 |
| GUN25 | 32 | 64 | - |
| RUJ3007 | 32 | 68.2 | - |
| SES01K | 34.092 | 72.2 | 91.6 |
| 5-332X | 34.9 | 76.2 | - |
| GUMZ-8 | 37 | 67 | - |
| U730 | 38 | 56.5 | - |
| GU7300 | 38 | 57.2 | - |
| 5-1506X | 38 | 57.2 | - |
| 5-12213X | 38.1 | 57 | - |
| GU7470 | 42 | 66 | - |
| 5-12022X | 42 | 66.3 | - |
| U747 | 42 | 66.4 | - |
| U747 | 42 | 66.4 | - |
| 5-12018X | 68 | 89 | - |
| U462/U992 | 68 | 89 | - |
