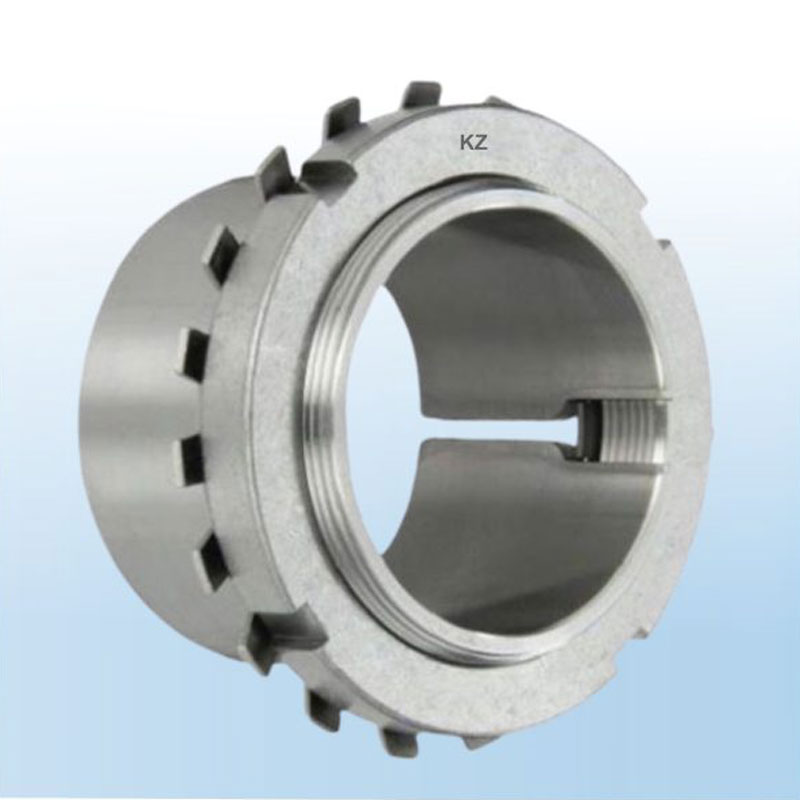

Adapter and withdrawal sleeves are used to locate bearings with a tapered bore on plain or stepped shafts. They facilitate bearing mounting and dismounting and, in many cases, simplify bearing arrangement design. This series of metric adapter assemblies accommodate standard small-bore bearings. They are the most commonly used method for locating tapered bore balls or roller bearings onto a cylindrical shaft. This series of adapters are used with 12 and 13 series self-aligning ball bearings, and 213 and 222 series spherical roller bearings.
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

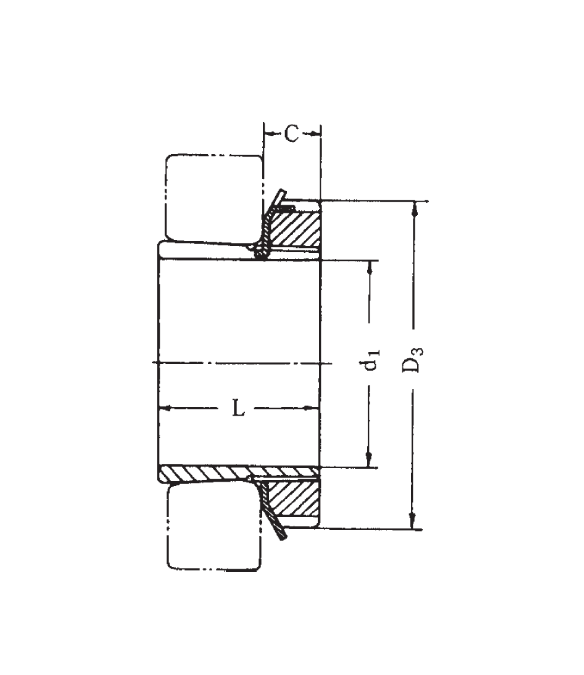

Bearing Number | L | H (MM) | HE | HS | HA | D3 | C (MM) | HE | HS | HA | Weight (KG) |
---|---|---|---|---|---|---|---|---|---|---|---|
H205 | 26 | 20 | 3/4 | - | - | 38 | 8 | HE 205 | - | - | 0.07 |
H206 | 27 | 25 | 1 | - | 15/16 | 45 | 8 | 6 | - | HA 206 | 0.099 |
H207 | 29 | 30 | - | 1 1/8 | 1 3/16 | 52 | 9 | - | HS 207 | 7 | 0.125 |
H208 | 31 | 35 | 1.25 | 1 3/8 | - | 58 | 10 | HE 208 | HS 208 | - | 0.174 |
H209 | 33 | 40 | 1.5 | 1 5/8 | 1 7/16 | 65 | 11 | 9 | 9 | HA 209 | 0.226 |
H210 | 35 | 45 | 1 3/4 | - | 1 11/16 | 70 | 12 | 10 | - | 10 | 0.274 |
H211 | 37 | 50 | 2 | 1 7/8 | 1 15/16 | 75 | 12 | HE 211 | HS 211 | HA 211 | 0.308 |
H212 | 38 | 55 | - | 2 1/8 | - | 80 | 13 | - | 12 | - | 0.346 |
H213 | 40 | 60 | 2 1/4 | 2 3/8 | 2 3/16 | 85 | 14 | 13 | 13 | 13 | 0.401 |
H214 | 41 | 60 | - | - | - | 92 | 14 | - | - | - | 0.55 |
H215 | 43 | 65 | 2 1/2 | 2 5/8 | 2 7/16 | 98 | 15 | HE 215 | HS 215 | HA 215 | 0.708 |
H216 | 46 | 70 | 2 3/4 | - | 2 11/16 | 105 | 17 | 16 | - | 16 | 0.881 |
H217 | 50 | 75 | 3 | 2 7/8 | 2 15/16 | 110 | 18 | HE 217 | HE 217 | HE 217 | 1.02 |
H218 | 52 | 80 | - | 3 1/8 | - | 120 | 18 | - | 18 | - | 1.18 |
H219 | 55 | 85 | 3 1/4 | - | - | 125 | 19 | 19 | - | - | 1.37 |
H220 | 58 | 90 | 3 1/2 | - | - | 130 | 20 | HE 220 | - | 1.49 | |
H221 | 60 | 95 | - | - | - | 140 | 20 | - | - | - | 1.7 |
H222 | 63 | 100 | 4 | - | - | 145 | 21 | 22 | - | - | 1.93 |
