H 200 H219

Technical Details

Bore Diameter (mm) d Outer Diameter (mm) D Width (mm) B Weight (Kg)
1.37

KZ SERIES : H205, H210, H217, H219, H222

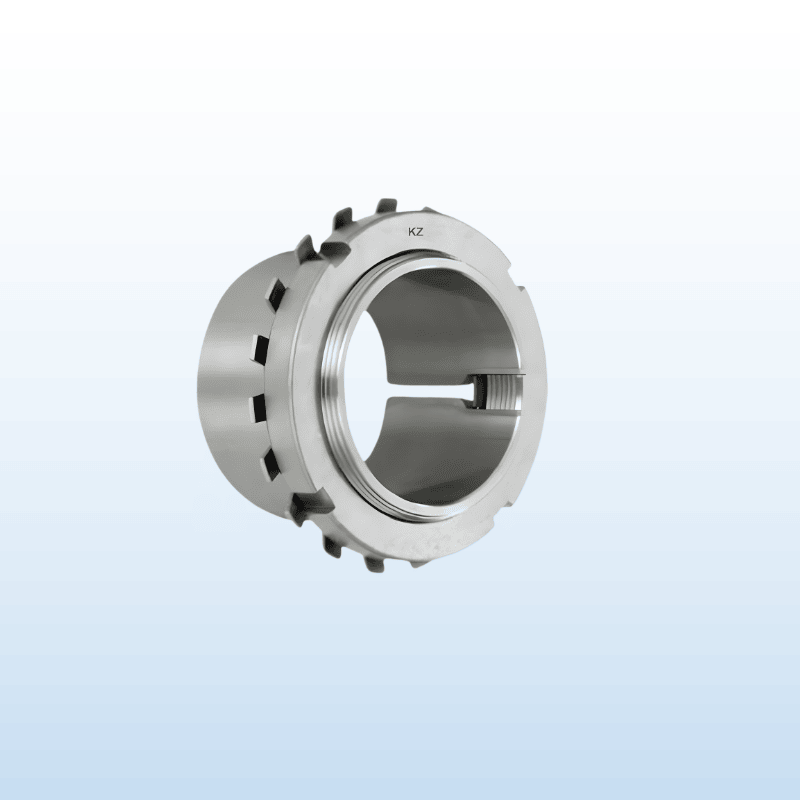

H219 Adapter and withdrawal sleeves are used to locate bearings with a tapered bore on plain or stepped shafts. They facilitate bearing mounting and dismounting and, in many cases, simplify bearing arrangement design. This series of metric adapter assemblies accommodate standard small-bore bearings. They are the most commonly used method for locating tapered bore balls or roller bearings onto a cylindrical shaft. This series of adapters are used with 12 and 13 series self-aligning ball bearings, and 213 and 222 series spherical roller bearings.

Applications and industry: AGRICULTUREAUTOMOTIVECEMENT INDUSTRYCRUSHER INDUSTRYHEAVY MACHINERY EQUIPMENTSHOME APPLIANCESMINING SECTORMETAL INDUSTRYFLUID MACHINERYTEXTILE INDUSTRY

Send query Buy Now
Bearing Number L H (MM) HE HS HA D3 C (MM) HE HS HA Weight (KG)
H205 26 20 3/4 - - 38 8 HE 205 - - 0.07
H206 27 25 1 - 15/16 45 8 6 - HA 206 0.099
H207 29 30 - 1 1/8 1 3/16 52 9 - HS 207 7 0.125
H208 31 35 1.25 1 3/8 - 58 10 HE 208 HS 208 - 0.174
H209 33 40 1.5 1 5/8 1 7/16 65 11 9 9 HA 209 0.226
H210 35 45 1 3/4 - 1 11/16 70 12 10 - 10 0.274
H211 37 50 2 1 7/8 1 15/16 75 12 HE 211 HS 211 HA 211 0.308
H212 38 55 - 2 1/8 - 80 13 - 12 - 0.346
H213 40 60 2 1/4 2 3/8 2 3/16 85 14 13 13 13 0.401
H214 41 60 - - - 92 14 - - - 0.55
H215 43 65 2 1/2 2 5/8 2 7/16 98 15 HE 215 HS 215 HA 215 0.708
H216 46 70 2 3/4 - 2 11/16 105 17 16 - 16 0.881
H217 50 75 3 2 7/8 2 15/16 110 18 HE 217 HE 217 HE 217 1.02
H218 52 80 - 3 1/8 - 120 18 - 18 - 1.18
H219 55 85 3 1/4 - - 125 19 19 - - 1.37
H220 58 90 3 1/2 - - 130 20 HE 220 - 1.49
H221 60 95 - - - 140 20 - - - 1.7
H222 63 100 4 - - 145 21 22 - - 1.93
