NUP Series

KZ SERIES : NUP203, NUP2204, NUP2304, NUP304, NUP406

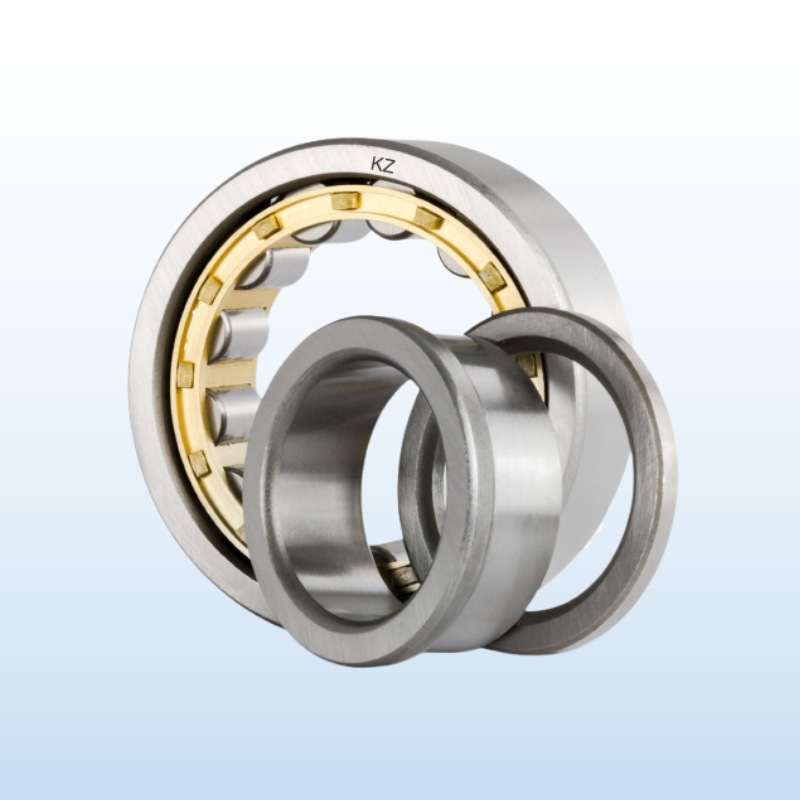

Cylindrical Roller Bearing

NUP Series has a flanged inner ring with a washer, these bearings can be used as fixed-end bearings. The outer ring of a NUP cylindrical bearing has two fixed ribs, whereas the inner ring of the cylindrical bearing has one fixed rib and one loose rib. This means that the NUP cylindrical bearing is able to axially locate the shaft in both directions. Single-row cylindrical roller bearings with a cage comprising cylindrical rollers caged between a solid outer and inner ring. These bearings have a high level of rigidity, can support heavy radial loads, and are suitable for high speeds.

Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

Send Query WhatsApp Us

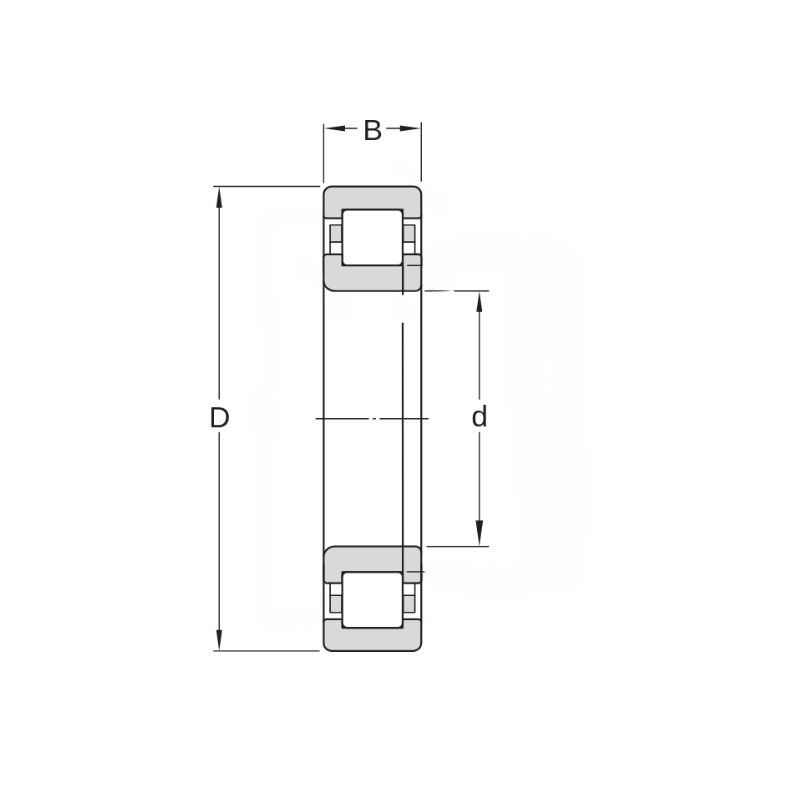

Bearing Number Inner Diameter (d) MM Outer Diameter (D) MM Width (B) MM Basic Load Rating (N) Dyn. C Basic Load Rating (N) Stat. C0 LIMITTING SPEED ( R/MIN ) LUBRICATION Grease LIMITTING SPEED ( R/MIN ) LUBRICATION Oil Weight (KG)
NUP203 17 40 12 17600 14600 17000 20000 0.073
NUP204 20 47 14 25800 22600 15000 18000 0.118
NUP205 25 52 15 29300 27700 13000 15000 0.146
NUP206 30 62 16 39100 37400 11000 13000 0.22
NUP207 35 72 17 50200 50200 9300 11000 0.322
NUP208 40 80 18 55700 55400 8300 9900 0.404
NUP209 45 85 19 63100 66400 7600 9200 0.463
NUP210 50 90 20 66100 71900 7100 8500 0.523
NUP211 55 100 21 86400 98700 6400 7700 0.684
NUP212 60 110 22 97700 107000 5800 6900 0.874
NUP213 65 120 23 108000 119000 5300 6400 1.106
NUP214 70 125 24 119000 137000 5000 6000 1.22
NUP215 75 130 25 130000 156000 4800 5700 1.35
NUP216 80 140 26 139000 167000 4400 5300 1.64
NUP217 85 150 28 167000 199000 4200 5000 2.04
NUP218 90 160 30 182000 217000 3900 4700 2.5
NUP219 95 170 32 221000 265000 3700 4400 3.08
NUP220 100 180 34 250000 306000 3500 4200 3.7
NUP222 110 200 38 293000 365000 3100 3700 5.16
NUP224 120 215 40 336000 421000 2800 3400 6.16
NUP226 130 230 40 364000 453000 2600 3200 6.95
NUP228 140 250 42 392000 514000 2400 2900 8.95
NUP230 150 270 45 448000 594000 2200 2600 11.27
NUP236 180 320 52 626000 852000 1800 2100 20.33
NUP240 200 360 58 766000 1060000 1600 1900 28.65
NUP244 220 400 65 766000 1080000 1400 1700 40.54
NUP248 240 440 72 949000 1340000 1200 1500 54.86
NUP2204 20 47 18 30600 28300 13000 18000 0.154
NUP2205 25 52 18 34900 34600 12000 15000 0.174
NUP2206 30 62 20 48900 49800 9700 13000 0.276
NUP2207 35 72 23 57500 63000 7500 9500 0.426
NUP2208 40 80 23 72300 77600 7400 9900 0.516
NUP2209 45 85 23 76100 84600 6900 9200 0.564
NUP2210 50 90 23 79700 91500 6400 8500 0.61
NUP2211 55 100 25 101000 122000 5800 7700 0.849
NUP2212 60 110 28 131000 157000 5200 6900 1.148
NUP2213 65 120 31 149000 181000 4800 6400 1.527
NUP2214 70 125 31 156000 194000 4500 6000 1.61
NUP2215 75 130 31 162000 207000 4300 5700 1.69
NUP2216 80 140 33 186000 243000 4000 5300 2.13
NUP2217 85 150 36 218000 279000 3700 5000 2.67
NUP2218 90 160 40 242000 314000 3500 4700 3.38
NUP2219 95 170 43 287000 371000 3300 4400 4.13
NUP2220 100 180 46 334000 444000 3100 4200 5.08
NUP2222 110 200 53 384000 517000 2800 3700 7.29
NUP2224 120 215 58 452000 619000 2600 3400 9.02
NUP2226 130 230 64 530000 737000 2400 3200 11.79
NUP2228 140 250 68 572000 835000 2200 2900 15.06
NUP2230 150 270 73 662000 982000 2000 2600 19.69
NUP2240 200 360 98 1220000 1870000 1400 1900 46.75
NUP2244 220 400 108 1130000 1810000 1200 1700 64.13
NUP2304 20 52 21 42000 38800 11000 16000 0.227
NUP2305 25 62 24 57000 56100 9100 14000 0.368
NUP2306 30 72 27 74600 77600 7800 12000 0.562
NUP2307 35 80 31 93100 10100 6900 10000 0.767
NUP2308 40 90 33 114000 122000 6100 9100 1.013
NUP2309 45 100 36 137000 153000 5400 8200 1.39
NUP2310 50 110 40 163000 187000 4900 7400 1.853
NUP2311 55 120 43 201000 233000 4500 6700 2.369
NUP2312 60 130 46 223000 262000 4100 6200 2.959
NUP2313 65 140 48 251000 287000 3800 5700 3.54
NUP2314 70 150 51 275000 323000 3600 5300 4.3
NUP2315 75 160 55 329000 395000 3300 5000 5.26
NUP2316 80 170 58 361000 431000 3100 4700 6.27
NUP2317 85 180 60 394000 485000 2900 4400 7.35
NUP2318 90 160 64 437000 534000 2800 4100 8.55
NUP2319 95 200 67 394000 496000 2600 4000 9.89
NUP2320 100 215 73 570000 717000 2400 3600 12.74
NUP2322 110 240 80 680000 880000 2200 3200 19.79
NUP2324 120 260 86 793000 1030000 2000 3000 24.33
NUP2326 130 280 93 920000 1230000 1800 2700 30.65
NUP2328 140 300 102 1020000 1380000 1700 2500 38.75
NUP2330 150 320 108 1180000 1600000 1500 2300 47.07
NUP304 20 52 15 31500 26900 12000 16000 0.161
NUP305 25 62 17 41600 37400 10000 14000 0.255
NUP306 30 72 19 53100 50200 8700 12000 0.38
NUP307 35 80 21 66600 65400 7700 10000 0.508
NUP308 40 90 23 83100 91500 6800 9100 0.699
NUP309 45 100 25 97400 98300 6100 8200 0.957
NUP310 50 110 27 110000 113000 5500 7400 1.211
NUP311 55 120 29 137000 143000 5100 6700 1.579
NUP312 60 130 31 150000 157000 4600 6200 1.969
NUP313 65 140 33 181000 191000 4300 5700 2.43
NUP314 70 150 35 205000 222000 4000 5300 2.95
NUP315 75 160 37 240000 263000 3700 5000 3.55
NUP316 80 170 39 259000 282000 3500 4700 4.22
NUP317 85 180 41 291000 330000 3300 4400 5.06
NUP318 90 160 43 316000 355000 3100 4100 5.76
NUP319 95 200 45 334000 387000 2900 3900 6.76
NUP320 100 215 47 379000 424000 2700 3600 8.16
NUP322 110 240 50 451000 525000 2400 3200 11.27
NUP324 120 260 55 528000 610000 2200 3000 14.11
NUP326 130 280 58 616000 736000 2000 2700 17.59
NUP328 140 300 62 663000 797000 1900 2500 21.48
NUP330 150 320 65 757000 922000 1700 2300 28.43
NUP406 30 90 23 62800 55000 7600 10000 0.793
NUP407 35 100 25 75200 68900 6600 8800 1.074
NUP408 40 110 27 97100 89100 6000 8000 1.369
NUP409 45 120 29 115000 112000 5400 7200 1.727
NUP410 50 130 31 139000 136000 4900 6600 2.117
NUP411 55 140 33 142000 138000 4600 6100 2.643
NUP412 60 150 35 178000 184000 4200 5700 3.18
NUP413 65 160 37 198000 203000 4000 5300 3.77
NUP414 70 180 42 246000 257000 3500 4700 5.54
NUP415 75 190 45 265000 274000 3300 4400 6.58
NUP416 80 200 48 302000 315000 3100 4200 7.66
NUP417 85 210 52 340000 350000 3000 4000 9.14
NUP418 90 225 54 374000 400000 2800 3700 10.84
NUP419 95 240 55 410000 444000 2600 3400 14.32
NUP420 100 250 58 458000 498000 2500 3300 14.74
NUP422 110 280 65 550000 621000 2200 2900 20.95
NUP424 120 310 72 690000 770000 1900 2600 29.49
NUP426 130 340 78 771000 876000 1800 2300 38.01
NUP428 140 360 82 874000 1020000 1600 2200 49.28
NUP430 150 380 85 930000 1120000 1500 2000 56.12
