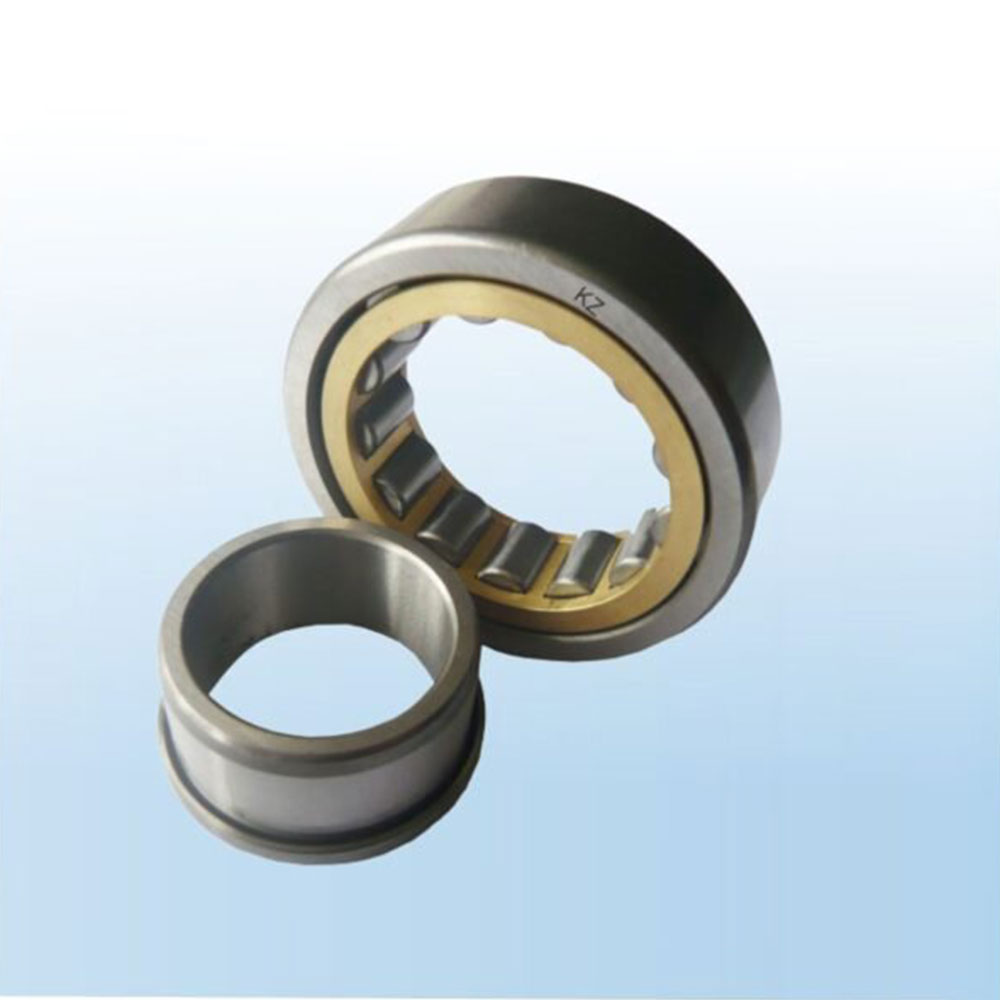

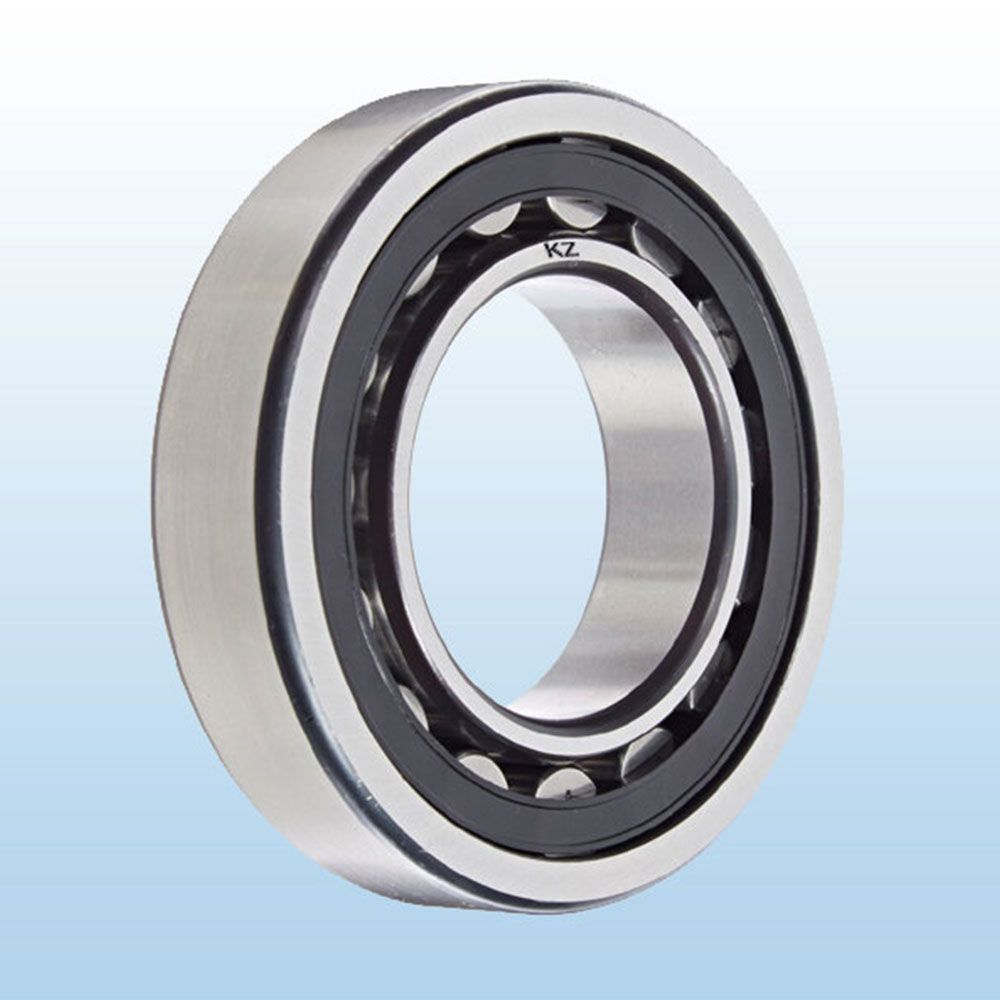

The NJ Series rollers in a single row cylindrical roller bearing are always guided between the integral 'open' flanges on one of the rings. These 'open' flanges combined with the specially designed and surface finished roller ends, provide improved lubrication, reduced friction, and consequently lower operating temperature. The ring with the integral flanges together with the cylindrical roller and cage assembly can be separated from the other ring. This results in easy mounting and dismounting, particularly where the load conditions are such that interference fits are required for both rings. Single row cylindrical roller bearings can accommodate heavy radial loads and high speeds.
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

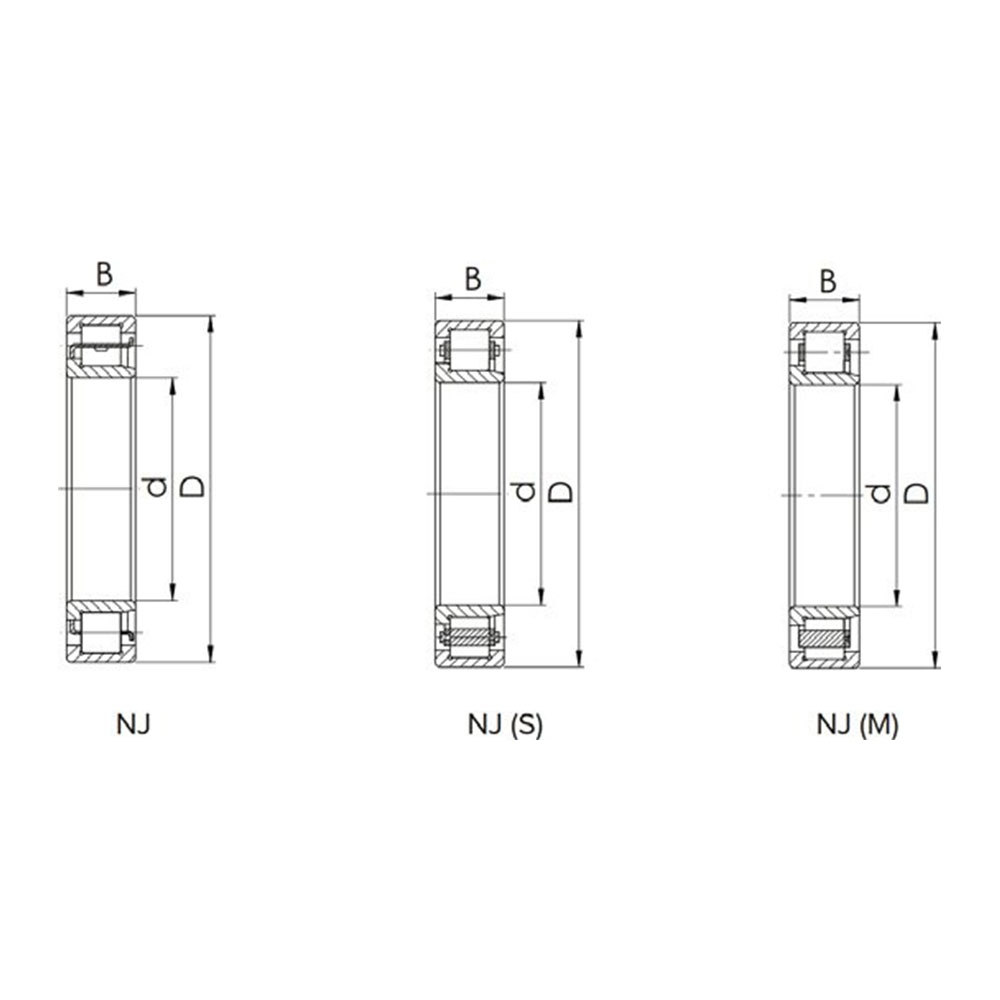

Bearing Number | Inner Diameter (d) MM | Outer Diameter (D) MM | Width (B) MM | Basic Load Rating (N) Dyn. C | Basic Load Rating (N) Stat. C0 | LIMITTING SPEED ( R/MIN ) LUBRICATION Grease | LIMITTING SPEED ( R/MIN ) LUBRICATION Oil | Weight (KG) |
---|---|---|---|---|---|---|---|---|
NJ1006 | 30 | 55 | 13 | 18700 | 18400 | 13000 | 15000 | 0.124 |
NJ1007 | 35 | 62 | 14 | 22600 | 23200 | 11000 | 13000 | 0.187 |
NJ1008 | 40 | 68 | 15 | 24900 | 25700 | 10000 | 12000 | 0.229 |
NJ1009 | 45 | 75 | 16 | 31000 | 33800 | 9200 | 11000 | 0.297 |
NJ1010 | 50 | 80 | 16 | 33600 | 36800 | 8400 | 9900 | 0.314 |
NJ1011 | 55 | 90 | 18 | 37400 | 43800 | 7600 | 8900 | 4.57 |
NJ1012 | 60 | 95 | 18 | 42100 | 50000 | 7000 | 8300 | 0.49 |
NJ1013 | 65 | 100 | 18 | 43300 | 52900 | 6600 | 7800 | 0.519 |
NJ1014 | 70 | 110 | 20 | 57900 | 70400 | 6100 | 7200 | 0.72 |
NJ1015 | 75 | 115 | 20 | 63600 | 78100 | 5700 | 6800 | 0.75 |
NJ1016 | 80 | 125 | 22 | 69300 | 86400 | 5300 | 6300 | 1.02 |
NJ1017 | 85 | 130 | 22 | 71400 | 91200 | 5100 | 6000 | 1.07 |
NJ1018 | 90 | 140 | 24 | 84700 | 109000 | 4700 | 5600 | 1.38 |
NJ1019 | 95 | 145 | 24 | 87200 | 115000 | 4500 | 5300 | 1.44 |
NJ1020 | 100 | 150 | 24 | 91000 | 120000 | 4300 | 5100 | 1.5 |
NJ1022 | 110 | 170 | 28 | 134000 | 171000 | 3800 | 4500 | 2.37 |
NJ1024 | 120 | 180 | 28 | 137000 | 181000 | 3500 | 4200 | 2.53 |
NJ1026 | 130 | 200 | 33 | 171000 | 238000 | 3200 | 3800 | 3.87 |
NJ1028 | 140 | 210 | 33 | 175000 | 250000 | 3000 | 3600 | 4.11 |
NJ1030 | 150 | 225 | 35 | 201000 | 281000 | 2800 | 3300 | 4.96 |
NJ202 | 15 | 35 | 11 | 12700 | 10400 | 19000 | 22000 | 0.049 |
NJ203 | 17 | 40 | 12 | 17600 | 14600 | 17000 | 20000 | 0.071 |
NJ204 | 20 | 47 | 14 | 25700 | 22600 | 15000 | 18000 | 0.115 |
NJ205 | 25 | 52 | 15 | 29300 | 27700 | 13000 | 15000 | 0.142 |
NJ206 | 30 | 62 | 16 | 39100 | 37400 | 11000 | 13000 | 0.214 |
NJ207 | 35 | 72 | 17 | 50200 | 50200 | 9300 | 11000 | 0.314 |
NJ208 | 40 | 80 | 18 | 55700 | 55400 | 8300 | 9900 | 0.394 |
NJ209 | 45 | 85 | 19 | 63100 | 66400 | 7600 | 9200 | 0.451 |
NJ210 | 50 | 90 | 20 | 66100 | 71900 | 7100 | 8500 | 0.51 |
NJ211 | 55 | 100 | 21 | 86400 | 98700 | 6400 | 7700 | 0.667 |
NJ212 | 60 | 110 | 22 | 97700 | 107000 | 5800 | 6900 | 0.852 |
NJ213 | 65 | 120 | 23 | 108000 | 119000 | 5300 | 6400 | 1.078 |
NJ214 | 70 | 125 | 24 | 119000 | 137000 | 5000 | 6000 | 1.19 |
NJ215 | 75 | 130 | 25 | 130000 | 156000 | 4800 | 5700 | 1.32 |
NJ216 | 80 | 140 | 26 | 139000 | 167000 | 4400 | 5300 | 1.6 |
NJ217 | 85 | 150 | 28 | 167000 | 199000 | 4200 | 5000 | 2.01 |
NJ218 | 90 | 160 | 30 | 182000 | 217000 | 3900 | 4700 | 2.45 |
NJ219 | 95 | 170 | 42 | 221000 | 265000 | 3700 | 4400 | 3.05 |
NJ220 | 100 | 180 | 34 | 250000 | 306000 | 3500 | 4200 | 3.65 |
NJ221 | 105 | 190 | 36 | 201000 | 241000 | 3300 | 3900 | 4.14 |
NJ222 | 20 | 47 | 18 | 30600 | 28300 | 13000 | 18000 | 0.15 |
NJ224 | 120 | 215 | 40 | 336000 | 421000 | 2800 | 3400 | 6.11 |
NJ226 | 130 | 230 | 40 | 364000 | 453000 | 2600 | 3200 | 6.78 |
NJ228 | 140 | 250 | 42 | 392000 | 514000 | 2400 | 2900 | 8.77 |
NJ230 | 150 | 270 | 45 | 448000 | 594000 | 2200 | 2600 | 10.99 |
NJ232 | 160 | 290 | 48 | 498000 | 666000 | 2000 | 2400 | 15.3 |
NJ234 | 170 | 310 | 52 | 603000 | 802000 | 1900 | 2200 | 19.3 |
NJ236 | 180 | 320 | 52 | 626000 | 852000 | 1800 | 2100 | 20.1 |
NJ2204 | 110 | 200 | 38 | 293000 | 365000 | 3100 | 3700 | 5.06 |
NJ2205 | 25 | 52 | 18 | 34900 | 34600 | 12000 | 15000 | 0.17 |
NJ2206 | 30 | 62 | 20 | 48900 | 49800 | 9700 | 13000 | 0.269 |
NJ2207 | 35 | 72 | 23 | 61600 | 65300 | 8300 | 11000 | 0.415 |
NJ2208 | 40 | 80 | 23 | 72300 | 77600 | 7400 | 9900 | 0.503 |
NJ2209 | 45 | 85 | 23 | 76100 | 84600 | 6900 | 9200 | 0.55 |
NJ2210 | 50 | 90 | 23 | 79700 | 91500 | 6400 | 8500 | 0.595 |
NJ2211 | 55 | 100 | 25 | 101000 | 122000 | 5800 | 7700 | 0.827 |
NJ2212 | 60 | 110 | 28 | 131000 | 157000 | 5200 | 6900 | 1.119 |
NJ2213 | 65 | 120 | 31 | 149000 | 181000 | 4800 | 6400 | 1.488 |
NJ2214 | 70 | 125 | 31 | 156000 | 194000 | 4500 | 6000 | 1.57 |
NJ2215 | 75 | 130 | 31 | 162000 | 207000 | 4300 | 5700 | 1.65 |
NJ2216 | 80 | 140 | 33 | 186000 | 243000 | 4000 | 5300 | 2.08 |
NJ2217 | 85 | 150 | 36 | 218000 | 279000 | 3700 | 5000 | 2.62 |
NJ2218 | 90 | 160 | 40 | 232000 | 314000 | 3500 | 4700 | 3.31 |
NJ2219 | 95 | 170 | 43 | 287000 | 371000 | 3300 | 4400 | 4 |
NJ2220 | 100 | 180 | 46 | 334000 | 444000 | 3100 | 4200 | 4.99 |
NJ2222 | 110 | 200 | 53 | 384000 | 517000 | 2800 | 3700 | 7.15 |
NJ2224 | 120 | 215 | 58 | 452000 | 619000 | 2600 | 3400 | 9.3 |
NJ2226 | 130 | 230 | 64 | 530000 | 737000 | 2400 | 3200 | 11.55 |
NJ2228 | 140 | 250 | 68 | 572000 | 835000 | 2200 | 2900 | 14.7 |
NJ2230 | 150 | 270 | 73 | 662000 | 982000 | 2000 | 2600 | 19.5 |
NJ2232 | 160 | 290 | 80 | 809000 | 1190000 | 1800 | 2400 | 24.4 |
NJ2234 | 170 | 310 | 86 | 967000 | 1410000 | 1700 | 2200 | 30 |
NJ2236 | 180 | 320 | 86 | 1010000 | 1510000 | 1600 | 2100 | 32 |
NJ2305 | 25 | 62 | 24 | 53200 | 54500 | 9000 | 12000 | 0.36 |
NJ2306 | 30 | 72 | 27 | 70000 | 75500 | 8000 | 10000 | 0.54 |
NJ2307 | 35 | 80 | 31 | 87500 | 98200 | 7000 | 9000 | 0.74 |
NJ2308 | 40 | 90 | 33 | 105000 | 118000 | 6300 | 8000 | 1 |
NJ2309 | 45 | 100 | 36 | 130000 | 152000 | 5600 | 7000 | 1.34 |
NJ2310 | 50 | 110 | 40 | 155000 | 185000 | 5300 | 6700 | 1.79 |
NJ2311 | 55 | 120 | 43 | 190000 | 228000 | 4800 | 6400 | 2.3 |
NJ2312 | 60 | 130 | 46 | 223000 | 262000 | 4100 | 6200 | 2.9 |
NJ2313 | 65 | 140 | 48 | 251000 | 287000 | 3800 | 5700 | 3.47 |
NJ2314 | 70 | 150 | 51 | 275000 | 323000 | 3600 | 5300 | 4.21 |
NJ2315 | 75 | 160 | 35 | 329000 | 395000 | 3300 | 5000 | 5.15 |
NJ2316 | 80 | 170 | 58 | 361000 | 431000 | 3100 | 4700 | 6.14 |
NJ2317 | 85 | 180 | 60 | 384000 | 485000 | 2900 | 4400 | 7.2 |
NJ2318 | 90 | 160 | 64 | 437000 | 534000 | 2800 | 4100 | 8.33 |
NJ2319 | 95 | 200 | 67 | 394000 | 469000 | 2600 | 4000 | 9.67 |
NJ2320 | 100 | 215 | 73 | 570000 | 717000 | 2400 | 3600 | 12.5 |
NJ2322 | 110 | 240 | 80 | 680000 | 880000 | 2200 | 3200 | 19.5 |
NJ2324 | 120 | 260 | 86 | 793000 | 1030000 | 2000 | 3000 | 23.8 |
NJ2326 | 130 | 280 | 93 | 920000 | 1230000 | 1800 | 2700 | 29.9 |
NJ2328 | 140 | 300 | 102 | 1020000 | 1380000 | 1700 | 2500 | 37.9 |
NJ2330 | 150 | 320 | 108 | 1180000 | 1600000 | 1500 | 2300 | 46.2 |
NJ2332 | 160 | 340 | 114 | 1310000 | 1820000 | 1400 | 2100 | 55 |
NJ2334 | 170 | 360 | 120 | 1220000 | 1750000 | 1300 | 2000 | 65.5 |
NJ2336 | 180 | 380 | 126 | 1210000 | 1780000 | 1200 | 1600 | 75 |
NJ305 | 25 | 62 | 17 | 38500 | 35800 | 9000 | 12000 | 0.25 |
NJ306 | 30 | 72 | 19 | 49200 | 48200 | 8000 | 10000 | 0.38 |
NJ307 | 35 | 80 | 21 | 62200 | 64200 | 7000 | 9000 | 0.5 |
NJ308 | 40 | 90 | 23 | 76800 | 77800 | 6300 | 8000 | 0.68 |
NJ309 | 45 | 100 | 25 | 93000 | 98000 | 5600 | 7000 | 0.93 |
NJ310 | 50 | 110 | 27 | 105000 | 112000 | 5300 | 6700 | 1.2 |
NJ311 | 55 | 120 | 29 | 128000 | 138000 | 4800 | 6400 | 1.53 |
NJ312 | 60 | 130 | 31 | 150000 | 157000 | 4600 | 6200 | 1.92 |
NJ313 | 65 | 140 | 33 | 181000 | 191000 | 4300 | 5700 | 2.38 |
NJ314 | 70 | 150 | 35 | 205000 | 222000 | 4000 | 5300 | 2.9 |
NJ315 | 75 | 160 | 37 | 240000 | 263000 | 3700 | 5000 | 3.48 |
NJ316 | 80 | 170 | 39 | 259000 | 282000 | 3500 | 4700 | 4.15 |
NJ317 | 85 | 180 | 41 | 291000 | 330000 | 3300 | 4400 | 4.97 |
NJ318 | 90 | 160 | 43 | 316000 | 355000 | 3100 | 4100 | 5.65 |
NJ319 | 95 | 200 | 45 | 334000 | 387000 | 2900 | 3900 | 6.6 |
NJ320 | 100 | 215 | 47 | 379000 | 424000 | 2700 | 3600 | 7.99 |
NJ322 | 110 | 240 | 50 | 451000 | 525000 | 2400 | 3200 | 11.1 |
NJ324 | 120 | 260 | 55 | 528000 | 610000 | 2200 | 3000 | 14 |
NJ326 | 130 | 280 | 58 | 616000 | 736000 | 2000 | 2700 | 17.2 |
NJ328 | 140 | 300 | 62 | 663000 | 797000 | 1900 | 2500 | 21.1 |
NJ330 | 150 | 320 | 65 | 757000 | 922000 | 1700 | 2300 | 27.7 |
NJ332 | 160 | 340 | 68 | 857000 | 1050000 | 1600 | 2100 | 32.9 |
NJ334 | 170 | 361 | 73 | 809000 | 1010000 | 1400 | 2000 | 40.1 |
NJ336 | 180 | 380 | 75 | 835000 | 1100000 | 1200 | 1600 | 43.8 |
NJ340 | 200 | 420 | 80 | 972000 | 1290000 | 1000 | 1400 | 58 |
NJ344 | 220 | 460 | 88 | 1080000 | 1465000 | 900 | 1200 | 77 |
NJ406 | 30 | 90 | 23 | 62800 | 55000 | 7600 | 10000 | 0.773 |
NJ407 | 35 | 100 | 25 | 75200 | 68900 | 6600 | 8800 | 1.047 |
NJ408 | 40 | 110 | 27 | 97100 | 89100 | 6000 | 8000 | 1.334 |
NJ409 | 45 | 120 | 29 | 115000 | 112000 | 5400 | 7200 | 1.683 |
NJ410 | 50 | 130 | 31 | 139000 | 136000 | 4900 | 6600 | 2.063 |
NJ411 | 55 | 140 | 33 | 142000 | 138000 | 4600 | 6100 | 2.576 |
NJ412 | 60 | 150 | 35 | 178000 | 184000 | 4200 | 5700 | 3.099 |
NJ413 | 65 | 160 | 37 | 198000 | 203000 | 4000 | 5300 | 3.67 |
NJ414 | 70 | 180 | 42 | 246000 | 257000 | 3500 | 4700 | 5.4 |
NJ415 | 75 | 190 | 45 | 265000 | 274000 | 3300 | 4400 | 6.41 |
NJ416 | 80 | 200 | 48 | 302000 | 315000 | 3100 | 4200 | 7.47 |
NJ417 | 85 | 210 | 52 | 340000 | 350000 | 3000 | 4000 | 8.91 |
NJ418 | 90 | 225 | 54 | 374000 | 400000 | 2800 | 3700 | 10.57 |
NJ419 | 95 | 240 | 55 | 410000 | 444000 | 2600 | 3400 | 13.96 |
NJ420 | 100 | 250 | 58 | 458000 | 498000 | 2500 | 3300 | 14.37 |
NJ422 | 110 | 280 | 65 | 550000 | 621000 | 2200 | 2900 | 20.32 |
NJ424 | 120 | 310 | 72 | 690000 | 770000 | 1900 | 2600 | 28.74 |
NJ426 | 130 | 340 | 78 | 771000 | 876000 | 1800 | 2300 | 37.05 |
NJ428 | 140 | 360 | 82 | 874000 | 1020000 | 1600 | 2200 | 48.03 |
NJ430 | 150 | 380 | 85 | 930000 | 1120000 | 1500 | 2000 | 54.7 |
