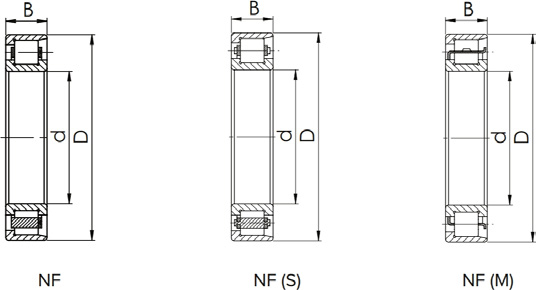

• NF Series Line Drawing | KG Bearing
  • NF Series Line Drawing | KG Bearing

NF Series

KZ SERIES : NF202, NF305, NF406, NF2305

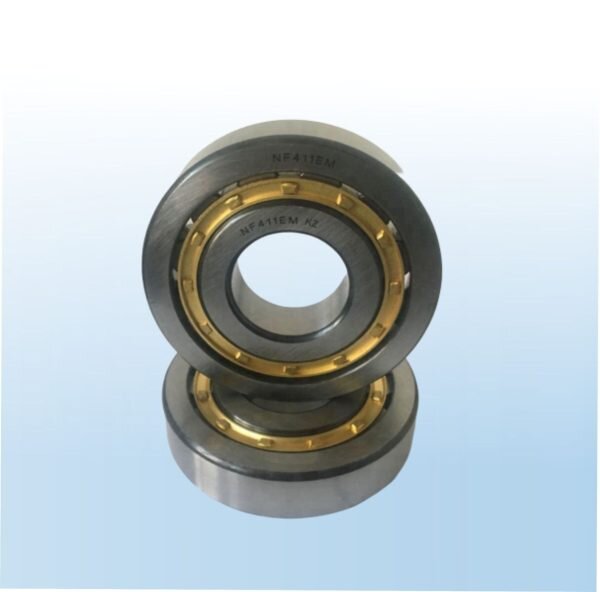

Cylindrical Roller Bearing

NF Series has Outer Ring Slides One Way. Cylindrical bearing type NF has single-ribbed outer and double-ribbed inner rings and can support heavy radial loads, as well as light unidirectional thrust loads up to 10 percent of the radial load. The thrust load is transmitted between the diagonally opposed rib faces in a sliding rather than a rolling motion. The design features an outer ring with one integral rib and an inner ring with two ribs.

Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

Send Query WhatsApp Us
Bearing Number Inner Diameter (d) MM Outer Diameter (D) MM Width (B) MM Basic Load Rating (N) Dyn. C Basic Load Rating (N) Stat. C0 LIMITTING SPEED ( R/MIN ) LUBRICATION Grease LIMITTING SPEED ( R/MIN ) LUBRICATION Oil Weight (KG)
NF202 15 35 11 13500 11600 20000 23000 0.051
NF203 17 40 12 14800 12100 18000 21000 0.072
NF204 20 47 14 15400 12700 15000 18000 0.117
NF205 25 52 15 17700 15700 13000 16000 0.142
NF206 30 62 16 23500 21500 11000 13000 0.216
NF207 35 72 17 33600 31500 9500 10000 0.317
NF208 40 80 18 43800 42900 8300 10000 0.395
NF209 45 85 19 46100 46900 7700 9200 0.461
NF210 50 90 20 48200 51000 7100 8500 0.517
NF211 55 100 21 58000 62300 6400 7700 0.69
NF212 60 110 22 71900 79900 5800 7000 0.888
NF213 65 120 23 83800 94400 5400 6400 1.132
NF214 70 125 24 83300 95200 5100 6100 1.241
NF215 75 130 25 101000 118000 4800 5800 1.338
NF216 80 140 26 106000 122000 4500 5400 1.628
NF217 85 150 28 121000 140000 4200 5000 2.05
NF218 90 160 30 152000 178000 3900 4700 2.46
NF219 95 170 32 165000 195000 3700 4400 3.02
NF220 100 180 34 183000 217000 3500 4200 3.65
NF221 105 190 36 201000 241000 3300 3900 4.31
NF222 110 200 38 241000 290000 3100 3700 5.01
NF228 140 250 42 324000 421000 2400 2900 8.9
NF230 150 270 45 374000 492000 2200 2700 11
NF2305 25 62 24 38500 39200 9000 12000 0.37
NF2306 30 72 27 46500 47500 8000 10000 0.6
NF2307 35 80 31 54800 57000 7000 9000 0.85
NF2308 40 90 33 70800 76800 6300 8000 1.1
NF2309 45 100 36 91500 100000 5600 7000 1.5
NF2310 50 110 40 112000 132000 5300 6700 1.9
NF2311 55 120 43 130000 148000 4800 6500 2.4
NF304 20 52 15 23100 19200 12000 16000 0.158
NF305 25 62 17 29300 25200 10000 14000 0.26
NF306 30 72 19 38600 35200 8700 12000 0.387
NF307 35 80 21 49600 46900 7900 10000 0.515
NF308 40 90 23 58600 56900 6900 9100 0.709
NF309 45 100 25 78800 77500 6200 8300 0.938
NF310 50 110 27 92200 93400 5600 7500 1.241
NF311 55 120 29 111000 111000 5100 6800 1.553
NF312 60 130 31 124000 126000 4700 6300 1.97
NF313 65 140 33 137000 139000 4300 5800 2.41
NF314 70 150 35 162000 168000 4000 5400 2.94
NF315 75 160 37 194000 205000 3800 5000 3.5
NF316 80 170 39 195000 207000 3500 4700 4.23
NF317 85 180 41 225000 247000 3300 4500 4.88
NF318 90 190 43 243000 265000 3100 4200 5.81
NF319 95 200 45 277000 311000 3000 4000 6.69
NF320 100 215 47 323000 337000 2800 3700 8.3
NF321 105 225 49 366000 417000 2600 3500 8.76
NF322 110 240 50 352000 428000 2000 2800 9.46
NF324 120 260 55 458000 551000 2200 3000 14.13
NF326 130 280 58 564000 667000 2100 2700 17.7
NF328 140 300 62 623000 746000 1900 2500 21.6
NF330 150 320 65 663000 807000 1800 2300 28.5
NF332 160 340 68 698000 876000 1600 2200 31.7
NF406 30 90 23 62800 55000 7600 10000 0.75
NF407 35 100 25 75200 68900 6600 8800 1.1
NF408 40 110 27 97100 89100 6000 8000 1.41
NF409 45 120 29 115000 112000 5400 7200 1.77
NF410 50 130 31 139000 136000 4900 6600 2.17
NF411 55 140 33 142000 138000 4600 6100 2.71
NF412 60 150 35 178000 184000 4200 5700 3.26
NF413 65 160 37 198000 203000 4000 5300 3.86
NF414 70 180 42 246000 257000 3500 4700 5.68
NF415 75 190 45 265000 274000 3300 4400 6.74
NF416 80 200 48 302000 315000 3100 4200 7.85
NF417 85 210 52 340000 350000 3000 4000 9.36
NF418 90 225 54 374000 400000 2800 3700 11.11
NF419 95 240 55 410000 444000 2600 3400 14.67
NF420 100 250 58 458000 498000 2500 3300 15.1
NF421 105 260 60 471000 510000 2400 3100 20.61
NF422 110 280 65 550000 621000 2200 2900 21.47
NF424 120 310 72 690000 770000 1900 2600 30.16
NF426 130 340 78 771000 876000 1800 2300 39
NF428 140 360 82 874000 1020000 1600 2200 50.5
NF430 150 380 85 930000 1120000 1500 2000 57.4
NF428 140 360 82 874000 1020000 1600 2200 50.5
NF430 150 380 85 930000 1120000 1500 2000 57.4
