Rod End Bearings Types, Applications, and Advantages

What is a Rod End?

A Rod End Bearing is a mechanical articulating joint used in a wide variety of applications where precision, flexibility, and reliability in motion are critical. At its core, a rod end consists of a spherical ball swivelling inside a circular casing, often threaded for easy installation. This ingenious design allows the rod end to compensate for misalignment and support both rotational and oscillating movements within mechanical systems.

Key Components of Rod Ends

Rod ends comprise several critical parts, including:

• Spherical Ball: Serves as the central pivot point, enabling angular and rotational movement. Made from hardened steel or stainless steel for strength.
• Inner Ring: Surrounds the ball and lends a smooth, wear-resistant surface.
• Housing (Body): The outer casing supports the bearing assembly and often includes a threaded shank (male or female).
• Securing Mechanism: Typically, a threaded stud or bolt ensures robust attachment within larger assemblies.

KZ Rod End Bearings offer high precision, smooth motion, and long service life. Designed for durability and flexibility, they ensure reliable performance in industrial, automotive, and automation applications.

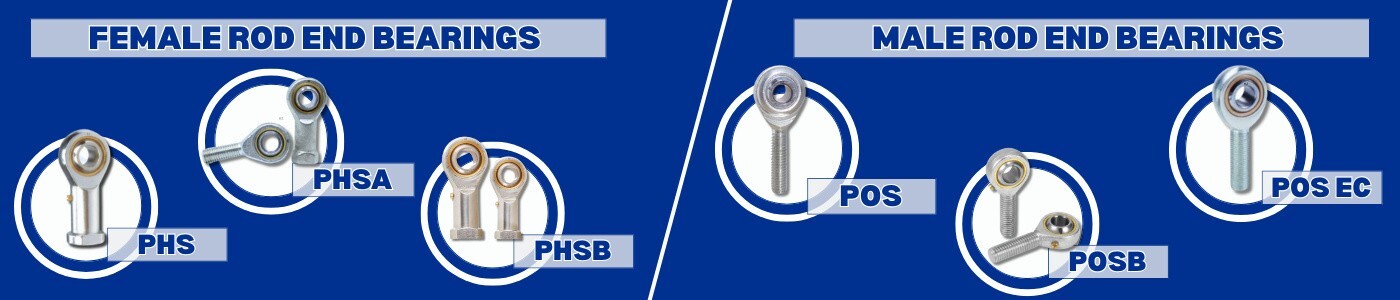

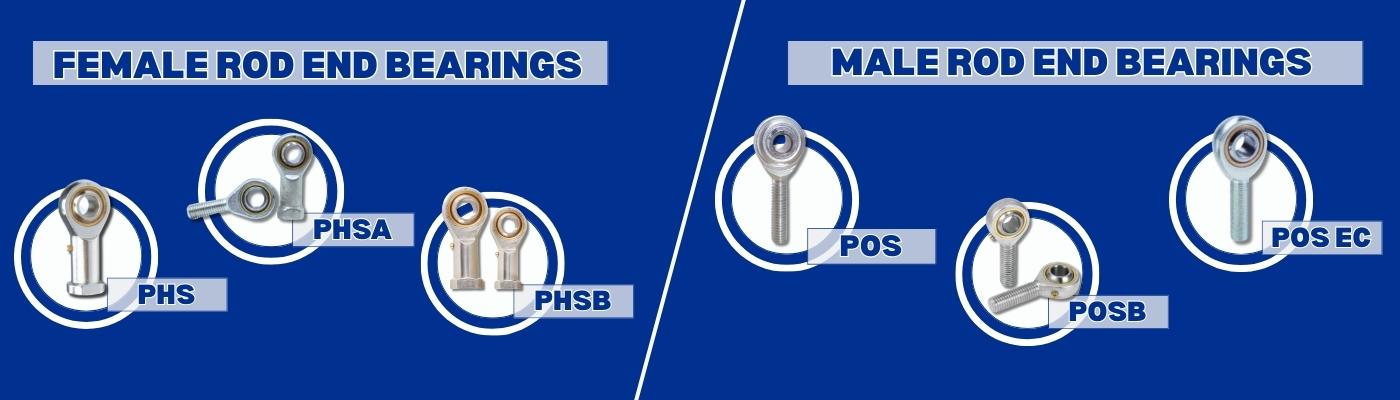

Types of KZ Rod End Bearings

Our KZ Rod end bearings are incredibly versatile and come in various forms to suit different mechanical needs:

Female Rod Ends:
These have an internal (inner) thread inside the body. Another threaded rod or bolt screws into them.

1. KZ PHS Type: PHS rod ends feature a female threaded shank and a spherical plain bearing. They are ideal for applications requiring compact design, smooth rotation, and moderate load support.

2. KZ PHSA Type: PHSA rod ends have a female thread with a compact, lightweight aluminium alloy body. They’re commonly used in pneumatic and automation systems where space-saving and corrosion resistance are essential.

3. KZ PHSB Type: PHSB rod ends are similar to PHS but with a grease nipple for lubrication. Designed for heavy-duty applications, they ensure smoother movement and extended service life under tough conditions.

4. KZ PHS EC Type: PHS EC rod ends feature a female thread with an extended contact surface. They provide better load distribution and enhanced durability for industrial and hydraulic systems requiring precise articulation.

Male Rod Ends:
These have an external (outer) thread on the shank. They screw into another part.

1. KZ POS Type: POS rod ends have a male threaded shaft and a spherical plain bearing. Ideal for control linkages and steering applications, they offer easy adjustability and high strength in compact form.

2. KZ POSB Type: POSB rod ends are grease able male-threaded bearings, perfect for high-load or repetitive motion environments. The integrated lubrication port ensures minimal friction and long-lasting performance.

3. KZ POS EC Type: POS EC rod ends include a male thread with an extended contact design for improved wear resistance. Suited for dynamic loads and applications with frequent angular movement or vibration.

Advantages of Using Rod Ends

Rod ends provide multiple benefits over traditional fixed bearings:

• Articulation & Flexibility: They allow smooth angular deviations and pivoting, reducing component stress and accommodating misalignments.
• High Load Capacity: Support both radial and axial loads, making them ideal for dynamic and heavy-duty applications.
• Durability: Constructed from robust materials to withstand harsh environments and extended use.
• Versatility: Available in numerous shapes and sizes, suitable for anything from automotive suspension systems to robotic arms and agricultural equipment.
• Low Maintenance: Self-lubricating variants require little or no servicing, which is crucial for machinery operating in hard-to-reach places.

Common Applications

The adaptability of rod ends means they feature in a broad spectrum of industries:

• Automotive and Motorsport: In suspension and steering linkages, offering precise control and movement. Aerospace and Aviation: Critical for aircraft control systems—ensuring reliability and safety under extreme stresses. Industrial Machinery: Found in robotic arms, hydraulic presses, and conveyor systems, facilitating controlled, repeatable motion. Agricultural Equipment: Enable durable, flexible linkage in tractors, harvesters, and construction tool

Selection & Maintenance Tips

When choosing a rod end, consider:

• Load requirements (axial, radial, moment). Environmental conditions (corrosive, dusty, wet). Maintenance capacity (self-lubricating vs. manual lubrication). Thread direction (left-hand or right-hand based on design needs).

Regular inspections for wear and lubrication (where required) will lengthen a rod end’s service life, safeguarding critical systems from unplanned downtime.

Conclusion:
Rod end bearings are compact, flexible components that quietly ensure the safety, stability, and efficiency of machinery across many sectors. Whether in the suspension of your car or the precision of an industrial robot, these marvels of mechanical design keep the wheels of innovation spinning
