SS-UCHAPL SS-UCHAPL209
Technical Details
| Bore Diameter (mm) d | Outer Diameter (mm) D | Width (mm) B | Weight (Kg) |
|---|---|---|---|
| 45 1-5/8 ; 1-11/16 ; 1-3/4 | 108 4-1/4 | 1.46 |
KZ SERIES: SS-UCHAPL206 SS-UCHAPL209 SS-UCHAPL212
Category Thermoplastic Bearing
MATERIAL : Housing unit: PBT glass-filled thermoplastic polyamide
INSERT BEARING : Stainless Steel 420.
SS-UCHAPL –The SS-UCHAPL bearing has an adjustable hanger-style housing, often used in suspended shaft applications such as conveyors. Made from corrosion-resistant thermoplastic and stainless steel, it’s suitable for overhead or central mounting. Its unique design offers angular adjustment, aligning itself automatically for optimal performance. This makes it ideal for long shafting in clean, humid, or chemical environments like food processing and bulk material handling.
Applications and industry: Automotive, Food and beverage processing, Packaging, Textile and printing.

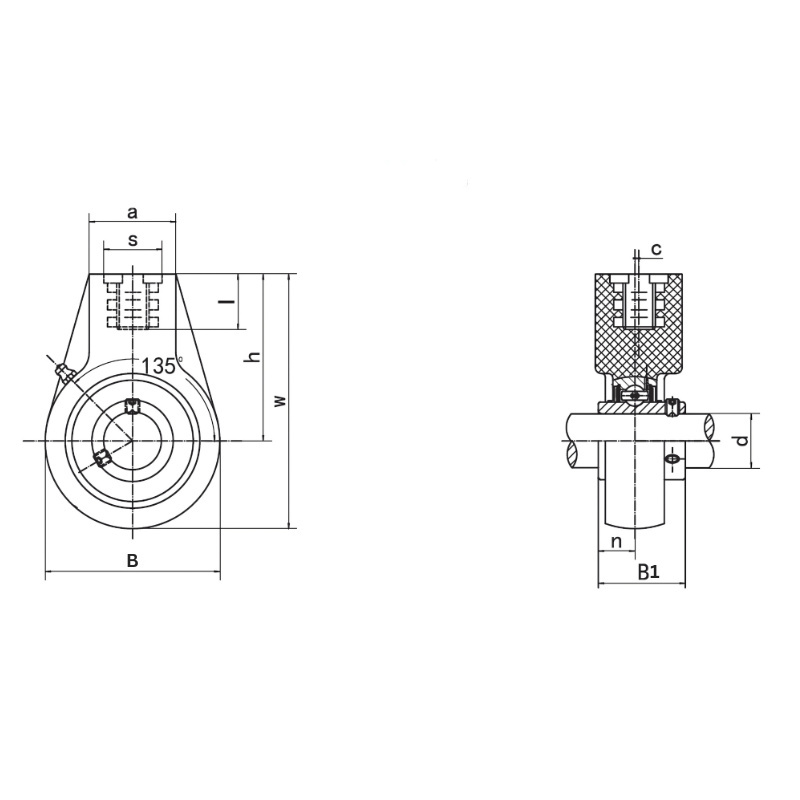

| Bearing Number | Inner Diameter (d) MM | Width (B) MM | Dimension-B1 (MM) | w | a | l | s | h | n | C (MM) | Weight (KG) | Housing No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SS-UCHAPL209 | 45 1-5/8 ; 1-11/16 ; 1-3/4 | 108 4-1/4 | 49.2 1.937 | 136 5-23/64 | 48 1-57/64 | 21 53/64 | M20 | 82 3-15/64 | 19 0.748 | 5.0 13/64 | 1.46 | HAPL209 |
| SS-UCHAPL210 | 50 1-13/ 16 ; 1-7/8 ; l-15/ 16 ; 2 | 118 4-41/64 | 51.6 2.032 | 142 5-19/32 | 48 1-57/64 | 21 53/64 | M24 | 83 3-17/64 | 19 0.748 | 5.0 13/64 | 1.67 | HAPL210 |
| SS-UCHAPL211 | 55 2 ;2-1/16 ; 2-1/8 ; 2-3/ 16 | 126 4-61/64 | 55.6 2.189 | 150 5-29/32 | 60 2-23/64 | 25 63/64 | M30 | 87 3-27/64 | 22.2 0.874 | 7.0 9/32 | 2.07 | HAPL211 |
| SS-UCHAPL212 | 60 2-1/4 ; 2-5/16 ; 2-3/8 ; 2-7/ 16 | 142 5-19/32 | 65.1 2.563 | 173 6-13/16 | 60 2-23/64 | 28 1-7/64 | M30 | 102 4- 1/64 | 25.4 1 | 9.0 23/64 | 2.63 | HAPL212 |
